Lectrosonics DSQD/AES3 - 4-Channel Digital Wireless Receiver with AES Output
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DSQD Half Rack Receiver with analog and digital AES3 audio outputs utilizes the Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless¨ systems with continuously tunable tracking filters covering 470.100 - 614.375 MHz.
The DSQD Receiver is a four-channel design with a host mainframe that contains the DSP, microprocessor, antenna multicoupler and control interface. Antenna ports on the rear panel accept input from remote antennas, with a loop-thru output to another mainframe using the internal multicoupler. A kit is also available to mount antenna inputs (BNC connectors) on the front panel.
Features:
- Four-channel, half-rack design
- Continuously tunable tracking filters covering 470.100 - 614.375 MHz
- Compatible with stereo and mono digitalÊtransmitters, and Digital Hybrid Wireless¨
transmitters.Ê - Built-in wideband antenna multicoupler with loop-thru for additional receivers
- Antenna bias power enabled from the front panel (fused and over-temperature protected)
- IR bi-directional port for transmitter setup
- Analog and Digital audio outputs with TalkBack (in applicable RX modes)
- Ethernet and USB interface

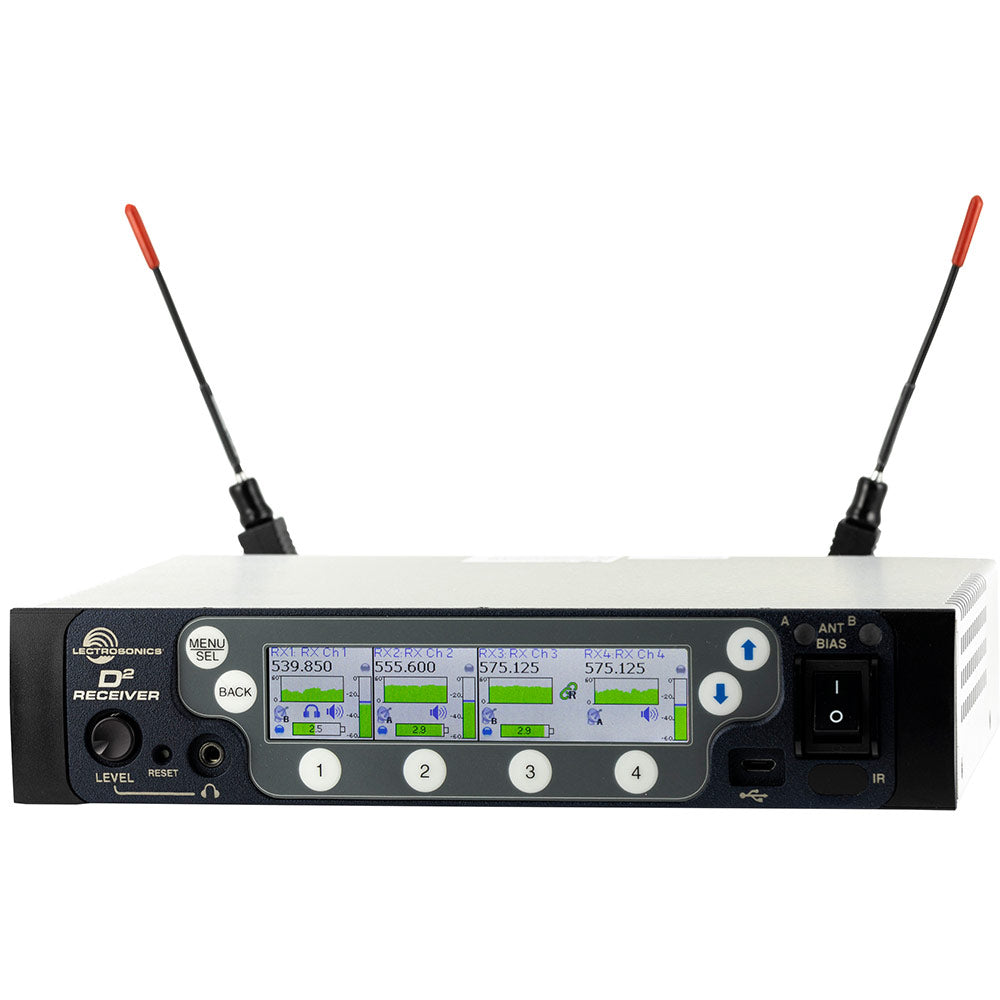

DSQD Front Panel
Headphone Monitor
Monitor any individual audio channel, or a stereo mix between pairs. Volume knob recesses into front panel.
LCD Control Panel
Easy navigation of all setup parameters is provided by a full color, backlit, LCD screen and membrane push buttons. The high resolution display provides fantastic monitoring of all receiver parameters.
2-Way IR
A bidirectional IrDA interface allows quick syncing of settings and encryption keys to transmitters with the push of a button.
USB Port
Easily interface to Wireless Designer or third-party software via the standard USB port, greatly accelerating setup time and expanding system monitoring capabilities.
LED Indicators
Two LEDs provide positive indication of antenna bias power state.
| Operating Spectrum | 470.100 - 614.375 MHz | |
| Frequency Adjustment Range | 25 kHz steps | |
| Sampling Size and Rate | 24-bit, 48 kHz | |
| Digital Modulation | 8PSK with Forward Error Correction | |
| Data Encoding | Proprietary ADPCM | |
| Encryption | AES 256-CTR (per FIPS 197 and FIPS 140-2) | |
| Latency | Digital Source | 1.0 ms plus Dante network |
| Analog Source | <1.4 ms | |
| Audio Performance | Frequency Response | 20 Hz - 20 KHz, +\-1 dB |
| THD+N | 0.05% (1 KHz @ -10 dBFS) | |
| Dynamic Range | 108 dB A-wtd, NR=NORMAL | |
| Adjacent Channel Isolation | >85 dB | |
| Diversity Technique | Noiseless antenna switching | |
| Sensitivity | -98 dBm for 10-5 BER | |
| Antenna Inputs/Outputs | Dual BNC female, 50 ohm impedance | |
| Audio Outputs | XLR | Balanced, -35 to +8 dBu |
| Headphone | 1/4 inch phone jack | |
| Dante | RJ45 | |
| External DC Power | 7 to 18 VDC; 2.5A (max) | |
| Weight | 1.95 lbs.; 880 grams | |
| Dimensions | 8.375 x 1.75 x 7.375 in. 213 x 44.5 x 187 mm. | |
Specifications subject to change without notice.
The DSQD Half Rack Receiver with analog and digital AES3 audio outputs utilizes the Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless¨ systems with continuously tunable tracking filters covering 470.100 - 614.375 MHz.
The DSQD Receiver is a four-channel design with a host mainframe that contains the DSP, microprocessor, antenna multicoupler and control interface. Antenna ports on the rear panel accept input from remote antennas, with a loop-thru output to another mainframe using the internal multicoupler. A kit is also available to mount antenna inputs (BNC connectors) on the front panel.
Features:
- Four-channel, half-rack design
- Continuously tunable tracking filters covering 470.100 - 614.375 MHz
- Compatible with stereo and mono digitalÊtransmitters, and Digital Hybrid Wireless¨
transmitters.Ê - Built-in wideband antenna multicoupler with loop-thru for additional receivers
- Antenna bias power enabled from the front panel (fused and over-temperature protected)
- IR bi-directional port for transmitter setup
- Analog and Digital audio outputs with TalkBack (in applicable RX modes)
- Ethernet and USB interface
DSQD Front Panel
Headphone Monitor
Monitor any individual audio channel, or a stereo mix between pairs. Volume knob recesses into front panel.
LCD Control Panel
Easy navigation of all setup parameters is provided by a full color, backlit, LCD screen and membrane push buttons. The high resolution display provides fantastic monitoring of all receiver parameters.
2-Way IR
A bidirectional IrDA interface allows quick syncing of settings and encryption keys to transmitters with the push of a button.
USB Port
Easily interface to Wireless Designer or third-party software via the standard USB port, greatly accelerating setup time and expanding system monitoring capabilities.
LED Indicators
Two LEDs provide positive indication of antenna bias power state.
| Operating Spectrum | 470.100 - 614.375 MHz | |
| Frequency Adjustment Range | 25 kHz steps | |
| Sampling Size and Rate | 24-bit, 48 kHz | |
| Digital Modulation | 8PSK with Forward Error Correction | |
| Data Encoding | Proprietary ADPCM | |
| Encryption | AES 256-CTR (per FIPS 197 and FIPS 140-2) | |
| Latency | Digital Source | 1.0 ms plus Dante network |
| Analog Source | <1.4 ms | |
| Audio Performance | Frequency Response | 20 Hz - 20 KHz, +\-1 dB |
| THD+N | 0.05% (1 KHz @ -10 dBFS) | |
| Dynamic Range | 108 dB A-wtd, NR=NORMAL | |
| Adjacent Channel Isolation | >85 dB | |
| Diversity Technique | Noiseless antenna switching | |
| Sensitivity | -98 dBm for 10-5 BER | |
| Antenna Inputs/Outputs | Dual BNC female, 50 ohm impedance | |
| Audio Outputs | XLR | Balanced, -35 to +8 dBu |
| Headphone | 1/4 inch phone jack | |
| Dante | RJ45 | |
| External DC Power | 7 to 18 VDC; 2.5A (max) | |
| Weight | 1.95 lbs.; 880 grams | |
| Dimensions | 8.375 x 1.75 x 7.375 in. 213 x 44.5 x 187 mm. | |
Specifications subject to change without notice.
