Lectrosonics HHC - Cardioid Condenser Capsule Head for HH Transmitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

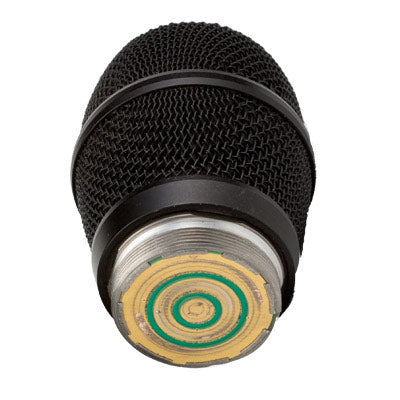

The HHC thread-on head for the HH transmitter employs a studio-quality cardioid electret condenser element. The relatively wide cardioid pattern is suitable for interviews, vocals and general instrument miking. The HHC exhibits excellent transient response and even pattern control. The grille basket for the HHC is made from heat-treated steel which is then nickel plated for corrosion resistance then powder coated with the same durable finish as the HH transmitter.
| Operating frequencies | |
| Block 470 | 470.100 - 495.600 |
| Block 19 | 486.400 - 511.900 |
| Block 20 | 512.000 - 537.500 |
| Block 21 | 537.600 - 563.100 |
| Block 22 | 563.200 - 588.700 |
| Block 23 | 588.800 - 614.300 |
| Block 24 | 614.400 - 639.900 |
| Block 25 | 640.000 - 665.500 |
| Block 26 | 665.600 - 691.100 |
| Frequency selection | 256 frequencies in 100 kHz steps (except block 23) |
| RF Power output | Selectable at 50 or 100 mW |
| Pilot tone | 25 to 32 kHz frequency (400 Series only); 5 kHz deviation |
| Frequency stability | ± 0.002% |
| Deviation | ± 75 kHz (max) |
| Spurious radiation | 90 dB below carrier |
| Operating temperature range | -30Á C to +60Á C |
| Input compressor | Dual envelope compressor,>30 dB range |
| Gain control range | 45 dB; semi-log menu-driven control; 1 dB steps |
| Modulation indicators | Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation, LCD bar-graph indicator Frequency response 40 Hz to 20 kHz (+/- 1dB) |
| Low frequency roll-off | -3 dB @35, 50 and 70 Hz; selectable; 36 dB/octave |
| Controls | |
| External | Programmable mute/talkback button |
| Battery compartment | Power, mute disable, menu/select, back and up/down arrow buttons for menu selection and settings. |
| Battery | 2x AA with polarity protection and battery ejector |
| Battery life | At 100mW: 5.5 hours (alkaline); 8-10 hours (lithium) (The HH transmits battery status to Lectrosonics 200 or 400 Series receivers.) |
| Capsule Interface | 1.25î opening and 28 thread pitch |
| Power available | 5V, 25 mA max |
| Input impedance | 1000 Ohms |
| Weight | 11.4 oz. with lithium batteries and HHC capsule |
| Dimensions | 9.5î long x 1.97î diameter at largest point |
