Lectrosonics HM162 - Dual Capsule Noise Canceling Headset Microphone (2.5mm Plug)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

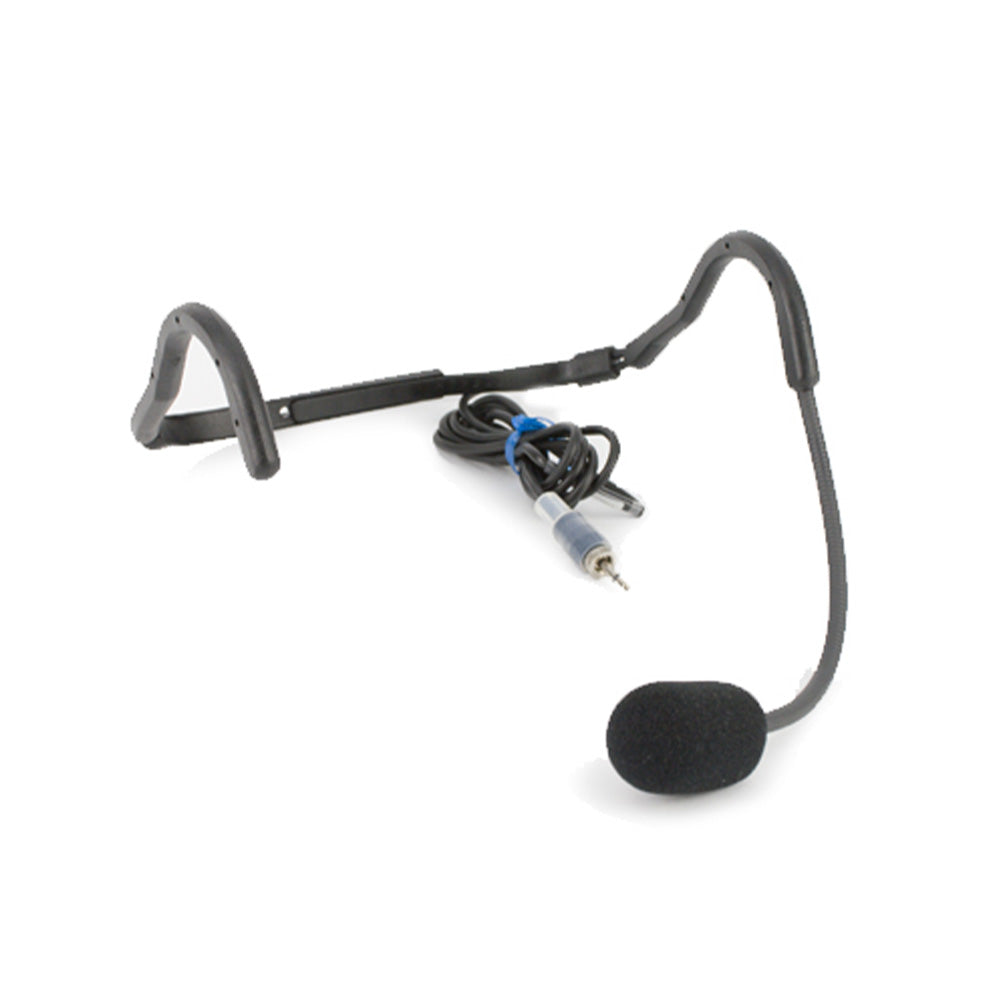

The HM162 headset microphone is a lightweight, noise-cancelling design for use with high output PA systems. The comfortable, over-the-ear headband and flexible boom place the pickup capsule in an optimum location just to the left of the user's mouth. The headband keeps the pickup in this position as the user moves about, leaving the hands free for other tasks.
A bi-directional, dual-element, noise cancelling microphone capsule rejects extraneous sound and emphasizes the user's voice for maximum gain before feedback even in close proximity to sound system loudspeakers.
The lightweight headband includes an adjustable, elastic neckband to provide a comfortable fit around the back of the head. The over the ear design also allows the user to comfortably wear a cap or hat without interfering with the operation of the microphone.
The HM162 is furnished with a locking micro connector for use with Lectrosonics VHF belt pack wireless transmitters. Rugged materials are used throughout the assembly to withstand the rigors of heavy use.
Features:
- Over the ear design for hands-free use
- Dual-element, noise cancelling mic capsule
- Improved gain before feedback with high output sound systems
- Comfortable, slim-line design for long-term use
- Rugged mic boom and suspension
| Pickup Type | Back electret condenser |
| Polar Pattern | Bi-directional, noise cancelling |
| Bias Requirements | +1.3 to +20V DC |
| Current drain | 50 uA |
| Wiring configuration | ´ Red: + DC bias ´ White: audio + signal ´ Shield: Audio ground |
| Frequency response | 200 - 6000 Hz (2 cm, close-talking) |
| Maximum input level | 120 dB SPL |
| Waterproofing | Secondary diaphragm |
| Boom length | 4.5 inches |
| Cable length | 44 inches |
| Weight | 1.6 ozs. |
| Connector | 2.5 mm Locking micro |
The HM162 headset microphone is a lightweight, noise-cancelling design for use with high output PA systems. The comfortable, over-the-ear headband and flexible boom place the pickup capsule in an optimum location just to the left of the user's mouth. The headband keeps the pickup in this position as the user moves about, leaving the hands free for other tasks.
A bi-directional, dual-element, noise cancelling microphone capsule rejects extraneous sound and emphasizes the user's voice for maximum gain before feedback even in close proximity to sound system loudspeakers.
The lightweight headband includes an adjustable, elastic neckband to provide a comfortable fit around the back of the head. The over the ear design also allows the user to comfortably wear a cap or hat without interfering with the operation of the microphone.
The HM162 is furnished with a locking micro connector for use with Lectrosonics VHF belt pack wireless transmitters. Rugged materials are used throughout the assembly to withstand the rigors of heavy use.
Features:
- Over the ear design for hands-free use
- Dual-element, noise cancelling mic capsule
- Improved gain before feedback with high output sound systems
- Comfortable, slim-line design for long-term use
- Rugged mic boom and suspension
| Pickup Type | Back electret condenser |
| Polar Pattern | Bi-directional, noise cancelling |
| Bias Requirements | +1.3 to +20V DC |
| Current drain | 50 uA |
| Wiring configuration | ´ Red: + DC bias ´ White: audio + signal ´ Shield: Audio ground |
| Frequency response | 200 - 6000 Hz (2 cm, close-talking) |
| Maximum input level | 120 dB SPL |
| Waterproofing | Secondary diaphragm |
| Boom length | 4.5 inches |
| Cable length | 44 inches |
| Weight | 1.6 ozs. |
| Connector | 2.5 mm Locking micro |
