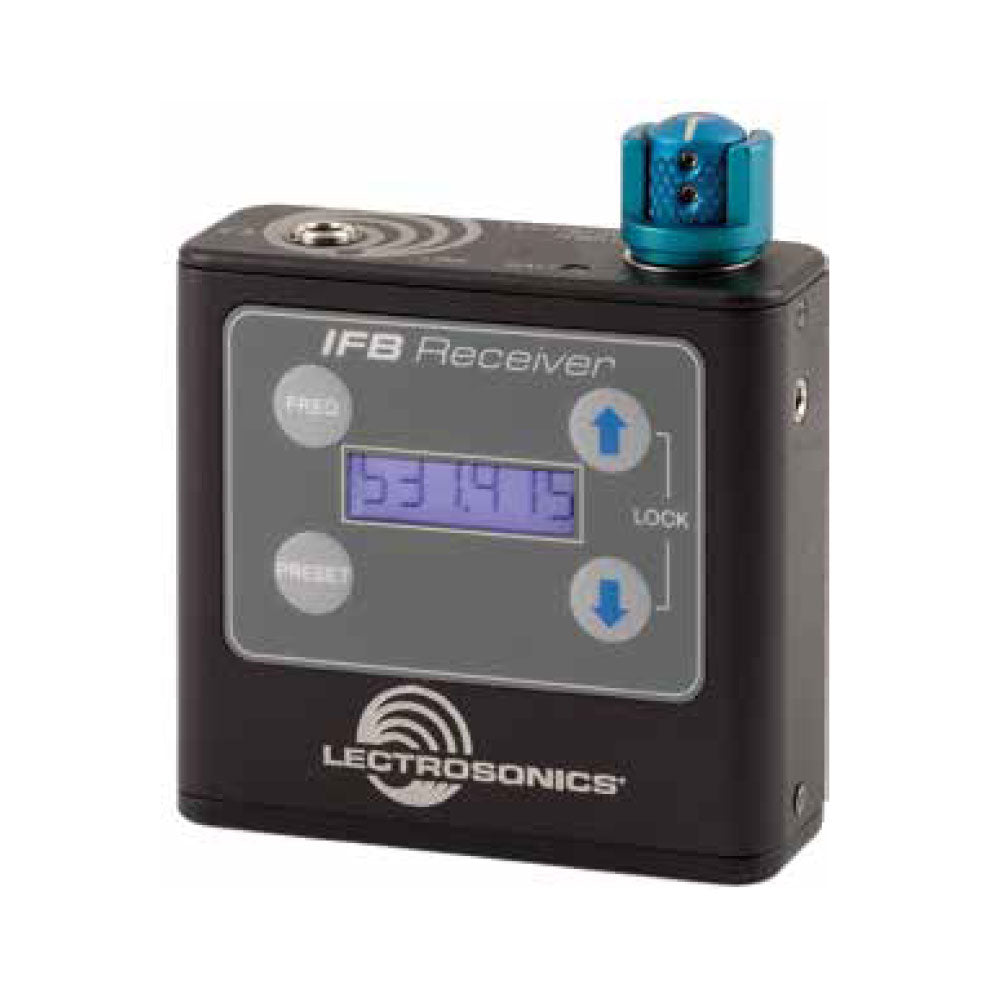

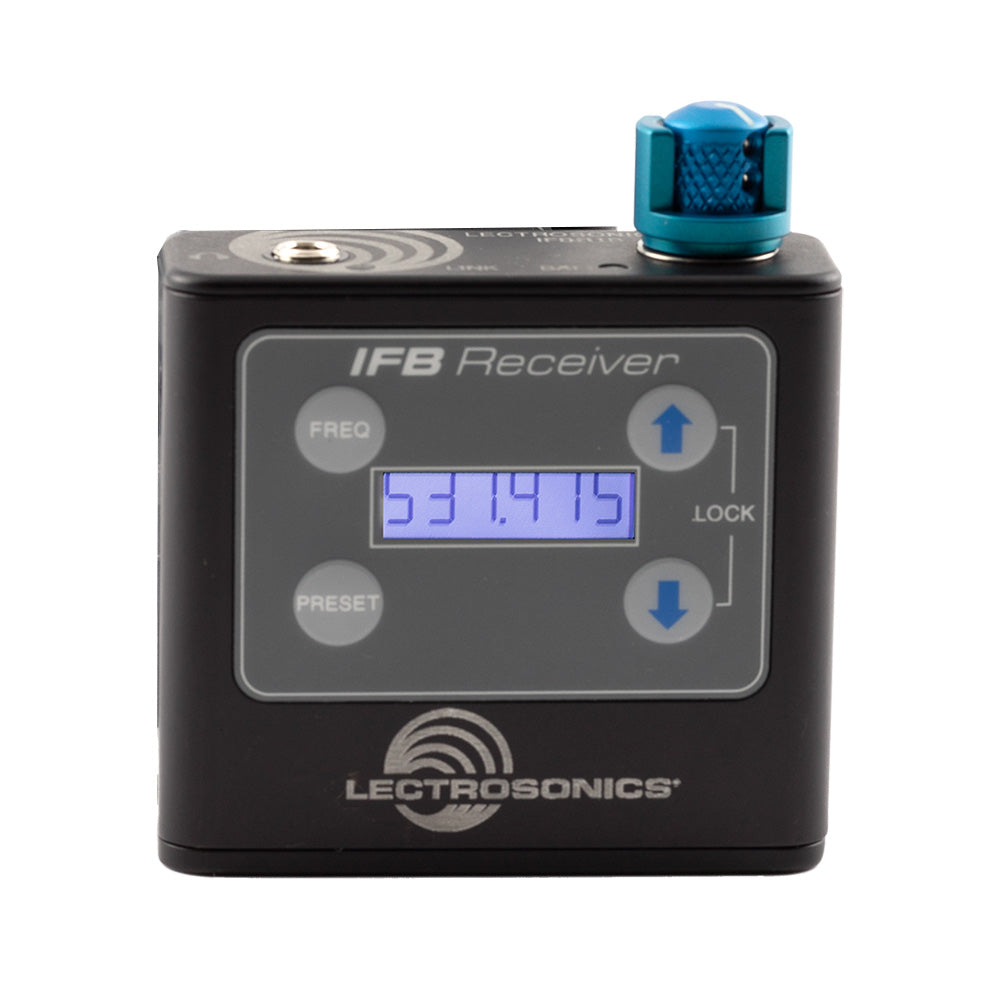

Lectrosonics IFBR1B - UHF Multi-Frequency Belt-Pack IFB Receiver (Block A1 / 470-538 MHz)

  • Dale #:

    LECT-IFBR1BA1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Wireless IFB (interruptible fold back) systems are used for talent cueing and crew communications in broadcast and motion picture production. In other cases, the IFB system is used by directors and other management to monitor program audio during a production. The IFBR1B receiver provides simplic... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Wireless IFB (interruptible fold back) systems are used for talent cueing and crew communications in broadcast and motion picture production. In other cases, the IFB system is used by directors and other management to monitor program audio during a production. The IFBR1B receiver provides simplicity and flexibility in a package that is intuitive for untrained users to operate. Despite its tiny size, the new IFBR1B receiver offers excellent performance on par with all of Lectrosonics' IFB products.

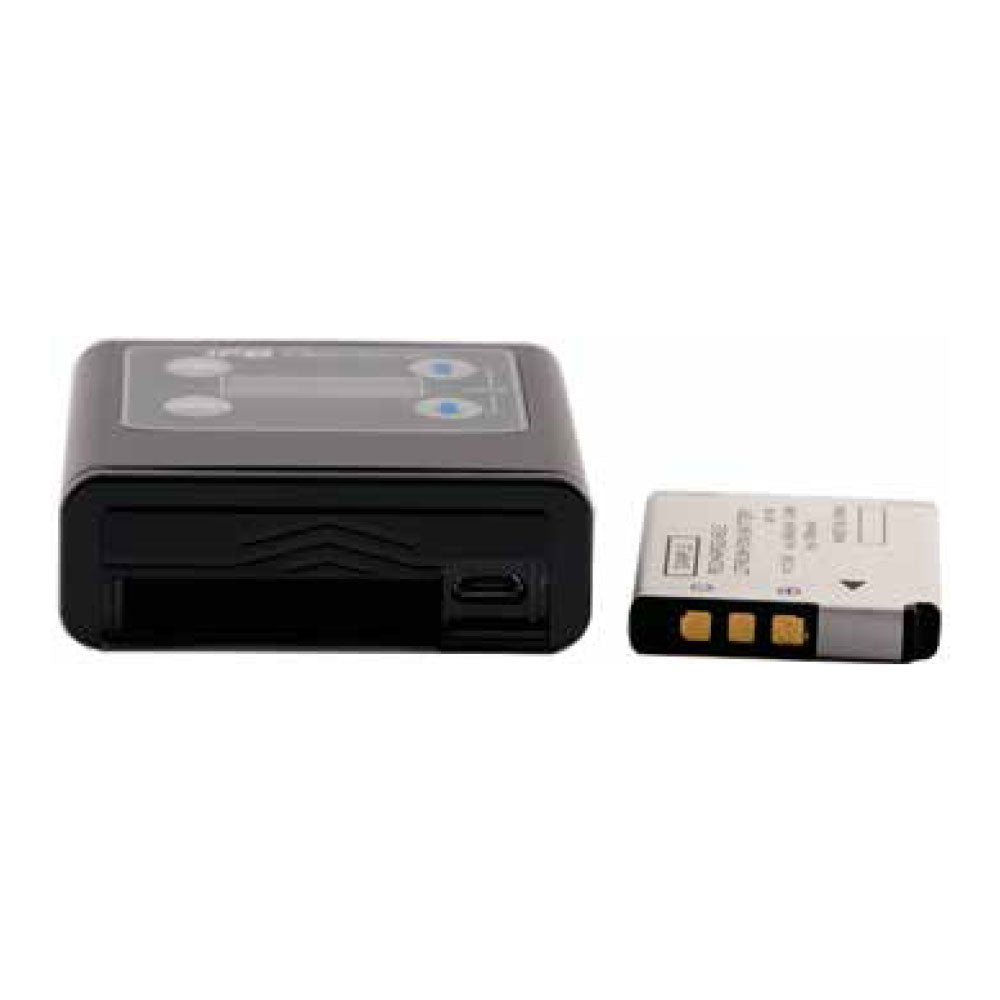

The IFBR1B is housed in a rugged aluminum package. A wire beltclip is included and provides a secure mounting on a wide variety of belts, pockets and fabrics. An optional Òclamp styleÓ spring-loaded belt clip is also available: the IFBR1BBCSL. The IFBR1B is powered for over 8 hours by a removeable, rechargeable LB-50 lithium ion battery. NOTE: The IFBR1B does not ship standard with the single battery charger. To order this unit with a charger, order as a kit: IFBR1B-WITH-CHARGER. The IFBR1B can be dock charged without removing the battery with the optional CHSIFBR1B.

Features:

  • Stores up to 10 frequency presets in memory
  • LCD interface for programming and operation
  • High sensitivity for extended operating range indoors or outdoors
  • USB port for firmware updates
  • Compact, rugged machined aluminum housing
  • Attached battery door
  • 8+ hours battery life with removable LB-50 Li-ion
  • Dock chargeable with optional CHSIFBR1B

Included Accessories:

  • 1 Ð 3.7 Volt Lithium Ion Battery LB-50 (Part # 40106-1)
  • 1 Ð Wire belt clip (Part # 27528)
  • 1 Ð Velcro Strain Relief (Part #VSR1)
  • 1 Ð Manual

More +

Product Specs

Operating Frequencies (MHz) Band A1: 470.100 - 537.575
Band B1: 537.600 - 614.375
Band C1: 614.400 - 691.175
Block 941: 941.525 - 951.975
952.875 - 956.225
956.475 - 959.825
VHF: 174.100 - 215.750
Frequency Selection Steps 25 kHz or 100 kHz, selectable; VHF: 175 kHz
Sensitivity 1 uv (20 dB SINAD)
Signal/Noise ratio 95 dB A-weighted
Squelch quieting 90 dB
AM rejection 50 dB, 10 uV to 100 mV
Modulation acceptance ±20 kHz
Spurious rejection Greater than 70 dB
Operating temperature range -20 to 45 degrees C.
Third order intercept 0 dBm
Frequency response 100 Hz to 10 kHz, (+/-1 dB)
Audio output 1V RMS into 50 ohms minimum
Antenna Headphone cable
Min. headphone impedance 16.0 Ohms
Programmable memory 10 frequencies can be stored as presets

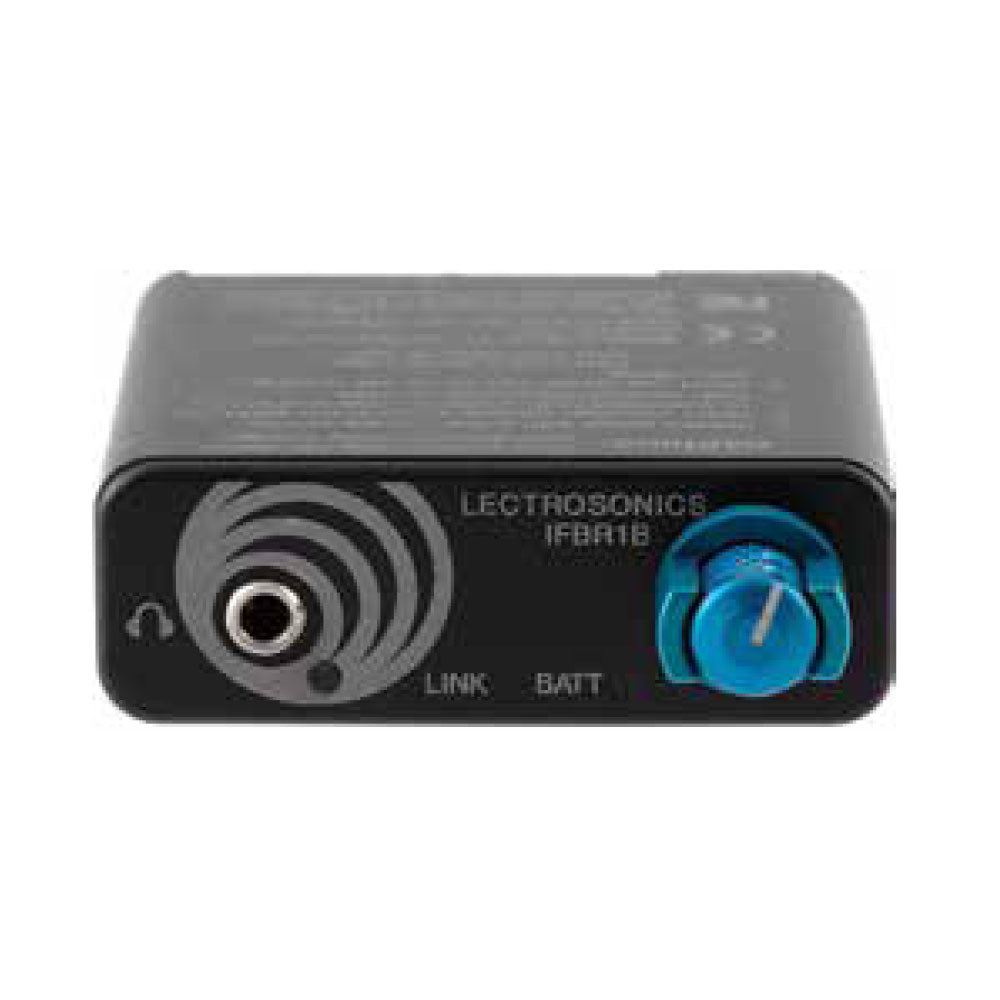

Controls Top Panel: Single knob controls Audio Output Level and Power On
Side Panel: Membrane switches with LCD interface for Frequency Selection and Preset function
Indicators Multi-color LED indicator for power on and battery status
Battery LB-50 Li-ion 3.6 V 1000 mAH
Battery Life 8 hours per charge with LB-50 Li-ion battery
Current consumption 120 mA
Weight 3.4 oz (with battery and wire belt clip)
Size 2.8 x 2.4 x 0.8 in.
71.1 x 70.0 x 20.3 mm
