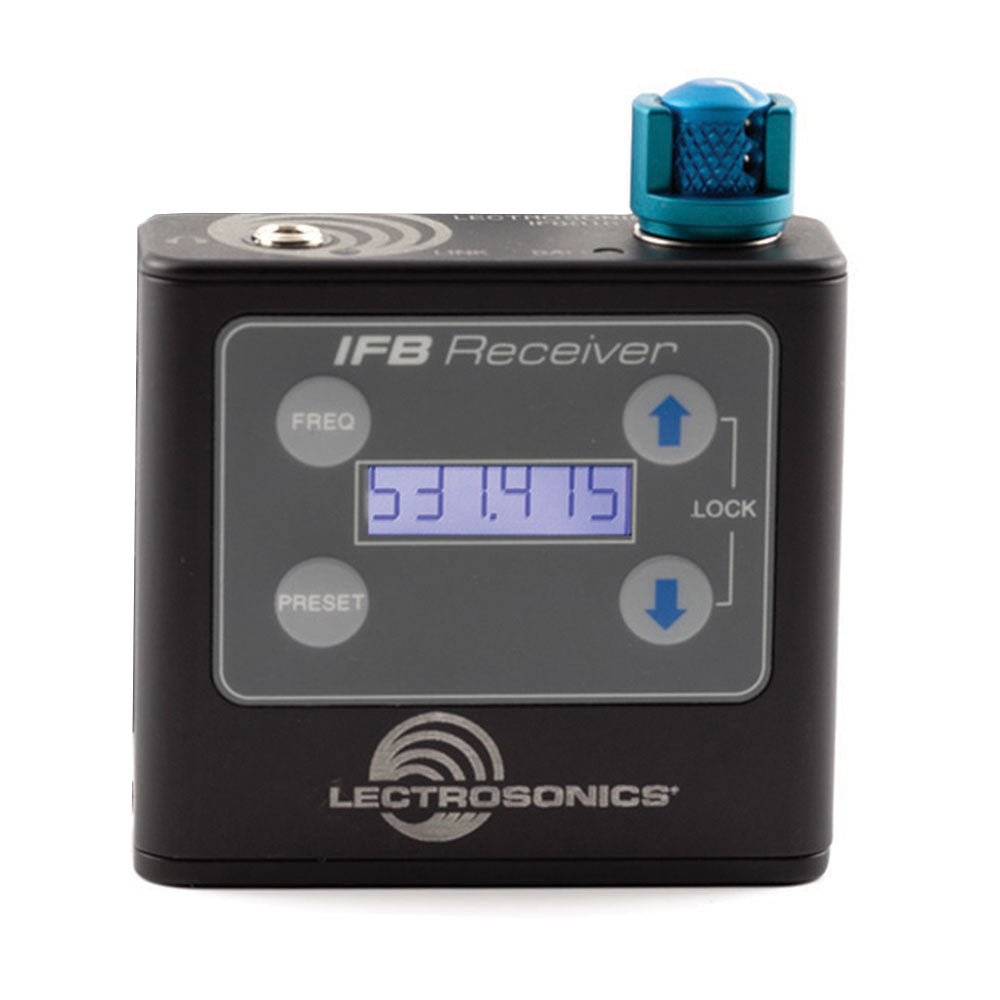

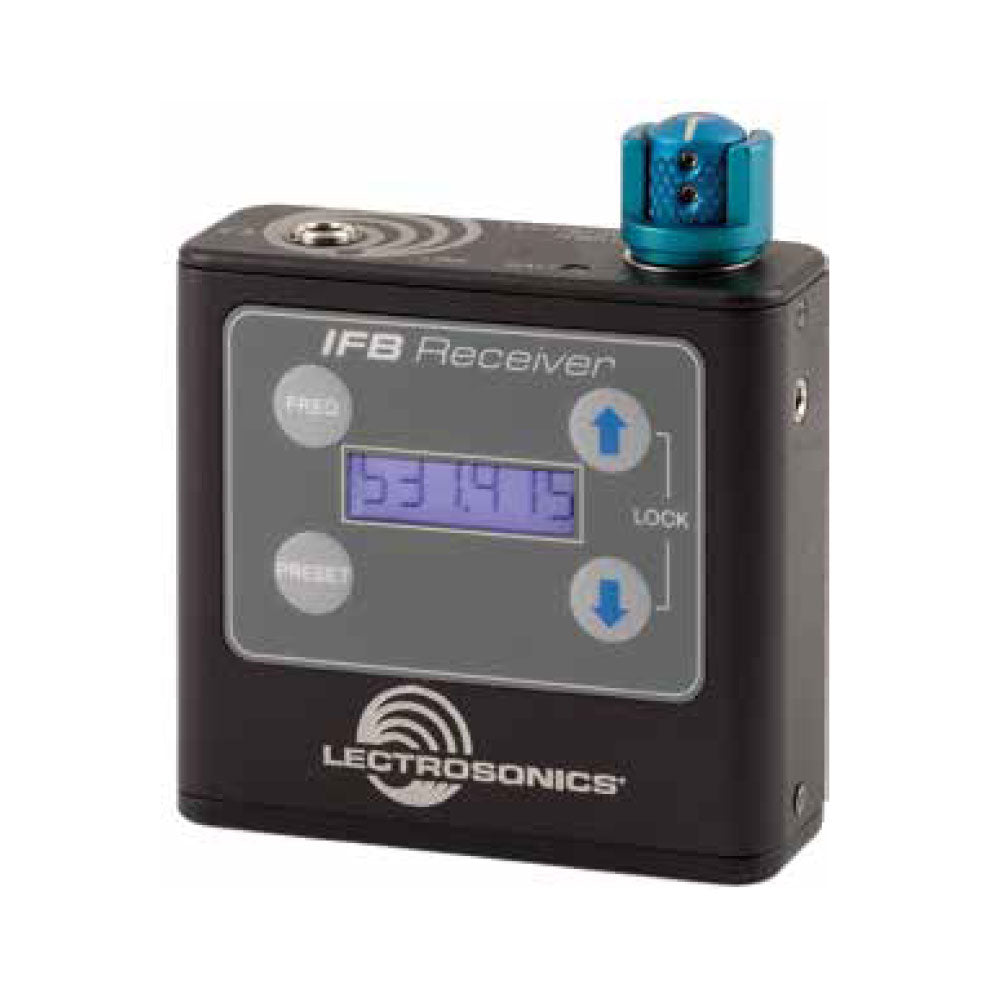

Lectrosonics IFBR1B - UHF Multi-Frequency Belt-Pack IFB Receiver (Block B1 / 537-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Wireless IFB (interruptible fold back) systems are used for talent cueing and crew communications in broadcast and motion picture production. In other cases, the IFB system is used by directors and other management to monitor program audio during a production. The IFBR1B receiver provides simplicity and flexibility in a package that is intuitive for untrained users to operate. Despite its tiny size, the new IFBR1B receiver offers excellent performance on par with all of Lectrosonics' IFB products.

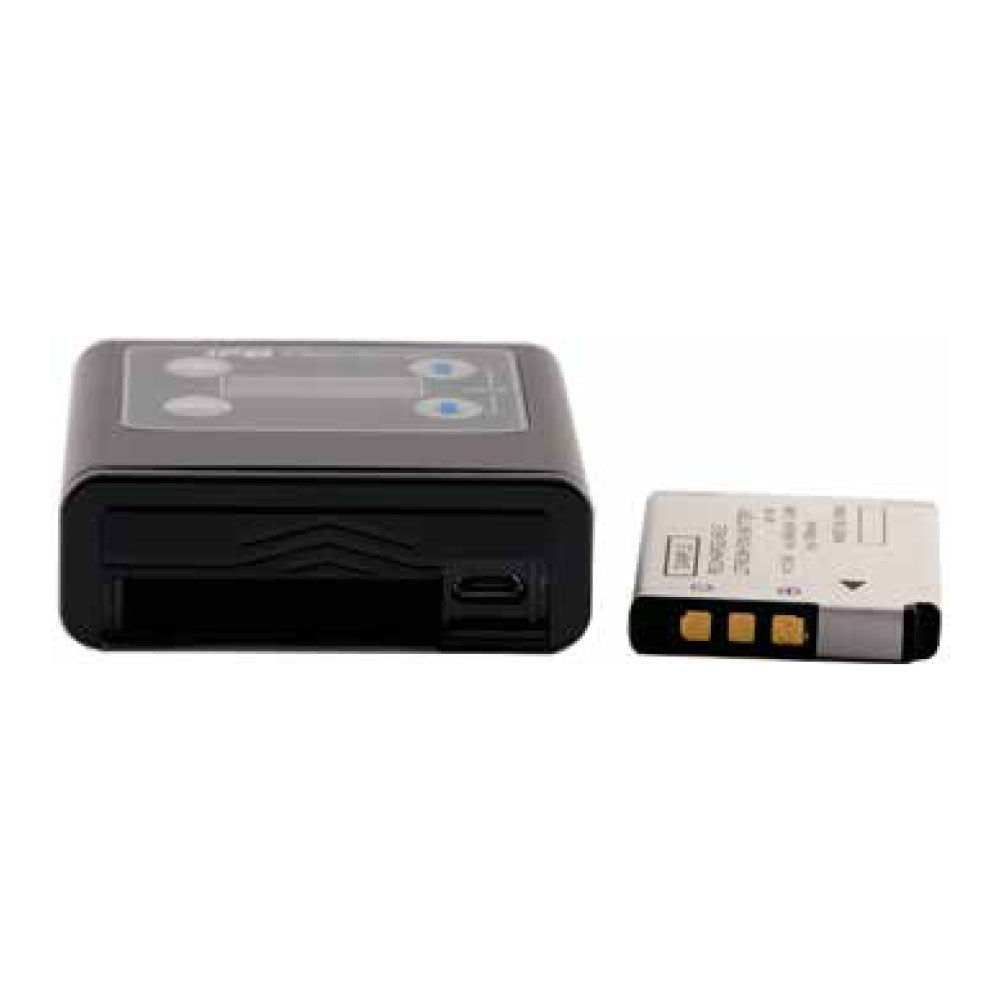

The IFBR1B is housed in a rugged aluminum package. A wire beltclip is included and provides a secure mounting on a wide variety of belts, pockets and fabrics. An optional Òclamp styleÓ spring-loaded belt clip is also available: the IFBR1BBCSL. The IFBR1B is powered for over 8 hours by a removeable, rechargeable LB-50 lithium ion battery. NOTE: The IFBR1B does not ship standard with the single battery charger. To order this unit with a charger, order as a kit: IFBR1B-WITH-CHARGER. The IFBR1B can be dock charged without removing the battery with the optional CHSIFBR1B.
Features:
- Stores up to 10 frequency presets in memory
- LCD interface for programming and operation
- High sensitivity for extended operating range indoors or outdoors
- USB port for firmware updates
- Compact, rugged machined aluminum housing
- Attached battery door
- 8+ hours battery life with removable LB-50 Li-ion
- Dock chargeable with optional CHSIFBR1B
Included Accessories:
- 1 Ð 3.7 Volt Lithium Ion Battery LB-50 (Part # 40106-1)
- 1 Ð Wire belt clip (Part # 27528)
- 1 Ð Velcro Strain Relief (Part #VSR1)
- 1 Ð Manual
| Operating Frequencies (MHz) | Band A1: 470.100 - 537.575 Band B1: 537.600 - 614.375 Band C1: 614.400 - 691.175 Block 941: 941.525 - 951.975 952.875 - 956.225 956.475 - 959.825 VHF: 174.100 - 215.750 |
| Frequency Selection Steps | 25 kHz or 100 kHz, selectable; VHF: 175 kHz |
| Sensitivity | 1 uv (20 dB SINAD) |
| Signal/Noise ratio | 95 dB A-weighted |
| Squelch quieting | 90 dB |
| AM rejection | 50 dB, 10 uV to 100 mV |
| Modulation acceptance | ±20 kHz |
| Spurious rejection | Greater than 70 dB |
| Operating temperature range | -20 to 45 degrees C. |
| Third order intercept | 0 dBm |
| Frequency response | 100 Hz to 10 kHz, (+/-1 dB) |
| Audio output | 1V RMS into 50 ohms minimum |
| Antenna | Headphone cable |
| Min. headphone impedance | 16.0 Ohms |
| Programmable memory | 10 frequencies can be stored as presets |

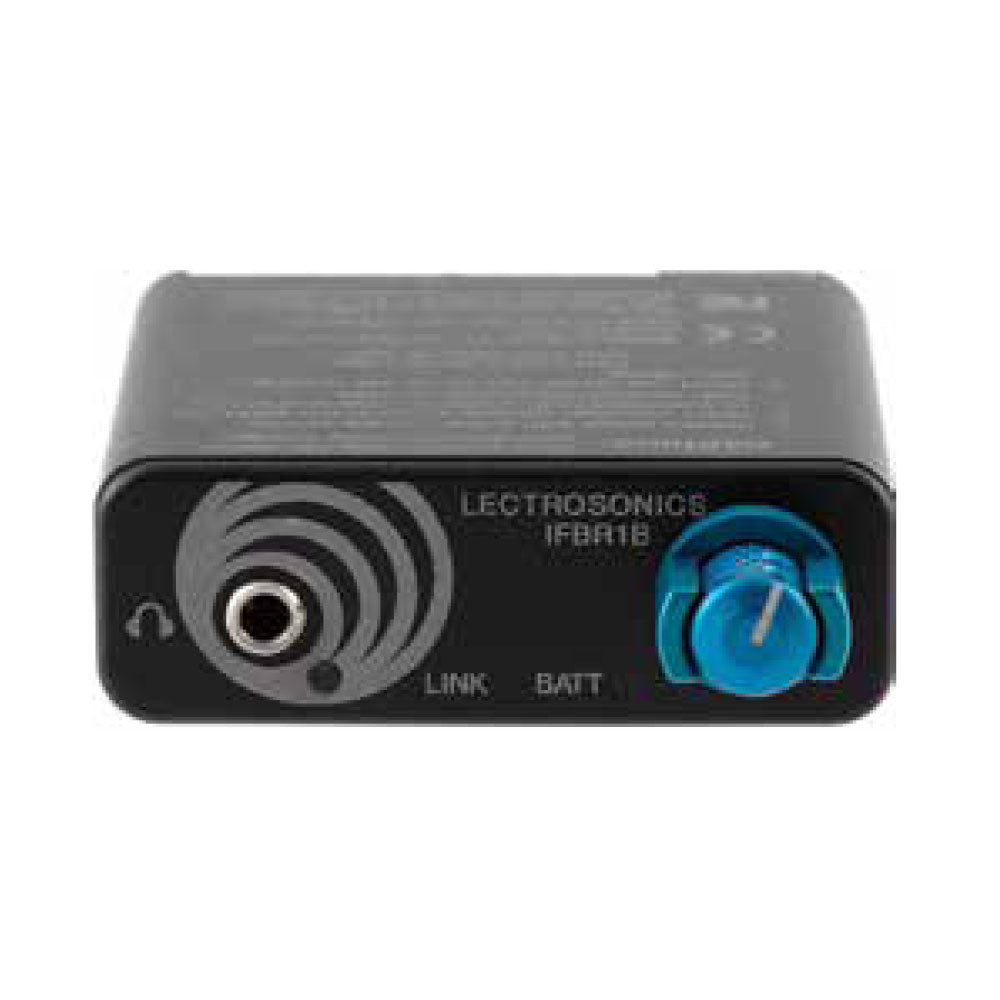

| Controls | Top Panel: Single knob controls Audio Output Level and Power On Side Panel: Membrane switches with LCD interface for Frequency Selection and Preset function |
| Indicators | Multi-color LED indicator for power on and battery status |
| Battery | LB-50 Li-ion 3.6 V 1000 mAH |
| Battery Life | 8 hours per charge with LB-50 Li-ion battery |
| Current consumption | 120 mA |
| Weight | 3.4 oz (with battery and wire belt clip) |
| Size | 2.8 x 2.4 x 0.8 in. 71.1 x 70.0 x 20.3 mm |
Wireless IFB (interruptible fold back) systems are used for talent cueing and crew communications in broadcast and motion picture production. In other cases, the IFB system is used by directors and other management to monitor program audio during a production. The IFBR1B receiver provides simplicity and flexibility in a package that is intuitive for untrained users to operate. Despite its tiny size, the new IFBR1B receiver offers excellent performance on par with all of Lectrosonics' IFB products.
The IFBR1B is housed in a rugged aluminum package. A wire beltclip is included and provides a secure mounting on a wide variety of belts, pockets and fabrics. An optional Òclamp styleÓ spring-loaded belt clip is also available: the IFBR1BBCSL. The IFBR1B is powered for over 8 hours by a removeable, rechargeable LB-50 lithium ion battery. NOTE: The IFBR1B does not ship standard with the single battery charger. To order this unit with a charger, order as a kit: IFBR1B-WITH-CHARGER. The IFBR1B can be dock charged without removing the battery with the optional CHSIFBR1B.
Features:
- Stores up to 10 frequency presets in memory
- LCD interface for programming and operation
- High sensitivity for extended operating range indoors or outdoors
- USB port for firmware updates
- Compact, rugged machined aluminum housing
- Attached battery door
- 8+ hours battery life with removable LB-50 Li-ion
- Dock chargeable with optional CHSIFBR1B
Included Accessories:
- 1 Ð 3.7 Volt Lithium Ion Battery LB-50 (Part # 40106-1)
- 1 Ð Wire belt clip (Part # 27528)
- 1 Ð Velcro Strain Relief (Part #VSR1)
- 1 Ð Manual
| Operating Frequencies (MHz) | Band A1: 470.100 - 537.575 Band B1: 537.600 - 614.375 Band C1: 614.400 - 691.175 Block 941: 941.525 - 951.975 952.875 - 956.225 956.475 - 959.825 VHF: 174.100 - 215.750 |
| Frequency Selection Steps | 25 kHz or 100 kHz, selectable; VHF: 175 kHz |
| Sensitivity | 1 uv (20 dB SINAD) |
| Signal/Noise ratio | 95 dB A-weighted |
| Squelch quieting | 90 dB |
| AM rejection | 50 dB, 10 uV to 100 mV |
| Modulation acceptance | ±20 kHz |
| Spurious rejection | Greater than 70 dB |
| Operating temperature range | -20 to 45 degrees C. |
| Third order intercept | 0 dBm |
| Frequency response | 100 Hz to 10 kHz, (+/-1 dB) |
| Audio output | 1V RMS into 50 ohms minimum |
| Antenna | Headphone cable |
| Min. headphone impedance | 16.0 Ohms |
| Programmable memory | 10 frequencies can be stored as presets |
| Controls | Top Panel: Single knob controls Audio Output Level and Power On Side Panel: Membrane switches with LCD interface for Frequency Selection and Preset function |
| Indicators | Multi-color LED indicator for power on and battery status |
| Battery | LB-50 Li-ion 3.6 V 1000 mAH |
| Battery Life | 8 hours per charge with LB-50 Li-ion battery |
| Current consumption | 120 mA |
| Weight | 3.4 oz (with battery and wire belt clip) |
| Size | 2.8 x 2.4 x 0.8 in. 71.1 x 70.0 x 20.3 mm |
