Lectrosonics IFBT4 - Frequency-Agile Compact IFB Transmitter (Block VHF / 174-216 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

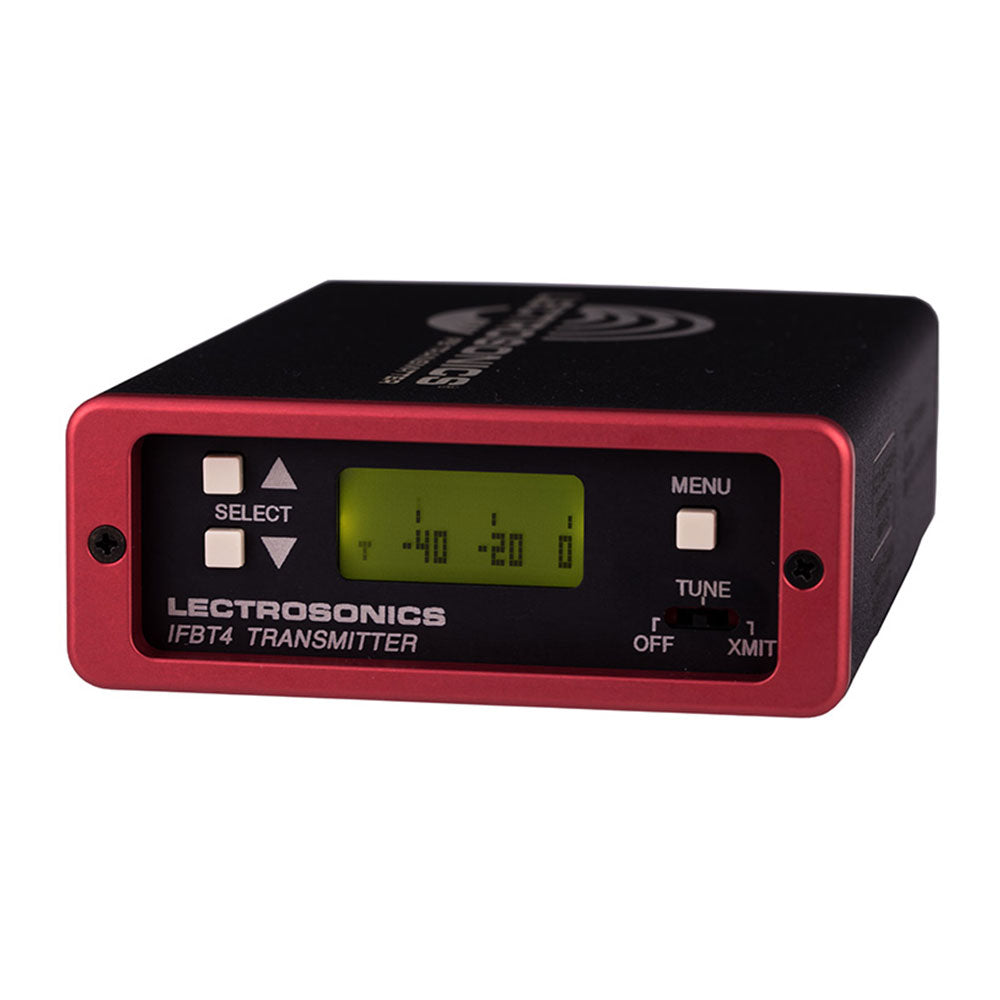

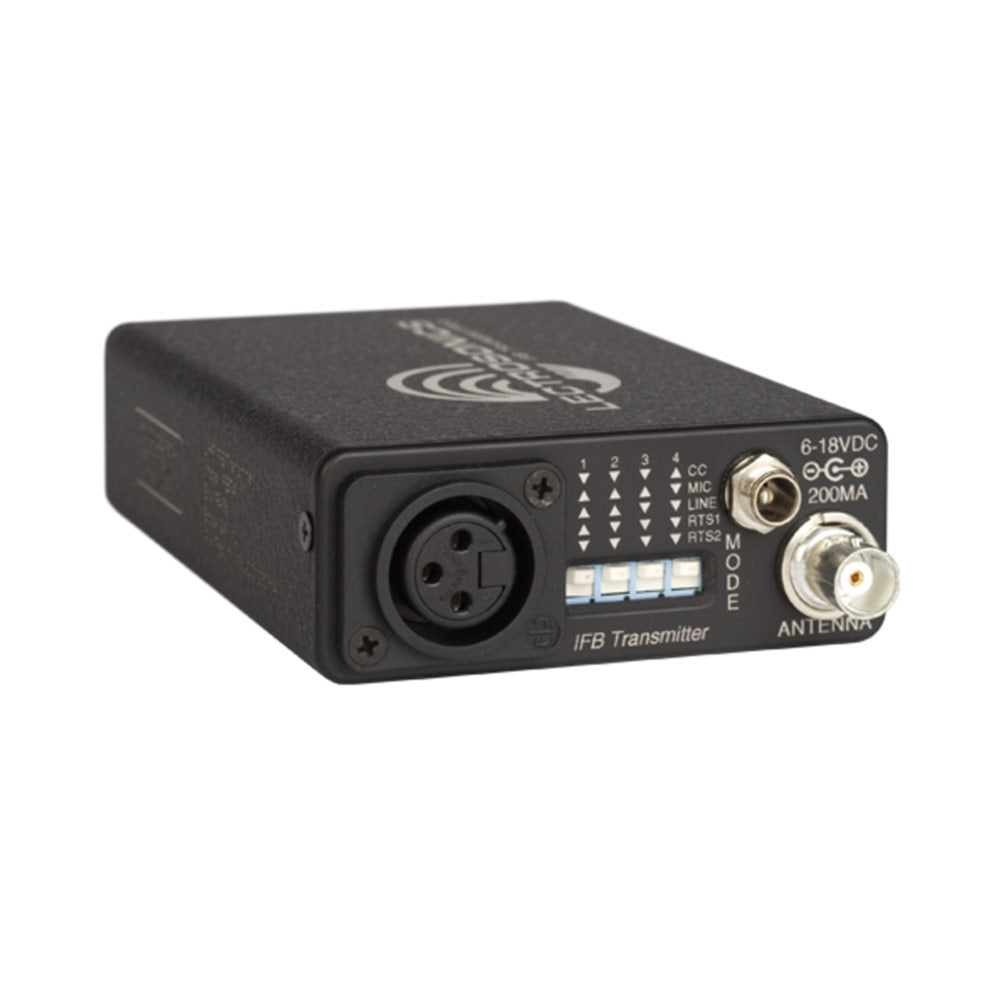

The Lectrosonics IFBT4 UHF transmitter was designed for use in broadcast, motion picture, theater, and stage applications where extended operating range and high quality audio are essential. The IFBT4 can be used as a stand-alone device or patched directly into popular intercom systems.
Features:
- Digital Hybrid Wireless technology
- 256 UHF frequencies in 100kHz steps
- Microprocessor controlled operation
- 250 mW power output for long range use
- Pilot tone squelch control
- Multi-use XLR input jack
- Built-in microphone preamp
- DIP switch programmable intercom input
- Tx mute for frequency scrolling
- Multi-function LCD display
- Compact size for use anywhere
- Rugged machined aluminum construction
Lectrosonics Digital Hybrid Wireless systems overcome channel noise in a dramatically new way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded information via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor but a technique that can be accomplished only in the digital domain, even though the inputs and outputs are analog.
Because it uses an analog FM link, Digital Hybrid Wireless enjoys all the benefits of conventional FM wireless systems, such as excellent range, efficient use of RF spectrum, and resistance to interference. However, unlike conventional FM systems, it does away with the analog compandor and its artifacts.
Microprocessor control provides user-friendly operation and eliminates transients at turn-on and turn-off. The transmitter output is muted in the TUNE mode to avoid generating interference in other wireless systems while scrolling up and down to change frequencies.
Lectrosonics Digital Hybrid Wireless systems overcome channel noise in a dramatically new way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded information via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor but a technique that can be accomplished only in the digital domain, even though the inputs and outputs are analog.
Because it uses an analog FM link, Digital Hybrid Wireless enjoys all the benefits of conventional FM wireless systems, such as excellent range, efficient use of RF spectrum, and resistance to interference. However, unlike conventional FM systems, it does away with the analog compandor and its artifacts.
Microprocessor control provides user-friendly operation and eliminates transients at turn-on and turn-off. The transmitter output is muted in the TUNE mode to avoid generating interference in other wireless systems while scrolling up and down to change frequencies.
| Operating Frequencies (MHz) | Block 470: 470.100 - 495.600 Block 19:æ 486.400 - 511.900 Block 20:æ 512.000 - 537.500 Block 21:æ 537.600 - 563.100 Block 22:æ 563.200 - 588.700 Block 23:æ 588.800 - 607.900/614.100 - 614.300 Block 24:æ 614.400 - 639.900 Block 25:æ 640.000 - 665.500 Block 26:æ 665.600 - 691.100 Block 944: 944.100 - 951.900 |
| Frequencies (Channels per block) | 256 |
| Channel Spacing | 100 kHz (0.1 MHz) |
| RF Power Output | 250 mW |
| Spurious / Harmonic Suppression | 37 dBc above 1 GHz |
| Frequency Stability | ±.001% (10 ppm) @ 25Á C |
| Temperature Stability | ±.001% (10 ppm) from -30Á C to +50Á C |
| Channel Selection | Momentary pushbutton switches, TUNE Up and Down |
| Compatibility Modes (6) | Digital Hybrid Wireless(tm) (400 Series), 100 Series, 200 Series, Mode 3, Mode 6, and IFB |
| Pilot Tone | 29.997 kHz IFB / 100 MODE, 32.765kHz 200 MODE, 400 MODE step selected |
| Modulation | FM, ±20 kHz deviation IFB / 100 MODE, ±75kHz 200 / 400 MODE |
| Audio Frequency Response | 100 Hz to 8 kHz, ±1 dB, IFB MODE system response 30Hz to 20kHz ±1dB , 200 / 400 MODE system response |
| Rolloff | Low frequency audio rolloff is Menu selectable for 3 dB down at 35 Hz or 50 Hz. |
| Signal to Noise Ratio | 90 dB typical ("A" weighted) |
| Audio Compressor | 2 to 1 IFB, 100, and 200 Mode |
| Output Impedance | 50 ohms |
| Audio Input Levels | 0 dBu for Line, RTS1 / RTS2 -10 dBu for Clear Com -42 dBu for mic dry inputs (no phantom power) +/-50Vdc max |
| Audio Input Configuration | Balanced and Unbalanced, rear panel selectable for Line, Mic. RTS 1, RTS 2, and Clear Com |
| Audio Input Impedance | Greater than 2 K balanced, greater than 1 K unbalanced at any gain setting |
| Gain Control Range | -18 dB to +24 dB (0 dB nominal center), Menu selectable |
| Audio Input Jack | Standard XLR female connector |
| Input Power | 12 to 14 VDC typical, 200 ma. max.; Max. Input Range 6 to 18 VDC |
| Power Input Jack | Coax type, locking LZR RL26AE |
| Indicators | Backlit Liquid Crystal Display. Displays modulation meter, frequencies, modes, rolloff, audio level, and tuning groups |
| Front panel controls | MENU momentary pushbutton switch Power OFF-TUNE-XMIT, 3 position slide switch Select Up momentary pushbutton switch Select down momentary pushbutton switch |
| Rear panel controls | Input Mode Select, 4 section DIP switch |
| Weight | 9 ozs. |
| Size | 5.25" L (including connectors) x 3.25" W x 1.25" H |
The Lectrosonics IFBT4 UHF transmitter was designed for use in broadcast, motion picture, theater, and stage applications where extended operating range and high quality audio are essential. The IFBT4 can be used as a stand-alone device or patched directly into popular intercom systems.
Features:
- Digital Hybrid Wireless technology
- 256 UHF frequencies in 100kHz steps
- Microprocessor controlled operation
- 250 mW power output for long range use
- Pilot tone squelch control
- Multi-use XLR input jack
- Built-in microphone preamp
- DIP switch programmable intercom input
- Tx mute for frequency scrolling
- Multi-function LCD display
- Compact size for use anywhere
- Rugged machined aluminum construction
Lectrosonics Digital Hybrid Wireless systems overcome channel noise in a dramatically new way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded information via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor but a technique that can be accomplished only in the digital domain, even though the inputs and outputs are analog.
Because it uses an analog FM link, Digital Hybrid Wireless enjoys all the benefits of conventional FM wireless systems, such as excellent range, efficient use of RF spectrum, and resistance to interference. However, unlike conventional FM systems, it does away with the analog compandor and its artifacts.
Microprocessor control provides user-friendly operation and eliminates transients at turn-on and turn-off. The transmitter output is muted in the TUNE mode to avoid generating interference in other wireless systems while scrolling up and down to change frequencies.
Lectrosonics Digital Hybrid Wireless systems overcome channel noise in a dramatically new way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded information via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor but a technique that can be accomplished only in the digital domain, even though the inputs and outputs are analog.
Because it uses an analog FM link, Digital Hybrid Wireless enjoys all the benefits of conventional FM wireless systems, such as excellent range, efficient use of RF spectrum, and resistance to interference. However, unlike conventional FM systems, it does away with the analog compandor and its artifacts.
Microprocessor control provides user-friendly operation and eliminates transients at turn-on and turn-off. The transmitter output is muted in the TUNE mode to avoid generating interference in other wireless systems while scrolling up and down to change frequencies.
| Operating Frequencies (MHz) | Block 470: 470.100 - 495.600 Block 19:æ 486.400 - 511.900 Block 20:æ 512.000 - 537.500 Block 21:æ 537.600 - 563.100 Block 22:æ 563.200 - 588.700 Block 23:æ 588.800 - 607.900/614.100 - 614.300 Block 24:æ 614.400 - 639.900 Block 25:æ 640.000 - 665.500 Block 26:æ 665.600 - 691.100 Block 944: 944.100 - 951.900 |
| Frequencies (Channels per block) | 256 |
| Channel Spacing | 100 kHz (0.1 MHz) |
| RF Power Output | 250 mW |
| Spurious / Harmonic Suppression | 37 dBc above 1 GHz |
| Frequency Stability | ±.001% (10 ppm) @ 25Á C |
| Temperature Stability | ±.001% (10 ppm) from -30Á C to +50Á C |
| Channel Selection | Momentary pushbutton switches, TUNE Up and Down |
| Compatibility Modes (6) | Digital Hybrid Wireless(tm) (400 Series), 100 Series, 200 Series, Mode 3, Mode 6, and IFB |
| Pilot Tone | 29.997 kHz IFB / 100 MODE, 32.765kHz 200 MODE, 400 MODE step selected |
| Modulation | FM, ±20 kHz deviation IFB / 100 MODE, ±75kHz 200 / 400 MODE |
| Audio Frequency Response | 100 Hz to 8 kHz, ±1 dB, IFB MODE system response 30Hz to 20kHz ±1dB , 200 / 400 MODE system response |
| Rolloff | Low frequency audio rolloff is Menu selectable for 3 dB down at 35 Hz or 50 Hz. |
| Signal to Noise Ratio | 90 dB typical ("A" weighted) |
| Audio Compressor | 2 to 1 IFB, 100, and 200 Mode |
| Output Impedance | 50 ohms |
| Audio Input Levels | 0 dBu for Line, RTS1 / RTS2 -10 dBu for Clear Com -42 dBu for mic dry inputs (no phantom power) +/-50Vdc max |
| Audio Input Configuration | Balanced and Unbalanced, rear panel selectable for Line, Mic. RTS 1, RTS 2, and Clear Com |
| Audio Input Impedance | Greater than 2 K balanced, greater than 1 K unbalanced at any gain setting |
| Gain Control Range | -18 dB to +24 dB (0 dB nominal center), Menu selectable |
| Audio Input Jack | Standard XLR female connector |
| Input Power | 12 to 14 VDC typical, 200 ma. max.; Max. Input Range 6 to 18 VDC |
| Power Input Jack | Coax type, locking LZR RL26AE |
| Indicators | Backlit Liquid Crystal Display. Displays modulation meter, frequencies, modes, rolloff, audio level, and tuning groups |
| Front panel controls | MENU momentary pushbutton switch Power OFF-TUNE-XMIT, 3 position slide switch Select Up momentary pushbutton switch Select down momentary pushbutton switch |
| Rear panel controls | Input Mode Select, 4 section DIP switch |
| Weight | 9 ozs. |
| Size | 5.25" L (including connectors) x 3.25" W x 1.25" H |
