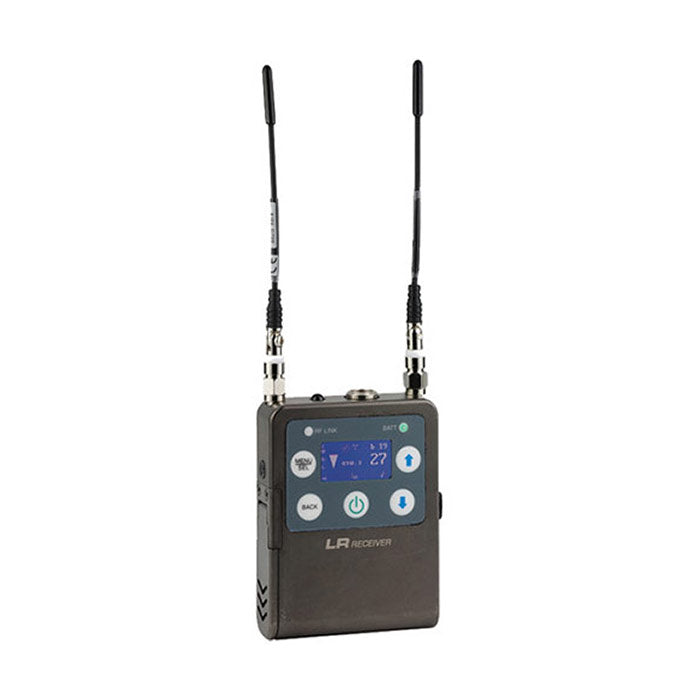

Lectrosonics LR - Digital Hybrid Wireless Receiver (Block A1 / 470-538 MHz)
Dale #:
LECT-LRA1Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
Excellent performance in a small package for ENG and DSLR video production is the purpose and intent of the LR receiver design. Tracking front-end filters block interference from high powered RF signals on nearby channels to preserve the extended operating range. RF spectrum scanning displays acc... Read MoreRetail Price: $2,220.00 Our Price: $1,819.00
Free Shipping (Continental US)
Suggested Accessories
Description
Excellent performance in a small package for ENG and DSLR video production is the purpose and intent of the LR receiver design. Tracking front-end filters block interference from high powered RF signals on nearby channels to preserve the extended operating range. RF spectrum scanning displays accurate results on the LCD to make finding clear spectrum quick and easy.
Features:
- Tunes over a 75 MHz range*
- Tracking front-end filters
- Digital Hybrid Wireless¨ with compatibility modes for use with earlier transmitters
- Compact size powered by two AA batteries or an optional battery eliminator
- LCD with RF spectrum scanning
- SmartSquelchTM noiseless muting adapts automatically for near/far operation
- DSP-based pilot tone for squelch control
- USB port for firmware updates
- IR sync port for transmitter setup

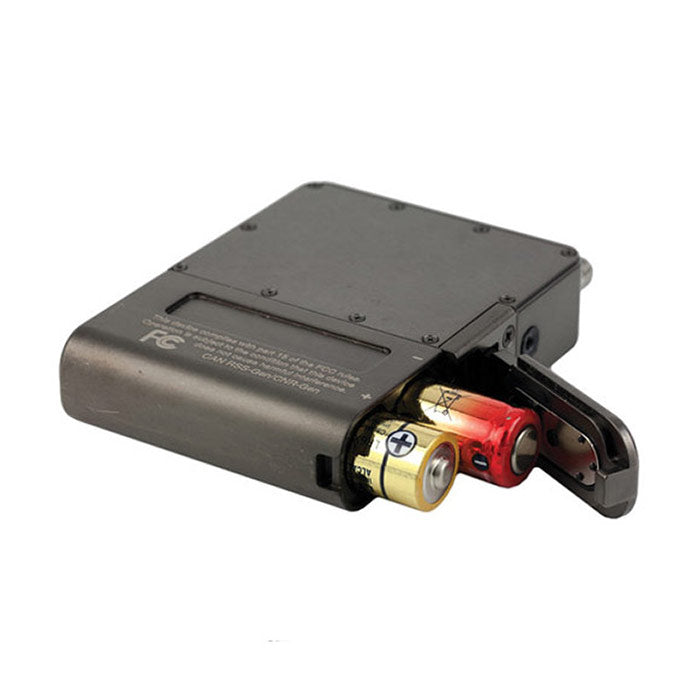

The receiver is powered by internal AA batteries or with an optional battery eliminator. The top panel includes an IR port for transmitter setup. Firmware updates are enabled via a USB port on the side panel. The housing is made from a solid machined aluminum billet.
Included Accessories:
- 2 - AA Batteries
- 2 - AMJXX (Specify Block)
- 1 - 26895 Wire Belt Clip (Installed on Transmitter)
More +
Product Specs
| Operating Frequencies | Band A1: 470.100 - 537.575 MHz Band B1: 537.600 - 614.375 MHz* Band C1: 614.400 - 691.175 MHz *North American transmitter models exclude the radio astronomy frequency allocation from 608 to 614 MHz. | ||||||||||||
| Frequency selection steps | Selectable; 100 kHz or 25 kHz | ||||||||||||
| Receiver Type | Dual conversion, superheterodyne | ||||||||||||
| IF Frequencies | 243.950 MHz and 250.000 kHz | ||||||||||||
| Frequency stability | ±0.001 % | ||||||||||||
| Front end bandwidth | 20 MHz @ -3 dB | ||||||||||||
| Sensitivity | 20 dB SINAD: 1.0 uV (-107 dBm), A weighted 60 dB Quieting: 2.2 uV (-100 dBm), A weighted | ||||||||||||
| Squelch quieting | Greater than 100 dB typical | ||||||||||||
| Modulation acceptance | +/-100 kHz max.; varies with selected compatibility mode | ||||||||||||
| Image and spurious rejection | 85 dB | ||||||||||||
| Third order intercept | 0 dBm | ||||||||||||
| Diversity method | SmartDiversityTM phased antenna combining | ||||||||||||
| FM detector | Digital Pulse Counting Detector | ||||||||||||
| RF spectrum analyzer | Single and multiple block scanning modes; coarse and fine views of results | ||||||||||||
| Antenna inputs | 50 Ohm; SMA female connectors | ||||||||||||
| Audio output | TA3 male (mini XLR) balanced output | ||||||||||||
| Audio output level | Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output level is 6 dB lower | ||||||||||||
| Front panel controls and indicators | Sealed panel with membrane switches LCD for setup menus and monitoring | ||||||||||||
| Audio test tone | 1 kHz, -50 dBu to +5 dBu output (bal); 1% THD | ||||||||||||
| Transmitter battery type selection | AA Alkaline AA lithium Timer available for use with all types | ||||||||||||
| Audio polarity selection | Normal or inverted | ||||||||||||
| Compatibility modes | Digital Hybrid (North American and European) Lectrosonics 100, 200 and 300 Series Lectrosonics IFB Non-Lectrosonics modes 3, 6 and 7 (contact the factory for details) | ||||||||||||
| SmartNR (noise reduction) | OFF, NORMAL, FULL modes (available in Digital Hybrid mode only) | ||||||||||||
| System frequency response | 32 Hz to 20 kHz (+/- 1 dB) receiver only (see transmitter documentation for overall system response) | ||||||||||||
| Signal to noise ratio |
| ||||||||||||
| Note: The dual envelope "soft" limiter provides exceptionally good handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for SNR without limiting by 4.5 dB. | |||||||||||||
| Audio Performance | |||||||||||||
| Frequency response | 32 Hz to 20 kHz (+/- 1 dB) receiver only (see transmitter documentation for overall system response) | ||||||||||||
| Total harmonic distortion | <0.4 (0.2% typical in Digital Hybrid mode) | ||||||||||||
| Top panel features | TA3M audio output jack (2) SMA antenna jacks IR (infrared) port | ||||||||||||
| Operating runtimes | 4 hours, (Duracell Quantum Alkaline) | ||||||||||||
| Current consumption | 360mA at 3 volts (+/- 10%) | ||||||||||||
| Operating temperature | -20¡ C to +50¡C | ||||||||||||
| Weight | 221 grams (7.1 ozs.) with two AA lithium batteries and two AMJ-Rev. A antennas | ||||||||||||
| Dimensions (housing) | 3.21 x 2.45 x .84 in. (82 x 62 x 21 mm) | ||||||||||||
Specifications subject to change without notice
