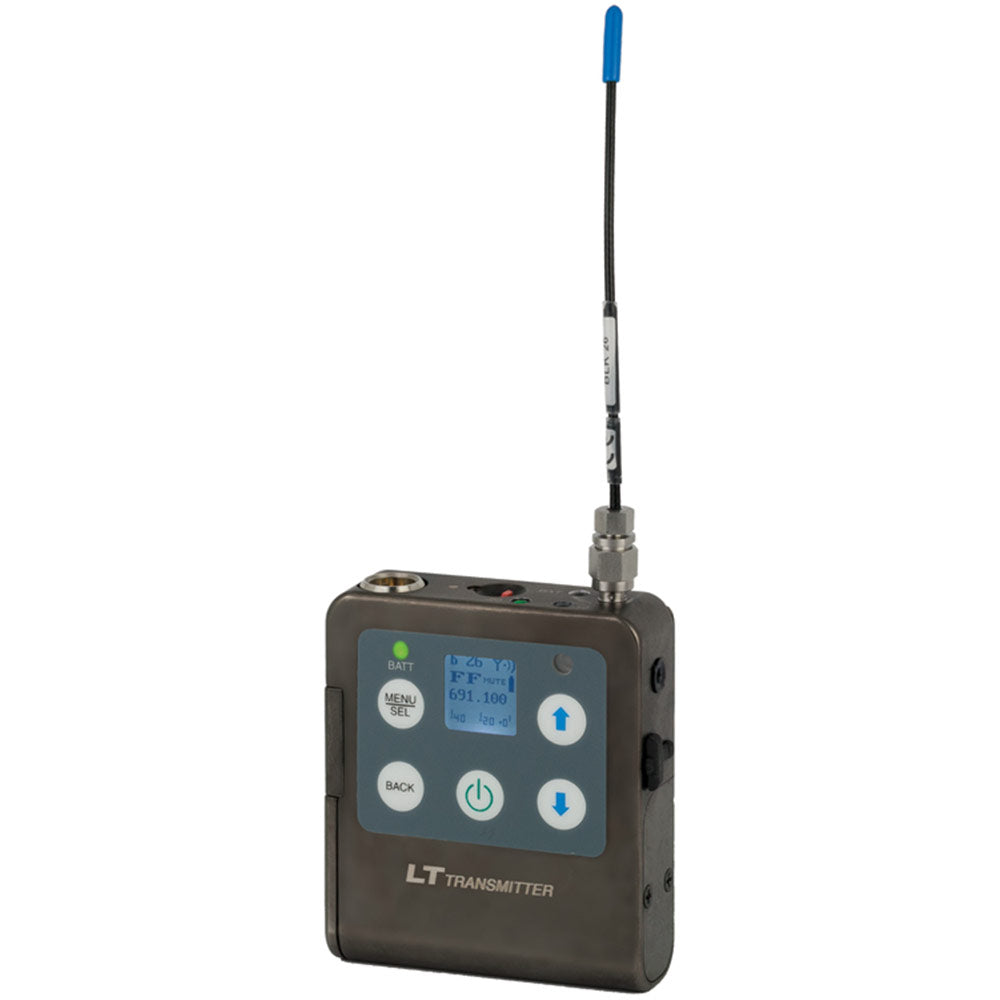

Lectrosonics LT - Digital Hybrid Wireless Beltpack Transmitter (Block B1 / 537-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The LT transmitter offers a full set of professional features in a compact, rugged package. The unit is compatible with all Digital Hybrid Wireless¨ receivers and even some from other manufacturers, making it comfortable in a wide variety of applications from video production to theater, stage and house of worship.
The LT can be configured to operate as a Òone touchÓ device with a single power on/off switch on the top panel, or with full access to all operational parameters using the side panel membrane switches and LCD interface. The top panel switch can also be configured to provide a mute or talkback function.
Features:
- Covers two frequency blocks in the US; three in Europe
- Digital Hybrid Wireless¨ for compandor-free audio
- Selectable 50 or 100mW output power
- Compatibility modes for use with analog receivers
- 25 or 100 kHz tuning steps for up to 3072 selectable frequencies
- Integrated multi-function switch for mute or talkback modes
- Wide range input gain control in 1 dB steps
- IR port for setup with IR enabled receivers
- USB port for firmware updates
- Menu selectable mic or instrument input
- Optional battery eliminator
- Detachable antenna
| Operating Frequencies | Band A1: 470.100 - 537.575 Band B1: 537.600 - 614.375 Band C1: 614.400 - 691.175 | ||||||||||||
| Frequency Selection Steps | Selectable; 100 kHz or 25 kHz | ||||||||||||
| RF Power output | Selectable - 50 or 100mW | ||||||||||||
| Pilot tone | 25 to 32 kHz; 5 kHz deviation (Digital Hybrid mode) | ||||||||||||
| Frequency Stability | ± 0.002% | ||||||||||||
| Deviation | ± 75 kHz max. (Digital Hybrid mode) | ||||||||||||
| Spurious radiation | 60 dB below carrier | ||||||||||||
| Equivalent input noise | -120 dBV (A-weighted) | ||||||||||||
| Input level | |||||||||||||
| Mic | Nominal 2 mV to 300 mV, before limiting Greater than 1V maximum, with limiting. | ||||||||||||
| Instrument | 1M Ohm high level | ||||||||||||
| Input impedance | 2k Ohm | ||||||||||||
| Input limiter | DSP controlled, dual envelope "soft" limiter with greater than 30 dB range | ||||||||||||
| Gain control range | 44 dB; digital control | ||||||||||||
| Modulation indicators | Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation LCD bar graph | ||||||||||||
| Audio Performance (Digital Hybrid mode) | |||||||||||||
| Frequency Response | 35 Hz to 20 kHz, +/-1 dB, low frequency roll off can be set for 3 dB down points at 35, 50, 70, 100, 120 or 150 Hz | ||||||||||||
| THD | 0.2% (typical)æ | ||||||||||||
| Signal to noise ratio |
| ||||||||||||
| Note: The dual envelope "soft" limiter provides exceptionally good handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for SNR without limiting by 4.5 dB. | |||||||||||||
| Controls | Top panel slide switch; programmable as power, mute, talkback or no (off) function Side panel membrane switches with LCD interface for power on/off and all setup and configuration controls | ||||||||||||
| Audio Input Jack | Switchcraft 5-pin locking (TA5F) | ||||||||||||
| Antenna | Galvanized steel, flexible wire | ||||||||||||

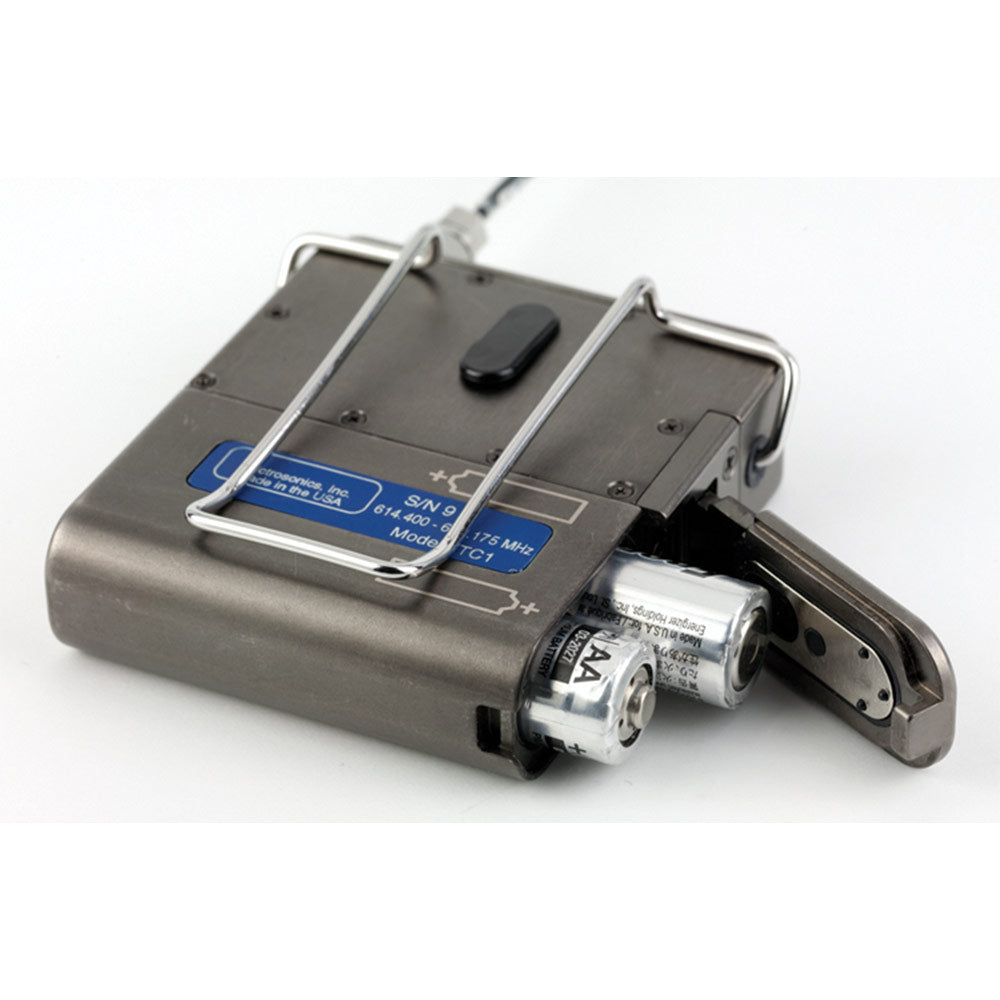

| Battery | Two AA; alkaline, lithium, NiMH rechargeable | ||||||||||||
| Battery Life | Duracell Quantum 4.75 hours Eneloop 2400 mAH NiMH 5.5 hours | ||||||||||||
| Weight | 5.9 ounces (169 grams), with alkaline AA batteries | ||||||||||||
| Dimensions | 2.85 x 2.45 x .75 in. (72 x 62 x 19 mm) | ||||||||||||
| Emission Designator | 180KF3E | ||||||||||||
Specifications subject to change without notice
