Lectrosonics M2TND - Duet Series IEM/IFB Transmitter (Non-Dante)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

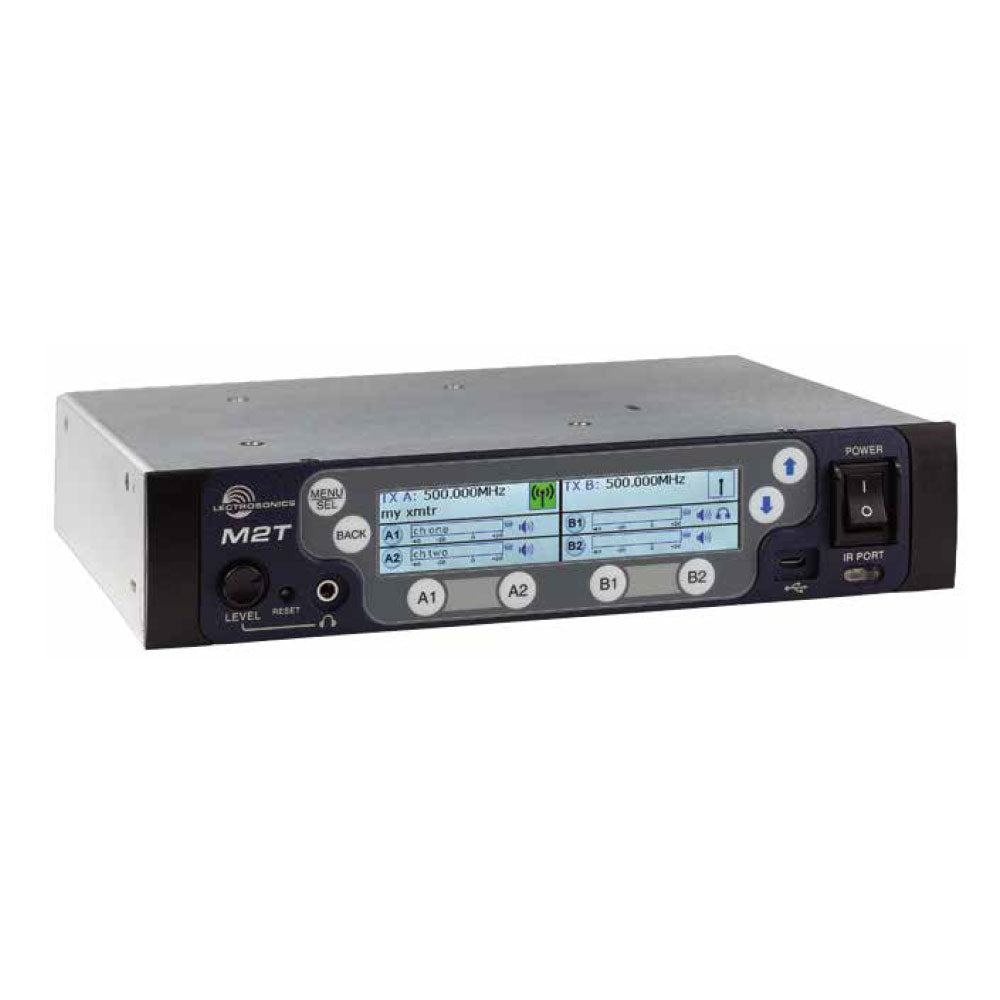

The M2T half-rack transmitter houses two independent stereo transmitters allowing for up to four stereo or dual-mono transmissions in a single rack space. The audio inputs can be individually configured to be analog or Dante compatible. The analog input connectors arefull size XLR/TRS combo types for balanced line level analog signals while the input preamp circuits use aspecial balanced amplifier with very high common mode rejection to minimize hum and noise. An additional RJ45 jack provides an Ethernet connection for programming and control via Wireless Designerª software and a USB jack on the front panel allows for firmware updates. The transmitter features a full color, backlit LCD for high visibility in any environment, while the chassis is all-metal and can be racked singly or in pairs using included rack mount hardware.
Features:
- IEM (Wireless Monitor) with digital RF transmission
- 24-bit digital audio
- 2 independent stereo audio transmissions per 1/2 RV enclosure
- USB port for firmware updates
- IR (infrared) port for fast setup
- Up to 50 mW per Rf carrier
- All metal housing
- Compatible with Wireless Designerª Software
| RF Power Output | 2 RF carriers, 25 mW, 50 mW; adjustable. |
| Antenna Output | 2 x BNC sockets |
| Operating Frequencies | 470.1 _ 607.975 MHz |
| Frequency Selection Steps | 25 kHz |
| Frequency Stability | ± 0.002% |
| Modulation | 8 PSK |
| Emission Designator | 200KG7E |
| Spurious Radiation | >90 dB below carrier |
| Equivalent input Noise | _128 dBV |
| Audio Frequency Response | 20 HZ - 15 KHZ, -3 dB |
| Audio Input | -10 dBv or +4 dBu settings w/ ±5 dB trim |

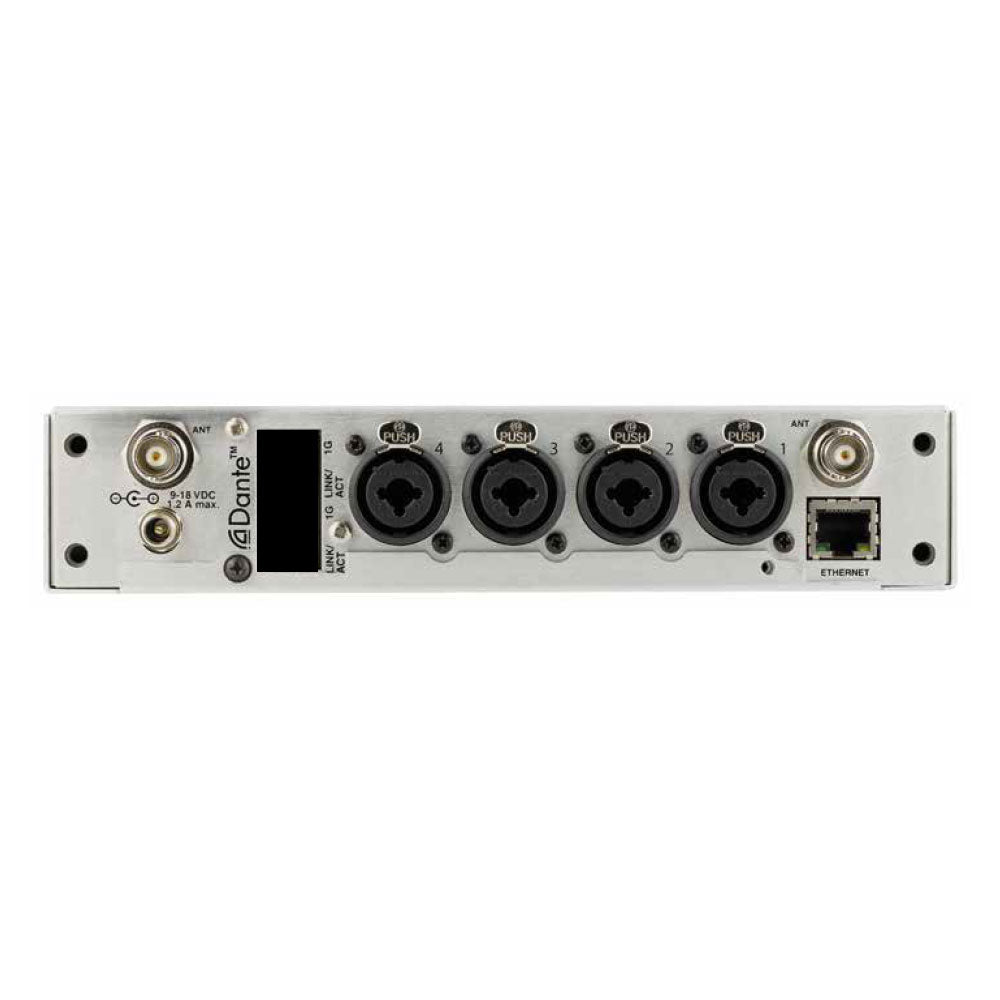

| Audio Input Jack | 4 x combo XLR/TRS connectors |
| Dante Connection (M2T-D Only) | 2 x RJ45. Internally routable with Ultimo 4x4 module |
| Ethernet Connection | RJ45 |
| USB Connection | Micro USB on front panel for firmware updates |
| IRDA | IR transceiver for sync of receivers |
| Input impedance | Line: 2k Ohm |
| Headphone jack | _ inch stereo jack |
| Power Requirements | 9-18V DC |
| Power Consumption | 5 Watts |
| Dimensions | Height: 1.750 in. / 44.45 mm Width: 8.375 in. / 212.7 mm Depth: 7.750 in. / 196.8 m |
The M2T half-rack transmitter houses two independent stereo transmitters allowing for up to four stereo or dual-mono transmissions in a single rack space. The audio inputs can be individually configured to be analog or Dante compatible. The analog input connectors arefull size XLR/TRS combo types for balanced line level analog signals while the input preamp circuits use aspecial balanced amplifier with very high common mode rejection to minimize hum and noise. An additional RJ45 jack provides an Ethernet connection for programming and control via Wireless Designerª software and a USB jack on the front panel allows for firmware updates. The transmitter features a full color, backlit LCD for high visibility in any environment, while the chassis is all-metal and can be racked singly or in pairs using included rack mount hardware.
