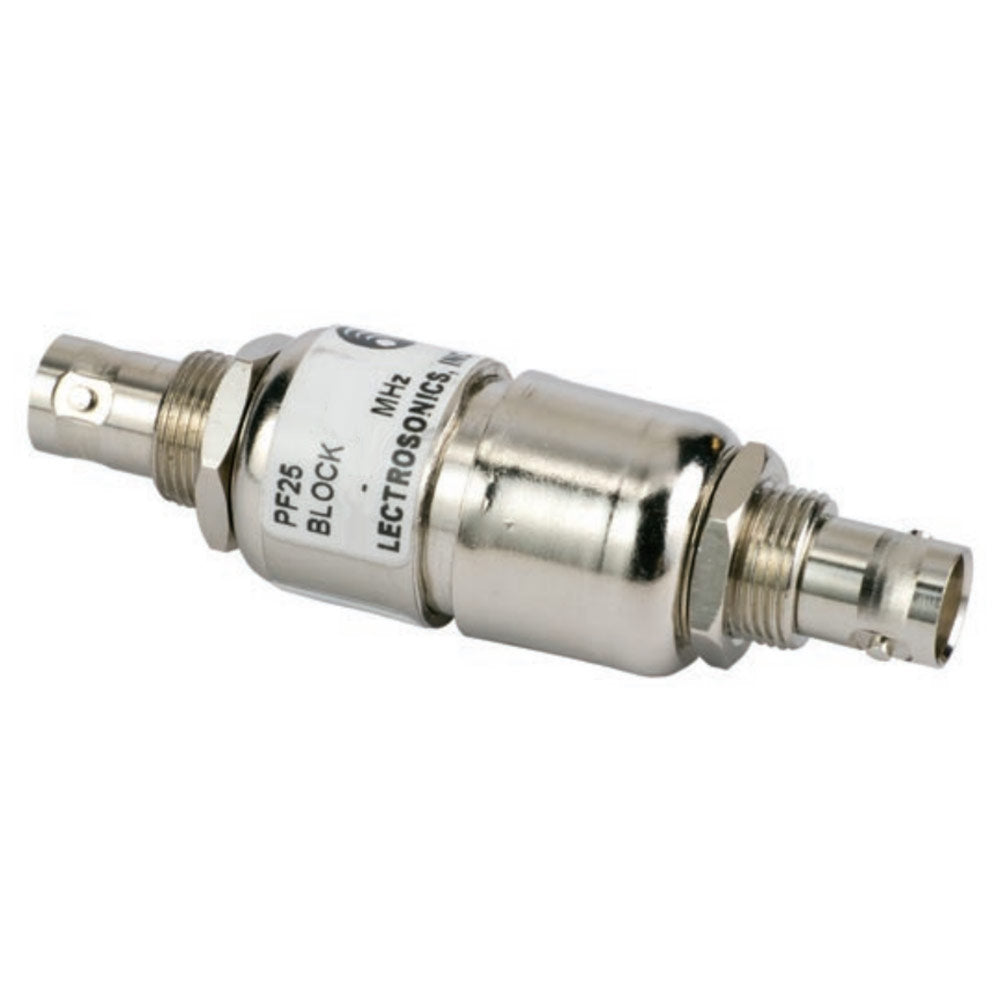

Lectrosonics PF25-21 - Passive 25MHz Inline RF Filter (Block 21 / 538-563 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Passive in-line RF filter with 25MHz passband. Designed for use with VRMWB and VRField WB wide-band receiver systems in cases where the full bandwidth of the receiver is not needed.
| Operating Frequencies (MHz) | Block 470: 470.100-495.600 Block 19: 486.400-511.900 Block 20: 512.000-537.500 Block 21: 537.600-563.100 Block 22: 563-200-588.700 Block 23: 588.800-614-300 Block 24: 614-400-639.900 Block 25: 640-000-665-500 Block 26: 665.600-691.100 Block 27: 691.200-716.700 Block 28: 716.800-742-300 Block 29: 742.400-767.900 |
| Filter type | SAW (surface acoustic wave) |
| Bandwidth | Varies with frequency block |
| Maximum RF level | +10 dBm |
| DC bias power capacity | 350 mA max. |
| Input impedance | 50 Ohm BNC |
| Output impedance | 50 Ohm BNC |
| Dimensions | 2.97 x 0.84 dia. (inches) 75 x 21 dia. (mm) |
| Weight | 2.7 ozs. 76 grams |
Specifications subject to change without notice
Passive in-line RF filter with 25MHz passband. Designed for use with VRMWB and VRField WB wide-band receiver systems in cases where the full bandwidth of the receiver is not needed.
| Operating Frequencies (MHz) | Block 470: 470.100-495.600 Block 19: 486.400-511.900 Block 20: 512.000-537.500 Block 21: 537.600-563.100 Block 22: 563-200-588.700 Block 23: 588.800-614-300 Block 24: 614-400-639.900 Block 25: 640-000-665-500 Block 26: 665.600-691.100 Block 27: 691.200-716.700 Block 28: 716.800-742-300 Block 29: 742.400-767.900 |
| Filter type | SAW (surface acoustic wave) |
| Bandwidth | Varies with frequency block |
| Maximum RF level | +10 dBm |
| DC bias power capacity | 350 mA max. |
| Input impedance | 50 Ohm BNC |
| Output impedance | 50 Ohm BNC |
| Dimensions | 2.97 x 0.84 dia. (inches) 75 x 21 dia. (mm) |
| Weight | 2.7 ozs. 76 grams |
Specifications subject to change without notice
