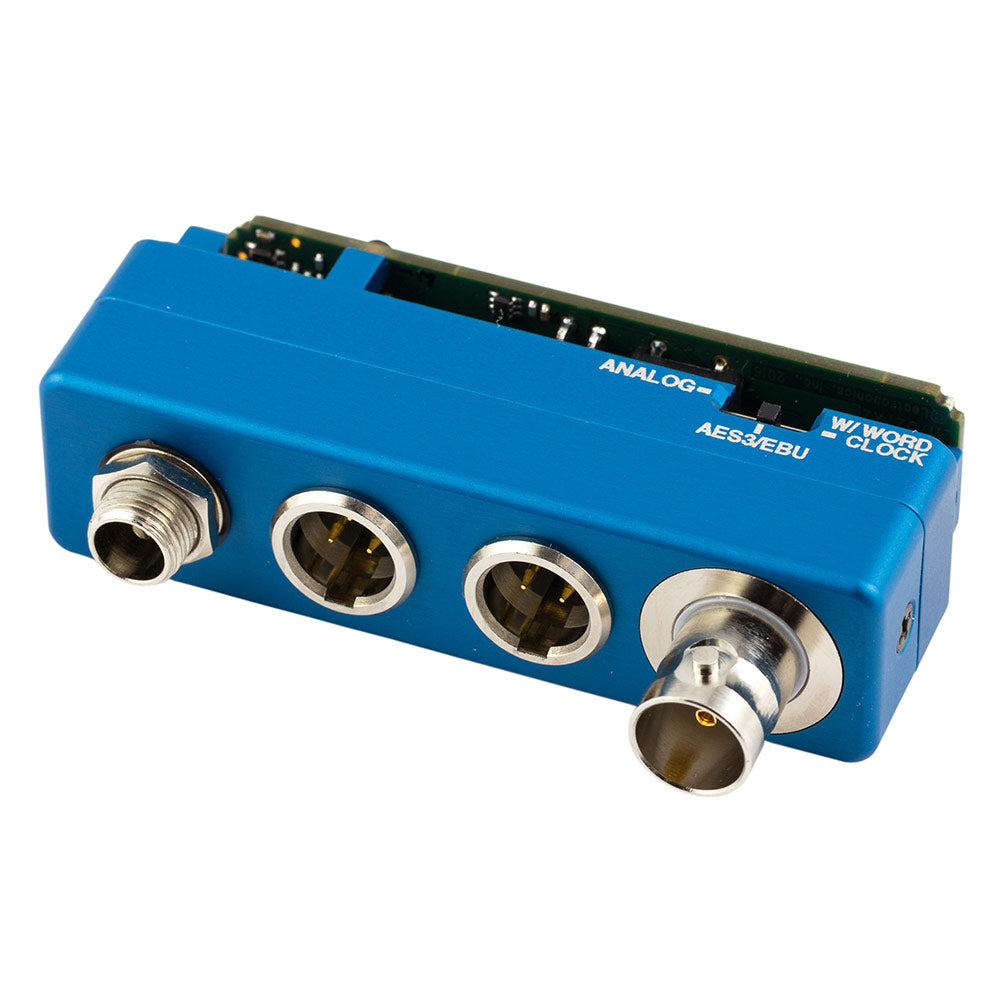

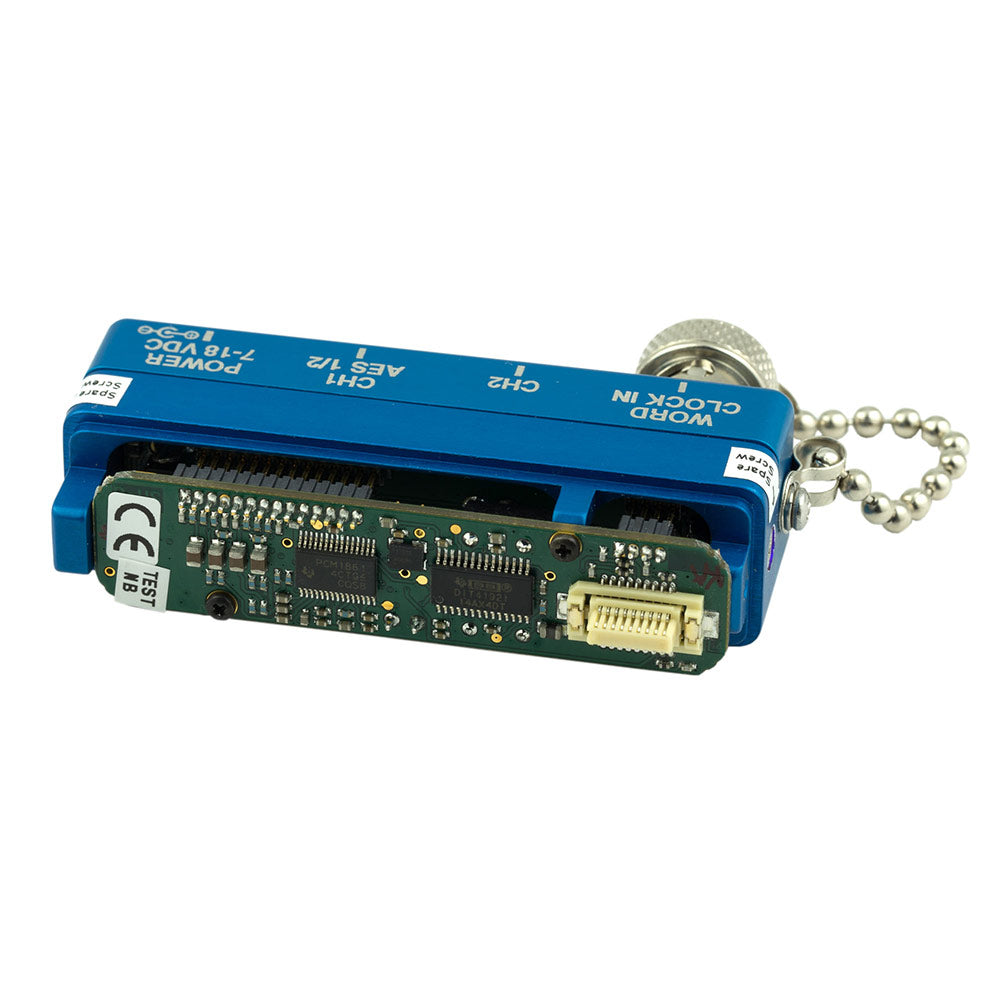

Lectrosonics SRAES3 - AES3/EBU Output Adapter for SR Series Receivers
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
With the SRAES3, the output of any SR Series receiver can be now deliveredÊin analog or digital audio formats using this adapter. TheÊunit will work with all receiver versions to provide audioÊin the following formats:
- AES3 digital audio at 48 kHz sampling with anÊinternal clock
- AES3 digital audio with an external word clock atÊ44.1, 48 or 96 kHz sampling
- Balanced analog audio from - 50 dBu to +5 dBu inÊ1 dB steps
| Digital Output | æ |
| Type | AES3/EBU |
| Output Level | -11 dBFS |
| Sample Rate | Internal clock: 48 kHz External clock: 44.1, 48 or 96 kHz |
| THD | 0.15% |
| Output Connectors | TA3 male (mini XLR) |
| Word Clock Input | Parameter: Standard TTL level Termination: 75 ohm (removable) Connector: BNC |
| Analog Output | æ |
| Type | Balanced |
| Output Level | -50 to +5 dBu in 1 dB steps |
| THD | 0.15% |
| Power Requirements: (with SRc receiver) |
7 min. to 18 max. VDC ´ 345 mA at 7 VDC ´ 200 mA at 12VDC ´ 135 mA at 18VDC |
