Description
The SRc5P and SRc consists of two separate receivers built into a single, ultra compact housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless¨ technology provides superb, compandor-free audio quality and compatibility with other wireless systems. T... Read MoreRetail Price: $3,708.00 Our Price: $2,755.00
Free Shipping (Continental US)
Suggested Accessories
Description

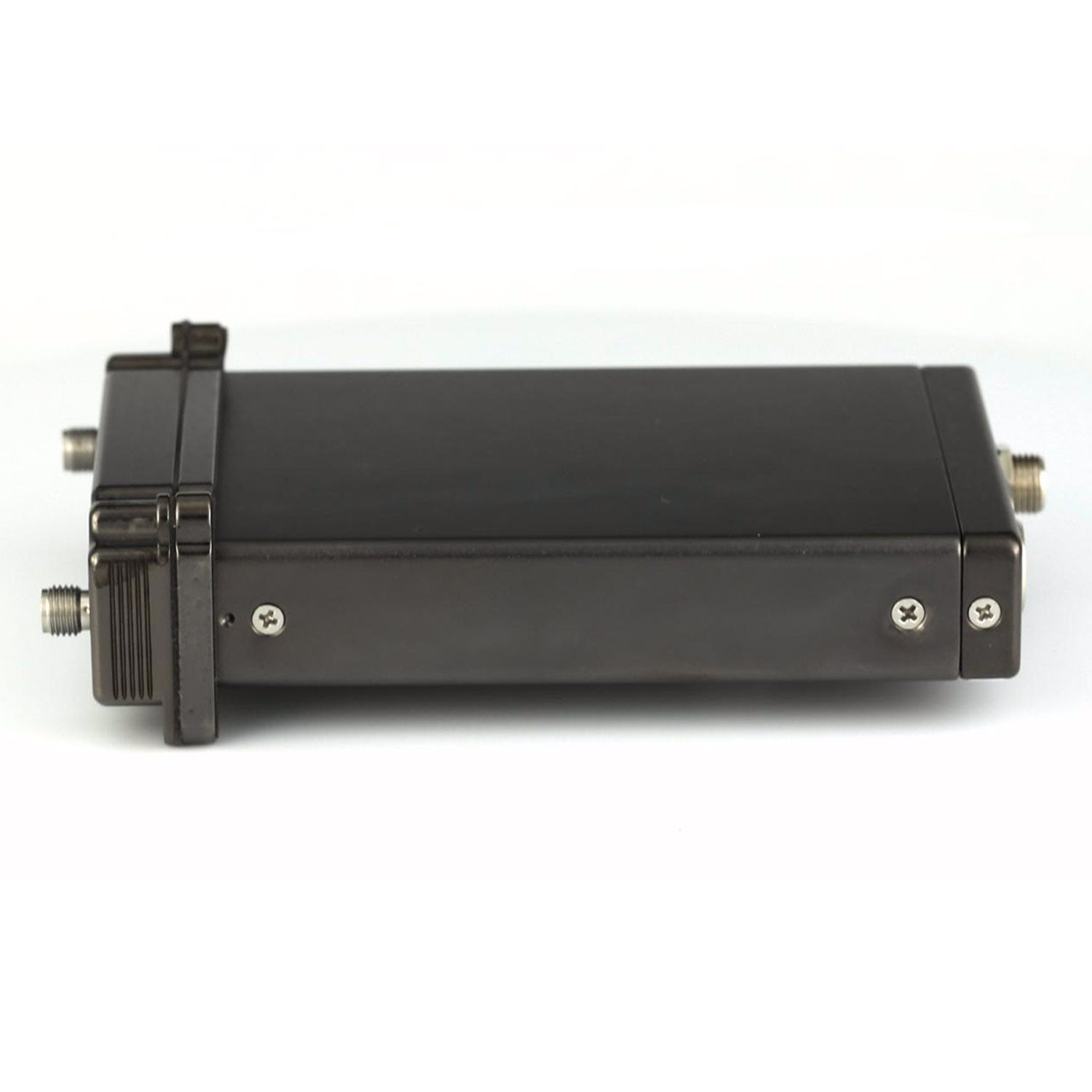

The SRc5P and SRc consists of two separate receivers built into a single, ultra compact housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless¨ technology provides superb, compandor-free audio quality and compatibility with other wireless systems. The RF performance is extremely stable over a very wide temperature range, making the receiver perfectly suited to the rough environmental conditions found in field production.
Features:
DSP compatibility modes allow the receiver to be used with a variety of Lectrosonics systems, other brands of wireless systems and with Lectrosonics IFB transmitters.
Included Accessories:
Ikegami
All current Ikegami camcorders with Uni-Slot receiver mounts are dual-channel capable in the slot with a simple switch activation on the UI board, including models:
Panasonic
SR Compatibility with Panasonic Professional Camcorders:
Cameras currently shipping with the two-channel* audio operation within the receiver slot (Unislot) with the SR/SRa Receivers. If you have an older version of these cameras,
you may need a firmware upgrade available from Panasonic.
*Note: SRc, Src5P, SRb, SRb5p, SR, SRa, SR5P and SRa5P Receivers all operate in diversity mode in either single or dual-channel modes.
Cameras requiring SRa5P Receiver and external audio inputs for two channel operation.
More +
Product Specs
Operating Frequencies | Band A1: 470.100 - 537.575 MHz Band B1: 537.600 - 614.375 MHz Band B2: 563.200 - 639.975 MHz Block 606: 606.000 - 631.500 MHz Band C1: 614.400 - 691.175 MHz Band C2: 640.000 - 713.900 MHz/716.775 MHz selectable | ||||||||||||
Frequency selection steps | Selectable; 100 kHz or 25 kHz | ||||||||||||
Receiver Type | Dual conversion, superheterodyne | ||||||||||||
IF Frequencies | Ch.1: 248.450 MHz and 350.000 kHz Ch. 2: 243.950 MHz and 250.000 kHz | ||||||||||||
Frequency Stability | ±0.001 % | ||||||||||||
Front end bandwidth | 20 MHz @ -3 dB | ||||||||||||
Sensitivity | 20 dB SINAD: 1.0 uV (-107 dBm), A weighted 60 dB Quieting: 2.2 uV (-100 dBm), A weighted | ||||||||||||
Squelch quieting | Greater than 100 dB typical | ||||||||||||
AM rejection | Greater than 60 dB, 4 uV to 1 Volt | ||||||||||||
Modulation acceptance | 85 kHz | ||||||||||||
Image and spurious rejection | 85 dB Third order intercept: 0 dBm | ||||||||||||
Diversity method | SmartDiversityTM phased antenna combining or Ratio Diversity using both receivers for a single audio channel | ||||||||||||
FM Detector | Digital Pulse Counting Detector operating at 250 and 350 kHz | ||||||||||||
RF spectrum analyzer | Coarse and fine scanning modes for RF spectrum site survey | ||||||||||||
Antenna inputs | 50 Ohm; SMA female connectors | ||||||||||||

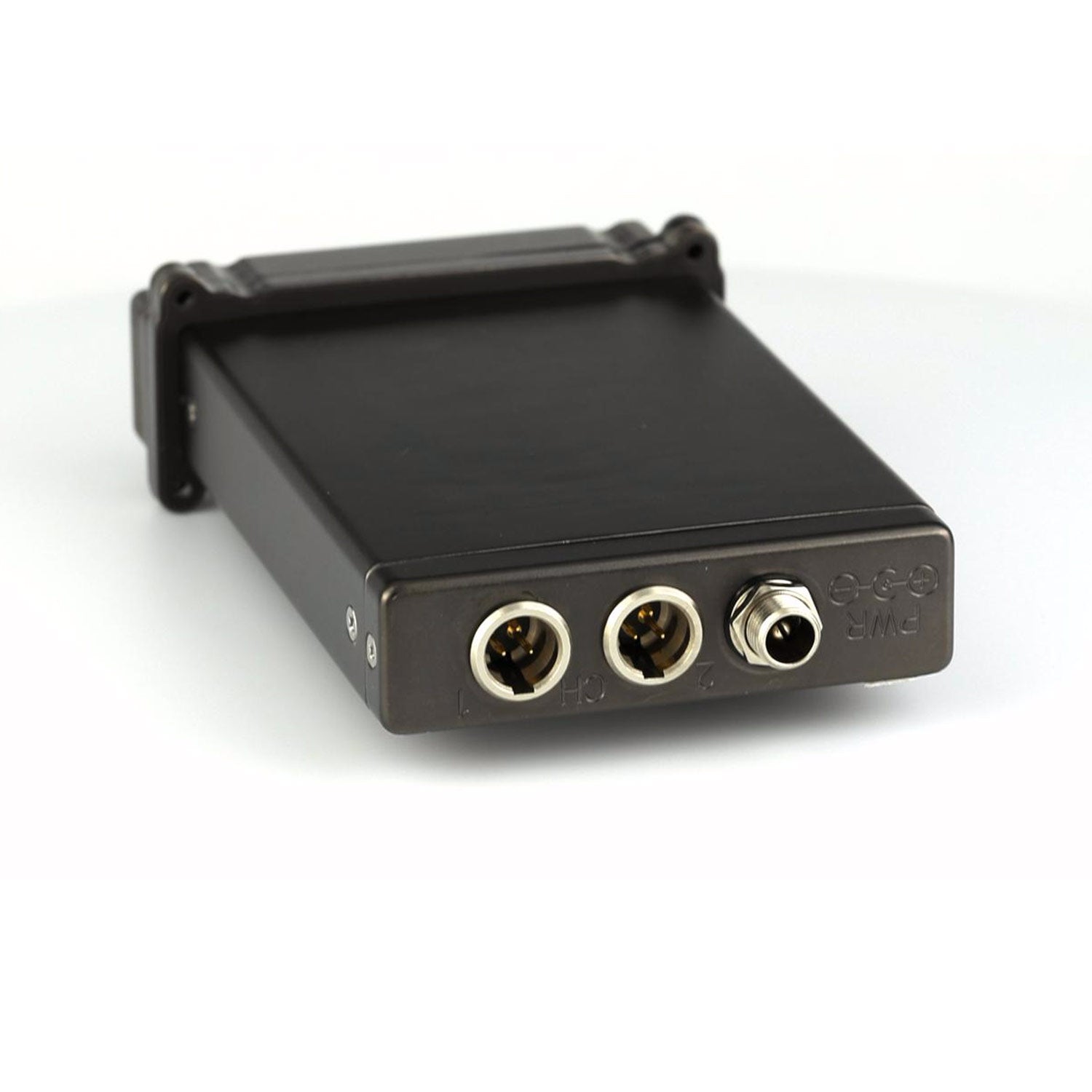

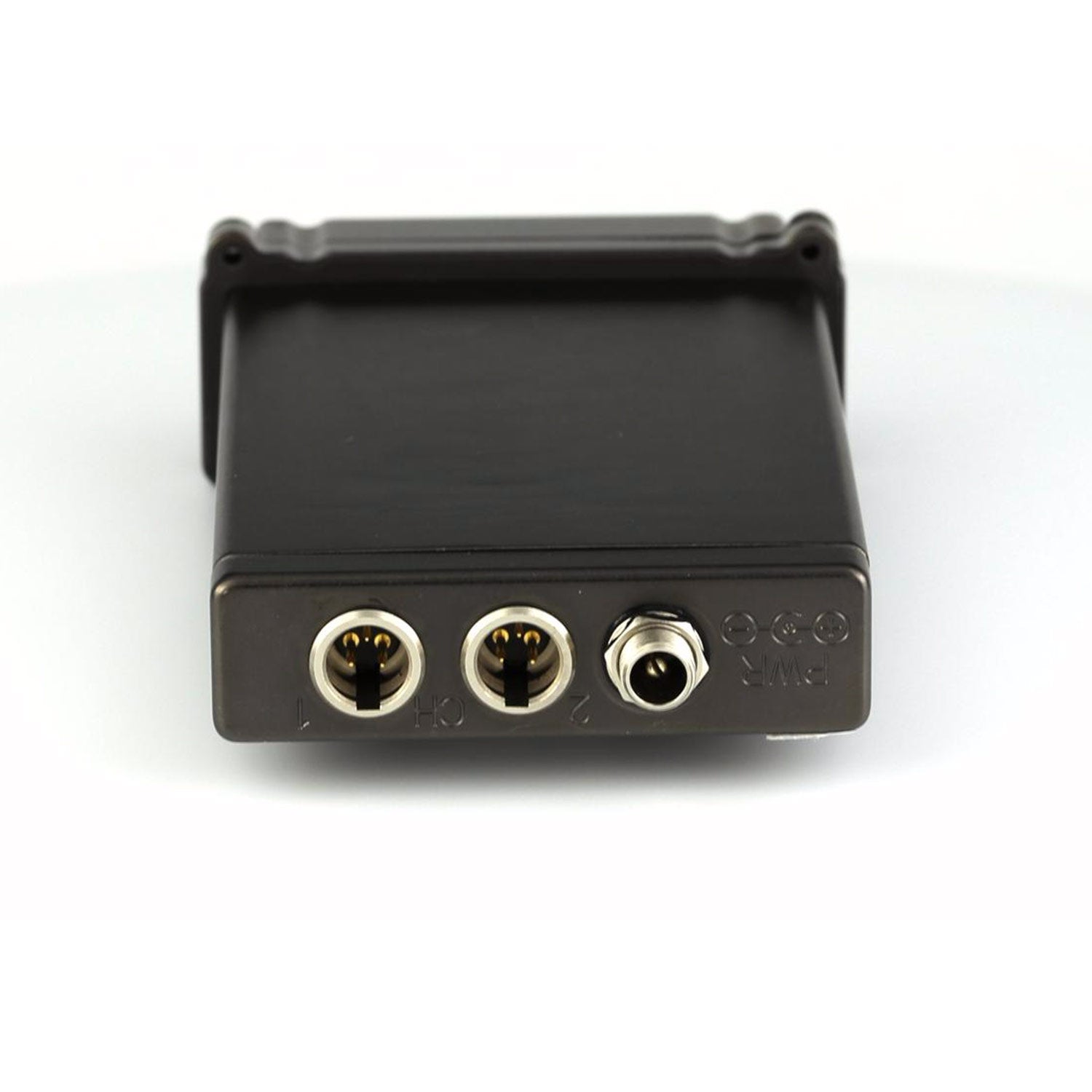

Audio output connectors | Interchangeable D connector adapters for camera slot interfaces Dual TA3 male (mini XLR) balanced output adapter Balanced output adapter with fixed cables | ||||||||||||
Front panel audio output (5P model) | Control panel TA5M with two balanced outputs | ||||||||||||
Audio output level | Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output is 6 dB lower | ||||||||||||
Audio channel crosstalk | -80 dB or better | ||||||||||||

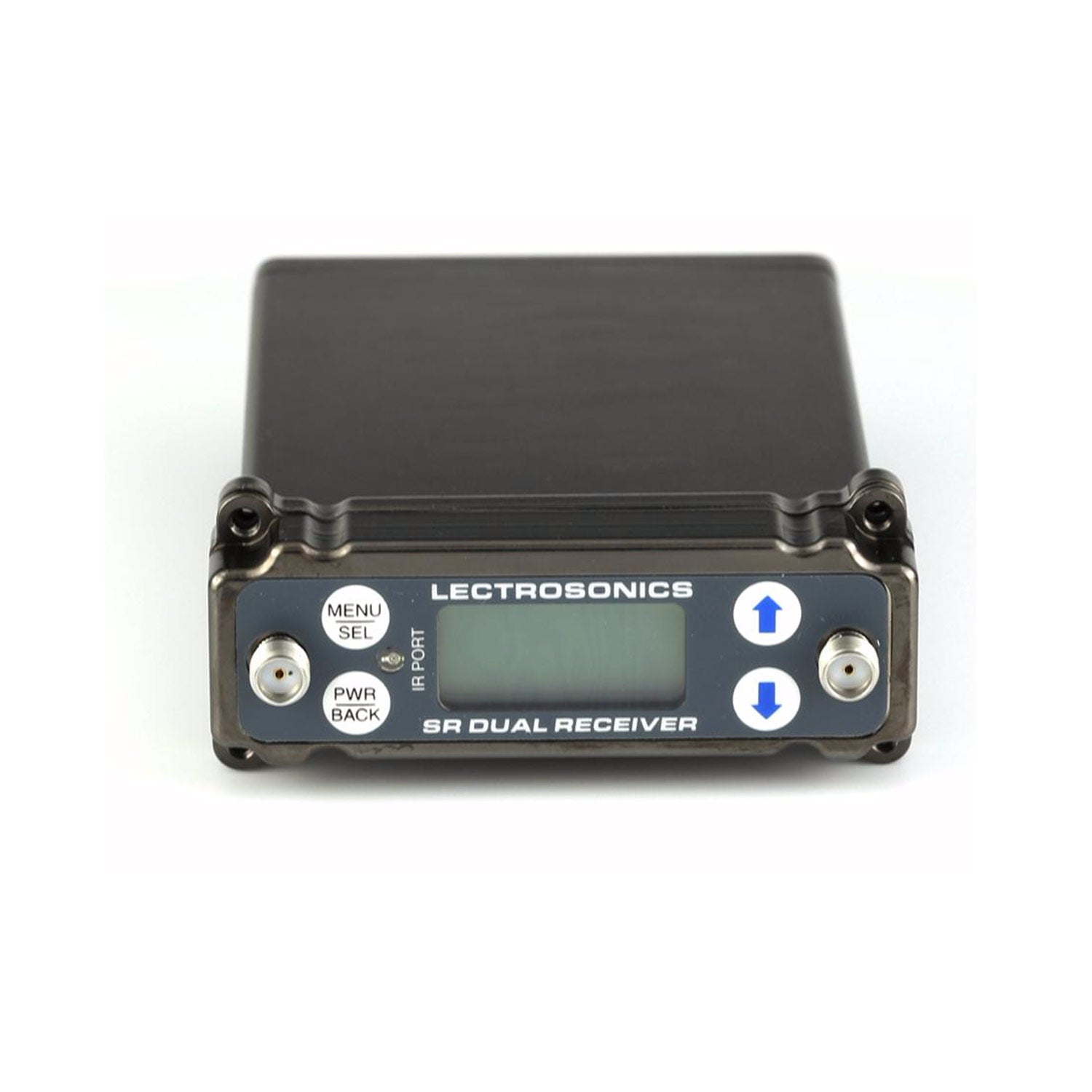

Front Panel Controls and Indicators | Sealed panel with membrane switches LCD monitors pilot tone; antenna phase, receiver battery level; transmitter battery status; audio level, RF level | ||||||||||||
Audio test tone | 1 kHz, -50 dBu to +5 dBu output (bal); 1% THD | ||||||||||||
Transmitter battery type Selection | 9V alkaline, 9V lithium, AA alkaline, AA lithium, NiMH | ||||||||||||
Phase invert | Audio output phase normal or inverted | ||||||||||||
Compatibility modes | NA HYBRÊÊÊÊ North American Digital Hybrid Wireless¨ MODE 3ÊÊÊÊÊÊÊ Other manufacturer* 200 SERÊÊÊÊÊÊÊÊ 200 Series transmitters 100 SERÊÊÊÊÊÊÊÊ 100 Series transmitters MODE EÊÊÊÊÊÊÊ Other manufacturer* EU HYBRÊÊÊÊÊÊ European Digital Hybrid Wireless¨ 300 SERÊÊÊÊÊÊÊÊ 300 Series transmitters (European) MODE 7ÊÊÊÊÊÊÊ Other manufacturer* MODE 6ÊÊÊÊÊÊÊ Other manufacturer* IFB SERÊÊÊÊÊÊÊÊ IFB transmitters in IFB mode | ||||||||||||
*Contact the factory for details on other manufacturers | |||||||||||||
SmartNR (noise reduction) | OFF, NORMAL, FULL modes (available in Digital Hybrid mode only) | ||||||||||||
Audio Performance (overall system) | |||||||||||||
ÊÊÊÊ Frequency Response | 32 Hz to 20 kHz (+/- 1dB) | ||||||||||||
ÊÊÊÊ THD | 0.15% (system) typical in Digital Hybrid mode | ||||||||||||
System Dynamic Range |
| ||||||||||||
(Note: The dual envelope "soft" limiter provides exceptionally good handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for dynamic range with no limiting by 4.5 dB. | |||||||||||||
Rear Panel Controls and features | Audio output connectors External DC input | ||||||||||||

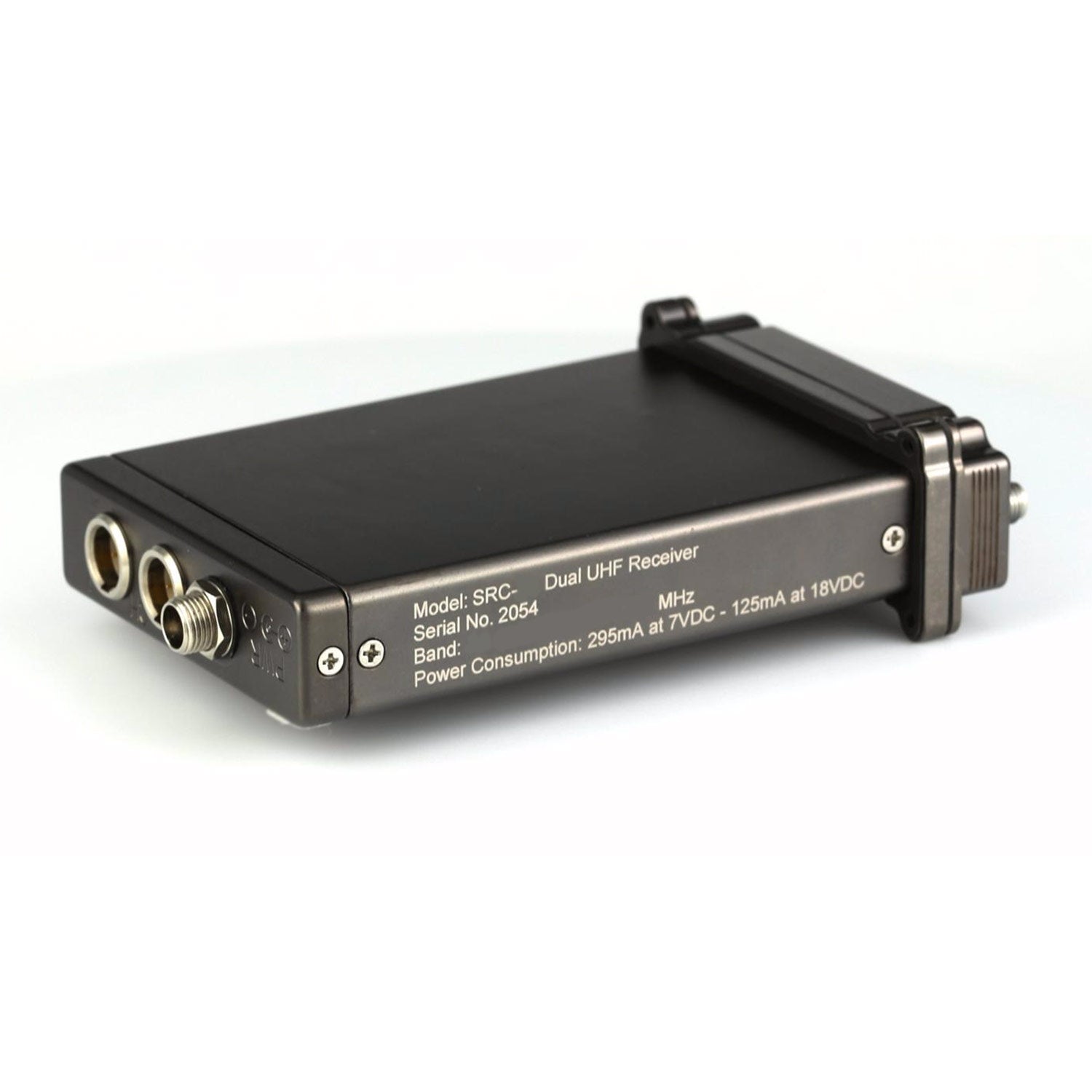

Powering and current consumption | Min. 7 V to max. 18 Volts DC; 2.6 W ÊÊÊÊ 145 mA at 18 VDC ÊÊÊÊ 290 mA at 7 VDC | ||||||||||||
Runtime with SRBATTSLED adapter | 7.2 V, 2200 mAH "L" style battery will typically provide over 7 hours of operation | ||||||||||||
Transmitter battery level tracking | LCD display with battery icon or timer readout | ||||||||||||
Operating temperature | -20¡C to +50¡C | ||||||||||||
Weight | 225 grams (7.9 ozs.) with SREXT adapter | ||||||||||||
Overall dimensions (with SREXT adapter) | 2.92" wide x 1.22" high x 4.93" deep (74 mm x 31 mm x 125 mm) |
Specifications subject to change without notice
