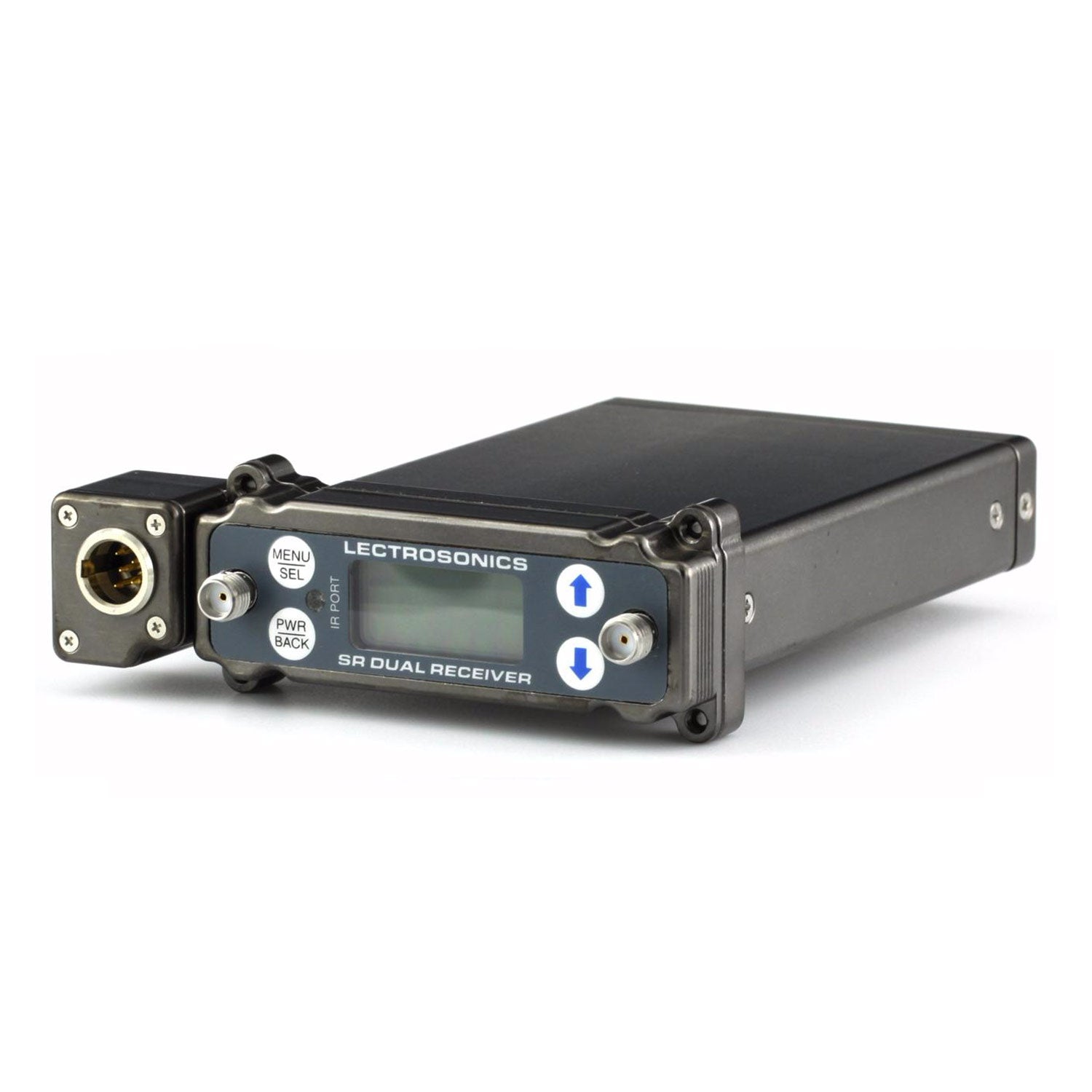

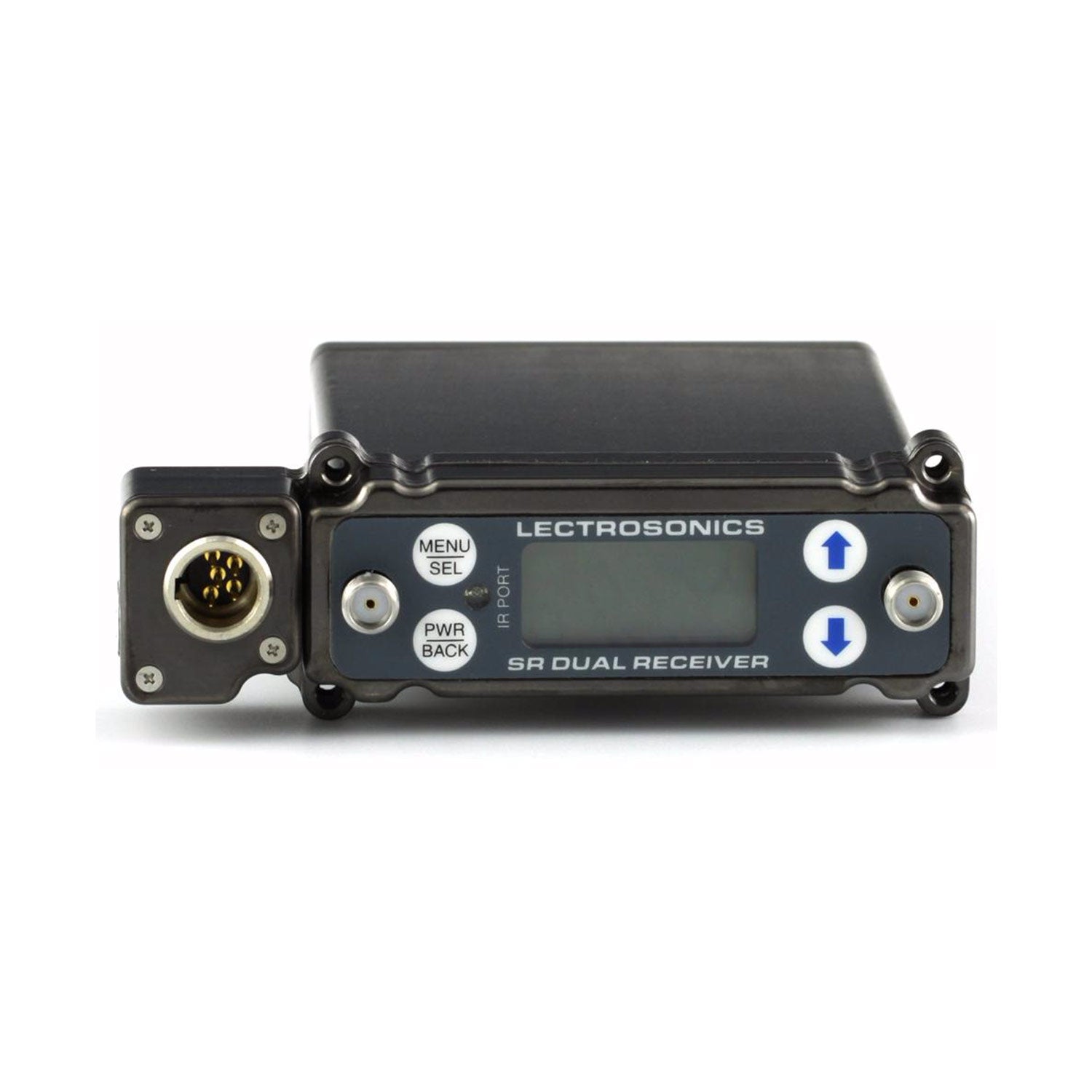

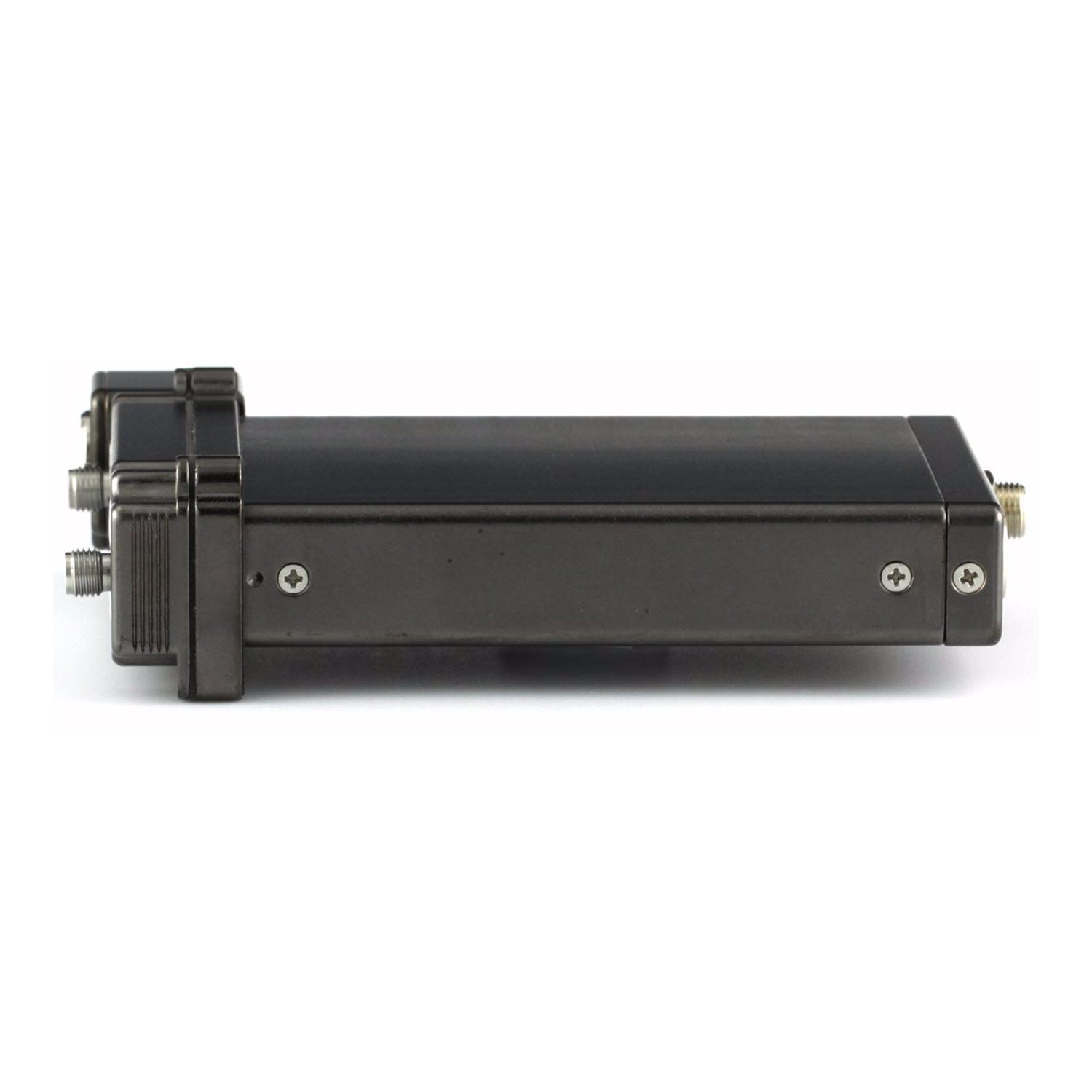

Lectrosonics SRc5P - Dual-Channel Slot-Mount Digital Hybrid Wireless Receiver (Block B1 / 537-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SRc5P and SRc consists of two separate receivers built into a single, ultra compact housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless¨ technology provides superb, compandor-free audio quality and compatibility with other wireless systems. The RF performance is extremely stable over a very wide temperature range, making the receiver perfectly suited to the rough environmental conditions found in field production.
Features:
- Fits camera "slots," Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
- Tunes over a 75 MHz range* (3 blocks)
- Dual receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
- Digital Hybrid Wireless¨ with compatibility modes for use with other transmitters
- Tracking front-end filters for high performance in tough RF environments
- LCD with RF spectrum scanning
- SmartSquelchTM DSP-controlled, noise based filtering and squelch
- DSP-based pilot tone for squelch control
- IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
- SmartTune operation for quick and confident frequency selection
DSP compatibility modes allow the receiver to be used with a variety of Lectrosonics systems, other brands of wireless systems and with Lectrosonics IFB transmitters.
Included Accessories:
- 1 - Adjustment Tool (Part# 35679)
- 2 - Antennas (Part #AMJ-XX)
- 1 - Quickstart Guide
Ikegami
All current Ikegami camcorders with Uni-Slot receiver mounts are dual-channel capable in the slot with a simple switch activation on the UI board, including models:
- HDS-V10
- HDN-X10
- DNS-33W
Contact engineering at Ikegami for details:
website: http://www.ikegami.co.jp/global/
e-mail: engineering@ikegami.com
phone: (201) 368-9171
Panasonic
SR Compatibility with Panasonic Professional Camcorders:
Cameras currently shipping with the two-channel* audio operation within the receiver slot (Unislot) with the SR/SRa Receivers. If you have an older version of these cameras,
you may need a firmware upgrade available from Panasonic.
- AG-HPX300
- AJ-HPX2000
- AJ-HPX2100
- AJ-HPX2700
- AJ-HPX3000
- AJ-HPX3700
*Note: SRc, Src5P, SRb, SRb5p, SR, SRa, SR5P and SRa5P Receivers all operate in diversity mode in either single or dual-channel modes.
Cameras requiring SRa5P Receiver and external audio inputs for two channel operation.
- AG-HPX500
- AG-HDX900
- AJ-SPX900/800
- AJ-SPC700
| Operating Frequencies | Band A1: 470.100 - 537.575 MHz Band B1: 537.600 - 614.375 MHz Band B2: 563.200 - 639.975 MHz Block 606: 606.000 - 631.500 MHz Band C1: 614.400 - 691.175 MHz Band C2: 640.000 - 713.900 MHz/716.775 MHz selectable | ||||||||||||
| Frequency selection steps | Selectable; 100 kHz or 25 kHz | ||||||||||||
| Receiver Type | Dual conversion, superheterodyne | ||||||||||||
| IF Frequencies | Ch.1: 248.450 MHz and 350.000 kHz Ch. 2: 243.950 MHz and 250.000 kHz | ||||||||||||
| Frequency Stability | ±0.001 % | ||||||||||||
| Front end bandwidth | 20 MHz @ -3 dB | ||||||||||||
| Sensitivity | 20 dB SINAD: 1.0 uV (-107 dBm), A weighted 60 dB Quieting: 2.2 uV (-100 dBm), A weighted | ||||||||||||
| Squelch quieting | Greater than 100 dB typical | ||||||||||||
| AM rejection | Greater than 60 dB, 4 uV to 1 Volt | ||||||||||||
| Modulation acceptance | 85 kHz | ||||||||||||
| Image and spurious rejection | 85 dB Third order intercept: 0 dBm | ||||||||||||
| Diversity method | SmartDiversityTM phased antenna combining or Ratio Diversity using both receivers for a single audio channel | ||||||||||||
| FM Detector | Digital Pulse Counting Detector operating at 250 and 350 kHz | ||||||||||||
| RF spectrum analyzer | Coarse and fine scanning modes for RF spectrum site survey | ||||||||||||
| Antenna inputs | 50 Ohm; SMA female connectors | ||||||||||||

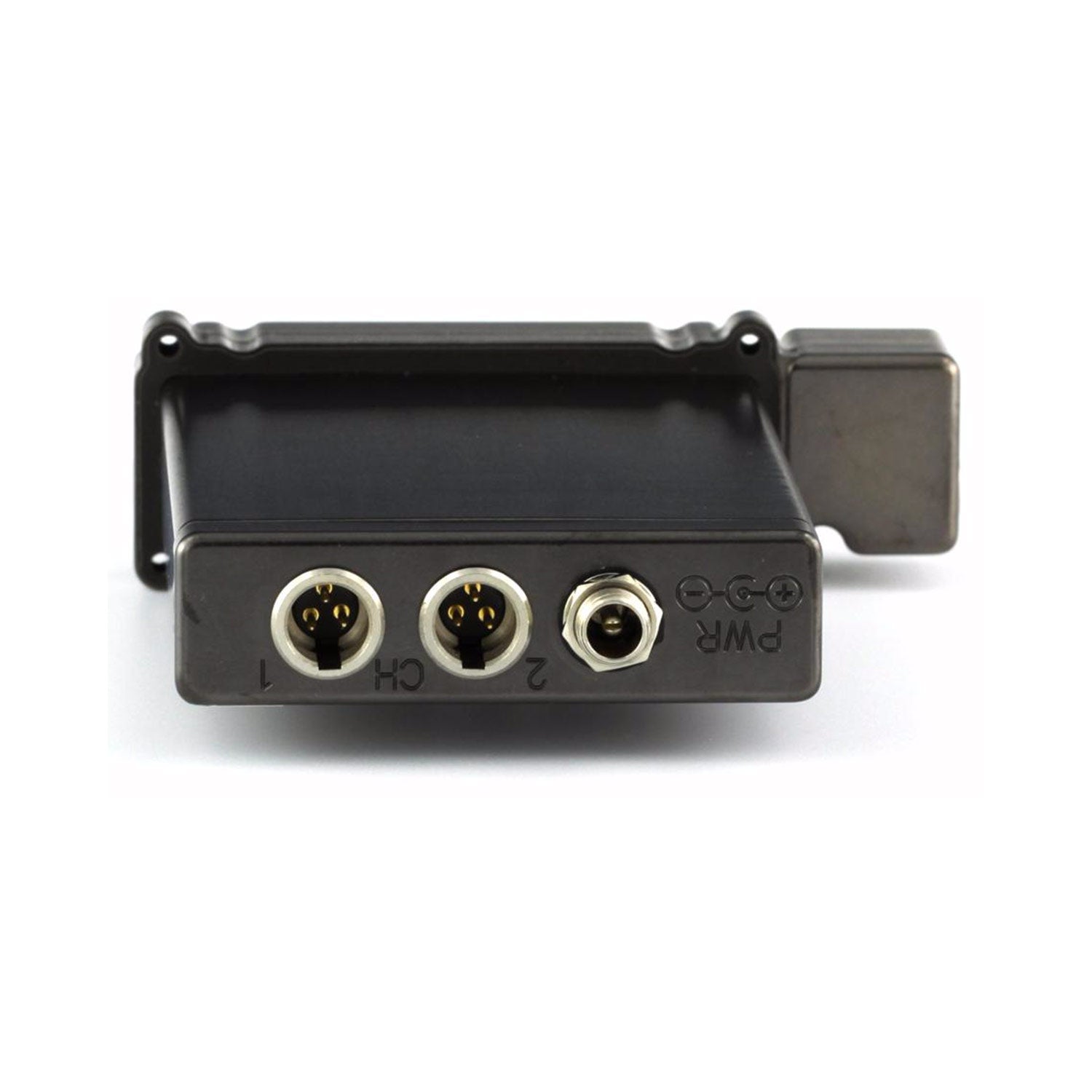

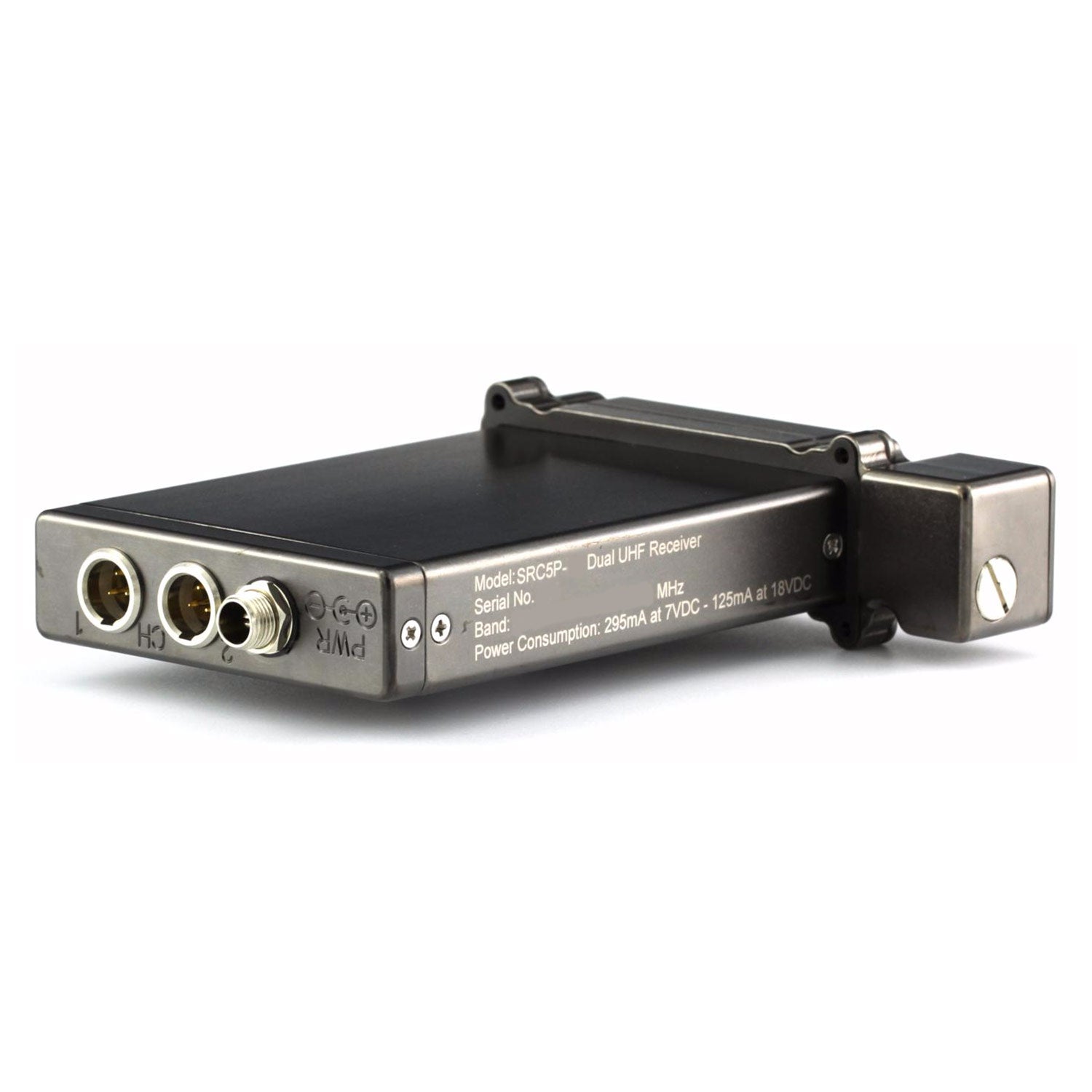

| Audio output connectors | Interchangeable D connector adapters for camera slot interfaces Dual TA3 male (mini XLR) balanced output adapter Balanced output adapter with fixed cables | ||||||||||||
| Front panel audio output (5P model) | Control panel TA5M with two balanced outputs | ||||||||||||
| Audio output level | Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output is 6 dB lower | ||||||||||||
| Audio channel crosstalk | -80 dB or better | ||||||||||||
| Front Panel Controls and Indicators | Sealed panel with membrane switches LCD monitors pilot tone; antenna phase, receiver battery level; transmitter battery status; audio level, RF level | ||||||||||||
| Audio test tone | 1 kHz, -50 dBu to +5 dBu output (bal); 1% THD | ||||||||||||
| Transmitter battery type Selection | 9V alkaline, 9V lithium, AA alkaline, AA lithium, NiMH | ||||||||||||
| Phase invert | Audio output phase normal or inverted | ||||||||||||
| Compatibility modes | NA HYBRææææ North American Digital Hybrid Wireless¬ MODE 3æææææææ Other manufacturer* 200 SERææææææææ 200 Series transmitters 100 SERææææææææ 100 Series transmitters MODE Eæææææææ Other manufacturer* EU HYBRææææææ European Digital Hybrid Wireless¬ 300 SERææææææææ 300 Series transmitters (European) MODE 7æææææææ Other manufacturer* MODE 6æææææææ Other manufacturer* IFB SERææææææææ IFB transmitters in IFB mode | ||||||||||||
| *Contact the factory for details on other manufacturers | |||||||||||||
| SmartNR (noise reduction) | OFF, NORMAL, FULL modes (available in Digital Hybrid mode only) | ||||||||||||
| Audio Performance (overall system) | |||||||||||||
| ææææ Frequency Response | 32 Hz to 20 kHz (+/- 1dB) | ||||||||||||
| ææææ THD | 0.15% (system) typical in Digital Hybrid mode | ||||||||||||
| System Dynamic Range |
| ||||||||||||
| (Note: The dual envelope "soft" limiter provides exceptionally good handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for dynamic range with no limiting by 4.5 dB. | |||||||||||||
| Rear Panel Controls and features | Audio output connectors External DC input | ||||||||||||
| Powering and current consumption | Min. 7 V to max. 18 Volts DC; 2.6 W ææææ 145 mA at 18 VDC ææææ 290 mA at 7 VDC | ||||||||||||
| Runtime with SRBATTSLED adapter | 7.2 V, 2200 mAH "L" style battery will typically provide over 7 hours of operation | ||||||||||||
| Transmitter battery level tracking | LCD display with battery icon or timer readout | ||||||||||||
| Operating temperature | -20ÁC to +50ÁC | ||||||||||||
| Weight | 225 grams (7.9 ozs.) with SREXT adapter | ||||||||||||
| Overall dimensions (with SREXT adapter) | 2.92" wide x 1.22" high x 4.93" deep (74 mm x 31 mm x 125 mm) | ||||||||||||
Specifications subject to change without notice
