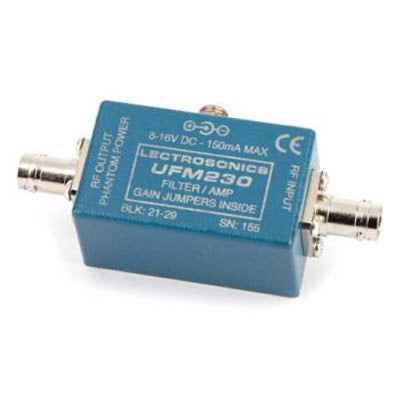

Lectrosonics UFM230 - UHF Filter and Amplifier Inline Module (538 - 768 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The UFM230 provides a unique solution for antenna systems requiring long cable runs or distribution to multiple receivers or locations. The amplifier in the unit provides 12 dB of gain without attenuation. Gains of 5 dB and 8 dB can also be selected using the supplied attenuators. The built-in filters provide a 230 MHz passband to cover all standard Lectrosonics frequency blocks.
| Third Order Intercept | +27 dBm @ input (+41 dBm output) | ||
| Inputs | RF In - BNC DC In - 2.1 mm locking power jack | ||
| Output | RF out - BNC (and phantom power in) | ||
| Freq Range | UFM230 -æ 537 - 768 MHz UFM230L -æ 470 - 692 MHz | ||
| Filter Bandwidth | 230 MHz, factory set. | ||
| RF Gain | +12 dB with 0dB attenuator +8 dB with 4dB attenuator +5 dB with 7dB attenuator | ||
| Power Requirements | 8V to 16V DC at the input jack; auto reset poly fuse protection circuit; constant power switching supply 8V DC (125 to 145 mA) 12V DC (83 to 106 mA) 14.4V DC (69 to 89 mA) 16V DC (60 to 80 mA) | ||
| Phantom Powering | DC voltage supplied via coaxial cable by UMC16B or VRM input jack or BIAS-T power inserter (70 to 80 mA) | ||
| Power Consumption | 1 Watt nominal (switching regulator) | ||
| Dimensions | 2.26 x 1.39 x 1.14 inches (not including BNCs) | ||
| Weight | 3.3 ozs |
