Lectrosonics UFM230L - UHF Filter and Amplifier Inline Module (470 - 692 MHz)

Sale price$480.00 Regular price$629.00
Save $149.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

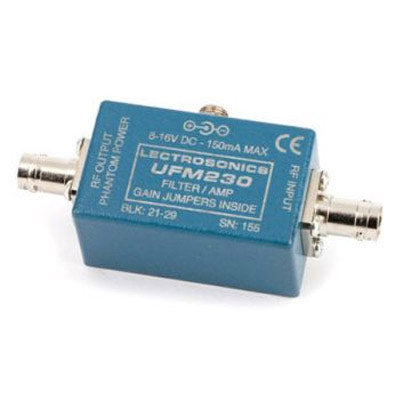

    The UFM230 provides a unique solution for antenna systems requiring long cable runs or distribution to multiple receivers or locations. The amplifier in the unit provides 12 dB of gain without attenuation. Gains of 5 dB and 8 dB can also be selected using the supplied attenuators. The built-in filters provide a 230 MHz passband to cover all standard Lectrosonics frequency blocks.

    Third Order Intercept+27 dBm @ input (+41 dBm output)
    InputsRF In - BNC DC In - 2.1 mm locking power jack
    OutputRF out - BNC (and phantom power in)
    Freq RangeUFM230 -æ 537 - 768 MHz
    UFM230L -æ 470 - 692 MHz
    Filter Bandwidth230 MHz, factory set.
    RF Gain+12 dB with 0dB attenuator
    +8 dB with 4dB attenuator
    +5 dB with 7dB attenuator
    Power Requirements8V to 16V DC at the input jack; auto reset poly fuse protection circuit; constant power switching supply
    8V DC (125 to 145 mA)
    12V DC (83 to 106 mA)
    14.4V DC (69 to 89 mA)
    16V DC (60 to 80 mA)
    Phantom PoweringDC voltage supplied via coaxial cable by UMC16B or VRM input jack or BIAS-T power inserter (70 to 80 mA)
    Power Consumption1 Watt nominal (switching regulator)
    Dimensions2.26 x 1.39 x 1.14 inches (not including BNCs)
    Weight3.3 ozs

    The UFM230 provides a unique solution for antenna systems requiring long cable runs or distribution to multiple receivers or locations. The amplifier in the unit provides 12 dB of gain without attenuation. Gains of 5 dB and 8 dB can also be selected using the supplied attenuators. The built-in filters provide a 230 MHz passband to cover all standard Lectrosonics frequency blocks.

    Third Order Intercept+27 dBm @ input (+41 dBm output)
    InputsRF In - BNC DC In - 2.1 mm locking power jack
    OutputRF out - BNC (and phantom power in)
    Freq RangeUFM230 -æ 537 - 768 MHz
    UFM230L -æ 470 - 692 MHz
    Filter Bandwidth230 MHz, factory set.
    RF Gain+12 dB with 0dB attenuator
    +8 dB with 4dB attenuator
    +5 dB with 7dB attenuator
    Power Requirements8V to 16V DC at the input jack; auto reset poly fuse protection circuit; constant power switching supply
    8V DC (125 to 145 mA)
    12V DC (83 to 106 mA)
    14.4V DC (69 to 89 mA)
    16V DC (60 to 80 mA)
    Phantom PoweringDC voltage supplied via coaxial cable by UMC16B or VRM input jack or BIAS-T power inserter (70 to 80 mA)
    Power Consumption1 Watt nominal (switching regulator)
    Dimensions2.26 x 1.39 x 1.14 inches (not including BNCs)
    Weight3.3 ozs
