Description

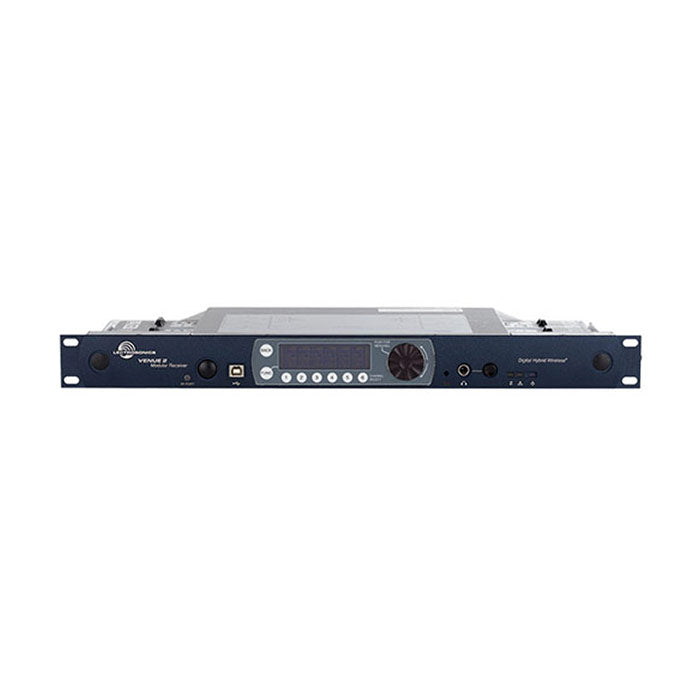

The Venue 2 Receiver is a modular solution that effectively deals with a congested RF spectrum with a variety of options that allows a system configuration to be idealized for a particular installation or application. VRM2WBM tunes bands B1, C1, D1 - 537.600 to 767.975Features: Six-channel modula... Read MoreRetail Price: $4,399.00 Our Price: $3,148.00
Free Shipping (Continental US)
Suggested Accessories
Description
The Venue 2 Receiver is a modular solution that effectively deals with a congested RF spectrum with a variety of options that allows a system configuration to be idealized for a particular installation or application. VRM2WBM tunes bands B1, C1, D1 - 537.600 to 767.975
Features:
The Venue 2 Receiver is a modular solution that effectively deals with a congested RF spectrum with a variety of options that allows a system configuration to be idealized for a particular installation or application.
The receiver is comprised of several components:
Flexibility is the core concept of the design. The receiver modules can be operated separately, each with switched diversity reception for a total of six audio channels, or operated in pairs for more robust diversity reception with one audio channel per module pair. Combinations can also be used for special applications where some modules operate independently and others are paired.
The receiver modules are easy to change with no tools required. The wideband multicoupler allows the use of any frequency module in any position, except when modules are paired for ratio diversity reception.
A major benefit of the design is the inclusion of a high quality antenna multicoupler. The multicoupler is actually a dual 1 in, 7 out splitter with six outputs for the receiver modules and an additional output as a "loop thru" for another Venue receiver. This allows multiple Venue receivers to operate from a single pair of antennas. Phantom power for remote antenna amplifiers is available from the multicoupler antenna inputs via menu selection.
Digital Hybrid Wireless¨
Digital Hybrid Wireless¨ is a revolutionary design that combines digital audio with an analog FM radio link to provide both outstanding audio quality and exemplary, noise-free RF performance.
Using a patented algorithm to encode 24-bit digital audio information in the transmitter into an analog format, the encoded signal is then transmitted over an analog FM wireless link.
At the receiver, the signal is then decoded to restore the original digital audio. This process eliminates compandor artifacts and produces an audio frequency response flat to 20 kHz.
Included Accessories:
More +
Product Specs
Operating Frequencies - Host Mainframe | VRM2WBL: Tunes to bands A1, B1, C1 VRM2WBM: Tunes to bands B1, C1, D1** | ||||||||||||
Operating Frequencies - VRT2 Module | Band A1:ÊÊÊÊ 470.100 - 537.575 MHz (blocks 470, 19, 20) Band B1:ÊÊÊÊ 537.600 - 614.375 MHz* (blocks 21, 22, 23) Band C1:ÊÊÊÊ 614.400 - 691.175 MHz (blocks 24, 25, 26) Band D1**: 691.200 - 767.975 MHz (blocks 27, 28, 29) | ||||||||||||
*North American transmitter models exclude the radio astronomy band from 608 to 614 MHz. **Export only. Not available in the US. | |||||||||||||
Frequency selection | Up to 3072 frequencies | ||||||||||||
Frequency selection steps | Selectable; 100 kHz or 25 kHz | ||||||||||||
Digital latency | 1.5 mS (receiver only - hybrid mode) 3.0 mS (receiver and transmitter in hybrid mode) 3.0 mS (receiver only - analog compatibility mode) The 3.0 mS latency in analog compatibility mode time aligns the audio from analog and hybrid transmitters when they are used together in a Venue system. | ||||||||||||
Wideband Multicoupler | Built in antenna mulitcoupler covers a 230 MHz range. | ||||||||||||
Pilot tone | 25 to 32 kHz; 5kHz deviation; unique pilot tone frequency for each selected carrier frequency (Hybrid mode) | ||||||||||||
Deviation | ± 75 kHz (max) (Hybrid mode) | ||||||||||||
Receiver Type | Triple conversion superheterodyne | ||||||||||||
Frequency Stability | ±0.001 % | ||||||||||||
Multicoupler Bandwidth | 470 - 691 MHz or 537 - 768 MHz | ||||||||||||
Front End Bandwidth | iQ filter wide mode 15 MHz iQ filter narrow mode 10 MHz | ||||||||||||
Sensitivity (20 dB Sinad) | 0.9 uV | ||||||||||||
AM Rejection | >60 dB, 2 uV to 1 Volt Image and Spurious | ||||||||||||
Rejection | 85 dB | ||||||||||||
Third Order Intercept | iQ filter wide mode +5 dBm iQ filter narrow mode +12 dBm | ||||||||||||
Diversity Methods | Antenna Combining Phase switching Opti-blendTM ratio diversity | ||||||||||||
FM Detector | Digital pulse counting detector @ 300 kHz | ||||||||||||
Audio output | Rear panel XLR connector; can drive 600 Ohm, adjustable from -50 to +5 dBu in 1 dB steps (into nominal 10 k bal. load) | ||||||||||||
Audio Performance (overall system) | |||||||||||||
ÊÊÊÊ Frequency Response | 32 Hz to 20 kHz (+/-1dB), overall system (400 Series mode) | ||||||||||||
ÊÊÊÊ THD | 0.2% (typical) (400 Series mode) | ||||||||||||
ÊÊÊÊ SNR at receiver output (dB) ÊÊÊÊ In Hybrid operating mode |
| ||||||||||||
Note: the dual envelope "soft" limiter provides exceptionally good handling of transients using variable attack and release time constants. The gradual onset of limiting in the design begins below full modulation, which reduces the measured figure for SNR without limiting by 4.5 dB | |||||||||||||
Input Dynamic Range | 125 dB (with full transmitter limiting) | ||||||||||||
Overall Latency (time delay) | 3mS Audio Test Tone: 1 KHz, -50 to +5 dBu, <1%THD | ||||||||||||
Audio Output Level | -35 dBu to +8 dBu, in 1 dB increments | ||||||||||||
LCD | High resolution graphical display | ||||||||||||
Power Requirements | 10 VDC/2A to 18 VDC/1.2A | ||||||||||||
Weight | 4.4 lbs. (1984 grams) with six modules | ||||||||||||
Dimensions | 19"W x 1.75"H x 7.75"D (panel to rear jacks) (48.26 cm x 4.45 cm x 19.67 cm) |
Specifications subject to change without notice
