Lectrosonics ZFSC41 - 4-Way Passive RF Splitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

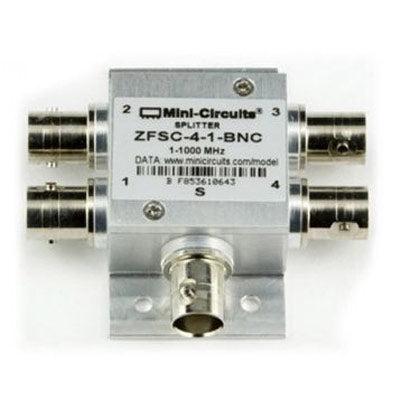

The Lectrosonics ZFSC41 4-Way Passive RF Signal Splitter features a single BNC input and 4 outputs for splitting incoming antenna (RF) signal four ways. This compact, passive device is handy in complex antenna routing and accepts 1 to 1000MHz.
| Range | 1 - 1000 MHz |
| Connections | 1x BNC Input 4x BNC Output |
| Isolation | Isolation dB L - 25 M - 23 U - 20 |
| Insertion Loss | Loss at each output dB L - 6.4 M - 6.6 U - 7.6 |
| Weight | 0.5 lb |
The Lectrosonics ZFSC41 4-Way Passive RF Signal Splitter features a single BNC input and 4 outputs for splitting incoming antenna (RF) signal four ways. This compact, passive device is handy in complex antenna routing and accepts 1 to 1000MHz.
| Range | 1 - 1000 MHz |
| Connections | 1x BNC Input 4x BNC Output |
| Isolation | Isolation dB L - 25 M - 23 U - 20 |
| Insertion Loss | Loss at each output dB L - 6.4 M - 6.6 U - 7.6 |
| Weight | 0.5 lb |
