Lectrosonics ZS-LRLMB - Lavalier Digital Hybrid Wireless System (Block B1 / 537-608 MHz)

The new L Series units all share a wide tuning range of three standard Lectrosonics blocks, or 67.5 to 76.8 MHz, depending on the specific frequency band, and employ Lectrosonics' patented Digital Hybrid Wireless¨ technology for compandor-free audio along with compatibility modes for interoperability with older analog systems. Like all our other products, the L Series units are made in the USA and feature machined aluminum housings, user-friendly setup and reliable operation. The ZS-LRLMb kit [or ZS-LRLT kit] makes it easy to put these products right to work on the job. Everything you need is here: transmitter, receiver, mounting hardware, lav mic and connecting cables. Even batteries are included! Check with your Lectrosonics dealer for pricing and availability.

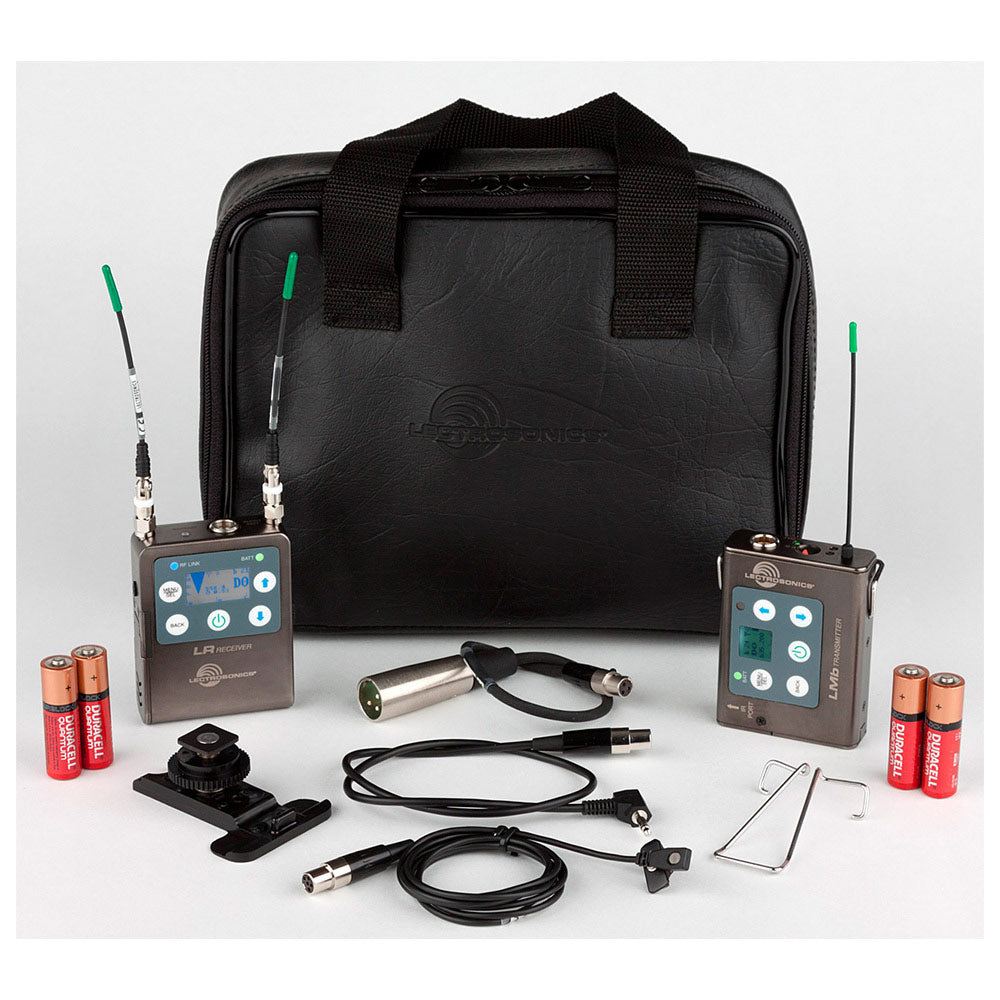

Included With Kit:

• 1) LR-XX receiver (Frequency band A1, B1 or C1)
• 1) LMb-XX transmitter (Frequency band A1, B1 or C1)
• 1) M152/5P lavaliere Microphone
• 1) LRSHOE camera shoe mount for LR Receiver
• 1) MCSRXLR cable, TA3F to XLRM
• 1) MCLRTRS cable, TA3F to 1/8" TRS
• 1) CCMINI zippered pouch

The ultra-compact LR receiver takes the Lectrosonics Digital Hybrid Wireless compact receiver concept to an entirely new level. Designed to be ultra-portable for use with DSLR, 4/3, small 4K, and other compact HD cameras, the LR's diminutive size belies the technology inside. The wide tuning bandwidth with tracking front-end filters provides plenty of flexibility while avoiding the vulnerabilities of wider pass bands. Tuning steps are user selectable at 25 or 100 kHz, yielding up to 3,072 operating frequencies. Compatibility modes enable the LR to operate with older analog transmitters. Dual antenna diversity improves range and resistance to dropouts. The RF spectrum analyzer and Lectrosonics' SmartTune capability make quick work of finding clean frequencies on site. A large, backlit LCD provides instant, clear information for setup and status monitoring while operational. Detachable antennas allow for remote antenna mounting. The LT is housed in the latest machined aluminum shell with super-hard EbNi 'Ebony' conductive finish. The unit is powered with two AA batteries.

LR Main Features:

• Tunes over a 75 MHz range
• Tracking front-end filters
• Digital Hybrid Wireless with compatibility modes for use with earlier transmitters
• Compact size powered by two AA batteries or an optional battery eliminator
• LCD with RF spectrum scanning
• SmartSquelchTM noiseless muting adapts automatically for near/far operation
• DSP-based pilot tone for squelch control
• USB port for firmware updates
• IR sync port for transmitter setup

The LMb is the latest successor in Lectrosonics' line of economical beltpack transmitters designed for applications including theater, house of worship, TV, ENG, video and film production. The LMb features an all-metal housing, wire belt clip, 50 mW of RF power, 25 or 100 kHz tuning steps (yielding up to 3,072 selectable frequencies) and an integrated multi-function switch with menu-selectable modes for power, mute or talkback. A graphic LCD and membrane switch panel plus IR synch port make setup and operation a snap. Power is provided via two AA batteries.

LMb Main Features:

• Covers three standard frequency blocks
• Digital Hybrid Wireless for compandor-free audio
• 50 mW RF power
• Compatibility modes for use with analog receivers
• 25 or 100 kHz tuning steps for up to 3072 selectable frequencies
• Integrated multi-function switch for mute or talkback modes
• Wide range input gain control in 1 dB steps
