Lexicon PCM96 Reverb/Effects Processor (with DAW Integration)

  • Dale #:

    LEXI-PCM96
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

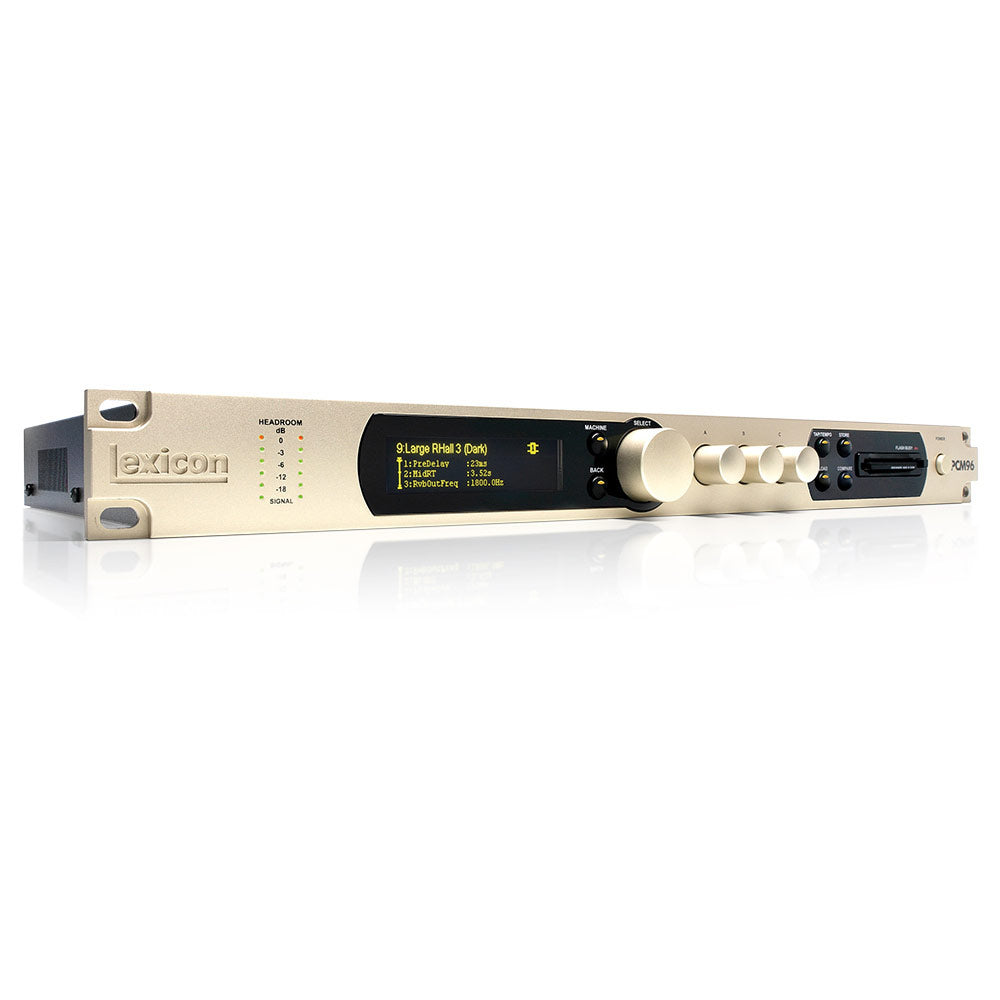

An artful blend of heritage and innovation, the PCM96 Stereo Reverb/Effects Processor delivers 28 new and legendary Lexicon reverbs, delays and modulation effects straight into your DAW. Appearing for the first time are new Room and Hall algorithms, plus an assortment of new mono reverbs and effe... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

An artful blend of heritage and innovation, the PCM96 Stereo Reverb/Effects Processor delivers 28 new and legendary Lexicon reverbs, delays and modulation effects straight into your DAW. Appearing for the first time are new Room and Hall algorithms, plus an assortment of new mono reverbs and effects. With decades of legacy products to pull from, the PCM96 also includes the finest collection of factory presets available in a stereo processor – over 1200 and growing – including some recognizable classics from our immense library of sounds.

The PCM96 gives new capabilities to our traditional reverbs by adding multimode filters at several spots in the audio flow. This allows more exact shaping of the reverb while still maintaining the distinctive Lexicon sound. All reverbs also have an Infinite switch that allows the reverb to run forever, a useful feature for creating unusual backgrounds and sound effects.

Features at a Glance

  • Two channels XLR analog I/O
  • Two channels XLR digital AES/EBU I/O
  • Four channels streaming FireWire
  • Seamless automation and control via Ethernet or Firewire
  • 32-bit floating point processing
  • Sample rates up to 96 kHz

Lexicon's new Room algorithm provides a more flexible alternative to convolution type reverbs. Reflection patterns can be easily selected, scaled and equalized – all while simultaneously passing audio. They can be instantly reversed or combined with a traditional reverb to extend the decay or bring a stronger sense of “liveness” to the space.

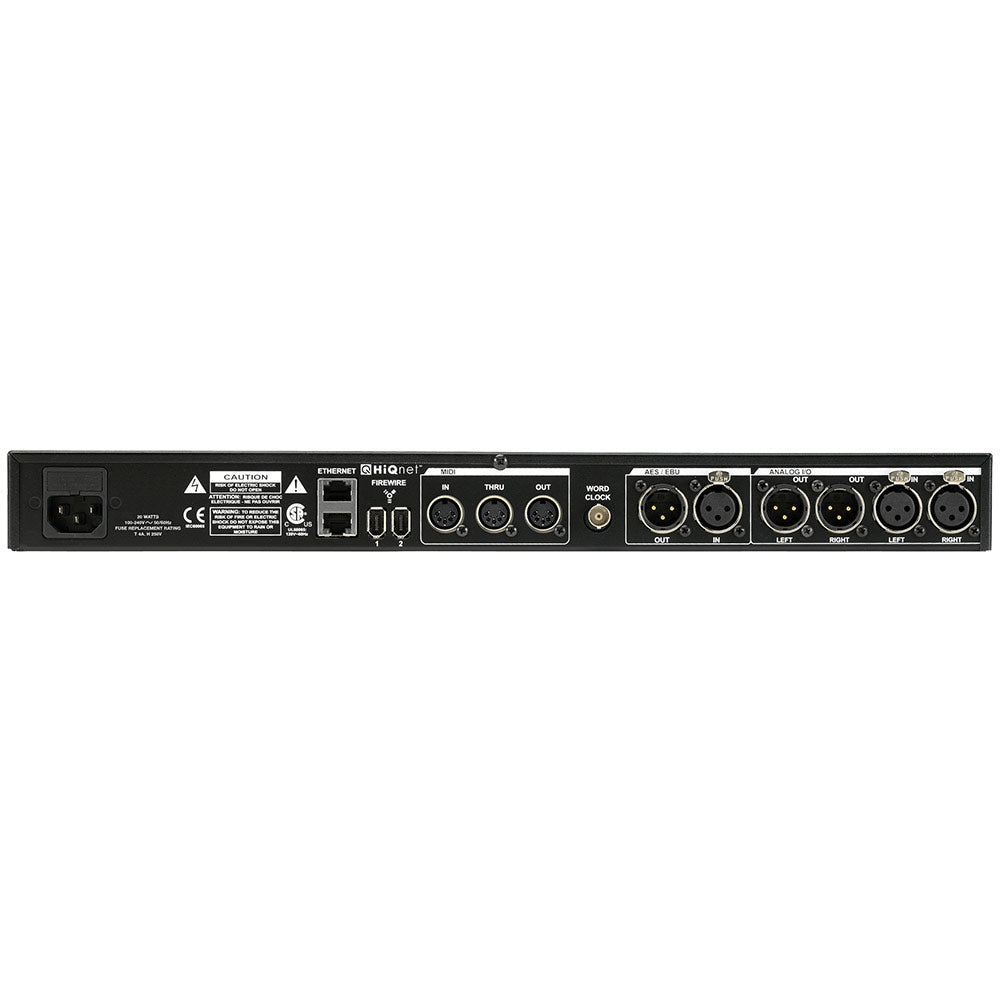

With two channels XLR analog and two channels XLR AES/EBU digital I/O, along with MIDI, Ethernet and Firewire connectivity, the PCM96 easily fits into a variety of recording and live sound environments. In any application, the PCM96 delivers the versatility and sound that is unmistakably Lexicon.

PCM96 PLUGIN
Designed for the modern studio, the PCM96 can function as a control-only insert or FireWire streaming audio plug-in inside Mac RTAS, VST and Audio Units software. (RTAS support provided via Fxpansion Adapter.)

More +

Product Specs

ANALOG AUDIO OUTPUT
ConnectorsTwo XLR balanced (elec.)
Impedance30 Ohms balanced
Output Level+4 dBu mode: +20 dBu max. -10 dBu mode: 8.21 dBu max
;DIGITAL INPUT AND OUTPUT
ConnectorsXLR I/O
Format AES/EBU balanced
Sample Rate44.1kHz, 48kHz, 88.2kHz, 96kHz
Conversion24-bit A/D; 24-bit D/A
;AUDIO PERFORMANCE
Frequency Response20Hz - 20kHz ± .25dB 20Hz - 40kHz +0/-3dB
HD<0.002%, 20Hz - 20kHz
Dynamic Range D/A>112dB typical, 20Hz - 20kHz A/D: >112dB typical, 20Hz - 20kHz A/A: >111dB typical, 20Hz - 40kHz
Crosstalk-90dB, 20Hz to 40kHz
Internal Audio DSP32/64-bit floating point
;CONTROL INTERFACE
Memory CardsCompact Flash Type I Standards
FormatSupports all size memory cards
MIDIIn/Thru/Out 5-pin DIN’s
FootswitchN/A
Foot ControllerN/A
;GENERAL
Power100–240 VAC 50/60Hz, 20 Watts
Automatic switching(3-pin IEC connector)
Size (W/H/D)19 W x 1.75 H x 12.5 D (483 x 45 x 318 mm) Rack mount standard
Weight8.65 lbs (3.93 kg)
Operating Temp59° to 95°F (15° to 35°C)
Maximum Humidity 75% relative humidity max.
