Description

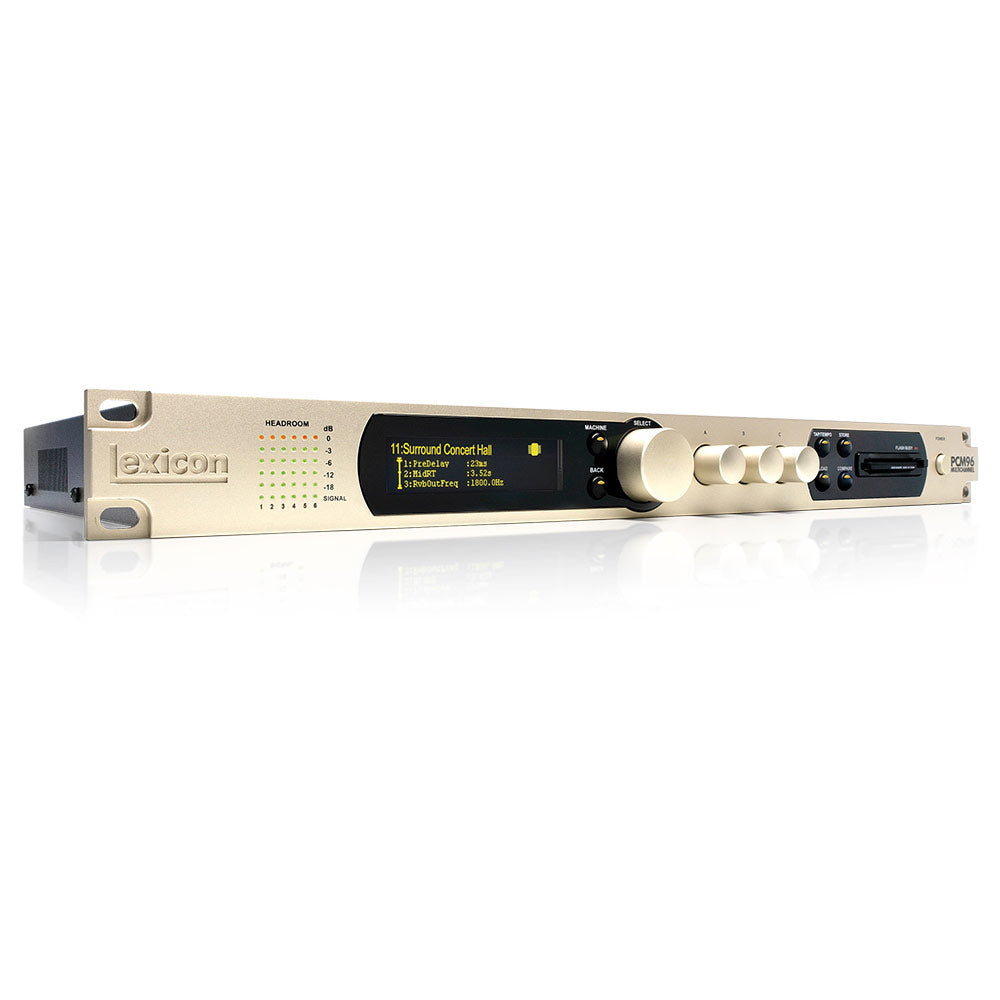

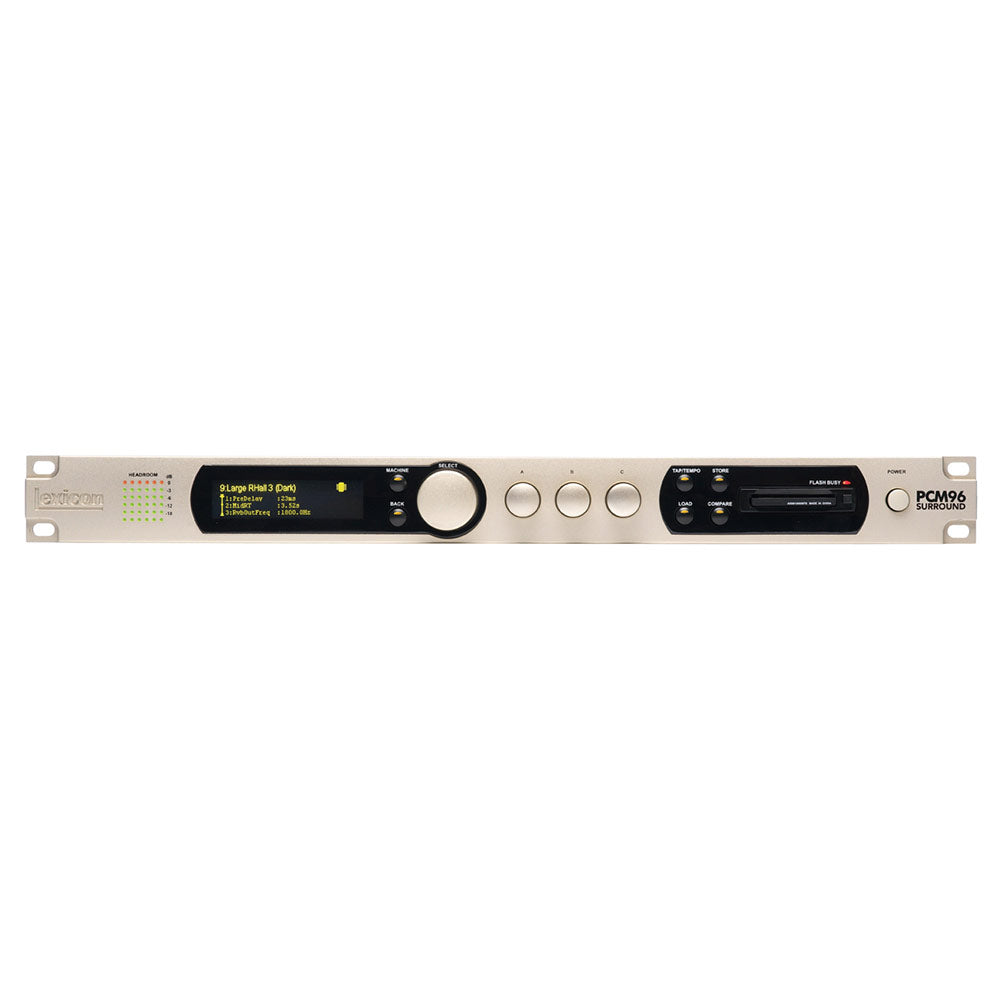

Building on the success of the PCM96, the new PCM96 Surround offers more presets, more configuration options, and more inputs and outputs. The PCM96 Surround gives you industry standard reverbs and effects, with tremendous flexibility. Use the PCM96 Surround as a plug-in with your DAW, or keep it... Read MoreRetail Price: $6,453.32 Our Price: $5,165.00
Free Shipping (Continental US)
Suggested Accessories
Description
Building on the success of the PCM96, the new PCM96 Surround offers more presets, more configuration options, and more inputs and outputs. The PCM96 Surround gives you industry standard reverbs and effects, with tremendous flexibility. Use the PCM96 Surround as a plug-in with your DAW, or keep it connected to your mixing board. Either way, you have a multitude of configuration options to choose from, without having to move any cables.

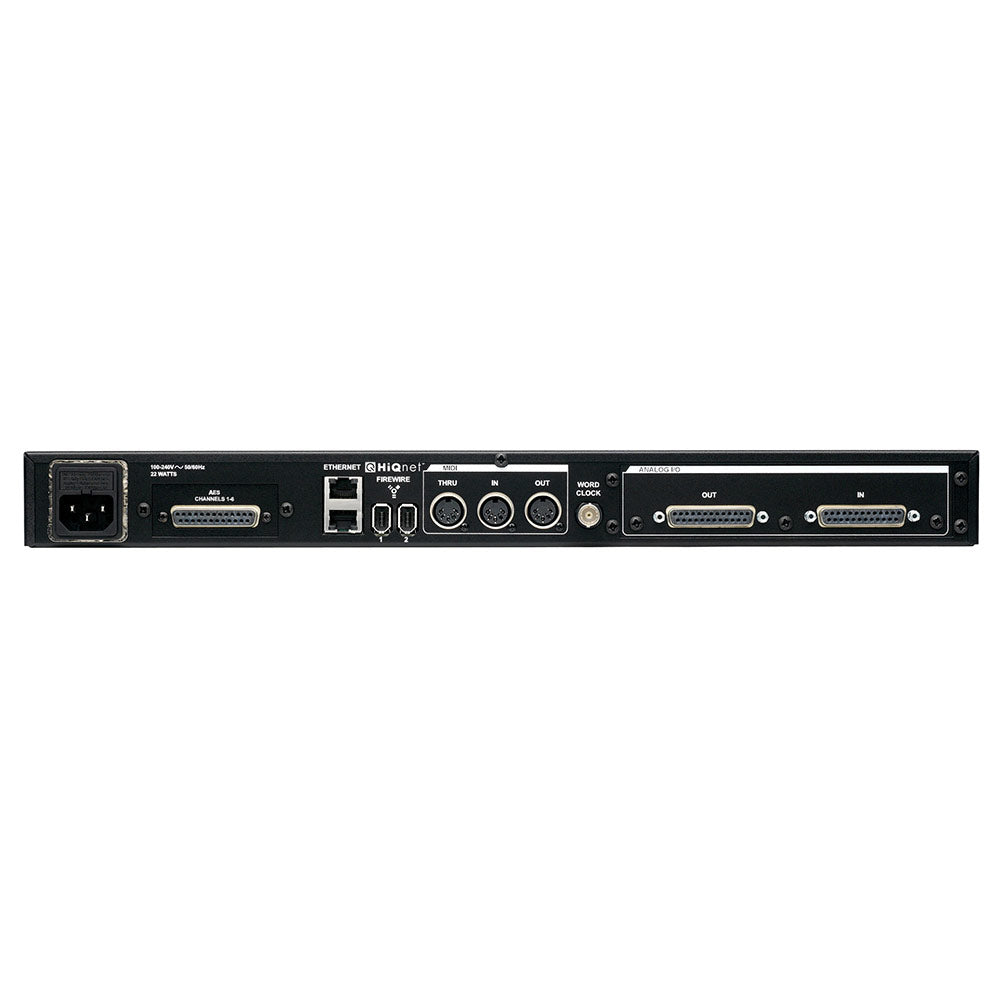

The PCM96 Surround is availble with either 6 XLR Stereo AES inputs and outputs, or 2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O. Both versions also feature MIDI, Wordclock, Ethernet, and FireWire®.
Features:
More +
Product Specs
Analog Inputs | |
Connectors | One 25-pin Dsub female connector |
Impedance | 20K Ohm, balanced |
Level (for 0dBFS) | +4dBu mode: +20dBu –10dBV mode: 8.2dBu |
Freq Response @96K | 20Hz - 22kHz, ±.15dB 20Hz - 46kHz ±.5dB |
A/D Conversion | 24 bits |
A/D Dyn Range | 112dB unweighted, 115dB A-weighted |
THD | <0.002% 20 20kHz @ +4dBu |
Crosstalk @ 1Khz | <–75dB at 20 20k with a +20dBu input signal |
Audio Output | |
Connectors | One 25-pin Dsub female connector |
Impedance | 30 Ohm, electronically balanced |
Level (at 0dBFS) | +4dBu mode: +20dBu –10dBV mode: 8.2dBu |
Freq Response @96K | 20Hz - 22kHz, ±.15dB 20Hz - 46kHz ±.5dB |
D/A Conversion | 24 bits |
D/A Dyn Range | 112dB unweighted, 115dB A-weighted |
THD | <0.002% 20Hz - 20kHz at +4dBu |
Crosstalk @ 1kHz | <–75dB at 20Hz - 20kHz with a +20dBu input signal |
Digital Audio IO | |
Connectors | One 25-pin Dsub female connector Two FireWire Ports |
Format | AES/EBU/FireWire (400Mb) |
Word Size | 24 bits |
Sample Rates | Internal 44.1kHz/48kHz/88.2kHz/96kHz Accuracy within ±50ppm External 44.1kHz/48kHz/88.2kHz/96kHz Lock Range ±2% of nominal |
Dimensions | |
Rack Units | 1U |
Size | 19.0” W x 1.75” H x 16” D (483mm x 44.5mm x 317.5mm) |
Weight | 14.25 lbs |
Regulatory Approvals | FCC Class A CE EN55103-1, EN55103-2 UL UL1419 cUL C22.2 TUV EN60065 |
Environment | |
Operating | 15° to 35° C |
Storage | –30 to 70 °C |
Humidity | 75% relative humidity max |
dB25 Analog Input | Hosa: DTF-803 |
dB25 Analog Output | Hosa: DTM-803 |
dB25 AES I/O | Digidesign: DigiSnake Cable DB25 – XLR MtF AES/EBU snake, DB25 to 4 XLRM (output) and 4 XLRF (input), Model # MH097 |
