Lexicon PCM96 Surround Reverb/Effects Processor (Digital I/O)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

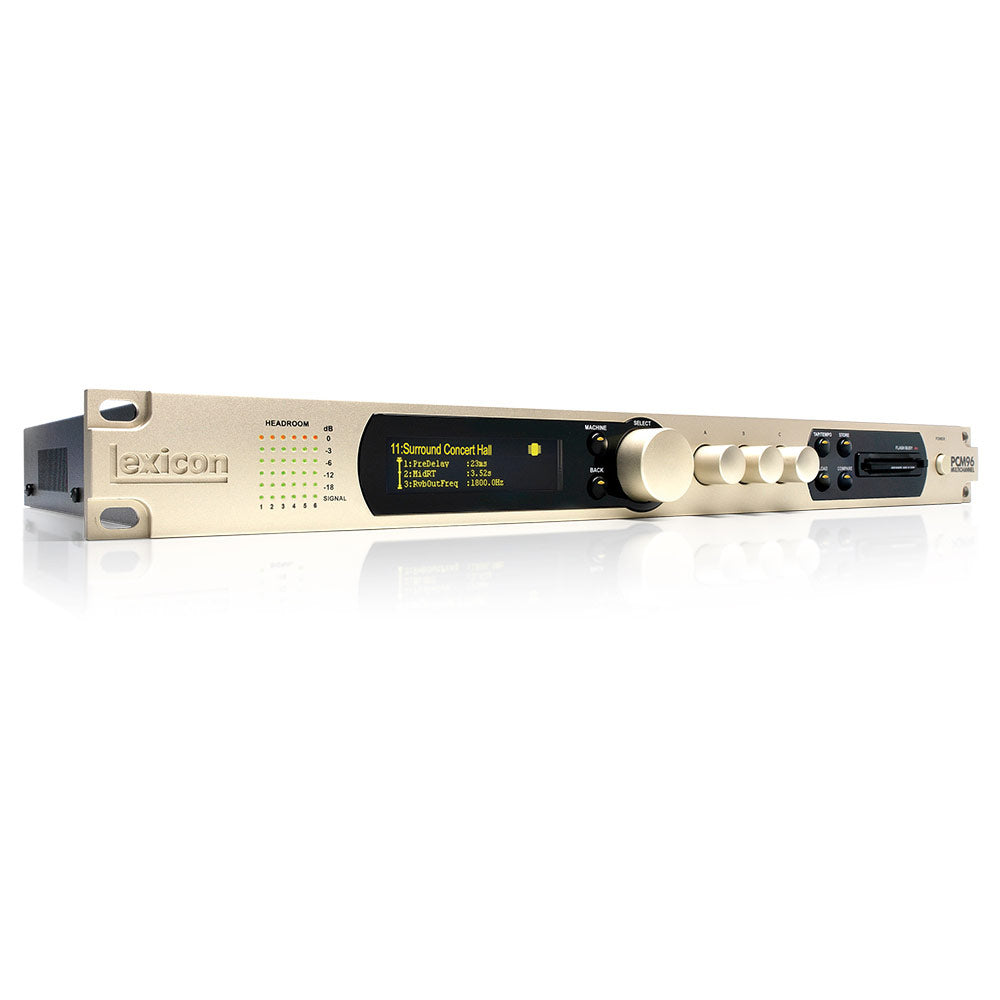

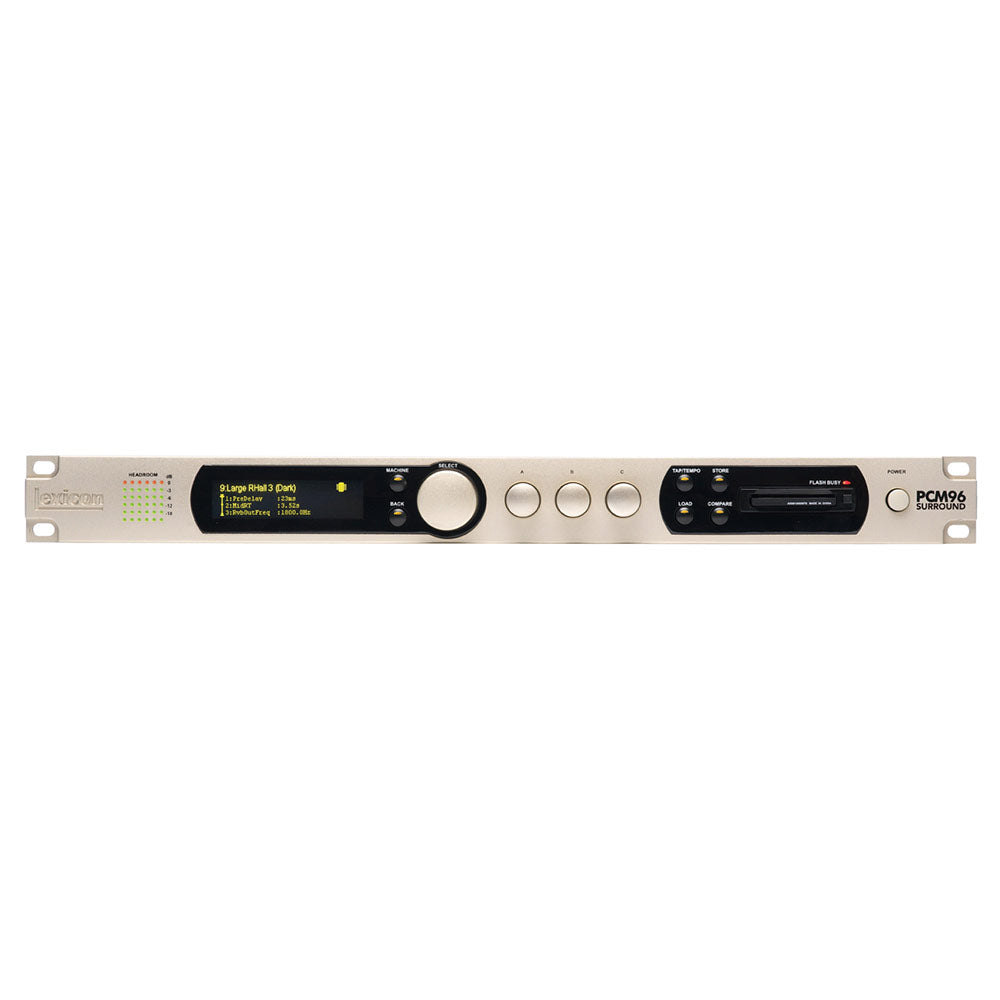

Building on the success of the PCM96, the new PCM96 Surround offers more presets, more configuration options, and more inputs and outputs. The PCM96 Surround gives you industry standard reverbs and effects, with tremendous flexibility. Use the PCM96 Surround as a plug-in with your DAW, or keep it connected to your mixing board. Either way, you have a multitude of configuration options to choose from, without having to move any cables.

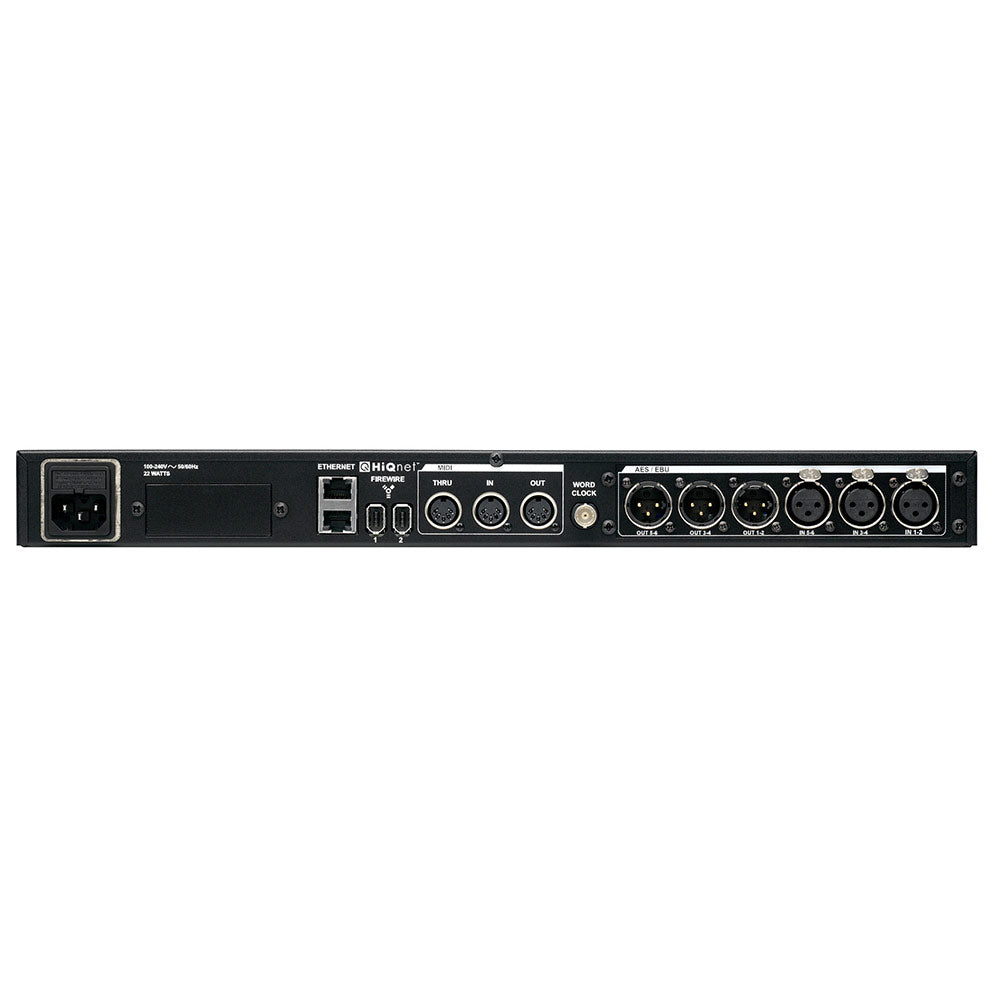

The PCM96 Surround is availble with either 6 XLR Stereo AES inputs and outputs, or 2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O. Both versions also feature MIDI, Wordclock, Ethernet, and FireWire®.
Features:
- Available in two models:
- 6 XLR Stereo AES inputs and outputs
- 2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O
- New Parallel Stereo and Sorround configurations
- 50 legendary Lexicon reverbs, delays, and modulation effects
- Lexion's new Surround Room algorithm, used to generate a vast array of room-related effects for music and post
- New Pitch algorithms
- Seamless automation and control via Ethernet or FireWire
- Over 2200 factory presets, including recognizable classics from Lexicon's immense library of sounds
- Hardware Plugin capability inside Mac VST, Audio Units, or RTAS software
- 32-bit floating point processing
- Sample rates up to 96kHz
- External BNC Wordclock
- MIDI in, out and thru
- 768 user presets
- Compact Flash for additional storage
Stereo And Surround Reverbs & Effects
- Room
- Hall
- Chamber
- Random Delay
- Classic (Random Hall)
- Plate
- Dual Delay
- Ambience
- Resonant Chords
- Chorus/Flange
- Concert Hall
- Signal Generator
- Pitch
- Chamber
- Hall
- Plate
- Room
- Chorus/Flange
- Dual Delay
- Random Delay
- Random Hall
- Resonant Chords
- Signal Generator
- Pitch
| Analog Inputs | |
| Connectors | One 25-pin Dsub female connector |
| Impedance | 20K Ohm, balanced |
| Level (for 0dBFS) | +4dBu mode: +20dBu Ð10dBV mode: 8.2dBu |
| Freq Response @96K | 20Hz - 22kHz, ±.15dB 20Hz - 46kHz ±.5dB |
| A/D Conversion | 24 bits |
| A/D Dyn Range | 112dB unweighted, 115dB A-weighted |
| THD | <0.002% 20 20kHz @ +4dBu |
| Crosstalk @ 1Khz | <Ð75dB at 20 20k with a +20dBu input signal |
| Audio Output | |
| Connectors | One 25-pin Dsub female connector |
| Impedance | 30 Ohm, electronically balanced |
| Level (at 0dBFS) | +4dBu mode: +20dBu Ð10dBV mode: 8.2dBu |
| Freq Response @96K | 20Hz - 22kHz, ±.15dB 20Hz - 46kHz ±.5dB |
| D/A Conversion | 24 bits |
| D/A Dyn Range | 112dB unweighted, 115dB A-weighted |
| THD | <0.002% 20Hz - 20kHz at +4dBu |
| Crosstalk @ 1kHz | <Ð75dB at 20Hz - 20kHz with a +20dBu input signal |
| Digital Audio IO | |
| Connectors | One 25-pin Dsub female connector Two FireWire Ports |
| Format | AES/EBU/FireWire (400Mb) |
| Word Size | 24 bits |
| Sample Rates | Internal 44.1kHz/48kHz/88.2kHz/96kHz Accuracy within ±50ppm External 44.1kHz/48kHz/88.2kHz/96kHz Lock Range ±2% of nominal |
| Dimensions | |
| Rack Units | 1U |
| Size | 19.0Ó W x 1.75Ó H x 16Ó D (483mm x 44.5mm x 317.5mm) |
| Weight | 14.25 lbs |
| Regulatory Approvals | FCC Class A CE EN55103-1, EN55103-2 UL UL1419 cUL C22.2 TUV EN60065 |
| Environment | |
| Operating | 15¡ to 35¡ C |
| Storage | Ð30 to 70 ¡C |
| Humidity | 75% relative humidity max |
| dB25 Analog Input | Hosa: DTF-803 |
| dB25 Analog Output | Hosa: DTM-803 |
| dB25 AES I/O | Digidesign: DigiSnake Cable DB25 Ð XLR MtF AES/EBU snake, DB25 to 4 XLRM (output) and 4 XLRF (input), Model # MH097 |
