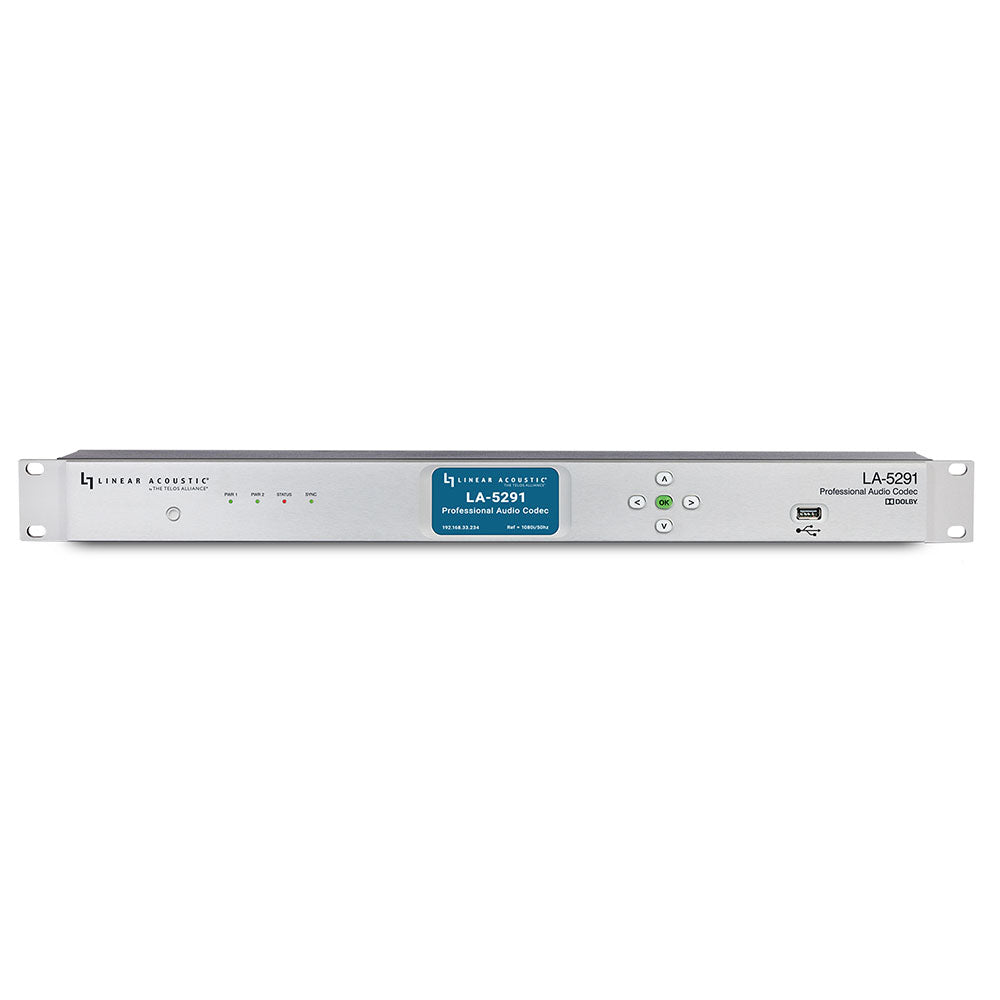

Linear Acoustic LA-5291 Professional Audio Encoder for Dolby Atmos
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Linear Acoustic LA-5291 Professional Audio Encoder allows you to create an exciting and immersive Dolby Atmos® experience via a Dolby Digital Plus JOC bitstream for production workflows, platforms, and delivery streams that do not require Dolby AC-4. The LA-5291 offers decoding, encoding, and transcoding to and from PCM and select Dolby® coded formats for up to 16 audio channels.
Features:
- Decoding from Dolby ED2 to PCM
- Transcoding from Dolby ED2 to Dolby Digital Plus and Dolby Digital Plus JOC
- Encoding PCM to Dolby Digital Plus and Dolby Digital Plus JOC
- 3Gb/s HD/SD-SDI and AES-3 I/O
- AES67 I/O in support of SMPTE ST 2110-30 and -31 workflows
- Optional Quad-Link 3Gb/s SDI I/O for supporting 4K video workflows, or optional MADI I/O (mutually exclusive options)
- Dual internal redundant auto-ranging power supplies
- Browser-based remote control
Supporting Today’s Dolby Atmos Workflows
While emerging standards such as ATSC 3.0 continue to advance and provide improved immersive audio for OTA broadcast, the amount of cinematic and live content produced in Dolby Atmos continues to grow as well reaching consumers via Blu-ray Disc, satellite, cable, and streaming services. The workflow required to create, transport, and deliver that content to viewers at home can be complex, requiring the ability to work with PCM, Dolby ED2, Dolby Digital Plus, and Dolby Digital Plus JOC formats - tasks for which the LA-5291 was purpose-built.
Equally at Home for Contribution and Distribution
The LA-5291 integrates well into remote and OB trucks for encoding multi-channel PCM audio into Dolby Digital Plus or Dolby Digital Plus JOC for distribution. Further downstream, it can transcode Dolby ED2 directly to Dolby Digital Plus and Dolby Digital Plus JOC, and can encode PCM to Dolby Digital Plus and Dolby Digital Plus JOC for final distribution.
| Decoding | Decodes Dolby ED2 to PCM and PCM with PMD |
| Transcoding | Transcodes Dolby E and ED2 to Dolby Digital Plus and Dolby Digital Plus Atmos |
| Encoding | Encodes PCM and PCM with PMD into Dolby Digital Plus and Dolby Digital Plus Atmos |
| 3G HD/SD-SDI I/O | Two independent auto-sensing 3Gb/s HD/SD-SDI inputs (SMPTE ST 425-1, 292M, and 259M), up to 1080i/60/59.94/50Hz, each with de-embedding/re-embedding for up to 8 audio pairs Optional quad-link 3Gb/s SDI for 4K workflows (mutually exclusive option with MADI option) |
| AES-3 I/O | 4 inputs/outputs via 75 Ohm BNC unbalanced female connectors, internally terminated; signal levels per SMPTE 276M/AES-3ID-2001 |
| AES67 I/O | 16 channels of bi-directional AES67 I/O in support of SMPTE ST 2110-30 workflows |
| MADI I/O | Optional 64 channels of MADI I/O; I/O connection, coax, or optical via SFP socket* (mutually exclusive with quad-link SDI option) * SFP sold separately |
| Reference | 48kHz reference via SDI, PTP, AES-3, or internal clock |
| Sample Rate/Resolution/Frequency Response | 48kHz, 24-bit, 20Hz Ð 20kHz |
| Ethernet | Two Gigabit RJ-45 connections Ð one for AES67, one for networked remote control |
| Parallel GPI/O Control Port | 15-pin female D connector, 0-5V TTL levels, 5 GPI/O inputs, 5 GPI/O outputs. Functionality TBD |
| Power | Dual internal redundant auto-ranging power supplies 95-240 VAC, 50/60 Hz, 100W maximum total |
| Dimensions | 19Ó W x 15.5Ó D x 1.75Ó H (approximately 48.2 x 39.4 x4.5 cm ) |
| Net weight | Approximately 9.0 lbs (4.08 kg) |
| Shipping weight | Approximately 12.0 lbs (5.44 kg) |
| Regulatory | FCC and CE tested and compliant with UL-approved power supplies |
| Warranty | Standard Telos Alliance 2-year limited parts and labor |
The Linear Acoustic LA-5291 Professional Audio Encoder allows you to create an exciting and immersive Dolby Atmos® experience via a Dolby Digital Plus JOC bitstream for production workflows, platforms, and delivery streams that do not require Dolby AC-4. The LA-5291 offers decoding, encoding, and transcoding to and from PCM and select Dolby® coded formats for up to 16 audio channels.
Features:
- Decoding from Dolby ED2 to PCM
- Transcoding from Dolby ED2 to Dolby Digital Plus and Dolby Digital Plus JOC
- Encoding PCM to Dolby Digital Plus and Dolby Digital Plus JOC
- 3Gb/s HD/SD-SDI and AES-3 I/O
- AES67 I/O in support of SMPTE ST 2110-30 and -31 workflows
- Optional Quad-Link 3Gb/s SDI I/O for supporting 4K video workflows, or optional MADI I/O (mutually exclusive options)
- Dual internal redundant auto-ranging power supplies
- Browser-based remote control
Supporting Today’s Dolby Atmos Workflows
While emerging standards such as ATSC 3.0 continue to advance and provide improved immersive audio for OTA broadcast, the amount of cinematic and live content produced in Dolby Atmos continues to grow as well reaching consumers via Blu-ray Disc, satellite, cable, and streaming services. The workflow required to create, transport, and deliver that content to viewers at home can be complex, requiring the ability to work with PCM, Dolby ED2, Dolby Digital Plus, and Dolby Digital Plus JOC formats - tasks for which the LA-5291 was purpose-built.
Equally at Home for Contribution and Distribution
The LA-5291 integrates well into remote and OB trucks for encoding multi-channel PCM audio into Dolby Digital Plus or Dolby Digital Plus JOC for distribution. Further downstream, it can transcode Dolby ED2 directly to Dolby Digital Plus and Dolby Digital Plus JOC, and can encode PCM to Dolby Digital Plus and Dolby Digital Plus JOC for final distribution.
| Decoding | Decodes Dolby ED2 to PCM and PCM with PMD |
| Transcoding | Transcodes Dolby E and ED2 to Dolby Digital Plus and Dolby Digital Plus Atmos |
| Encoding | Encodes PCM and PCM with PMD into Dolby Digital Plus and Dolby Digital Plus Atmos |
| 3G HD/SD-SDI I/O | Two independent auto-sensing 3Gb/s HD/SD-SDI inputs (SMPTE ST 425-1, 292M, and 259M), up to 1080i/60/59.94/50Hz, each with de-embedding/re-embedding for up to 8 audio pairs Optional quad-link 3Gb/s SDI for 4K workflows (mutually exclusive option with MADI option) |
| AES-3 I/O | 4 inputs/outputs via 75 Ohm BNC unbalanced female connectors, internally terminated; signal levels per SMPTE 276M/AES-3ID-2001 |
| AES67 I/O | 16 channels of bi-directional AES67 I/O in support of SMPTE ST 2110-30 workflows |
| MADI I/O | Optional 64 channels of MADI I/O; I/O connection, coax, or optical via SFP socket* (mutually exclusive with quad-link SDI option) * SFP sold separately |
| Reference | 48kHz reference via SDI, PTP, AES-3, or internal clock |
| Sample Rate/Resolution/Frequency Response | 48kHz, 24-bit, 20Hz Ð 20kHz |
| Ethernet | Two Gigabit RJ-45 connections Ð one for AES67, one for networked remote control |
| Parallel GPI/O Control Port | 15-pin female D connector, 0-5V TTL levels, 5 GPI/O inputs, 5 GPI/O outputs. Functionality TBD |
| Power | Dual internal redundant auto-ranging power supplies 95-240 VAC, 50/60 Hz, 100W maximum total |
| Dimensions | 19Ó W x 15.5Ó D x 1.75Ó H (approximately 48.2 x 39.4 x4.5 cm ) |
| Net weight | Approximately 9.0 lbs (4.08 kg) |
| Shipping weight | Approximately 12.0 lbs (5.44 kg) |
| Regulatory | FCC and CE tested and compliant with UL-approved power supplies |
| Warranty | Standard Telos Alliance 2-year limited parts and labor |
