Linear Acoustic UPMAX ISC - Immersive Soundfield Controller


  • Dale #:

    LIAC-200100524000
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

UPMAX ISC builds upon the Hollywood-approved and industry-trusted line of upmixing products from Linear Acoustic, and carries it forward to meet the additional demands introduced by the immersive audio capabilities of Next Generation Audio systems. Employing a completely new upmixing algorithm, ... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

UPMAX ISC builds upon the Hollywood-approved and industry-trusted line of upmixing products from Linear Acoustic, and carries it forward to meet the additional demands introduced by the immersive audio capabilities of Next Generation Audio systems.

Employing a completely new upmixing algorithm, UPMAX ISC can upmix 2-channel, 3-channel, 5.1-channel, and 7.1-channel audio to immersive audio formats including 5.1.4 and 7.1.4. Upmixing to legacy formats including 5.1-channel and 7.1-channel audio is also supported, while content presented in native immersive formats is automatically recognized and passed through without processing. Compensating video delay is included to ensure perfect A/V sync regardless of input format or operating mode.

For live events and broadcasts, UPMAX ISC can be inserted on a mix bus or placed at the output of the mixing console in the OB truck at the venue for upmixing sources including music, effects, and legacy content not natively presented in an immersive format.

UPMAX ISC is equally at home in the airchain at the Network Operations Center to ensure all programming - including commercial and interstitial content - is delivered to the viewer as a consistent immersive experience.

I/O includes auto-sensing 3Gb/s HD/SD-SDI, AES-3, and AES67 to natively support SMPTE ST 2110-30 workflows.

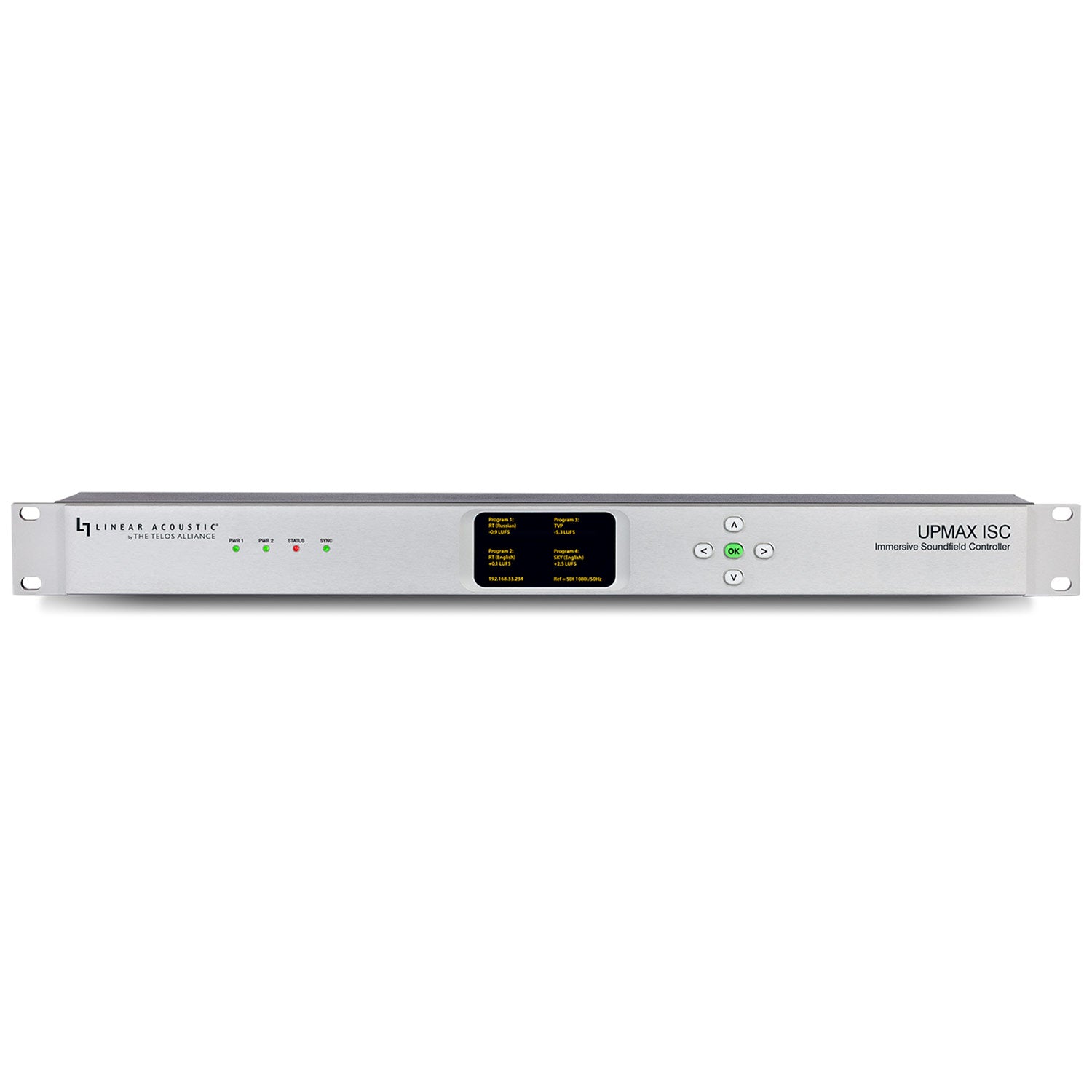

UPMAX ISC includes a 5-button front panel navigation cluster and color LCD display for basic setup and control, plus the convenience of a web-based GUI for full control and monitoring capabilities. Dual autoranging internal power supplies provide redundancy and worldwide compatibility.

Features:

  • Latest Linear Acoustic UPMAX algorithm
  • Upmixing from 2-channel, 3-channel, 5.1-channel, and 7.1-channel to immersive 5.1.4 and 7.1.4 formats
  • Upmixing to legacy formats including 5.1 and 7.1
  • 3b/s HD/SD-SDI, AES-3, and AES67 I/O to support SMPTE ST 2110-30 workflows
  • Optional Quad-Link SDI I/O for 4K video workflows or MADI I/O (mutually exclusive options)
  • Dual internal redundant auto-ranging power supplies
  • Browser-based remote control

More +

Product Specs

Processing Next-generation Linear Acoustic UPMAX algorithm; upmixing from 2-channel, 3-channel, 5.1-channel, and 7.1-channel to 5.1.4 and 7.1.4
Reference 48kHz reference via SDI, PTP/AES67, AES-3, internal clock, or MADI (with optional MADI I/O)
Sample Rate/Resolution/Frequency Response 48kHz, 24-bit, 20Hz – 20kHz (passthrough); PCM audio only

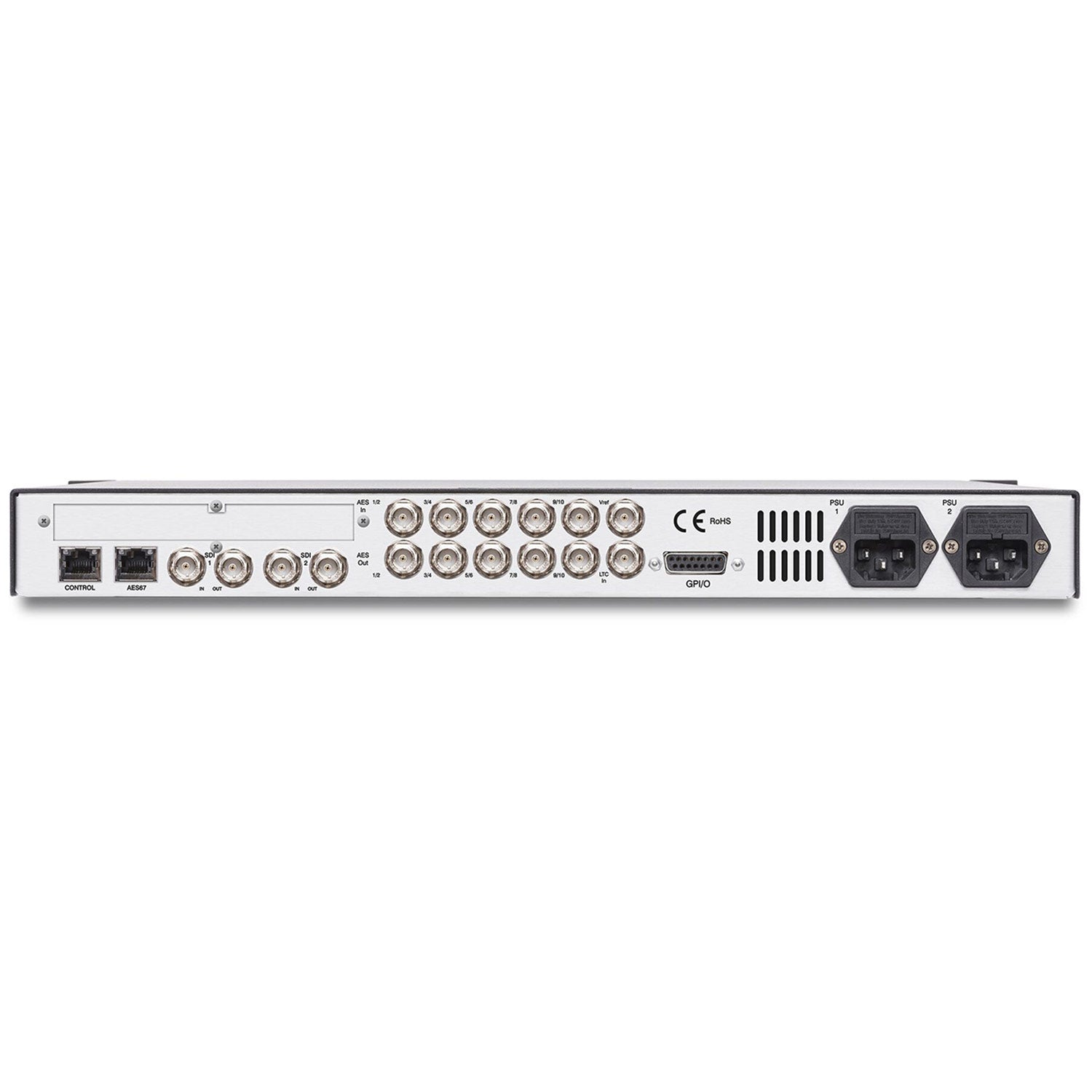

AES-3 I/O Five two-channel inputs/outputs via 75 Ohm BNC unbalanced female connectors, internally terminated; signal levels per SMPTE 276M/AES-3ID-2001
SDI I/O Two auto-sensing 3Gb/s HD/SD-SDI inputs (SMPTE ST425/292M/259M), up to 1080i/60/59.94/50Hz, with de-embedding for 8 audio pairs; re-embedding for 8 audio pairs via one SDI output
Optional Quad-Link SDI for 4K workflows (mutually exclusive with MADI option)
AES67 I/O 16 channels of bi-directional AES67 I/O in support of SMPTE ST 2110-30
Parallel GPI/O Control Port 15-pin female D connector, 0-5V TTL levels, 5 GPI/O inputs, 5 GPI/O outputs
MADI I/O Optional MADI I/O supports up to 16 channels for processing
Passthrough and shuffling for up to 64 channels
I/O via coax or optical SFP socket (SFP sold separately)
MADI option mutually exclusive with Quad-Link SDI option
Ethernet Connection Two independent Gigabit Ethernet ports allows web-based remote access/control and AES67 I/O
Front Panel Display and Controls 5-button navigation cluster, color LCD display, LEDs for power supply, status, and sync
Power Dual internal power supplies, each rated at 100-264VAC, 50/60Hz, auto-sensing, 100W maximum total
Dimensions 1RU – 1.75”H x 19”W x 15.5”D (44 x 483 x 394 mm)
Weight Approximate net weight 9 lbs (4 kg)
Approximate shipping weight 12 lbs (5.4 kg)
Environmental Fan-cooled; operating temperature 32 to 122 degrees F (0 – 50 degrees C); non-operating temperature -4 to 158 degrees F (-20 – 70 degrees C)
Regulatory FCC and CE tested and compliant; power supplies are UL-approved
Warranty Standard 2-year limited parts and warranty
