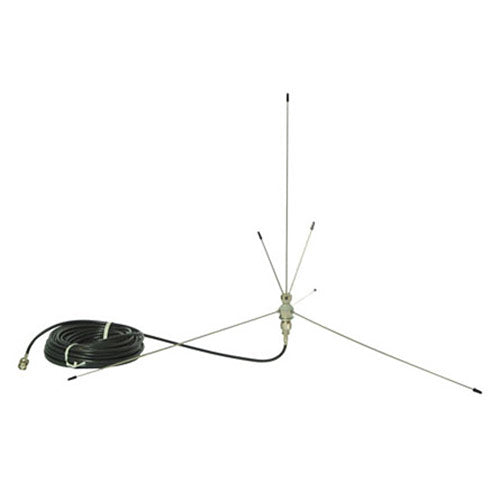

Listen Technologies LA-107 - Ground Plane Remote Antenna (216 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Thanks to its durable construction and design, the LA-107 Ground Plane Remote Antenna (216 MHz) is a great choice for use in high-wind environments or other difficult conditions. The LA-107 includes a U-bolt bracket for mounting to a conduit or pole, and it can be placed upright without the use of an external bracket.
Features:
- Durable ground-plane antenna designed for outdoor use
- Range of up to 914 m / 3,000 ft.
- Provides excellent coverage, even in adverse weather
- Included U-bolt bracket for mast, conduit, or pole mounting
Includes
- One (1) LA-107 Ground Plane Remote Antenna (216 MHz)
- 15.2 m (50 ft.) RG58, 50 ohm coaxial cable (PL-259 and BNC connectors)
- Mounting hardware
| Connector/s | 50 ohm BNC to the transmitter, PL-259 connector to the antenna |
| Frequency Range | 216.0125 - 216.9875 MHz |
| Number of Channels | 57 (19 wide band, 38 narrow band) |
| Antenna Type | 1/4 Wave Length |
| Unity Gain | 0 dB |
| Beam Width | 360¼ |
| Typical Range | Range of up to 914 m / 3,000 ft. |
| Height | 17.5 in. (68.6 cm) |
| Material | Metal |
| Shipping Weight | 1 lb. (0.5 kg) |
| Diameter | 30.00 in. (76.0 cm) |
| Ground Radials Length | 13.50 (34.0 cm) |
| Base Length | 13.50 (34.0 cm) |
| Cable Length | 50 ft. (15.24 m) |
| Weight | 7.5 oz. (212 g) |
Thanks to its durable construction and design, the LA-107 Ground Plane Remote Antenna (216 MHz) is a great choice for use in high-wind environments or other difficult conditions. The LA-107 includes a U-bolt bracket for mounting to a conduit or pole, and it can be placed upright without the use of an external bracket.
Features:
- Durable ground-plane antenna designed for outdoor use
- Range of up to 914 m / 3,000 ft.
- Provides excellent coverage, even in adverse weather
- Included U-bolt bracket for mast, conduit, or pole mounting
Includes
- One (1) LA-107 Ground Plane Remote Antenna (216 MHz)
- 15.2 m (50 ft.) RG58, 50 ohm coaxial cable (PL-259 and BNC connectors)
- Mounting hardware
| Connector/s | 50 ohm BNC to the transmitter, PL-259 connector to the antenna |
| Frequency Range | 216.0125 - 216.9875 MHz |
| Number of Channels | 57 (19 wide band, 38 narrow band) |
| Antenna Type | 1/4 Wave Length |
| Unity Gain | 0 dB |
| Beam Width | 360¼ |
| Typical Range | Range of up to 914 m / 3,000 ft. |
| Height | 17.5 in. (68.6 cm) |
| Material | Metal |
| Shipping Weight | 1 lb. (0.5 kg) |
| Diameter | 30.00 in. (76.0 cm) |
| Ground Radials Length | 13.50 (34.0 cm) |
| Base Length | 13.50 (34.0 cm) |
| Cable Length | 50 ft. (15.24 m) |
| Weight | 7.5 oz. (212 g) |
