Listen Technologies LA-117 - Coaxial Dipole Remote Antenna (216 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

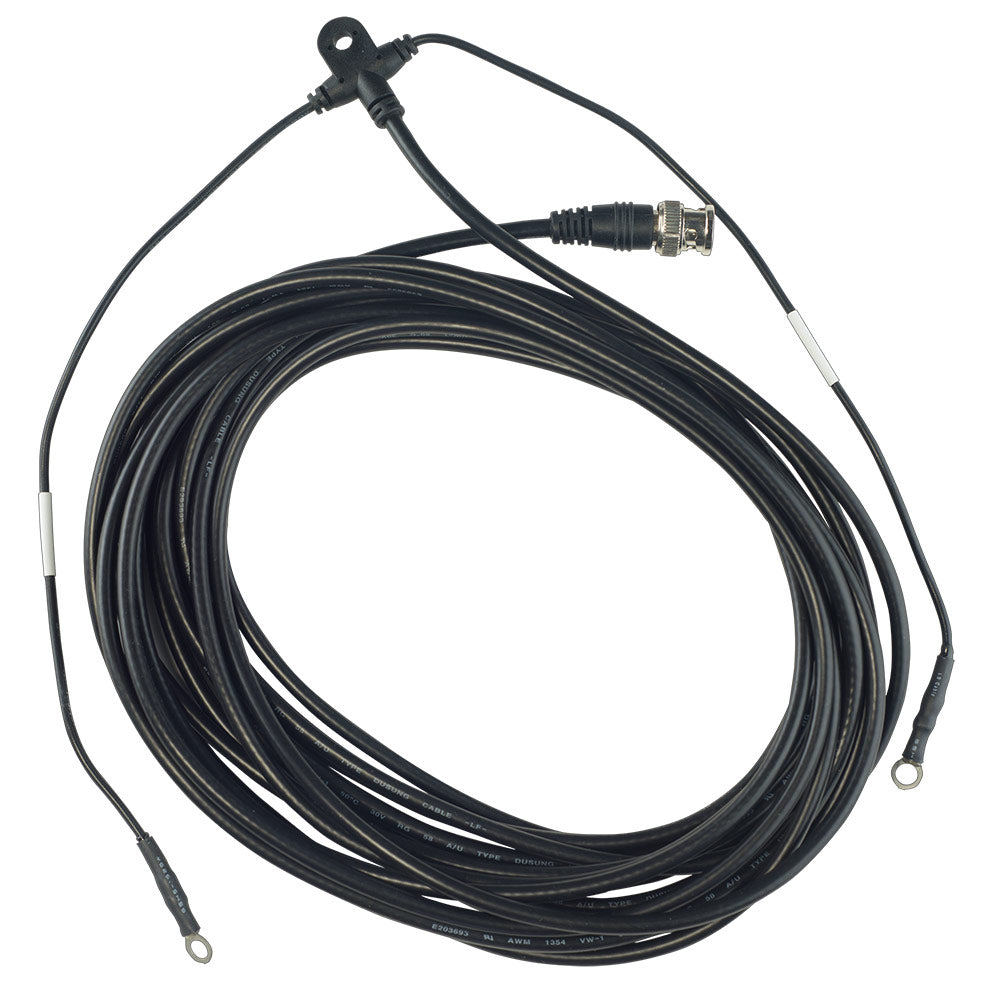

Made for permanent installations, the LA-117 flexible dipole antenna can be mounted on a wall, inside a drop ceiling, or anywhere that requires discreet placement and extended range. Configured for use with our 216 MHz transmitters and receivers, the LA-117 is 68.6cm (27 in.) in length and flexible to fit any space or venue where it is needed.
Features:
- Flexible design for multiple installation options including wall mounting, drop ceiling placement, and more
- Range up to 914 m / 3,000 ft.
- Compatible with Listen Technologies' 216 MHz transmitters and receivers
- Easy to install
| Frequency Range | 216.0125 - 216.9875 MHz |
| Typical Range | Range up to 914 m / 3,000 ft. |
| Length | 27.00 in. (68.6 cm) |
| Material | Polyethylene Insulation, PVC Jacket, tinned copper conductor, tinned copper braided shield |
| Shipping Weight | 1.0 lb (0.5 kg) |
| Diameter | 0.19 in. (4.88 mm) |
| Cable Length | 25 ft. (7.62 m) |
| Cable Type | RG-58 50 Ohm Coaxial Cable |
| Weight | 13.40 oz. (0.38 kg) |
Made for permanent installations, the LA-117 flexible dipole antenna can be mounted on a wall, inside a drop ceiling, or anywhere that requires discreet placement and extended range. Configured for use with our 216 MHz transmitters and receivers, the LA-117 is 68.6cm (27 in.) in length and flexible to fit any space or venue where it is needed.
Features:
- Flexible design for multiple installation options including wall mounting, drop ceiling placement, and more
- Range up to 914 m / 3,000 ft.
- Compatible with Listen Technologies' 216 MHz transmitters and receivers
- Easy to install
| Frequency Range | 216.0125 - 216.9875 MHz |
| Typical Range | Range up to 914 m / 3,000 ft. |
| Length | 27.00 in. (68.6 cm) |
| Material | Polyethylene Insulation, PVC Jacket, tinned copper conductor, tinned copper braided shield |
| Shipping Weight | 1.0 lb (0.5 kg) |
| Diameter | 0.19 in. (4.88 mm) |
| Cable Length | 25 ft. (7.62 m) |
| Cable Type | RG-58 50 Ohm Coaxial Cable |
| Weight | 13.40 oz. (0.38 kg) |
