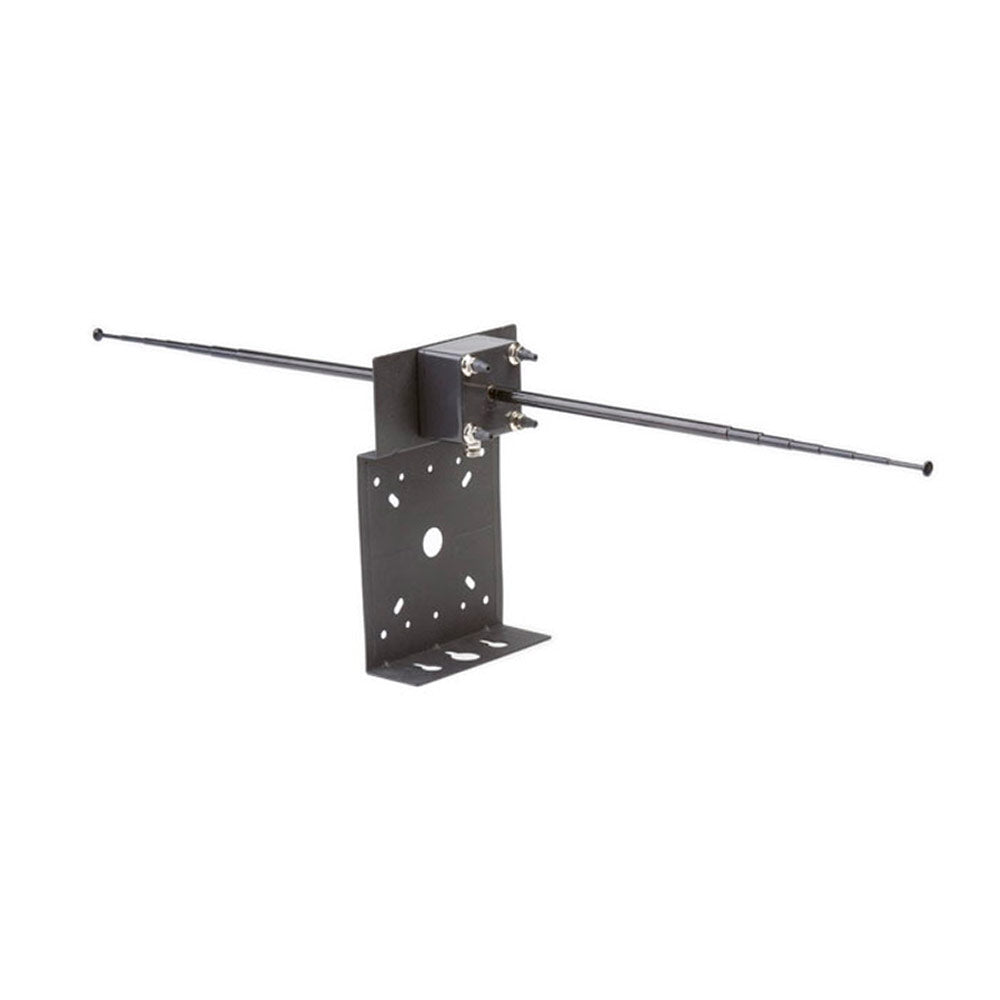

Listen Technologies LA-122 - Universal Antenna Kit (72 and 216 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Complete with antennas for both 72 MHz nd 216 MHz systems, the LA-122 Universal Antenna Kit gives you a single solution for your venue's remote antenna needs. Included mounting hardware allows the antennas to be attached to walls, mounted on eletrical boxes, installed on a horizontal surface, or even inside a wall or ceiling. The LA-122 includes all the necessary components to configure several different versions of the antenna, and a 25-foot coaxial cable is also provided.
Features:
- Includes antennas for both 72 MHz and 216 MHz systems
- Range up to 305 m / 1,000 ft @72 MHz, 914 m / 3,000 ft @216 MHz.
- Mounting hardware allows for multiple installation options including walls, electrical boxes, and more
- Complete kit for configuring different versions of the antenna
- Comes with 25 feet of coaxial cable
Includes:
- Two (2) LA-102 Telescoping Top Mounted Antenna (216 MHz)
- Two (2) LA-106 Telescoping Top Mounted Antenna (72 MHz)
- Two (2) Flexible Antenna (72 MHz)
- Two (2) Flexible Antenna (216 MHz)
- One (1) Grounding Base
- One (1) Mounting Bracket
- One (1) Wall/Electrical Box Mounting Plate
- One (1) Shorting Plate
- One (1) Antenna Module
- One (1) 25 ft. (7.6 m) Coaxial Cable (terminated with BNC connectors on both ends)
- Two (2) Hex Kep Nuts
- Two (2) Fiber Washer
- Four (4) Machine Screw (#8-32×3/4?)
- Four (4) Tapping Screw (#8-1/2?)
- Four (4) Dry Anchors
- One (1) Owner's manual
| Connector/s | BNC |
| Frequency Range | 72 MHz - 72.025 MHz - 75.975 MHz216 MHz - 216.0125 MHz - 216.9875 MHz |
| Number of Channels | 72 MHz - 57 (17 wide band, 40 narrow band)216 MHz - 57 (19 wide band, 38 narrow band) |
| Antenna Type | Monopole and Dipole |
| Unity Gain | 0 dB |
| Typical Range | Range up to 305 m / 1,000 ft @72 MHz, 914 m / 3,000 ft @216 MHz. |
| Shipping Weight | 3.20 kg (7.0 lbs.) |
| Mounting | Wall mount, dual and single electrical box, ceiling electrical box, horizontal surface mount (such as on top of a rack), ceiling/inverse mounting, flexible mounting in-wall or in ceiling and mast or conduit mount. |
| Mounting | Includes self-tapping sheet metal screws, drywall anchors, and all hardware required to mount to electrical boxes. Does not provide hardware required to mount to a mast (available at most hardware stores). |
| Mounting | Bracket Dimensions: 11cm x 18cm x 6.4cm (4.5 in x 7.0 in x 2.5 in), W x D x HGrounding Base Dimensions: 20.4cm x 20.4cm x 5.1cm (8.0 in x 8.0 in x 2.0 in) W x D x HMounting Plate Dimensions: 11.4cm x 11.6cm (4.48 in x 4.55 in) |
| Dipole Vertical Length | 72 MHz - 203.2 cm (80 in.), 216 MHz - 68.6 cm (27 in.) |
| Weight | 2.0 kg (4.4 lbs.) |
Complete with antennas for both 72 MHz nd 216 MHz systems, the LA-122 Universal Antenna Kit gives you a single solution for your venue's remote antenna needs. Included mounting hardware allows the antennas to be attached to walls, mounted on eletrical boxes, installed on a horizontal surface, or even inside a wall or ceiling. The LA-122 includes all the necessary components to configure several different versions of the antenna, and a 25-foot coaxial cable is also provided.
Features:
- Includes antennas for both 72 MHz and 216 MHz systems
- Range up to 305 m / 1,000 ft @72 MHz, 914 m / 3,000 ft @216 MHz.
- Mounting hardware allows for multiple installation options including walls, electrical boxes, and more
- Complete kit for configuring different versions of the antenna
- Comes with 25 feet of coaxial cable
Includes:
- Two (2) LA-102 Telescoping Top Mounted Antenna (216 MHz)
- Two (2) LA-106 Telescoping Top Mounted Antenna (72 MHz)
- Two (2) Flexible Antenna (72 MHz)
- Two (2) Flexible Antenna (216 MHz)
- One (1) Grounding Base
- One (1) Mounting Bracket
- One (1) Wall/Electrical Box Mounting Plate
- One (1) Shorting Plate
- One (1) Antenna Module
- One (1) 25 ft. (7.6 m) Coaxial Cable (terminated with BNC connectors on both ends)
- Two (2) Hex Kep Nuts
- Two (2) Fiber Washer
- Four (4) Machine Screw (#8-32×3/4?)
- Four (4) Tapping Screw (#8-1/2?)
- Four (4) Dry Anchors
- One (1) Owner's manual
| Connector/s | BNC |
| Frequency Range | 72 MHz - 72.025 MHz - 75.975 MHz216 MHz - 216.0125 MHz - 216.9875 MHz |
| Number of Channels | 72 MHz - 57 (17 wide band, 40 narrow band)216 MHz - 57 (19 wide band, 38 narrow band) |
| Antenna Type | Monopole and Dipole |
| Unity Gain | 0 dB |
| Typical Range | Range up to 305 m / 1,000 ft @72 MHz, 914 m / 3,000 ft @216 MHz. |
| Shipping Weight | 3.20 kg (7.0 lbs.) |
| Mounting | Wall mount, dual and single electrical box, ceiling electrical box, horizontal surface mount (such as on top of a rack), ceiling/inverse mounting, flexible mounting in-wall or in ceiling and mast or conduit mount. |
| Mounting | Includes self-tapping sheet metal screws, drywall anchors, and all hardware required to mount to electrical boxes. Does not provide hardware required to mount to a mast (available at most hardware stores). |
| Mounting | Bracket Dimensions: 11cm x 18cm x 6.4cm (4.5 in x 7.0 in x 2.5 in), W x D x HGrounding Base Dimensions: 20.4cm x 20.4cm x 5.1cm (8.0 in x 8.0 in x 2.0 in) W x D x HMounting Plate Dimensions: 11.4cm x 11.6cm (4.48 in x 4.55 in) |
| Dipole Vertical Length | 72 MHz - 203.2 cm (80 in.), 216 MHz - 68.6 cm (27 in.) |
| Weight | 2.0 kg (4.4 lbs.) |
