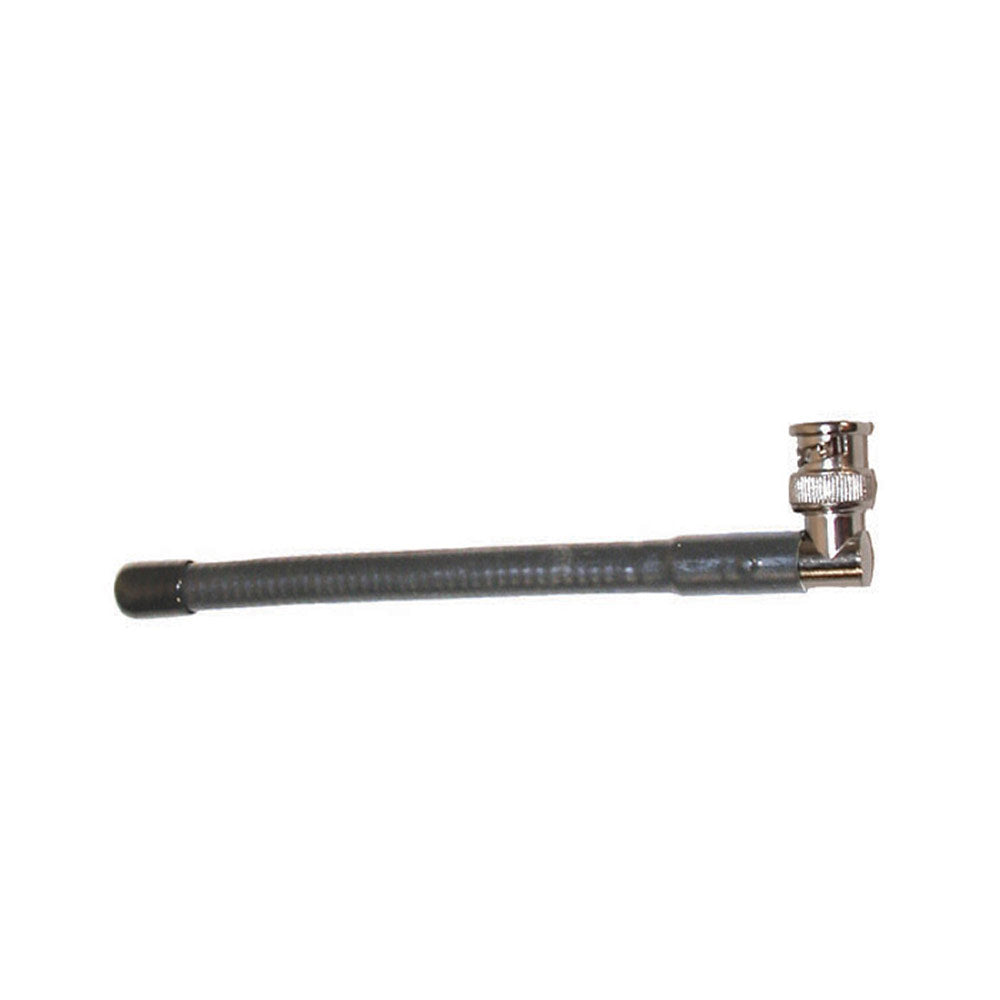

Listen Technologies LA-123 - 90 Degree Helical Antenna (72 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Designed to mount to the rear BNC antenna connector, the LA-123 antenna offers and outstanding coverage range up to 122 m. (412 ft). The 90-degree antenna is compatible with the 72 MHz versions of our LT-800 transmitter. The LA-123 is also included with the LA-125, allowing the antenna to be placed in front of the equipment rack for specific application and installation needs.
Features:
- Outstanding coverage up to 122 m (400 ft.)
- Mounts with a BNC connector
- Compatible with 72 MHz equipment including our LT-800 transmitter and LR-100 receiver
| Connector/s | BNC |
| Frequency Range | 72.0250 - 75.9750 MHz |
| Number of Channels | 57 (17 wide, 40 narrow) |
| Typical Range | Range up to 122 m / 400 ft. |
| Length | 21.0 cm (8.25 in.) |
| Color | Dark Grey |
| Shipping Weight | 0.5 kg (1 lb.) |
| Diameter | 1.10 cm (0.44 in.) |
| Weight | 45 g (1.60 oz.) |
Designed to mount to the rear BNC antenna connector, the LA-123 antenna offers and outstanding coverage range up to 122 m. (412 ft). The 90-degree antenna is compatible with the 72 MHz versions of our LT-800 transmitter. The LA-123 is also included with the LA-125, allowing the antenna to be placed in front of the equipment rack for specific application and installation needs.
Features:
- Outstanding coverage up to 122 m (400 ft.)
- Mounts with a BNC connector
- Compatible with 72 MHz equipment including our LT-800 transmitter and LR-100 receiver
| Connector/s | BNC |
| Frequency Range | 72.0250 - 75.9750 MHz |
| Number of Channels | 57 (17 wide, 40 narrow) |
| Typical Range | Range up to 122 m / 400 ft. |
| Length | 21.0 cm (8.25 in.) |
| Color | Dark Grey |
| Shipping Weight | 0.5 kg (1 lb.) |
| Diameter | 1.10 cm (0.44 in.) |
| Weight | 45 g (1.60 oz.) |
