Listen Technologies LP-50-IR-01 - Advanced Intelligent DSP IR Receiver 6-Pack
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

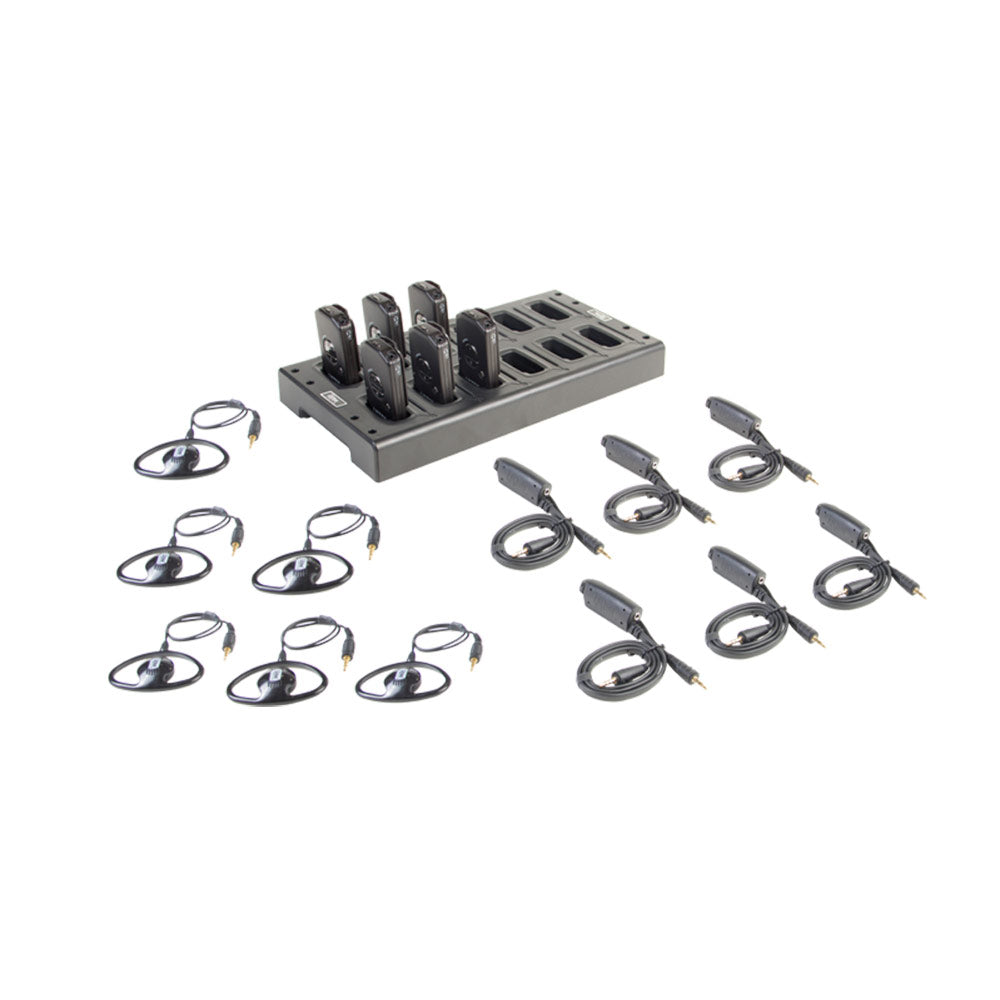

The LP-50-IR receiver pack gives you a convenient way to purchase all of the equipment needed to begin offering IR assistive listening or expand your existing system to accommodate more clients and customers. Each pack includes six LR-5200-IR iDSP receivers and one LA-381 Intelligent 12-unit charging tray.
The LR-5200-IR iDSP receiver is the smallest device of its kind, giving users a lightweight and convenient way to utilize your assistive listening technology. Each high-performance receiver offers unmatched sensitivity, range, and clarity, and the advanced green battery technology makes it more convenient and affordable for businesses and venues.
Each receiver features an OLED display for clearly communicating the channel name and status, battery charge level, and volume level. A programmable channel select button lets users cycle through the available/active channels, and the micro USB connection allows for easy setup, programming, and firmware updates.
The LA-381 drop-in charging/dispensing station for the Listen iDSP receivers provides a convenient way to charge, store, dispense, and collect ListenIR receivers. The tray accommodates up to twelve (12) receivers, providing plenty of storage and charging capacity for the six included receivers and allowing you to expand your systems easily as your needs grow.
The complete package includes receivers, neck loops/lanyards, universal ear speakers, and the charging tray, providing you with everything you need to offer industry-leading IR assistive listening to your customers, clients, visitors, and more.
Features:
- Complete package including six (6) LR-5200-IR receivers, neck loops/lanyards, charging tray, universal ear speakers, and more
- High-performance receivers offer best-in-class range, clarity, and sensitivity
- Ideal for starting or expanding an IR assistive listening system in your business or venue
- Integrated neck loops/lanyards with DSP loop driver improve the listening experience for T-coil users
- Drop-in tray charges and stores up to twelve (12) ListenIR iDSP personal listening receivers
- Wall, drawer, rack, and tabletop mounting options allow for convenient installation and easy access
- Tension locking charge slots ensure a secure fit and effective charging
Includes:
Six (6) LR-5200-IR-P1 Advanced Intelligent DSP IR Receiver Package 1*
One (1) LA-381 Intelligent 12-Unit Charging Tray
*The LR-5200-IR-P1 comes with an ear phone/neck loop lanyard, universal ear speaker, quick start guide and a non-proprietary field replaceable Lithium-ion battery.
| Frequency Response | 50 Hz - 15 kHz (±3 dB) |
| System Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
| Output/s | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm |
| System Signal to Noise Ratio | SQ enabled 80 dB, SQ disabled 60 dB |
| User Controls | Power, up/down volume, Listen button for end user channel selection |
| Programming | Via software and USB port |
| Set-up Controls | Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel |
| LEDs | Flashes when batteries are low or to indicate charging, solid when fully charged |
| Display | Channel designation,battery level, unit number, charging status |
| Frequency Range | 72.025 - 75.950 MHz |
| Number of Channels | 17 wide band, 40 narrow band |
| Sensitivity | .6uV typical, 1 uV maximum for 12 dB sinad |
| Frequency Accuracy | ± .005% stability 32 to 122 ¼F (0 to 50 ¼C) |
| Squelch | Programmable in 20 steps, automatic on loss of RF signal |
| Antenna Type | Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable |
| Power Supply | Micro USB connector, 5 V, 500 mA |
| Battery Type | Lithium Ion 3.7 Vdc, 1200 mAh |
| Battery Life | 8 Hours of continuous use |
| Battery Charging Time | Fully charged in 2.5 Hours |
| Color | Black |
| Unit Weight with Batteries | 2.40 oz. (68 g) |
| Shipping Weight | 3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum |
| Dimensions (H x W x D) | 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm) |
| Unit Weight | 1.60 oz. (45 g) |
| Dimensions with Belt Clip | 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm) |
| Temperature - Operation | 14 to 104 ¼F (-10 to 40 ¼C) |
| Temperature - Storage | (-)4 to 122 ¡F (-20 to 50 ¡C) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Standards | FCC Part 15, Part 90, Industry Canada, RoHS |
The LP-50-IR receiver pack gives you a convenient way to purchase all of the equipment needed to begin offering IR assistive listening or expand your existing system to accommodate more clients and customers. Each pack includes six LR-5200-IR iDSP receivers and one LA-381 Intelligent 12-unit charging tray.
The LR-5200-IR iDSP receiver is the smallest device of its kind, giving users a lightweight and convenient way to utilize your assistive listening technology. Each high-performance receiver offers unmatched sensitivity, range, and clarity, and the advanced green battery technology makes it more convenient and affordable for businesses and venues.
Each receiver features an OLED display for clearly communicating the channel name and status, battery charge level, and volume level. A programmable channel select button lets users cycle through the available/active channels, and the micro USB connection allows for easy setup, programming, and firmware updates.
The LA-381 drop-in charging/dispensing station for the Listen iDSP receivers provides a convenient way to charge, store, dispense, and collect ListenIR receivers. The tray accommodates up to twelve (12) receivers, providing plenty of storage and charging capacity for the six included receivers and allowing you to expand your systems easily as your needs grow.
The complete package includes receivers, neck loops/lanyards, universal ear speakers, and the charging tray, providing you with everything you need to offer industry-leading IR assistive listening to your customers, clients, visitors, and more.
Features:
- Complete package including six (6) LR-5200-IR receivers, neck loops/lanyards, charging tray, universal ear speakers, and more
- High-performance receivers offer best-in-class range, clarity, and sensitivity
- Ideal for starting or expanding an IR assistive listening system in your business or venue
- Integrated neck loops/lanyards with DSP loop driver improve the listening experience for T-coil users
- Drop-in tray charges and stores up to twelve (12) ListenIR iDSP personal listening receivers
- Wall, drawer, rack, and tabletop mounting options allow for convenient installation and easy access
- Tension locking charge slots ensure a secure fit and effective charging
Includes:
Six (6) LR-5200-IR-P1 Advanced Intelligent DSP IR Receiver Package 1*
One (1) LA-381 Intelligent 12-Unit Charging Tray
*The LR-5200-IR-P1 comes with an ear phone/neck loop lanyard, universal ear speaker, quick start guide and a non-proprietary field replaceable Lithium-ion battery.
| Frequency Response | 50 Hz - 15 kHz (±3 dB) |
| System Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
| Output/s | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm |
| System Signal to Noise Ratio | SQ enabled 80 dB, SQ disabled 60 dB |
| User Controls | Power, up/down volume, Listen button for end user channel selection |
| Programming | Via software and USB port |
| Set-up Controls | Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel |
| LEDs | Flashes when batteries are low or to indicate charging, solid when fully charged |
| Display | Channel designation,battery level, unit number, charging status |
| Frequency Range | 72.025 - 75.950 MHz |
| Number of Channels | 17 wide band, 40 narrow band |
| Sensitivity | .6uV typical, 1 uV maximum for 12 dB sinad |
| Frequency Accuracy | ± .005% stability 32 to 122 ¼F (0 to 50 ¼C) |
| Squelch | Programmable in 20 steps, automatic on loss of RF signal |
| Antenna Type | Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable |
| Power Supply | Micro USB connector, 5 V, 500 mA |
| Battery Type | Lithium Ion 3.7 Vdc, 1200 mAh |
| Battery Life | 8 Hours of continuous use |
| Battery Charging Time | Fully charged in 2.5 Hours |
| Color | Black |
| Unit Weight with Batteries | 2.40 oz. (68 g) |
| Shipping Weight | 3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum |
| Dimensions (H x W x D) | 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm) |
| Unit Weight | 1.60 oz. (45 g) |
| Dimensions with Belt Clip | 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm) |
| Temperature - Operation | 14 to 104 ¼F (-10 to 40 ¼C) |
| Temperature - Storage | (-)4 to 122 ¡F (-20 to 50 ¡C) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Standards | FCC Part 15, Part 90, Industry Canada, RoHS |
