Listen Technologies LP-51-072-01 - Advanced Intelligent DSP RF Receiver 12-Pack (72 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Ideal for upgrading an existing system or making assistive listening available to a larger audience, the LP-51-072-01 Advanced Intelligent DSP RF Receiver 12-Pack includes everything needed for conferences, classrooms, or large venues.
Each pack includes twelve (12) of our LR-5200-072 RF receivers—the industry-leading, multi-channel digital receiver featuring a compact design, best-in-class pickup, and reduced noise. The built-in rechargeable battery technology makes the LR-5200-072 an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering extended use. Each unit features a micro-USB connection which, in addition to being used for quick and convenient battery charging, also allows for fast and simple firmware updates, with free iDSP software, setup, and programming.
The integrated neck loop and lanyard with DSP loop driver makes the LR-5200-072 easy to wear and convenient for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.
Ensure that everyone can take advantage of the best assistive listening system available with the LP-51-072-01 Advanced Intelligent DSP RF Receiver 12-Pack from Listen Technologies.
Features:

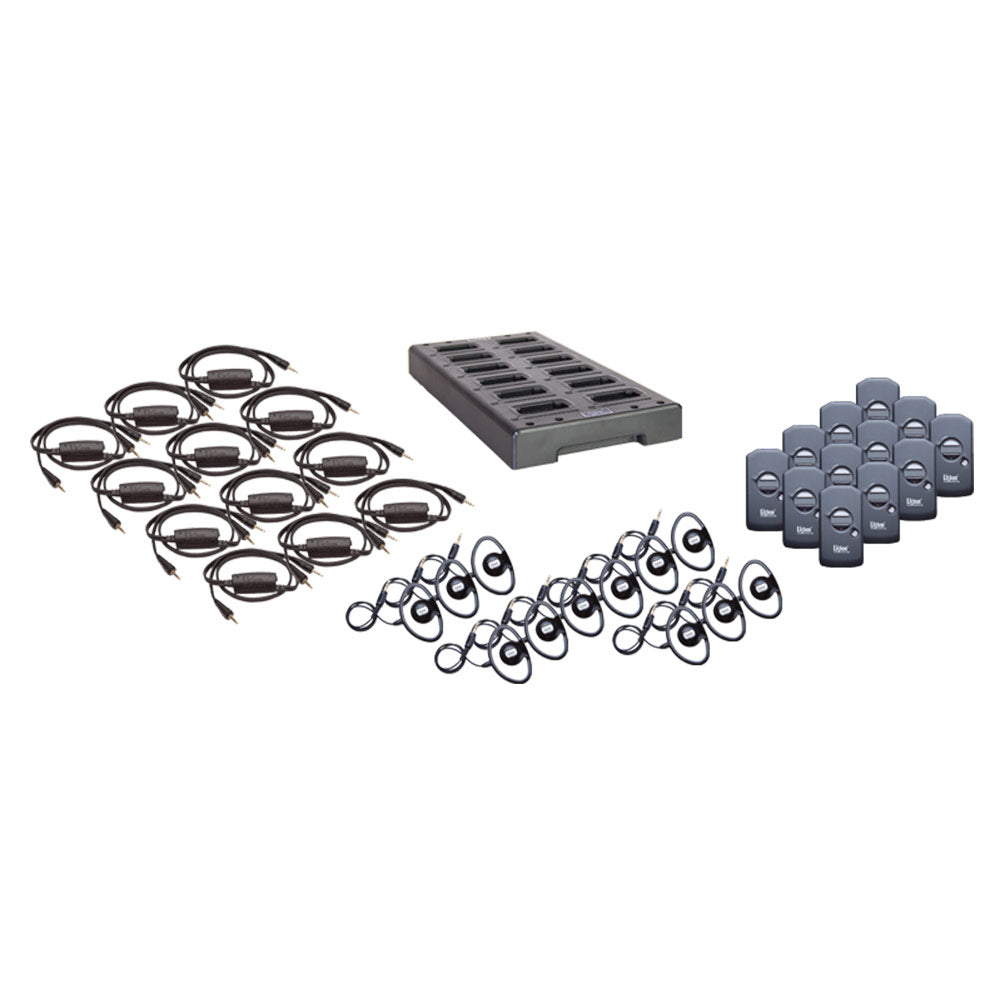

- Includes twelve (12) LR-5200-072 industry leading RF receivers, integrated neck loops/lanyards, universal ear speakers, and a 12-unit charging tray
- Advanced DSP SQ (TM) noise reduction technology provides 20 dB less noise than other listening devices
- Smallest device of its kind is easy to carry, wear, and use
- OLED display provides easy channel selection, programming, and battery level monitoring
- Environmentally friendly rechargeable batteries for extended use, easy charging, and long life
Includes:
Twelve (12) LR-5200-072-P1 Intelligent DSP RF Receiver Package 1 (72 MHz)*
One (1) LA-381-01 Intelligent 12-Unit Charging Tray (North America)
*The LR-5200-072-P1 comes with an ear phone/neck loop lanyard, universal ear speaker, quick start guide and a non-proprietary field replaceable Lithium-ion battery.
| System Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
| Output/s | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm |
| System Frequency Response | 50 Hz - 15 kHz (±3 dB) |
| System Signal to Noise Ratio | SQ enabled 80 dB, SQ disabled 60 dB |
| User Controls | Power, up/down volume |
| Programming | Via software and USB port |
| Set-up Controls | Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel |
| LEDs | Flashes when batteries are low or to indicate charging, solid when fully charged |
| Display | Channel designation, battery level, unit number, charging status |
| Frequency Range | 72.0250 - 75.9500 MHz |
| Number of Channels | 17 wide band, 40 narrow band |
| Sensitivity | .6uV typical, 1 uV maximum for 12 dB sinad |
| Frequency Accuracy | ± .005% stability 32 to 122 ¼F (0 to 50 ¼C) |
| Squelch | Programmable in 20 steps, automatic on loss of RF signal |
| Antenna Type | Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable |
| Power Supply | Micro USB connector, 5 V, 500 mA |
| Battery Type | Lithium Ion 3.7 Vdc, 1200 mAh |
| Battery Life | 8 Hours of continuous use |
| Battery Charging Time | Fully charged in 2.5 Hours |
| Color | Black |
| Unit Weight with Batteries | 2.40 oz. (68 g) |
| Shipping Weight | 3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum |
| Dimensions (H x W x D) | 3.75 x 2.00 x 0.64 in. (9.6 x 5 x 1.7 cm) |
| Unit Weight | 1.60 oz. (45 g) |
| Dimensions with Belt Clip | 3.75 x 2.00 x 0.80 in. (9.6 x 5.0 x 2.1 cm) |
| Temperature - Operation | 14 to 104 ¼F (-10 to 40 ¼C) |
| Temperature - Storage | (-)4 to 122 ¡F (-20 to 50 ¡C) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Standards | FCC Part 15, Part 90, Industry Canada, RoHS |
Ideal for upgrading an existing system or making assistive listening available to a larger audience, the LP-51-072-01 Advanced Intelligent DSP RF Receiver 12-Pack includes everything needed for conferences, classrooms, or large venues.
Each pack includes twelve (12) of our LR-5200-072 RF receivers—the industry-leading, multi-channel digital receiver featuring a compact design, best-in-class pickup, and reduced noise. The built-in rechargeable battery technology makes the LR-5200-072 an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering extended use. Each unit features a micro-USB connection which, in addition to being used for quick and convenient battery charging, also allows for fast and simple firmware updates, with free iDSP software, setup, and programming.
The integrated neck loop and lanyard with DSP loop driver makes the LR-5200-072 easy to wear and convenient for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.
Ensure that everyone can take advantage of the best assistive listening system available with the LP-51-072-01 Advanced Intelligent DSP RF Receiver 12-Pack from Listen Technologies.
Features:
- Includes twelve (12) LR-5200-072 industry leading RF receivers, integrated neck loops/lanyards, universal ear speakers, and a 12-unit charging tray
- Advanced DSP SQ (TM) noise reduction technology provides 20 dB less noise than other listening devices
- Smallest device of its kind is easy to carry, wear, and use
- OLED display provides easy channel selection, programming, and battery level monitoring
- Environmentally friendly rechargeable batteries for extended use, easy charging, and long life
Includes:
Twelve (12) LR-5200-072-P1 Intelligent DSP RF Receiver Package 1 (72 MHz)*
One (1) LA-381-01 Intelligent 12-Unit Charging Tray (North America)
*The LR-5200-072-P1 comes with an ear phone/neck loop lanyard, universal ear speaker, quick start guide and a non-proprietary field replaceable Lithium-ion battery.
| System Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
| Output/s | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm |
| System Frequency Response | 50 Hz - 15 kHz (±3 dB) |
| System Signal to Noise Ratio | SQ enabled 80 dB, SQ disabled 60 dB |
| User Controls | Power, up/down volume |
| Programming | Via software and USB port |
| Set-up Controls | Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel |
| LEDs | Flashes when batteries are low or to indicate charging, solid when fully charged |
| Display | Channel designation, battery level, unit number, charging status |
| Frequency Range | 72.0250 - 75.9500 MHz |
| Number of Channels | 17 wide band, 40 narrow band |
| Sensitivity | .6uV typical, 1 uV maximum for 12 dB sinad |
| Frequency Accuracy | ± .005% stability 32 to 122 ¼F (0 to 50 ¼C) |
| Squelch | Programmable in 20 steps, automatic on loss of RF signal |
| Antenna Type | Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable |
| Power Supply | Micro USB connector, 5 V, 500 mA |
| Battery Type | Lithium Ion 3.7 Vdc, 1200 mAh |
| Battery Life | 8 Hours of continuous use |
| Battery Charging Time | Fully charged in 2.5 Hours |
| Color | Black |
| Unit Weight with Batteries | 2.40 oz. (68 g) |
| Shipping Weight | 3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum |
| Dimensions (H x W x D) | 3.75 x 2.00 x 0.64 in. (9.6 x 5 x 1.7 cm) |
| Unit Weight | 1.60 oz. (45 g) |
| Dimensions with Belt Clip | 3.75 x 2.00 x 0.80 in. (9.6 x 5.0 x 2.1 cm) |
| Temperature - Operation | 14 to 104 ¼F (-10 to 40 ¼C) |
| Temperature - Storage | (-)4 to 122 ¡F (-20 to 50 ¡C) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Standards | FCC Part 15, Part 90, Industry Canada, RoHS |
