Listen Technologies LP-51-IR-01 - Advanced Intelligent DSP IR Receiver 12-Pack
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

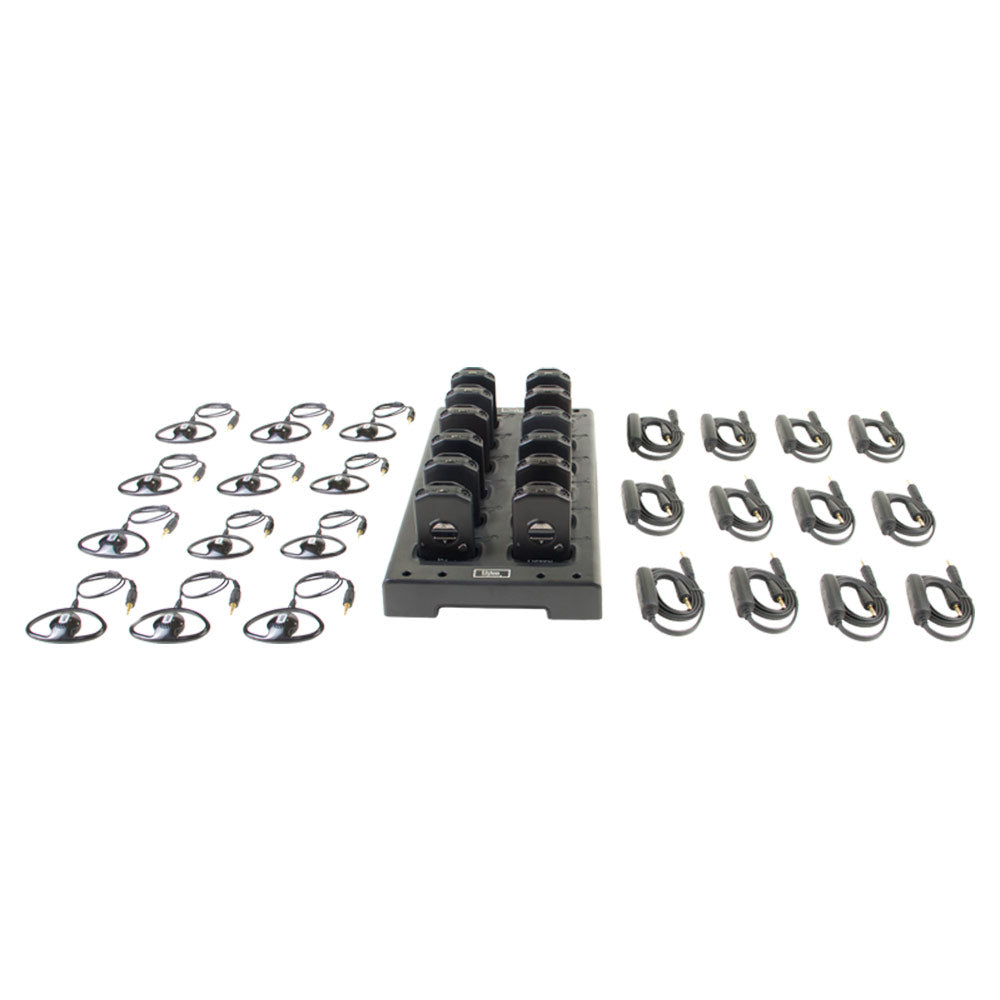

The LP-51-IR receiver pack gives you a convenient way to purchase all of the equipment needed to begin offering IR assistive listening or expand your existing system to accommodate more clients and customers. The package includes twelve (12) LR-5200-IR iDSP advanced personal receivers and one LA-381 Intelligent 12-unit charging tray, as well as neck loops/lanyards for each receiver and more.
The LR-5200-IR iDSP receiver from Listen Technologies is the smallest device of its kind, giving users a lightweight and convenient way to utilize your assistive listening technology. Each high-performance receiver offers unmatched sensitivity, range, and clarity, and the advanced green battery technology makes it more convenient and affordable for businesses and venues.
Each receiver features an OLED display for clearly communicating the channel name and status, battery charge level, and volume level. A programmable channel select button lets users cycle through the available/active channels, and the micro USB connection allows for easy setup, programming, and firmware updates.
The LA-381 drop-in charging/dispensing station for the Listen iDSP receivers provides a convenient way to charge, store, dispense, and collect ListenIR receivers. The tray accommodates all twelve (12) of the receivers included with the package, providing plenty of storage and charging capacity.
Get everything you need to offer industry-leading IR assistive listening to your customers, clients, visitors, and more with the LP-51-IR Advanced iDSP IR Receiver 12-pack from Listen Technologies.
Features:
- Complete package including twelve (12) LR-5200-IR receivers, neck loops/lanyards, charging tray, universal ear speakers, and more
- Advanced-technology, high-performance receivers offer best-in-class range, clarity, and sensitivity
- Ideal for starting or expanding an IR assistive listening system in your business or venue
- Integrated neck loops/lanyards with DSP loop driver improve the listening experience for T-coil users
- Drop-in tray charges and stores all twelve (12) included ListenIR iDSP personal listening receivers
- Wall, drawer, rack, and tabletop mounting options allow for convenient installation and easy access
- Tension locking charge slots ensure a secure fit and effective charging
Includes:
- Twelve (12) LR-5200-IR-P1 Advanced Intelligent DSP IR Receiver Package 1*
- One (1) LA-381 Intelligent 12-Unit Charging Tray (North America)
*The LR-5200-IR-P1 comes with an ear phone/neck loop lanyard, universal ear speaker, quick start guide and a non-proprietary field replaceable Lithium-ion battery.
| System Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
| Audio Output Jacks | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard |
| System Frequency Response | 63 Hz - 15 kHz (±3 dB) |
| System Signal to Noise Ratio | > 60 dB |
| User Controls | Power on/off, volume up/down, Listen button for end user channel selection |
| Programming | Via software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name, Channel button, Channel Lock |
| Set-up Controls | Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel |
| Display | OLED - Channel designation, battery level, unit number, charging status, volume status |
| LED | Flashes when batteries are low or to indicate charging, solid when fully charged |
| Carrier Frequencies | 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz |
| Number of Channels | Four (4) selectable channels |
| Frequency Accuracy | ± .005% stability 32 to 122 ¼F (0 to 50 ¼C) |
| Modulation | FM Wideband, ±50 kHz deviation max, 50 uS de-emphasis |
| Infrared Coverage Area | 30,000 ft_ (2787 m_) single channel with LT-84/LA-141 or 40,000 ft_ (3716 m_) single channel with LT-82/LA-140 |
| Squelch | Programmable in 20 steps, automatic on loss of IR signal |
| Power Save Mode | Turns unit off after a specified time of no IR signal, default is 30 minutes |
| Sensitivity | Better than one (1) nW/cm2 @40 dB SNR |
| Power Supply | Micro USB connector, 5 V, 500 mA |
| Battery Type | Lithium Ion |
| Battery Life | 8 Hours of typical use |
| Battery Charging Time | Fully charged in 2.5 Hours |
| Color | Flat Black |
| Unit Weight with Batteries | 2.8 oz. (79.4 g) |
| Shipping Weight | 3.5 oz. (99.2 g) with a 1 lbs. (0.45 kg) minimum |
| Dimensions (H x W x D) | 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm) |
| Unit Weight | 1.9 oz. (53.9 g) |
| Dimensions with Belt Clip | 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm) |
| Temperature - Operation | 14 to 104 ¼F (-10 to 40 ¼C) |
| Temperature - Storage | (-)4 to 122 ¡F (-20 to 50 ¡C) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Standards | FCC Part 15, ICS-03, CE, RoHS, WEEE, ADA 706, CBC 11B-706 |
The LP-51-IR receiver pack gives you a convenient way to purchase all of the equipment needed to begin offering IR assistive listening or expand your existing system to accommodate more clients and customers. The package includes twelve (12) LR-5200-IR iDSP advanced personal receivers and one LA-381 Intelligent 12-unit charging tray, as well as neck loops/lanyards for each receiver and more.
The LR-5200-IR iDSP receiver from Listen Technologies is the smallest device of its kind, giving users a lightweight and convenient way to utilize your assistive listening technology. Each high-performance receiver offers unmatched sensitivity, range, and clarity, and the advanced green battery technology makes it more convenient and affordable for businesses and venues.
Each receiver features an OLED display for clearly communicating the channel name and status, battery charge level, and volume level. A programmable channel select button lets users cycle through the available/active channels, and the micro USB connection allows for easy setup, programming, and firmware updates.
The LA-381 drop-in charging/dispensing station for the Listen iDSP receivers provides a convenient way to charge, store, dispense, and collect ListenIR receivers. The tray accommodates all twelve (12) of the receivers included with the package, providing plenty of storage and charging capacity.
Get everything you need to offer industry-leading IR assistive listening to your customers, clients, visitors, and more with the LP-51-IR Advanced iDSP IR Receiver 12-pack from Listen Technologies.
Features:
- Complete package including twelve (12) LR-5200-IR receivers, neck loops/lanyards, charging tray, universal ear speakers, and more
- Advanced-technology, high-performance receivers offer best-in-class range, clarity, and sensitivity
- Ideal for starting or expanding an IR assistive listening system in your business or venue
- Integrated neck loops/lanyards with DSP loop driver improve the listening experience for T-coil users
- Drop-in tray charges and stores all twelve (12) included ListenIR iDSP personal listening receivers
- Wall, drawer, rack, and tabletop mounting options allow for convenient installation and easy access
- Tension locking charge slots ensure a secure fit and effective charging
Includes:
- Twelve (12) LR-5200-IR-P1 Advanced Intelligent DSP IR Receiver Package 1*
- One (1) LA-381 Intelligent 12-Unit Charging Tray (North America)
*The LR-5200-IR-P1 comes with an ear phone/neck loop lanyard, universal ear speaker, quick start guide and a non-proprietary field replaceable Lithium-ion battery.
| System Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
| Audio Output Jacks | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard |
| System Frequency Response | 63 Hz - 15 kHz (±3 dB) |
| System Signal to Noise Ratio | > 60 dB |
| User Controls | Power on/off, volume up/down, Listen button for end user channel selection |
| Programming | Via software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name, Channel button, Channel Lock |
| Set-up Controls | Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel |
| Display | OLED - Channel designation, battery level, unit number, charging status, volume status |
| LED | Flashes when batteries are low or to indicate charging, solid when fully charged |
| Carrier Frequencies | 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz |
| Number of Channels | Four (4) selectable channels |
| Frequency Accuracy | ± .005% stability 32 to 122 ¼F (0 to 50 ¼C) |
| Modulation | FM Wideband, ±50 kHz deviation max, 50 uS de-emphasis |
| Infrared Coverage Area | 30,000 ft_ (2787 m_) single channel with LT-84/LA-141 or 40,000 ft_ (3716 m_) single channel with LT-82/LA-140 |
| Squelch | Programmable in 20 steps, automatic on loss of IR signal |
| Power Save Mode | Turns unit off after a specified time of no IR signal, default is 30 minutes |
| Sensitivity | Better than one (1) nW/cm2 @40 dB SNR |
| Power Supply | Micro USB connector, 5 V, 500 mA |
| Battery Type | Lithium Ion |
| Battery Life | 8 Hours of typical use |
| Battery Charging Time | Fully charged in 2.5 Hours |
| Color | Flat Black |
| Unit Weight with Batteries | 2.8 oz. (79.4 g) |
| Shipping Weight | 3.5 oz. (99.2 g) with a 1 lbs. (0.45 kg) minimum |
| Dimensions (H x W x D) | 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm) |
| Unit Weight | 1.9 oz. (53.9 g) |
| Dimensions with Belt Clip | 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm) |
| Temperature - Operation | 14 to 104 ¼F (-10 to 40 ¼C) |
| Temperature - Storage | (-)4 to 122 ¡F (-20 to 50 ¡C) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Standards | FCC Part 15, ICS-03, CE, RoHS, WEEE, ADA 706, CBC 11B-706 |
