Listen Technologies LR-4200-IR-P1 - Intelligent DSP IR Receiver Package 1
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

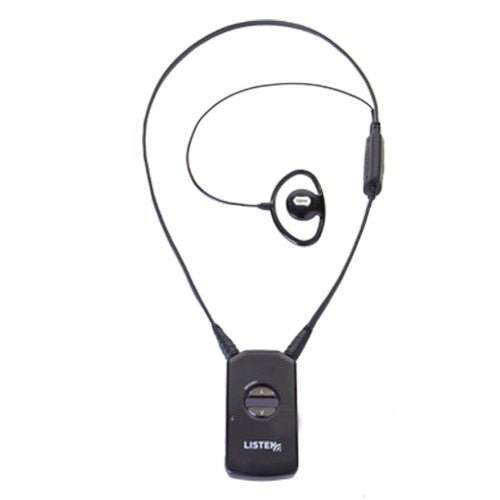

The LR-4200-IR-P1 receiver package makes it easy to order all the components you need to provide visitors, customers, and clients with an exceptional listening experience. Each package includes a LR-4200-IR iDSP receiver, an integrated neck loop/lanyard, and a universal ear speaker, making it ideal for expanding or adding to existing IR assistive listening systems in any venue.
Each LR-4200-IR receiver offers industry-leading range and sensitivity, providing listeners with a stronger, more reliable signal than any other device of its kind. iDSP devices from Listen Technologies are also the smallest IR receiver devices available, making them easier and more comfortable for end users while also simplifying the task of storing, managing, and dispensing them.
The integrated neck loop/lanyard gives listeners with T-coil-equipped hearing aids an improved listening experience, while the included universal ear speaker allows anyone to take advantage of the clarity and signal range that the LR-4200-IR offers.
Each receiver features an OLED display for clearly communicating the channel name and status, battery charge level, and volume level. They also feature a micro USB connection for easy setup, programming, and firmware updates.
For an unmatched listening experience in small and mid-size venues, from theaters to classrooms to houses of worship and more, the LR-4200-IR-P1 receiver package offers the best way to start or expand your IR assistive listening system.
Features:
- Complete Intelligent DSP (iDSP) receiver package includes the equipment needed to have your ListenIR system running and available quickly
- High-performance ListenIR receiver provides the best signal pickup and range of any IR system on the market
- Ideal for adding to or expanding an existing IR assistive listening system
- Includes one (1) LR-4200-IR receiver, integrated neck loop/lanyard, and a universal ear speaker
- Can be worn around the neck or with the belt clip, making it the most discreet listening device on the market
- Integrated neck loop / lanyard with DSP loop driver improves the listening experience for T-coil users
- Smallest device of its kind makes it easier to wear and for venues to dispense, store and maintain
- Advanced green battery technology reduces costs of ownership and eliminates the hassle of purchasing, changing, and disposing of alkaline batteries
Includes:
- One (1) LR-4200-IR Intelligent DSP IR Receiver*
- One (1) LA-430 Intelligent Ear Phone/Neck Loop Lanyard
- One (1) LA-401 Universal Ear Speaker
*The LR-4200-IR comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.
| System Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
| Audio Output Jacks | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard |
| System Frequency Response | 63 Hz - 15 kHz (±3 dB) |
| System Signal to Noise Ratio | > 60 dB |
| User Controls | Power on/off and volume up/down |
| Programming | Via software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name |
| Set-up Controls | Press and hold up/down volume buttons for 5 seconds to enterchannel adjust, use up/down to select channel |
| Display | OLED - Channel designation, battery level, unit number, charging status, volume status |
| LED | Flashes when batteries are low or to indicate charging, solid when fully charged |
| Carrier Frequencies | 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz |
| Number of Channels | Four (4) selectable channels |
| Frequency Accuracy | ± .005% stability 32 to 122 ¼F (0 to 50 ¼C) |
| Modulation | FM Wideband, ±50 kHz deviation max, 50 uS de-emphasis |
| Coverage Area | 30,000 ft_ (2787 m_) single channel with LT-84/LA-141 or 40,000 ft_ (3716 m_) single channel with LT-82/LA-140 |
| Squelch | Programmable in 20 steps, automatic on loss of IR signal |
| Power Save Mode | Turns unit off after a specified time of no IR signal, default is 30 minutes |
| Sensitivity | Better than one (1) nW/cm2 @40 dB SNR |
| Power Supply | Micro USB connector, 5 V, 500 mA |
| Battery Type | Lithium Ion |
| Battery Life | 8 Hours of typical use |
| Battery Charging Time | Fully charged in 2.5 Hours |
| Color | Flat Black |
| Unit Weight with Batteries | 2.8 oz. (79.4 g) |
| Shipping Weight | 3.5 oz. (99.2 g) with a 1 lbs. (0.45 kg) minimum |
| Dimensions (H x W x D) | 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm) |
| Unit Weight | 1.9 oz. (53.9 g) |
| Dimensions with Belt Clip | 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm) |
| Temperature - Operation | 14 to 104 ¼F (-10 to 40 ¼C) |
| Temperature - Storage | (-)4 to 122 ¡F (-20 to 50 ¡C) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Standards | FCC Part 15, ICS-03, CE, RoHS, WEEE, ADA 706, CBC 11B-706 |
