Listen Technologies LR-5200-072-P1 - Advanced Intelligent DSP RF Receiver Package 1 (72 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

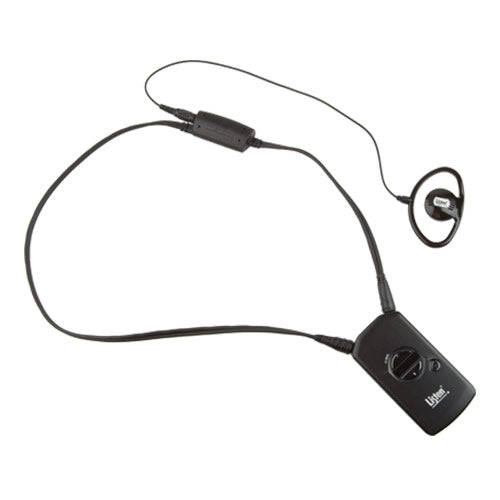

Complete with RF receiver, integrated neck loop/lanyard, and a universal ear speaker, the LR-5200-072-P1 package offers a quick and convenient way to order the equipment you need to expand your digital RF assistive listening system.
The LR-5200-072 iDSP receiver is the smallest device of its kind, giving users a lightweight and convenient way to utilize your assistive listening technology. Each high-performance receiver offers unmatched sensitivity and reduced noise, as well as the advanced green battery technology that make it more convenient and affordable for businesses and venues.
The integrated neck loop/lanyard gives listeners with T-coil-equipped hearing aids an improved listening experience, while the included universal ear speaker allows anyone to take advantage of the clarity and signal range that the LR-5200-072 offers.
Each receiver features an OLED display for clearly communicating the channel name and status, battery charge level, and volume level. A programmable channel select button lets users cycle through the available/active channels, and the micro USB connection allows for easy setup, programming, and firmware updates.
For an unmatched listening experience in small and mid-size spaces, including boardrooms, classrooms, houses of worship and more, the LR-5200-072-P1 receiver package offers the best way to start or expand your RF assistive listening system.
Features:
- Complete Intelligent DSP (iDSP) receiver package includes the equipment needed to begin or expand your 72 MHz RF assistive listening system quickly
- High-performance ListenRF receiver provides the best signal pickup and least noise of any RF system on the market
- Ideal for adding or expanding an existing RF assistive listening system
- Includes one (1) LR-5200-072 receiver, integrated neck loop/lanyard, and a universal ear speaker
- Can be worn around the neck or with the belt clip, making it the most discreet listening device on the market
- Integrated neck loop / lanyard with DSP loop driver improves the listening experience for T-coil users
- Ideal for multi-channel applications where users need the convenience of selecting channels themselves
- Smallest device of its kind makes it easier to wear and for venues to dispense, store and maintain
- Advanced green battery technology reduces costs of ownership and eliminates the hassle of purchasing, changing, and disposing of alkaline batteries
Includes:
- One (1) LR-5200-072 Advanced Intelligent DSP RF Receiver (72 MHz)*
- One (1) LA-430 Intelligent Ear Phone/Neck Loop Lanyard
- One (1) LA-401 Universal Ear Speaker
*The LR-5200-072 comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.
| Frequency Response | 50 Hz - 15 kHz (±3 dB) |
| System Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
| Output/s | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm |
| System Signal to Noise Ratio | SQ enabled 80 dB, SQ disabled 60 dB |
| User Controls | Power, up/down volume, Listen button for end user channel selection |
| Programming | Via software and USB port |
| Set-up Controls | Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel |
| LEDs | Flashes when batteries are low or to indicate charging, solid when fully charged |
| Display | Channel designation,battery level, unit number, charging status |
| Frequency Range | 72.025 - 75.950 MHz |
| Number of Channels | 17 wide band, 40 narrow band |
| Sensitivity | .6uV typical, 1 uV maximum for 12 dB sinad |
| Frequency Accuracy | ± .005% stability 32 to 122 ¼F (0 to 50 ¼C) |
| Squelch | Programmable in 20 steps, automatic on loss of RF signal |
| Antenna Type | Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable |
| Power Supply | Micro USB connector, 5 V, 500 mA |
| Battery Type | Lithium Ion 3.7 Vdc, 1200 mAh |
| Battery Life | 8 Hours of continuous use |
| Battery Charging Time | Fully charged in 2.5 Hours |
| Color | Black |
| Unit Weight with Batteries | 2.40 oz. (68 g) |
| Shipping Weight | 3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum |
| Dimensions (H x W x D) | 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm) |
| Unit Weight | 1.60 oz. (45 g) |
| Dimensions with Belt Clip | 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm) |
| Temperature - Operation | 14 to 104 ¼F (-10 to 40 ¼C) |
| Temperature - Storage | (-)4 to 122 ¡F (-20 to 50 ¡C) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Standards | FCC Part 15, Part 90, Industry Canada, RoHS |
