Description

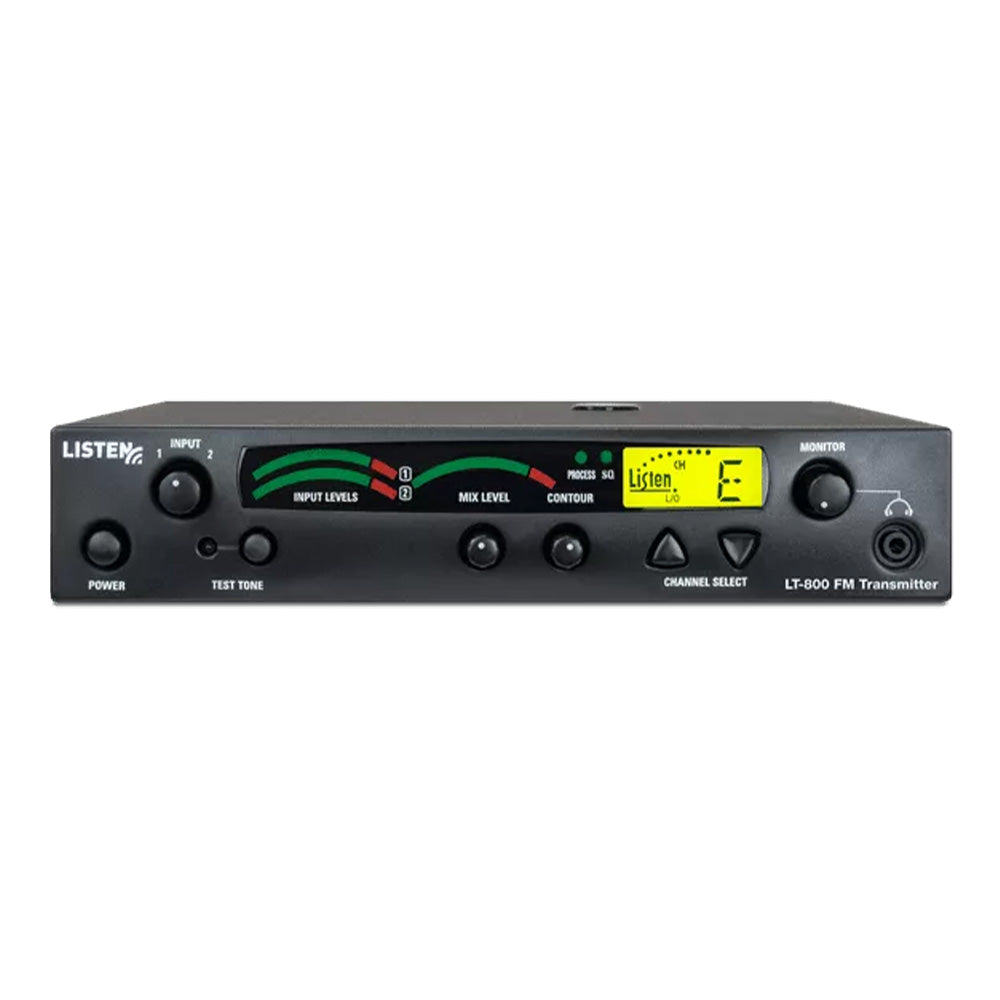

The Listen LT-800 Stationary Transmitter can be used in a variety of applications. The LT-800 is connected to your main audio system, broadcasting a high quality audio signal to belt pack receivers, stationary receivers, or wireless speaker / receivers. The end result -- your audience can hear and understand the presentation better because of improved speaker placement or because they have their own belt pack and headset. The signature Look & Listen LCD shows channel, lock, programming and RF power.
Features- Every Application – A choice of 72 or 216 MHz systems, complete antenna and accessory options and superb audio quality make Listen products ideal for a wide range of applications.Works Where Others Won't – Incorporates the latest, most advanced technology for clear transmission.Double the Range – 216 MHz systems offer double the range of more familiar 72 MHz systems – up to 3,000 feet (914 m).Superior Audio Quality – 80 dB signal-to-noise ratio,setting the industry's sound quality standard.Designed for installation – Rack mountable with remote antennas make installation easy and service reliable.
RF | |
RF Frequency Range | 72.025 - 75.950 MHz |
Number of Channels | 57 (17 wide, 40 narrow) |
Frequency Accuracy | +/- .005% stability 0 to 50C |
Transmitter Stability | 50 PPM |
Output Power | 8,000uV at 3 m |
Antenna | Several available. |
Antenna Cable | RF-58 or RG-8 coaxial cable |
Antenna Connector | Reverse BNC |
Compliance | FCC Part 15, Industry Canada |
Audio | |
System Frequency Response | 50 Hz - 15 kHz (±3dB) |
System Signal to Noise Ratio (A-weighted) | SQ enabled: 80 dB; SQ disabled 60 dB |
System Distortion | <2% total harmonic distortion (THD) at 80% |
Audio Input 1 | Rear panel. Female-XLR and 1/4 in combo connector, balanced, 0/-55 dBu (line/mic) nominal input level adjustable, -30/+21 dBu (mic/line) maximum input level, impedance 20k/1k ohms (line/mic), phantom power +12VDC |
Audio Input 2 | Rear panel. (2) Phono connectors, unbalanced, -10/+10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohms |
Combined Audio Output (Mix) | Rear panel. (2) Phono connectors, unbalanced, 0 dBu nominal output level, +19 dBu maximum, impedance 10 ohms. |
Headphone Output | Front panel. (1) 3.5 mm connector, unbalanced, adjustable output level, maximum, impedance 10 ohms. 350mW, 32 ohms, 3.5 mm stereo. |
Controls | |
Front Panel | Power, Test Tone on/off, Channel up/down, Input Level, Mix Level, Contour, Headset Level |
Rear Panel | Input 1 Level (Line, Mic, Mic-Phantom Power), Input 2 Level (-10/+10 dBu), RF Power (low, mid, high) |
Internal Adjustments | Compression ratio for audio processor |
Programming | SQ on/off, Processing on/off |
Indicators | |
Input 1 and Input 2, Mix VU | 8 Green, 2 Red |
SQ and Processing | Indicated by a green LED when on |
RF Power | Indicated on the LCD Display |
Power | Red LED illuminates when the unit is powered up |
LCD Display | Channel designation, lock status, RF Power Level, programming |
Test Tone | Red LED illuminates when test tone enabled |
Power | |
Power Supply Type | In-line power supply, Listen part number LA-201 |
Power Supply Input | 120VAC, 60 Hz, 19 watts |
Power Supply Output | 15VAC, 1000mA |
Power Supply Connector | .02 in. (5.0 mm) OD x .01 in. (2.5 mm) ID, barrel type |
Compliance | UL Listed |
Physical | |
Dimensions W x D x H | 8.50 x 9.12 x 1.75 in. (21.6 x 21.16 x 4.45 cm) |
Unit Weight | 3.0 lbs. (1.4 kg) |
Unit Weight with LA-201 Power | 4.4 lbs. (2.0kg) |
Supply | 5.0 lbs. (2 kg) |
Shipping Weight | 1 rack unit, optional rack mount not included |
Rack Mounting | Order Listen part number LA-326 |
Environmental | |
Temperature - Operation | -10 C (14 F) to +40¡ (104 F) |
Temperature - Storage | -20 C (-4 F) to +50¡ (122 F) |
Humidity | 0 to 95% relative humidity, non-condensing |
