Description

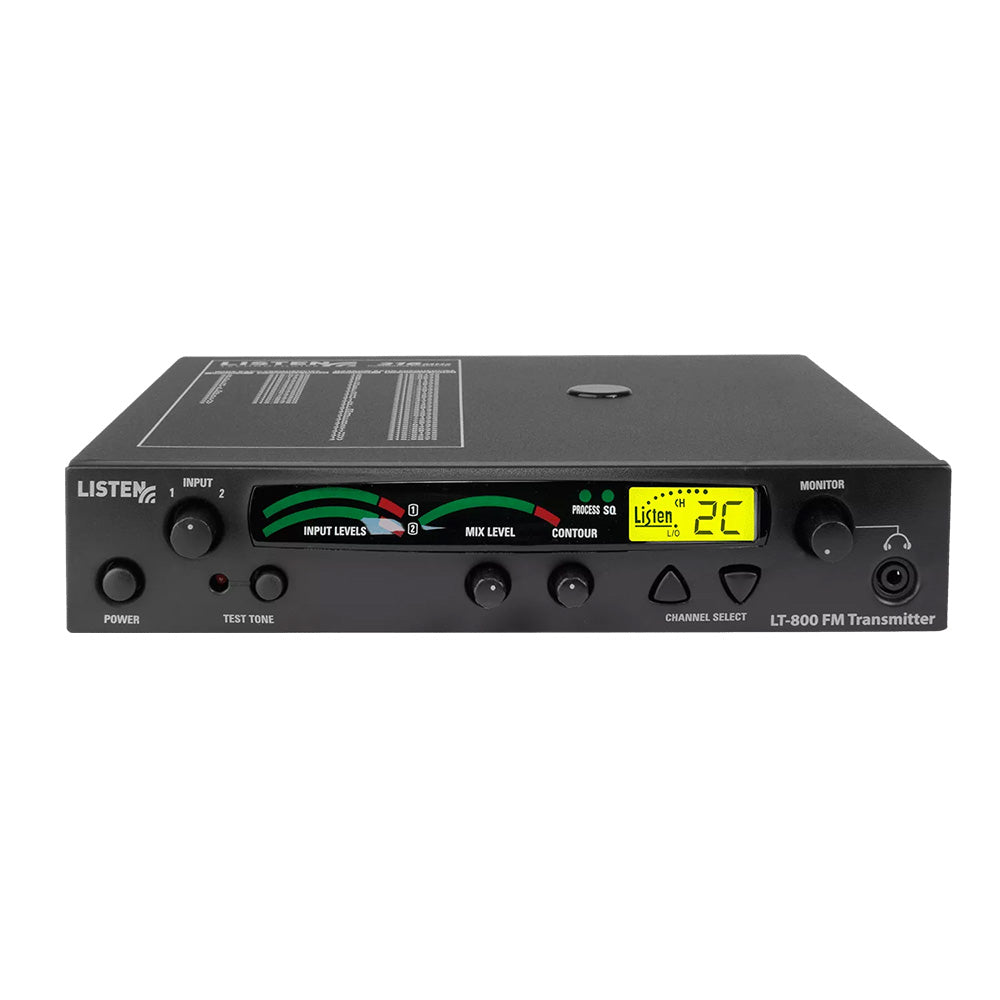

Offering outstanding audio clarity, digital signal strength, and 57 selectable channels, the LT-800-216 is a perfect RF transmitter choice for a wide range of applications. Connected to your main audio system, the LT-800-216 broadcasts strong, reliable audio to both belt pack receivers and stationary receivers, ideal for providing listeners with the best possible assistive listening experience. Antenna not included.
Features:
- Look and Listen (TM) LCD display for quick channel, programming, and channel lock status information
- Balanced and unbalanced audio inputs allow for use with any audio source
- Built-in auto processor optimizes audio (voice or music) prior to transmission
- 57 available, selectable channels
- VU level meter and test tone for simple installation and set up
- 30-day, no-obligation demonstration available for your venue or business
Includes:
- One (1) LT-800-216-01 Stationary Transmitter (216 MHz)
- One (1) LA-207 12 VDC Replacement Power Supply for LT-800
- One (1) Quick Reference Card
Frequency Response | 50 Hz - 15 kHz (±3 dB) |
Signal-to-Noise Ratio | SQ enabled 70 dB, SQ disabled 50 dB |
Audio Input 1 | Rear panel, one (1) Female XLR or 1/4 in combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, +21 / -30 dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDC |
Audio Input 2 | Rear panel, two (2) phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohm |
Audio Processing | Compression can be turned on/off, slope internally adjustable from 1:1 to 4:1, default 2:1 |
Contour | Cuts and boosts frequencies above 5 kHz |
Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
Audio Output | Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm |
Headphone Output | Front panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm |
User Controls | Front Panel: Power, test tone on/off, channel up/down, input levels, mix level, contour, monitor volume controlRear Panel: Input 1 Level, (Line, Mic, Mic-Phantom Power), Input 2 level (-10 / +10 dBu), RF power level (low, mid, high) |
Internal Adjustments | Compression ratio for audio processor |
Programming | SQ on/off, process on/off, channel lock |
LCD | Channel designation, lock status, RF power level, programming (front panel) |
Audio Input Status LEDs | Indicates Input 1, Input 2, and Mix audio levels; 10 segment LED's (8 green, 2 red) |
Processing | Indicated by a green LED when on (front panel) |
Test Tone | Red LED illuminates when test tone is enabled |
RF Power | Indicated on the LCD (low, mid, high) |
RF Frequency Range | 216.0125 - 216.9875 MHz |
Number of Channels | 19 wide band, 38 narrow band |
Frequency Accuracy | ± .005% stability +32¼ to +122 ¼F (0¼ to +50 ¼C) |
Antenna Type | Various antennas available |
Transmitter Stability | 50 PPM |
Transmission Range | Up to 3,000 ft. (914 m) |
Antenna Connector | BNC, 50 Ohms (Use RG-58 < 50 ft or RG-8> 50 ft) |
Output Power | 100 mW (max allowed by FCC) |
Number of Simultaneous Transmitters | Up to 5 |
Power Supply | In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards) |
Power Supply Input | 100-240 VAC, 50-60 Hz, 0.4 A |
Power Supply Output | 12 VDC, 1.3 A, 15.6 W |
Power Supply Connector | 0.02 in (5.0 mm) OD, 0.01 in. (2.5 mm) ID, barrel type |
Compliance | UL, CE, GS, T†V, RoHS |
Width | 8.50 in. (21.5 cm) |
Height | 1.75 in. (4.5 cm) |
Depth | 9.13 in. (23 cm) |
Color | Dark Grey with white silk screening |
Unit Weight with Power Supply | 3.5 lbs. (1.6 kg) |
Shipping Weight | 6.0 lbs. (2.7 kg) |
Rack Mounting | One (1) rack space height, 1/2 rack space wide. One (1) or two (2) transmitters can be mounted in one rack space, optional rack mount (LA-326) |
Weight | 2.6 lbs. (1.2 kg) |
Temperature - Operation | -10 ¼C (14 ¼F) to +40 ¼C (104 ¼F) |
Temperature - Storage | -20 ¼C (-4 ¼F) to +50 ¼C (122 ¼F) |
Relative Humidity | 0 to 95% relative humidity, non condensing |
Safety | RoHS |
RF | FCC Part 15, Part 90, Industry Canada |
