Description

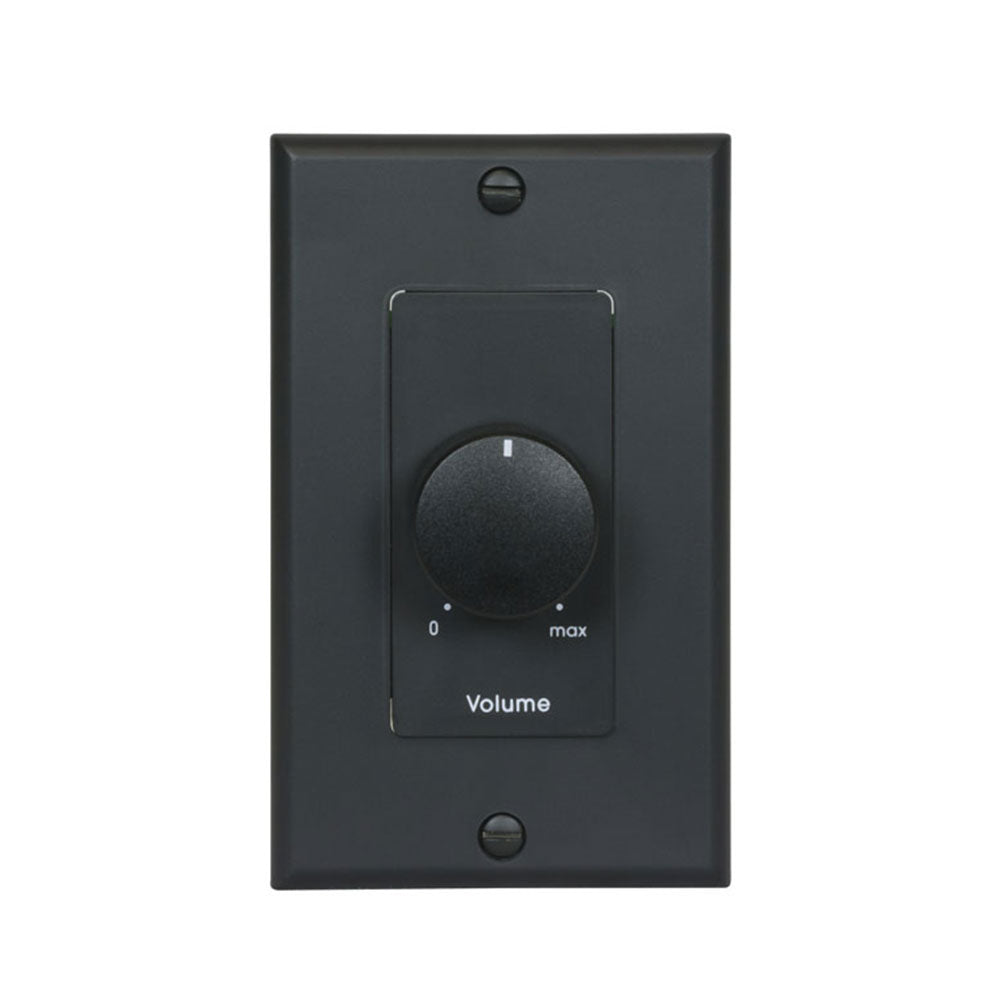

Volume control with wall plate provides precise level adjustment of single or multiple speaker lines.
Features:
- Mono autoformer attenuator with rotary switch for use with 25V/70V/100V speaker line
- 100W power rating
- 3dB per step attenuation (33dB total, two steps of 6dB each before off)
- Phoenix style plug-in screw termination strips for pre-wire convenience
- Wire capacity to 14 gauge
- Decorator-style one-gang black wall plate (2.75" x 4.5"), with printing
- Rotary switch, non-continuous rotation — Off-max (10)
- Designed to fit a standard one-gang E.O. box with minimum depth of 2.125" (box not included)
- ETL Listed
- Assembled in the U.S.A. with global components
Power Rating | 100W |
Attenuation | 3dB per step (33dB total) |
Use With | 25/70/100V speaker line |
Activation | Rotary dial |
Volume Positions | 0-10 |
Termination | Phoenix-style |
Wire Capacity | 14-gauge |
Wall Plate | 1-gang decorator style |
Finish | Black |
Mounting | Fits standard E.O. box (2.125 in. min. depth) |
Volume control with wall plate provides precise level adjustment of single or multiple speaker lines.
Features:
- Mono autoformer attenuator with rotary switch for use with 25V/70V/100V speaker line
- 100W power rating
- 3dB per step attenuation (33dB total, two steps of 6dB each before off)
- Phoenix style plug-in screw termination strips for pre-wire convenience
- Wire capacity to 14 gauge
- Decorator-style one-gang black wall plate (2.75" x 4.5"), with printing
- Rotary switch, non-continuous rotation — Off-max (10)
- Designed to fit a standard one-gang E.O. box with minimum depth of 2.125" (box not included)
- ETL Listed
- Assembled in the U.S.A. with global components
Power Rating | 100W |
Attenuation | 3dB per step (33dB total) |
Use With | 25/70/100V speaker line |
Activation | Rotary dial |
Volume Positions | 0-10 |
Termination | Phoenix-style |
Wire Capacity | 14-gauge |
Wall Plate | 1-gang decorator style |
Finish | Black |
Mounting | Fits standard E.O. box (2.125 in. min. depth) |
