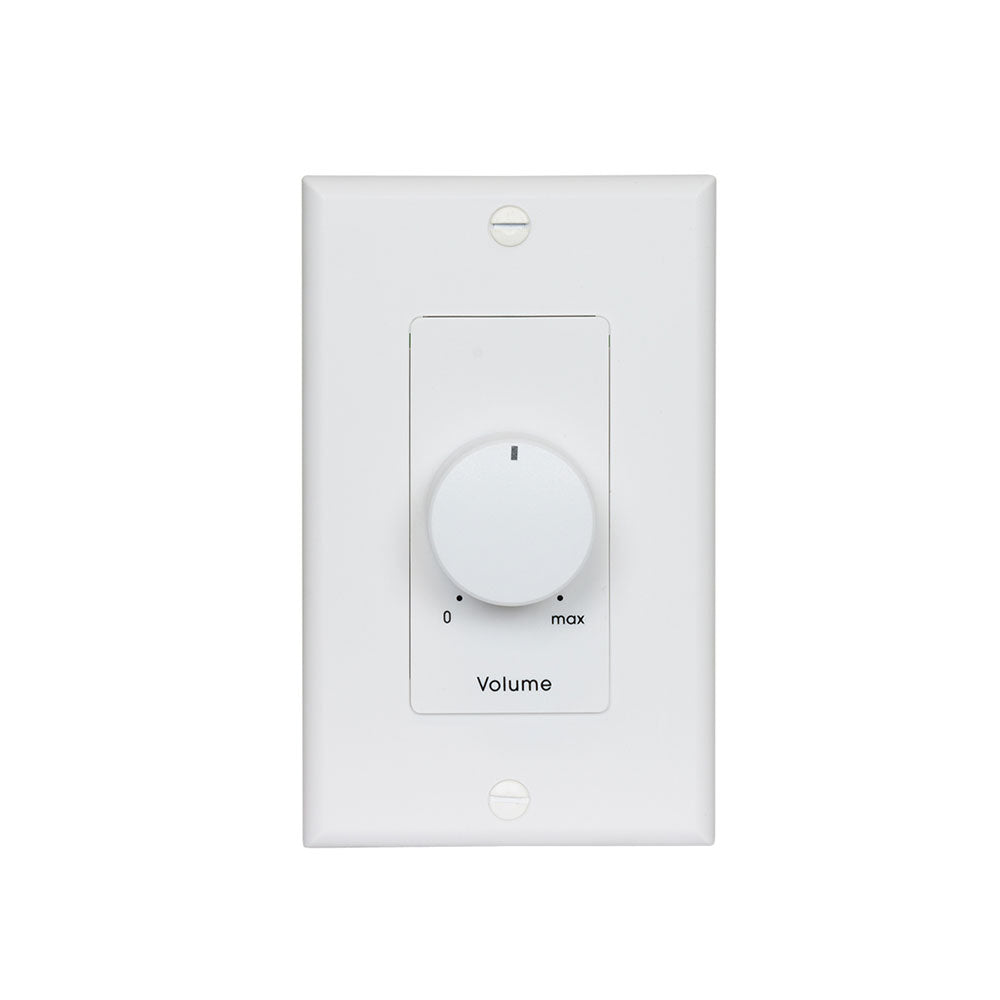

Lowell 10KLVC-DW - Single-Gang Decora 10k ohm Potentiometer (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
10k ohm linear taper control for single-point remote level adjustment of voltage controlled amplifiers (VCA, by others) is designed to interface directly with three-wire, 0 to 10 volt control inputs that are typical on most voltage controlled amplifiers. The 10k ohm potentiometer allows the amplifier’s control voltage to be set or adjusted from a single remote location.
Features
- 10k ohm linear taper potentiometer control
- 1/2W power rating
- Provides level adjustment of voltage controlled amplifiers from a single remote location.
- Phoenix-style removable screw termination strips for prewire with capacity for 14-gauge wire.
- Continuous attenuation rotary control with stops at 0 and max., plus incremental detents for precision feel.
- Made in the U.S.A. with global components
- Includes:
– White one-gang decorator style wall plate (2.75"W x 4.5"H)
– Control assembly (1"W x 1.75"H x 1.25"D) mounted to white decorator-style subplate
– Rotary knob
| Power Rating | 1/2W |
| Resistance | 10k ohm |
| Attenuation | Continuous attenuation (stops at 0/max.) |
| Knob Control | Incremental detents for precision feel |
| Use With | VCA control or audio circuit |
| Activation | Rotary knob |
| Termination | Phoenix-style |
| Wire Capacity | 14-gauge |
| Wall Plate | 1-gang decorator style |
| Finish | White |
| Mounting | Fits standard E.O. box (2.125 in. min. depth) |
10k ohm linear taper control for single-point remote level adjustment of voltage controlled amplifiers (VCA, by others) is designed to interface directly with three-wire, 0 to 10 volt control inputs that are typical on most voltage controlled amplifiers. The 10k ohm potentiometer allows the amplifier’s control voltage to be set or adjusted from a single remote location.
Features
- 10k ohm linear taper potentiometer control
- 1/2W power rating
- Provides level adjustment of voltage controlled amplifiers from a single remote location.
- Phoenix-style removable screw termination strips for prewire with capacity for 14-gauge wire.
- Continuous attenuation rotary control with stops at 0 and max., plus incremental detents for precision feel.
- Made in the U.S.A. with global components
- Includes:
– White one-gang decorator style wall plate (2.75"W x 4.5"H)
– Control assembly (1"W x 1.75"H x 1.25"D) mounted to white decorator-style subplate
– Rotary knob
| Power Rating | 1/2W |
| Resistance | 10k ohm |
| Attenuation | Continuous attenuation (stops at 0/max.) |
| Knob Control | Incremental detents for precision feel |
| Use With | VCA control or audio circuit |
| Activation | Rotary knob |
| Termination | Phoenix-style |
| Wire Capacity | 14-gauge |
| Wall Plate | 1-gang decorator style |
| Finish | White |
| Mounting | Fits standard E.O. box (2.125 in. min. depth) |
