Description
The rackmount panel for 19 in. racks features nine (9) 15A outlets and basic surge protection (to 30,000A). Includes 9-ft. cord with NEMA 5-15P plug.
Features:
- UL Listed
- 19" W x 9" D x 1U steel chassis
- Lighted rocker activation switch on front
- 9-ft. attached cord with NEMA 5-15P plug
- Power Rating: 120VAC, 60Hz, 15A (NEC Art.210.21 [B] [2] rating 12A) 15A circuit breaker

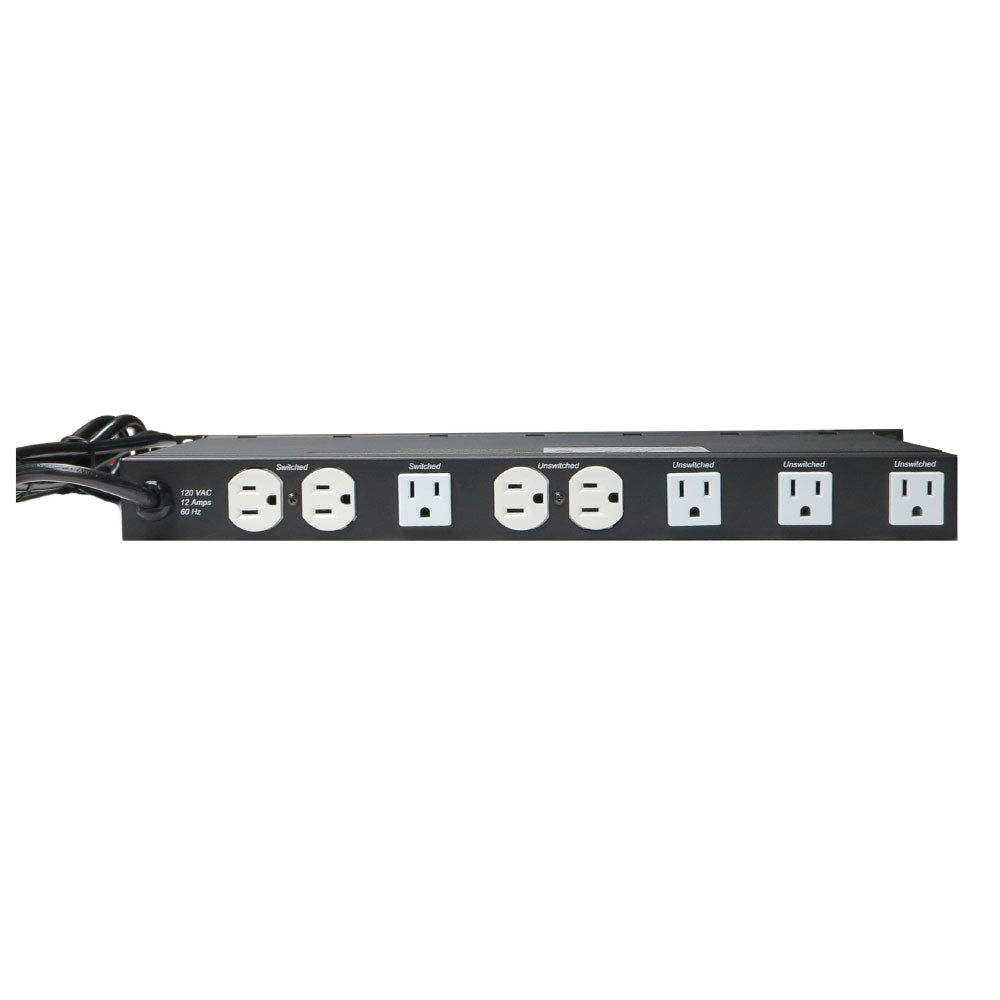

- Rear outlets: 3 switched, 5 unswitched

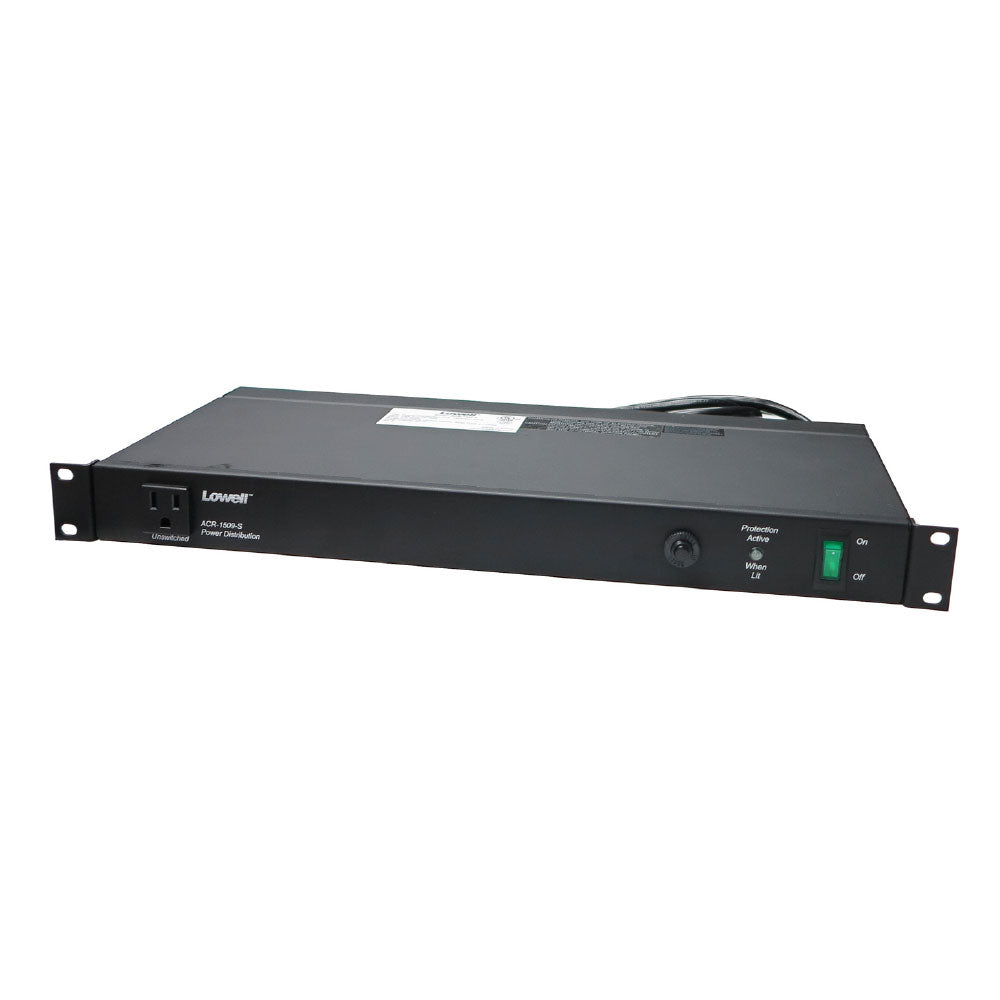

- Front outlet: 1 unswitched (always on)
- Basic Surge Protection
- LED status indicator on front shows protection is active
- Maximum Surge Current: 30,000A
- VPR (UL1449-4): 500V
- Endurance: 100 WCS * (unlimited low level surges)
- Response Time: 1 nanosecond
- EMI/RFI Noise Reduction: 20dB@100kHz
- Protection Mode: Line to neutral only. No ground contamination
Power Rating | 120VAC, 60Hz, 15A |
Outlets | 9 (15A) outlets (1 front, 8 rear) |
Termination | 9 ft. attached cord with NEMA 5-15P plug |
Chassis | 19 in. x 9 in. x 1.75 in. (1U) |
Surge protection | up to 30,000A. LED status indicator. |
Switch (on/off) | Lighted front rocker switch controls 3 rear outlets (other outlets are un-switched Ñ always on when the unit has power) |
COMPLIANCE and CERTIFICATION | ¥ EIA/TIA Compliant ¥ RoHS Compliant ¥ UL Listed ¥ Imported |
The rackmount panel for 19 in. racks features nine (9) 15A outlets and basic surge protection (to 30,000A). Includes 9-ft. cord with NEMA 5-15P plug.
Features:
- UL Listed
- 19" W x 9" D x 1U steel chassis
- Lighted rocker activation switch on front
- 9-ft. attached cord with NEMA 5-15P plug
- Power Rating: 120VAC, 60Hz, 15A (NEC Art.210.21 [B] [2] rating 12A) 15A circuit breaker
- Rear outlets: 3 switched, 5 unswitched
- Front outlet: 1 unswitched (always on)
- Basic Surge Protection
- LED status indicator on front shows protection is active
- Maximum Surge Current: 30,000A
- VPR (UL1449-4): 500V
- Endurance: 100 WCS * (unlimited low level surges)
- Response Time: 1 nanosecond
- EMI/RFI Noise Reduction: 20dB@100kHz
- Protection Mode: Line to neutral only. No ground contamination
Power Rating | 120VAC, 60Hz, 15A |
Outlets | 9 (15A) outlets (1 front, 8 rear) |
Termination | 9 ft. attached cord with NEMA 5-15P plug |
Chassis | 19 in. x 9 in. x 1.75 in. (1U) |
Surge protection | up to 30,000A. LED status indicator. |
Switch (on/off) | Lighted front rocker switch controls 3 rear outlets (other outlets are un-switched Ñ always on when the unit has power) |
COMPLIANCE and CERTIFICATION | ¥ EIA/TIA Compliant ¥ RoHS Compliant ¥ UL Listed ¥ Imported |
