Description

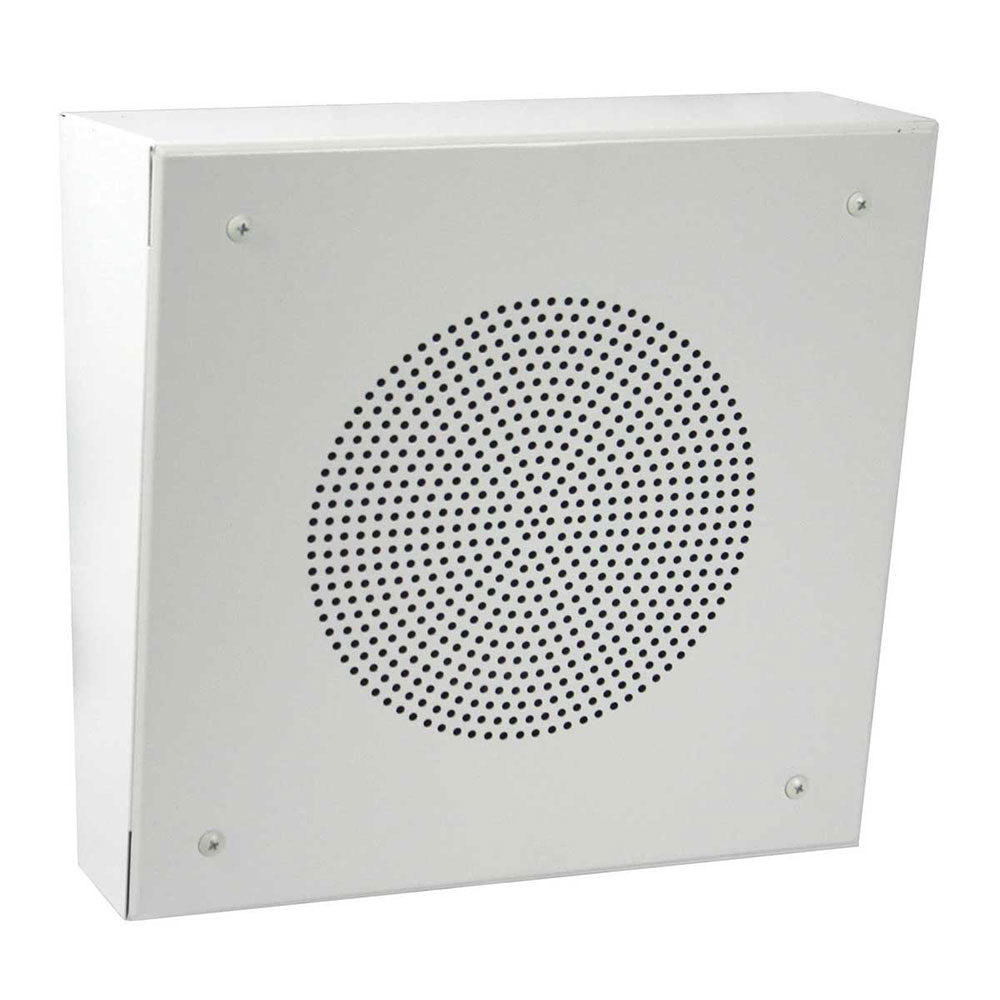

Ready-to-install speaker assembly for background music and paging in classrooms, offices, retail locations and just about anywhere an attractive surface-mount speaker system is required. Includes an 8 inch driver, transformer, enclosure with sloped front and grille.
Applications:
- Background Music
- Paging

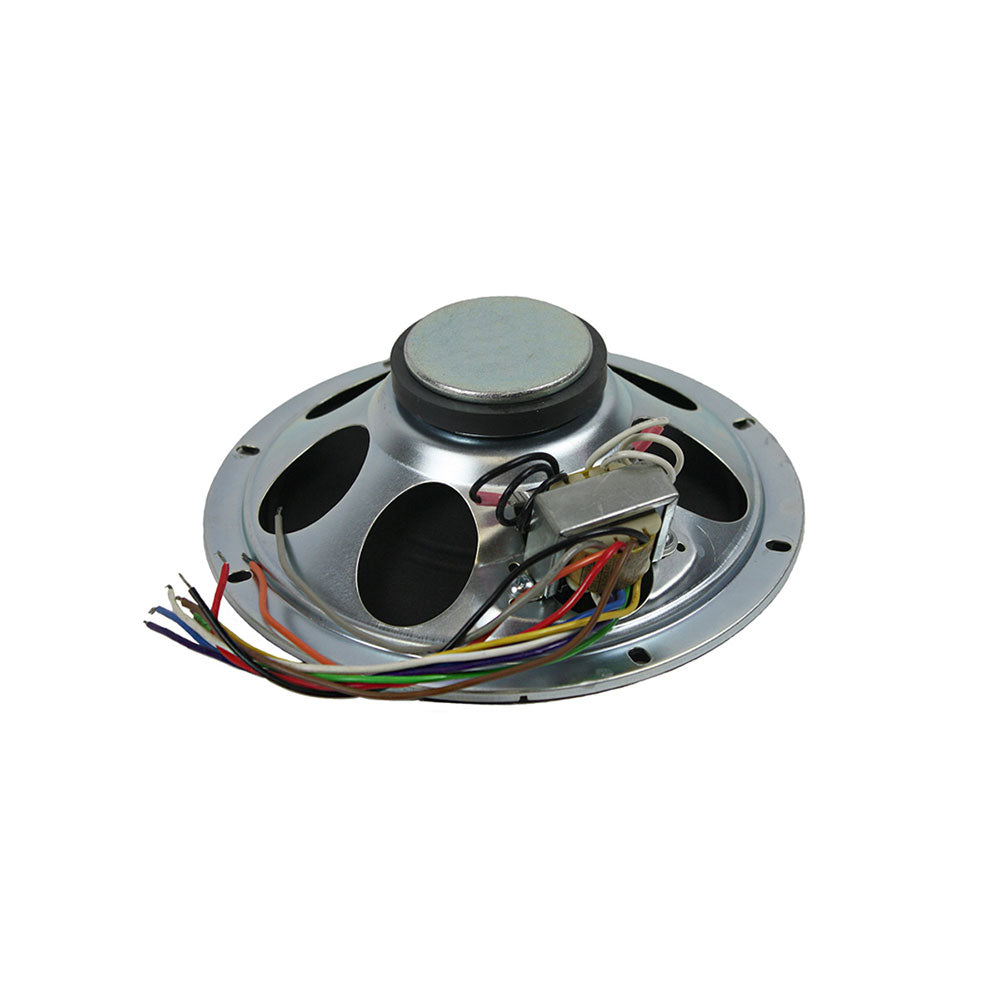

Driver (805A) | 8 in. 12W dual cone driver with 5 oz. magnet |
Transformer (TLM-572) | 25V/70V dual voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W. |

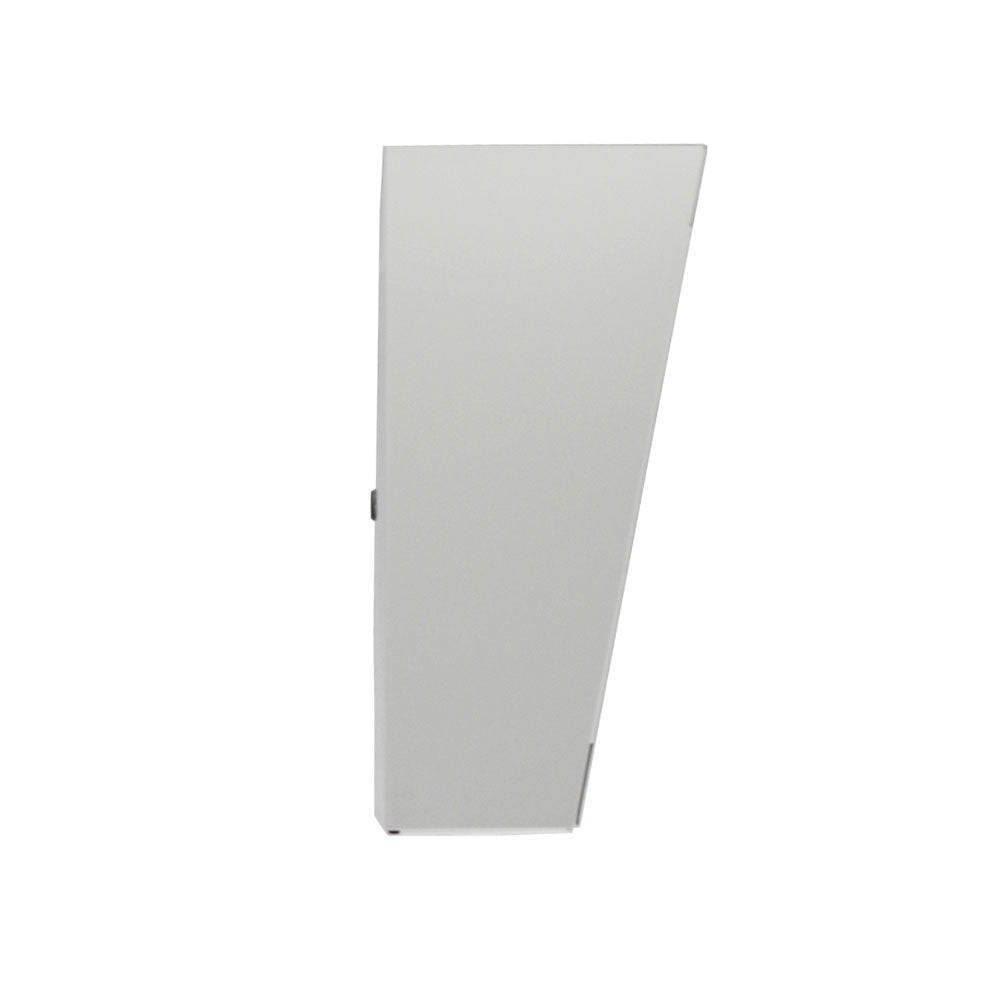

Enclosure | Steel enclosure with sloped front. 11.3 in. x 11.5 in x 5.29 in. (3.05 in. at base). White. |
Grille | Steel with beveled edge and circular hole pattern. White. |
Mounting Aids | Universal mounting hole pattern will install to a 4 in. square, 4 in. octagon, 1- or 2-gang box (not included). Top/bottom knockouts for 500 Series wiremold. |
Frequency Response | 122HzÐ7.4kHz (±6dB), 65HzÐ20kHz (±12dB) |
Average Sensitivity | 95.1dB (1W/1M) |
Dispersion | 110 degrees conical |
Ready-to-install speaker assembly for background music and paging in classrooms, offices, retail locations and just about anywhere an attractive surface-mount speaker system is required. Includes an 8 inch driver, transformer, enclosure with sloped front and grille.
Applications:
- Background Music
- Paging
Driver (805A) | 8 in. 12W dual cone driver with 5 oz. magnet |
Transformer (TLM-572) | 25V/70V dual voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W. |
Enclosure | Steel enclosure with sloped front. 11.3 in. x 11.5 in x 5.29 in. (3.05 in. at base). White. |
Grille | Steel with beveled edge and circular hole pattern. White. |
Mounting Aids | Universal mounting hole pattern will install to a 4 in. square, 4 in. octagon, 1- or 2-gang box (not included). Top/bottom knockouts for 500 Series wiremold. |
Frequency Response | 122HzÐ7.4kHz (±6dB), 65HzÐ20kHz (±12dB) |
Average Sensitivity | 95.1dB (1W/1M) |
Dispersion | 110 degrees conical |
