Description

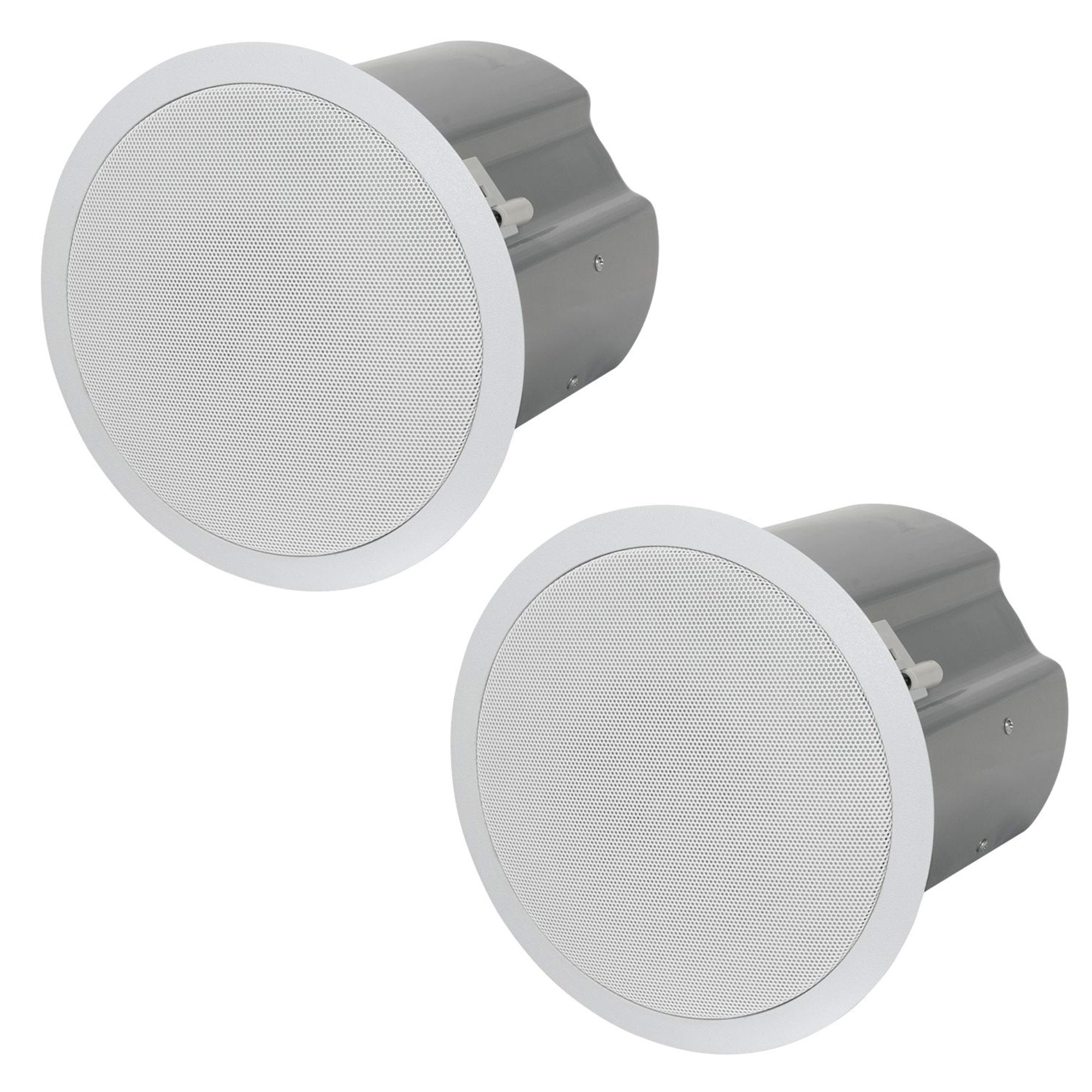

Priced individually, but sold in pairs.

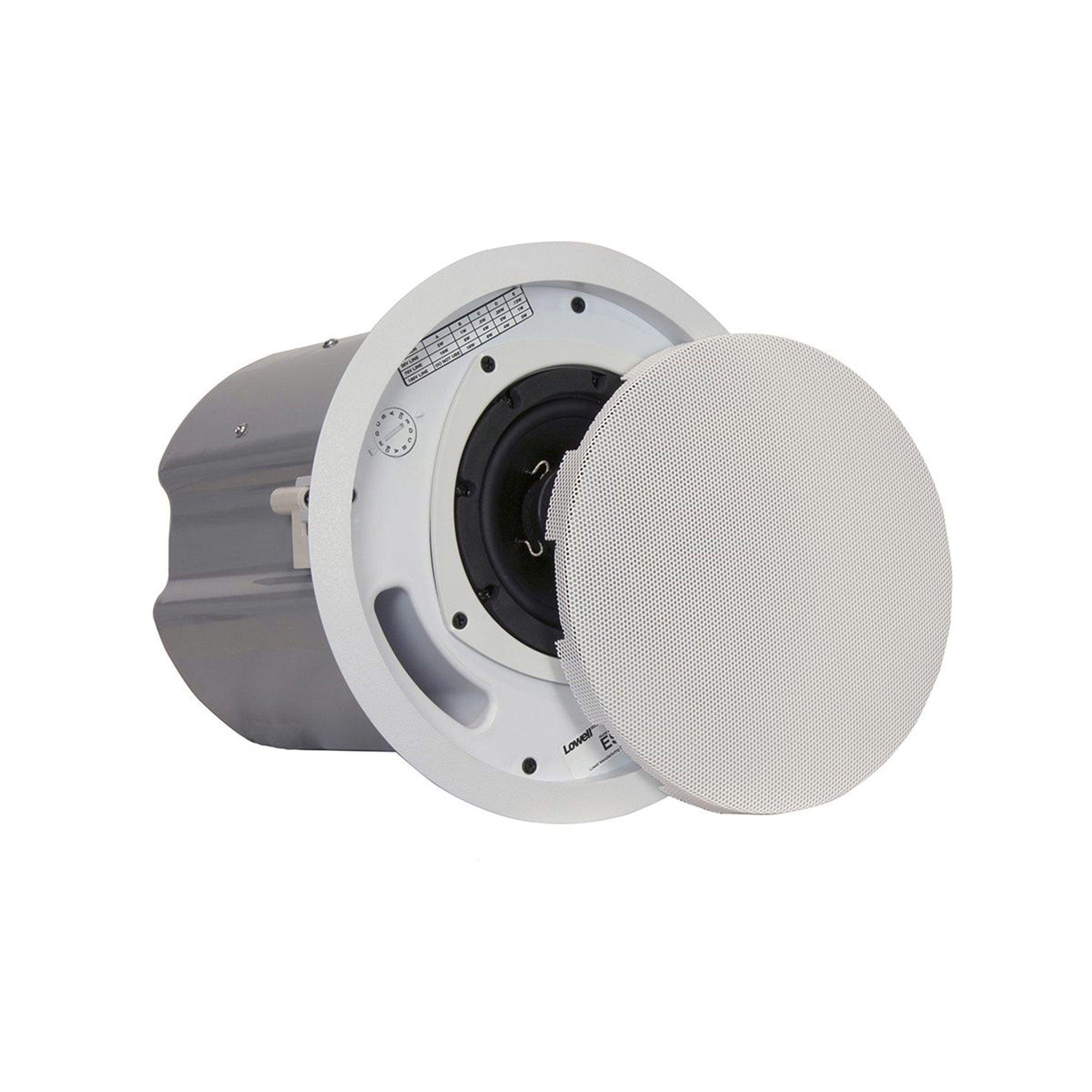

Model ES-52T produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, institutional, and residential applications. This self-contained in-ceiling or in-wall speaker system with 5-1/4" coaxial driver has a high-frequency Mylar tweeter with acoustic lens to provide the kind of crisp, high-frequency response expected from high quality coaxial speakers. The ported enclosure is tuned for extended low-frequency response, while the speaker's wide dispersion can actually reduce the number of speakers required to produce even coverage in distributed speaker systems.
Features:
- Driver: 5-1/4" coaxial driver
- Transformer: 16W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems, and 8ohm transformer bypass position.

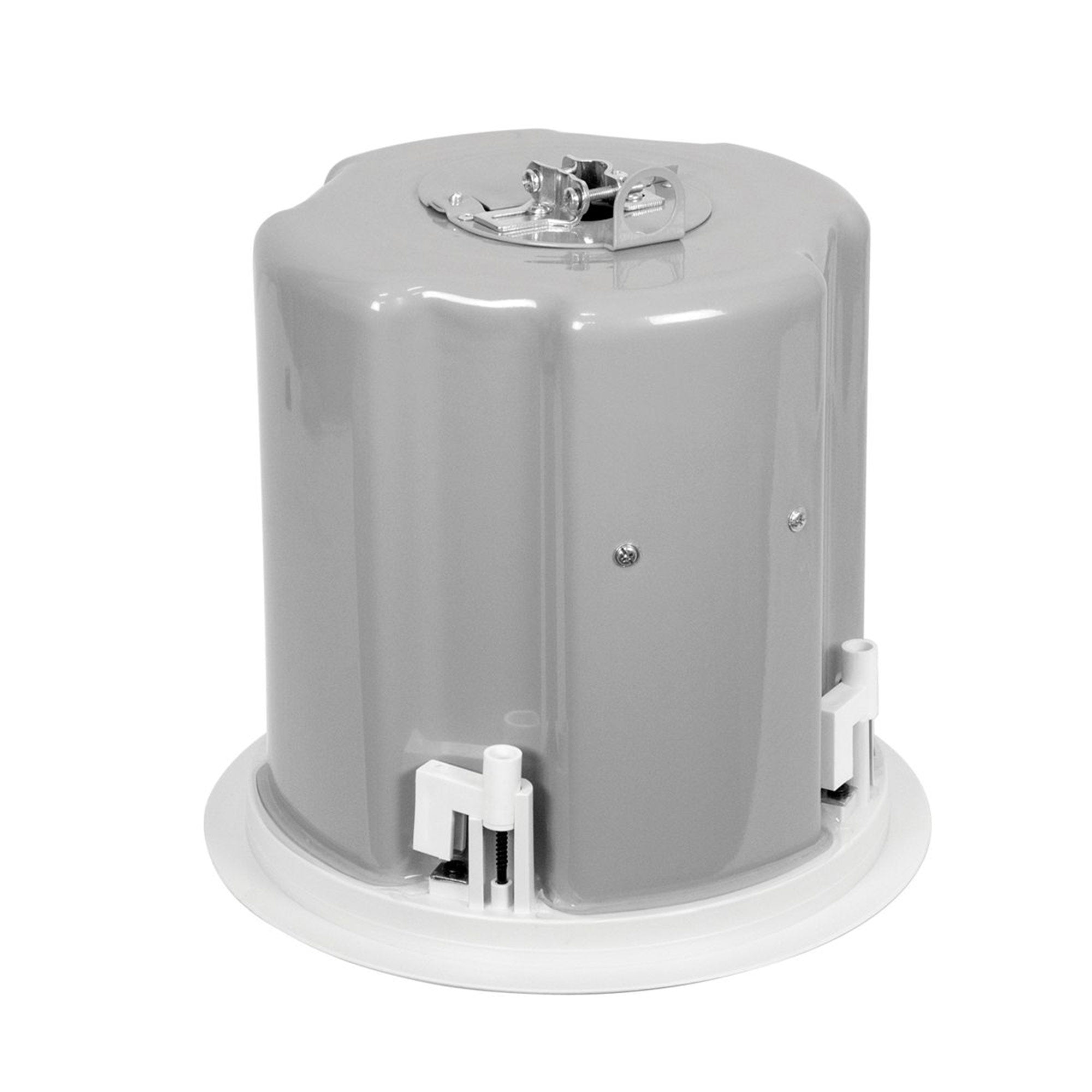

- Enclosure:
- Factory-mounted enclosure ships attached to the driver (non-removable).
- Durable 20 gauge steel, painted grey.
- Ported enclosure is tuned for extended bass response
- Built-in reversible mounting dogs aid fast installation, while allowing the speaker to be mounted in drywall, wood, tile or almost any type of ceiling with thickness up to 2.125"
- Removable (4 pin) Phoenix-style connector with 2 terminals for input to speaker and 2 parallel terminals for output to next speaker in string.
- Internal volume = 379 cu.in. - Baffle: Low-profile front baffle formed from UV-rated high impact plastic.
- Grille: Fine mesh press-fit grille (white) includes scrim and pull tool.
- Installation Aids: (included)

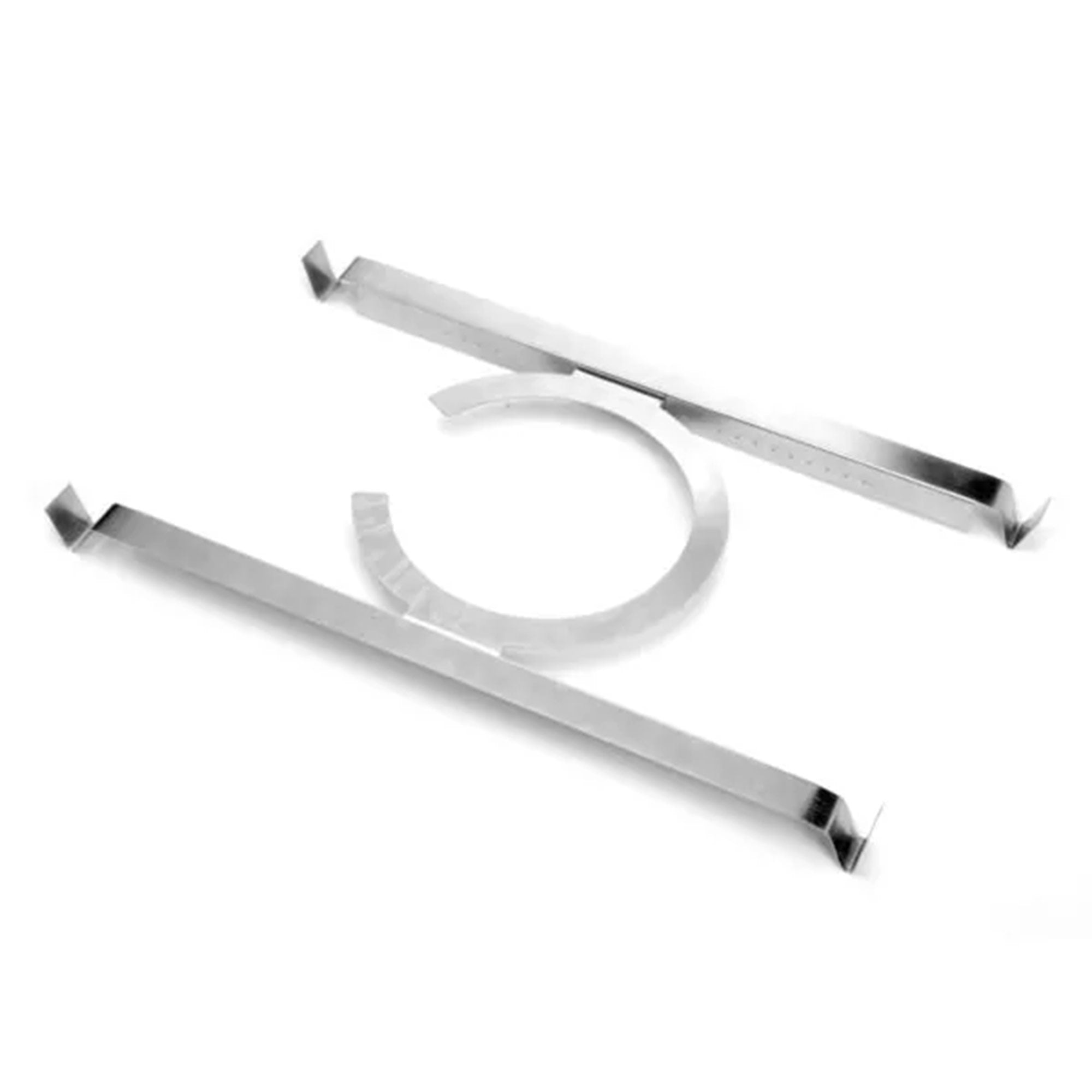

- C-Ring: Reinforces the edge of drywall ceiling cut-outs and works with the support rails to uphold the weight of the speaker assembly.
- Support Rails (2): Rails are used with the C-ring to uphold the weight of the speaker assembly and help prevent sagging tiles when the speaker is installed in a lay-in tile ceiling.
- Template: Paper template is used to properly mark cut-outs for mounting holes.

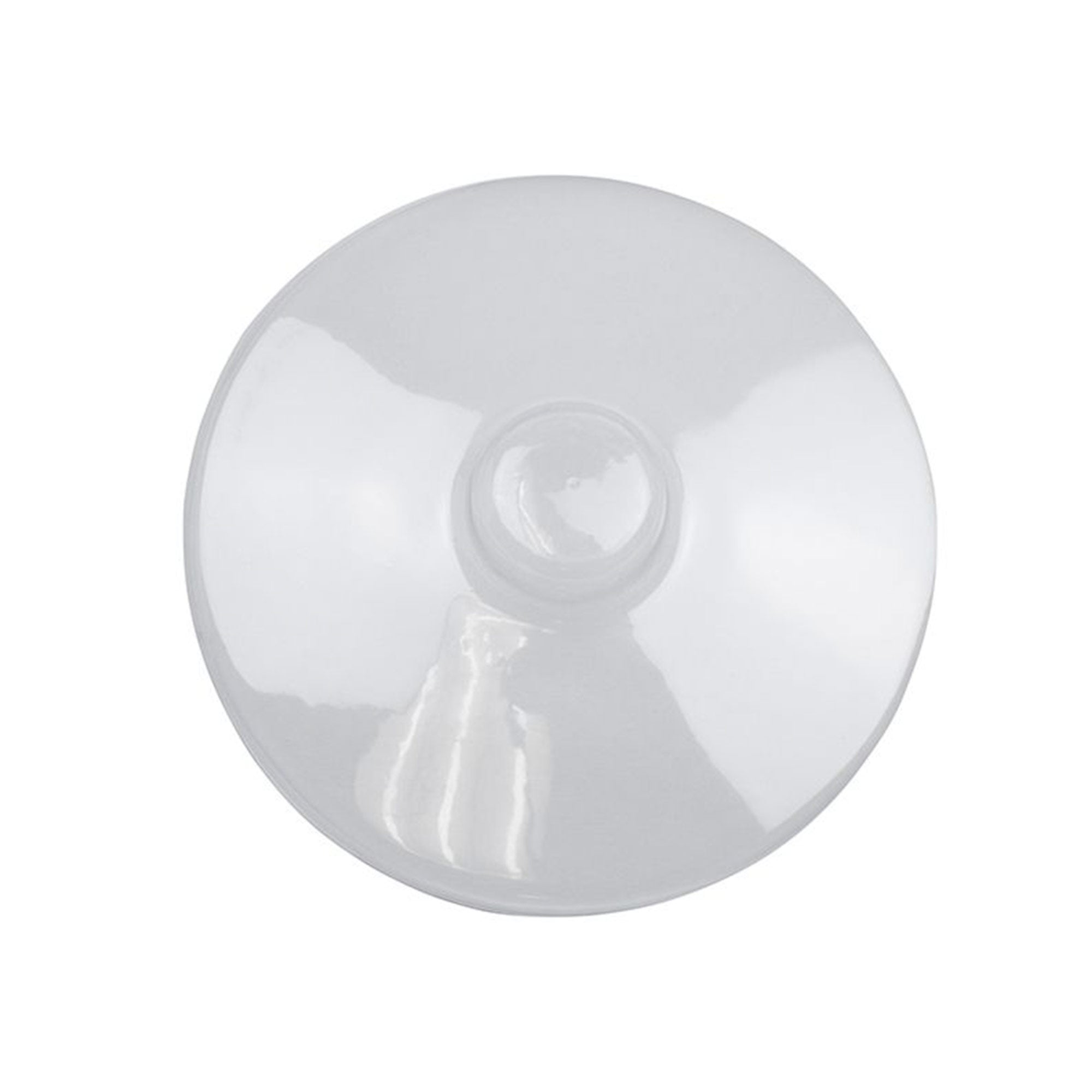

- Paint Shield: Plastic shield fits over the driver to protect it if the baffle is to be painted.
Contains:
- 5-1/4 inch coaxial driver
- 16W transformer
- Metal enclosure (attached)
- Press-fit grille, scrim, pull-tool
- C-ring with support rails
- Paper template for cut-outs
- Paint shield for driver
Power Handling | 30W RMS (at 8 ohms) measured per EIA Standard RS-426B |
Sensitivity | 88.0 dB log average SPL (at 8 ohms) @ 1W/1M over the frequency response range, measured in half-space. |
Maximum SPL | 102.8 dB (calculated based on power rating and measured 8 ohm sensitivity) |
Impedance | 8 ohms (nominal), 8.5 ohms @ 508 Hz (min.) |
Frequency Response | 70Hz-20kHZ ±6dB |
Conical Dispersion Angle | 165ž conical @ 2kHz octave (-6dB) |
Crossover Frequency | 5kHz |
Transformer Taps | 100V (16, 8, 4.2W); 70V (16, 8, 4, 2, 1W); 25V (2, 1, .5, .25, .13W) |
Woofer Cone | Specially formulated polypropylene |
Surround | Rubber |
Woofer Magnet Weight | 10 oz. (283.5g) |
Woofer Voice Coil Dia. | 1" (25.47mm) |
Tweeter Cone | Mylar with acoustical lens |
Tweeter Magnet Weight | 0.06 oz. (1.8g) neodymium magnet |
Tweeter Voice Coil Dia. | 0.53" (13.5mm) |
Input Terminals | 4-conductor removable Phoenix-style connector |
Net Weight (speaker / grille) | 6.5 lbs. (2.95kg) |
Shipping Weight (pair) | 20.4 lbs. (9.25kg) |
C-ring | One included with each speaker |
Tile Support Rails | Two included with each speaker |
Rough-in Bridge | Optional rough-in bridge for new construction-drywall or plaster ceiling-before the finished ceiling is installed. Order separately. |
