DALE SKU # LOWE-ES62T

Lowell ES-62T - 6-Inch Coaxial In-Ceiling Loudspeaker

Sale price$202.75 Regular price$230.40
Save $27.65
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

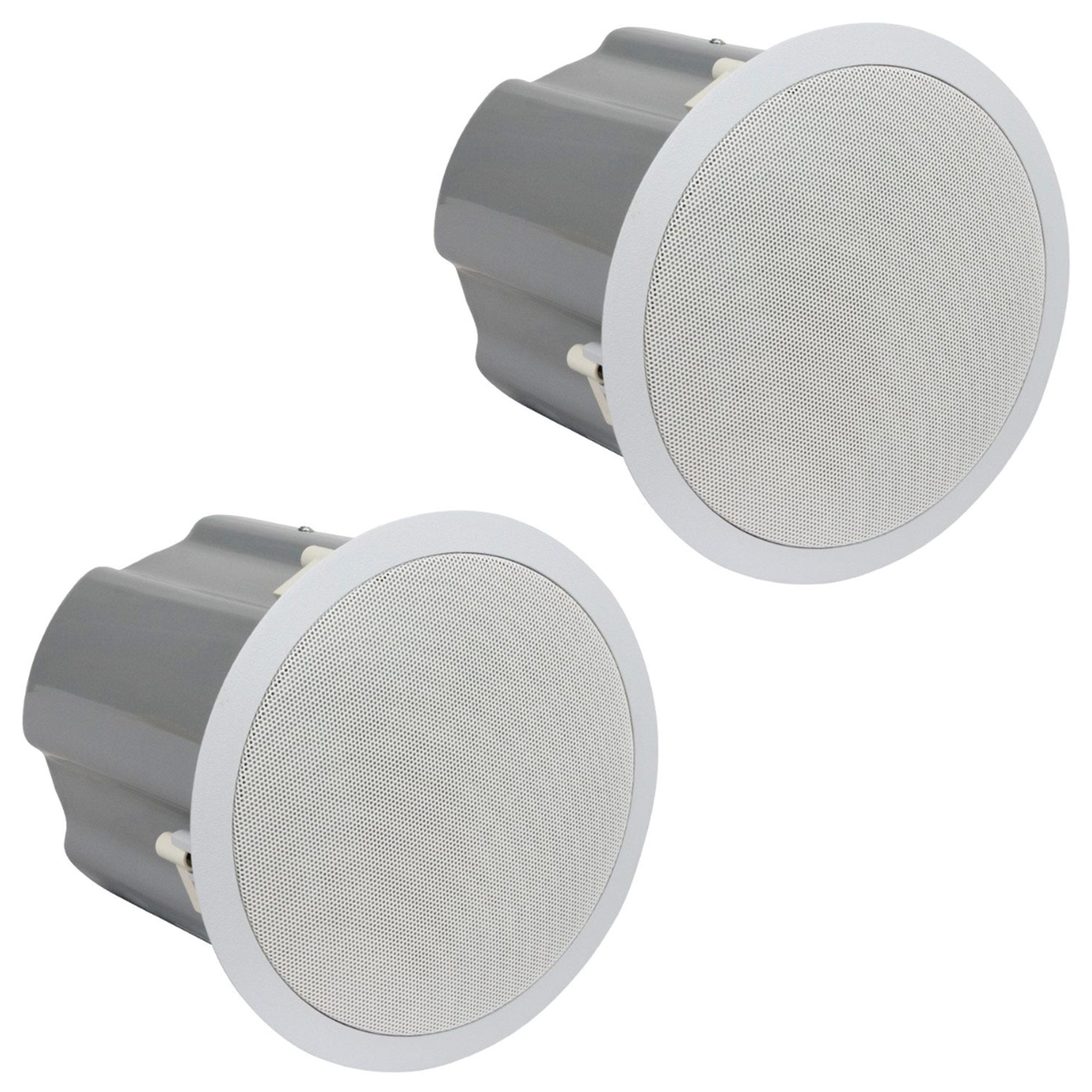

    Priced individually, but sold in pairs.

    The ES-62T produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, institutional, and residential applications. This self-contained in-ceiling or in-wall speaker system with 6-1/2" coaxial driver has a high-frequency PEI tweeter with acoustic lens to provide the kind of crisp, high-frequency response expected from high quality coaxial speakers. The ported enclosure is tuned for extended low-frequency response, while the speaker's wide dispersion can actually reduce the number of speakers required to produce even coverage in distributed speaker systems.

    Features:

    • Driver: 6-1/2" coaxial driver
    • Transformer: 32W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems, and 4ohm (UL minimum) transformer bypass position.

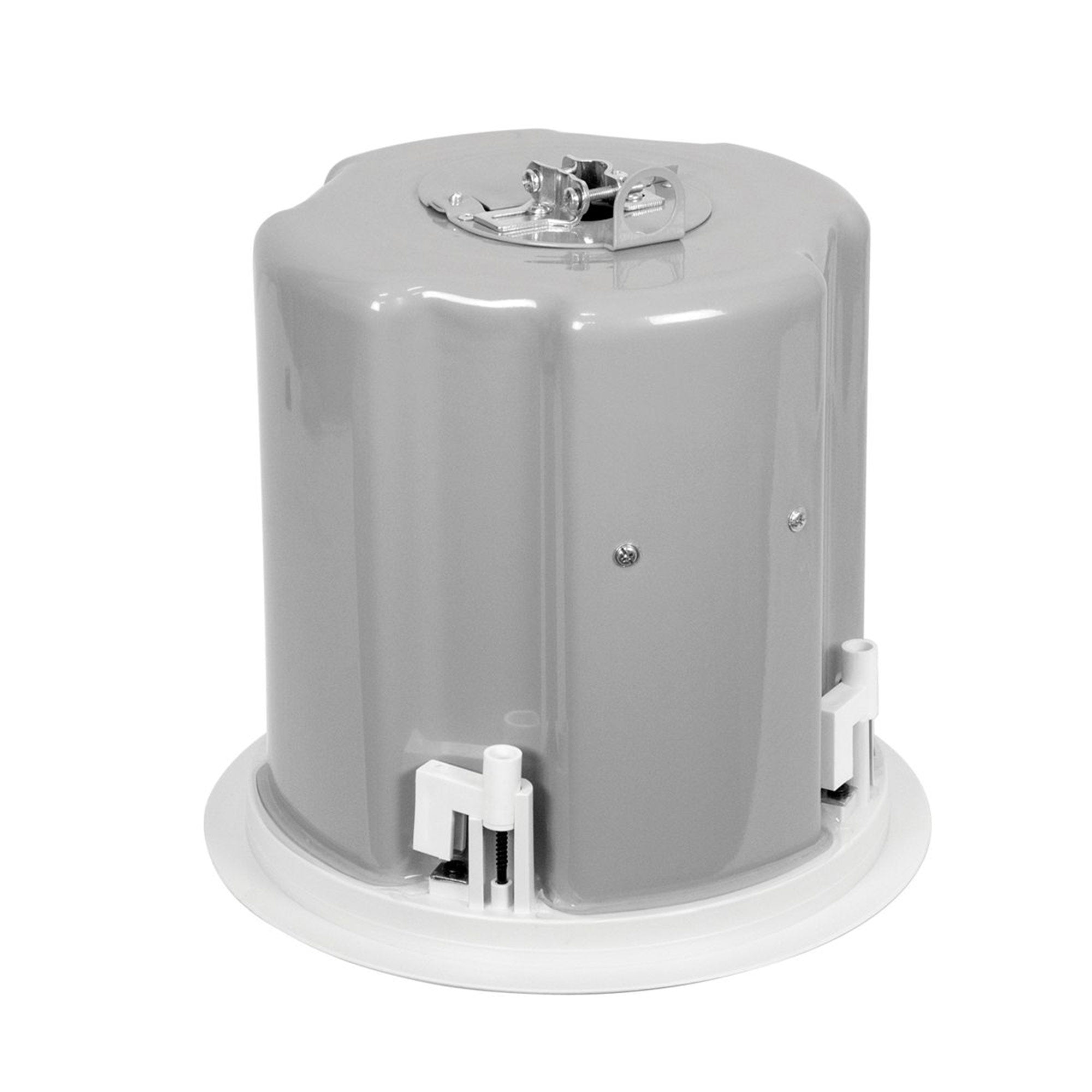

    • Enclosure:
      - Factory-mounted enclosure ships attached to the driver (non-removable).
      - Durable 20 gauge steel, painted grey.
      - Ported enclosure is tuned for extended bass response
      - Built-in reversible mounting dogs aid fast installation, while allowing the speaker to be mounted in drywall, wood, tile or almost any type of ceiling with\ thickness up to 2.125"
      - Removable (4 pin) Phoenix-style connector with 2 terminals for input to speaker and 2 parallel terminals for output to next speaker in string.
      - Internal volume = 379 cu.in.
    • Baffle: Low-profile front baffle formed from UV-rated high impact plastic.

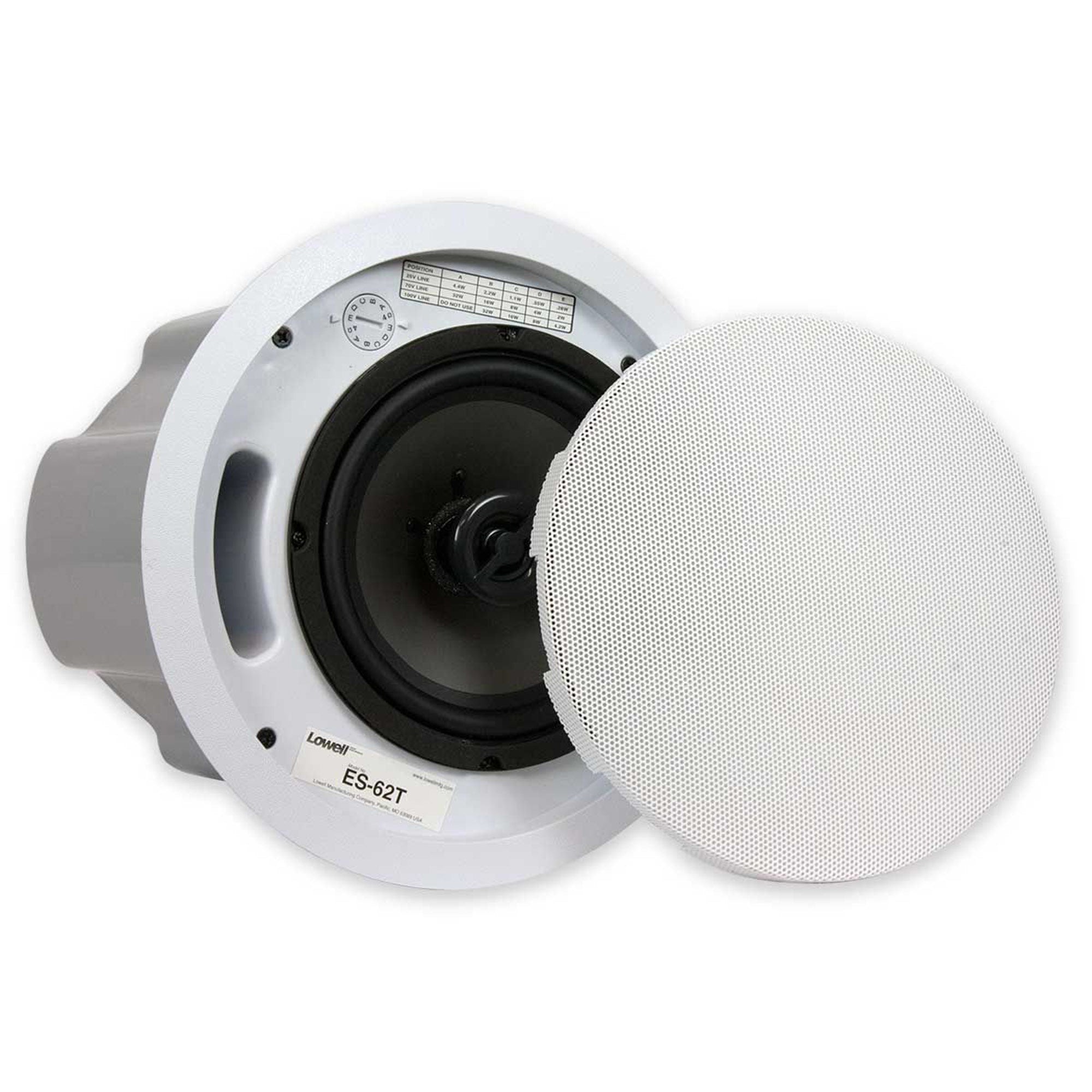

    • Grille: Fine mesh press-fit grille (white) includes scrim and pull tool.
    • Installation Aids: (included)

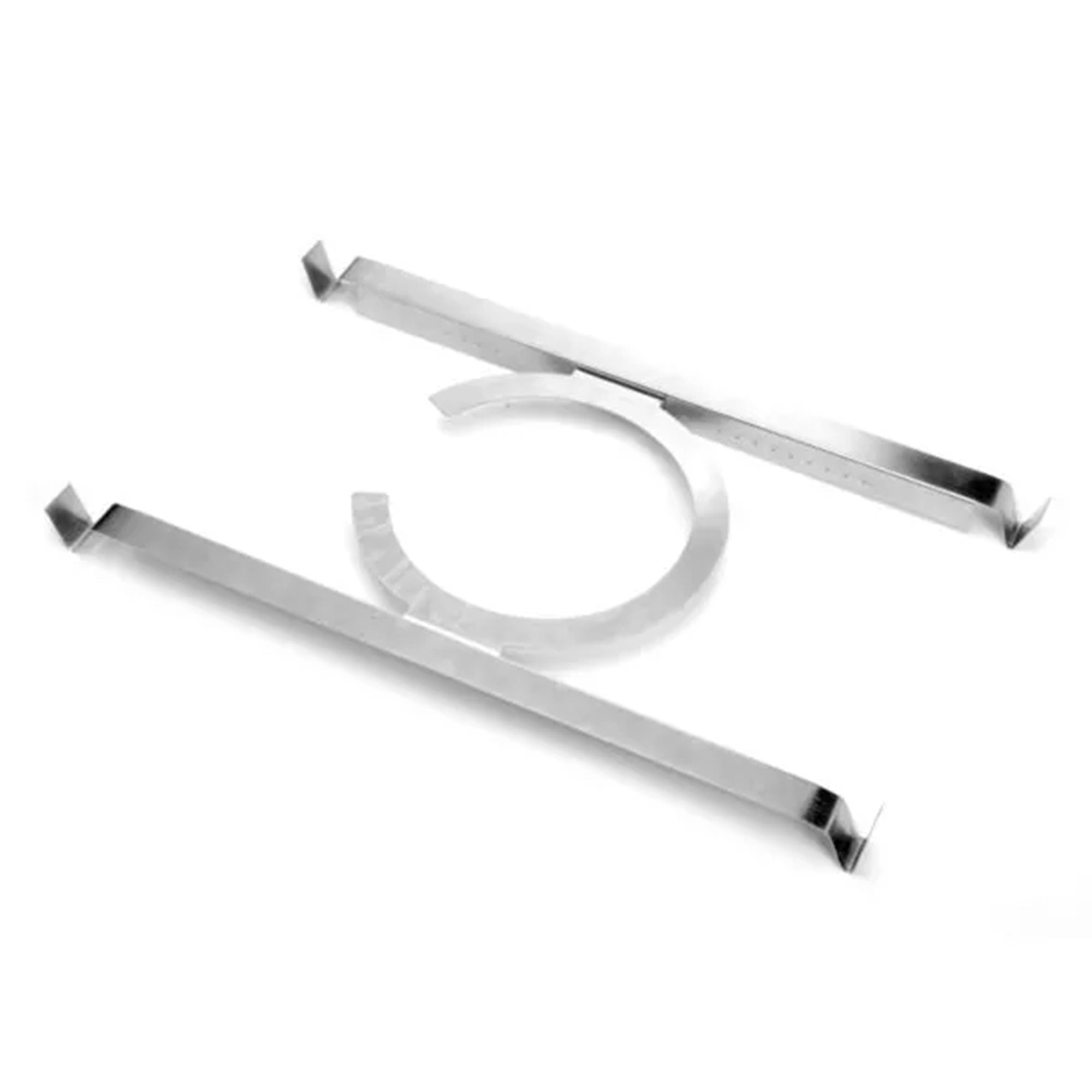

      - C-Ring: Reinforces the edge of drywall ceiling cut-outs and works with the support rails to uphold the weight of the speaker assembly.
      - Support Rails (2): Rails are used with the C-ring to uphold the weight of the speaker assembly and help prevent sagging tiles when the speaker is installed in a lay-in tile ceiling.
      - Template: Paper template is used to properly mark cut-outs for mounting holes.
      - Paint Shield: Plastic shield fits over the driver to protect it if the baffle is to be painted.

    Contains:

    • 6-1/2 inch coaxial driver
    • 32W transformer
    • Metal enclosure (attached)
    • Press-fit grille, scrim, pull-tool
    • C-ring with support rails
    • Paper template for cut-outs
    • Paint shield for driver
    Power Handling50W RMS (at 8 ohms) measured per EIA Standard RS-426B
    Sensitivity88.6 dB log average SPL (at 8 ohms) @ 1W/1M over the frequency response range, measured in half-space.
    Maximum SPL105.6 dB (calculated based on power rating and measured 8 ohm sensitivity)
    Impedance8 ohms (nominal), 4.0 ohms @ 12461 Hz (min.) Note: Selector knob shows 4 ohm position as mandated by UL for minimum impedance.
    Frequency Response64Hz - 20kHZ ± 6dB
    Conical Dispersion Angle120ž conical @ 2kHz octave (-6dB)
    Crossover Frequency3kHz
    Transformer Taps100V (32, 16, 8, 4.2W); 70V (32, 16, 8, 4, 2W); 25V (4.4, 2.2, 1.1, .55, .28W)
    Woofer ConeSpecially formulated polypropylene
    SurroundRubber
    Woofer Magnet Weight15.45 oz. (438.1g)
    Woofer Voice Coil Dia.1" (25.47mm)
    Tweeter ConePEI with acoustical lens
    Tweeter Magnet Weight0.64 oz. (18.09g)
    Tweeter Voice Coil Dia.1" (25.47mm)
    Input Terminals4-conductor removable Phoenix-style connector
    Net Weight (speaker / grille)7.5 lbs. (3.4kg)
    Shipping Weight (pair)22.4 lbs. (10.2kg)
    C-ringOne included with each speaker
    Tile Support RailsTwo included with each speaker
    Rough-in BridgeOptional rough-in bridge for new construction-drywall or plaster ceiling-before the finished ceiling is installed. Order separately.

    Priced individually, but sold in pairs.
