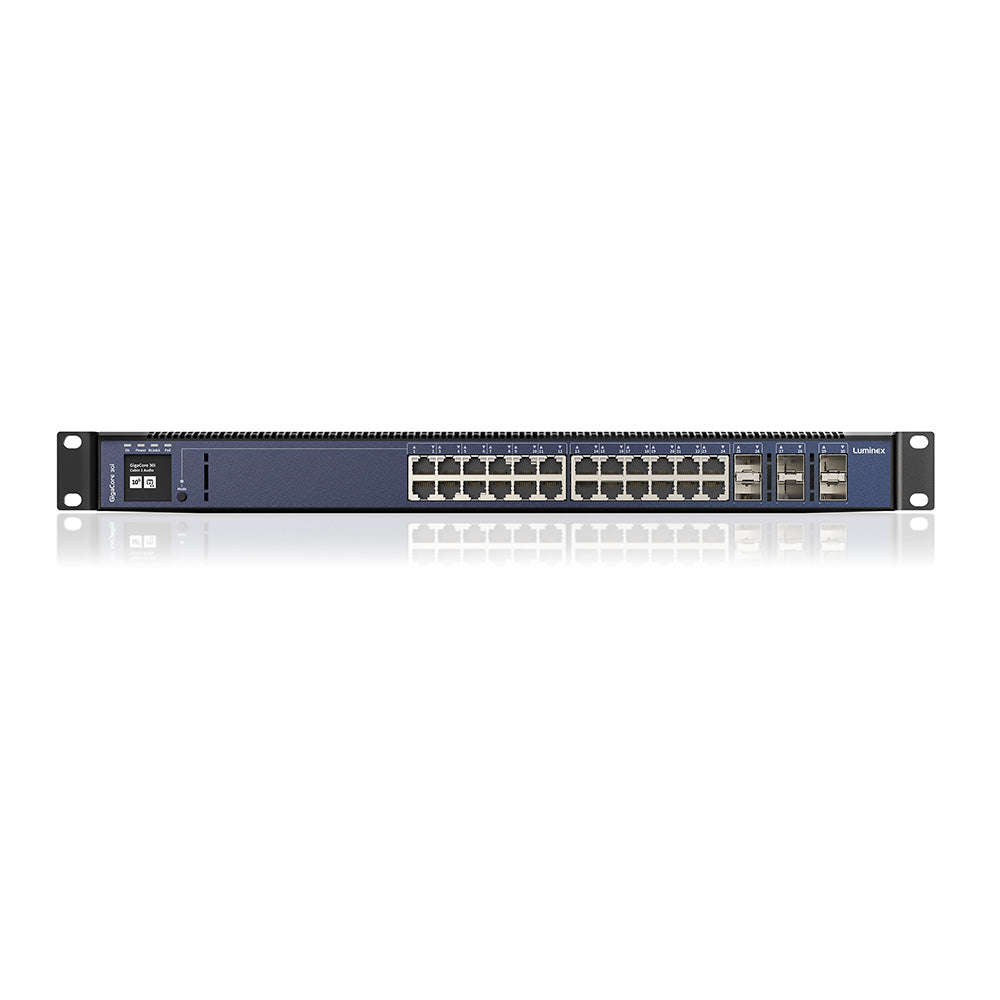

Luminex GigaCore 30i - 10GB Network Switch for AV Systems (24x1G / 6x10G SFP+ / Spare PSU / PoE++)


  • Dale #:

    LUMX-LU010007710P2S5
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

GigaCore 30i comes fully optimized out of the box to be used with the most advanced AV protocols. Preconfigured Quality of Service (QoS), IGMP multicast, and PTPv2 settings will assure a responsive and extremely stable network environment for the most demanding time-critical audio protocols like... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

GigaCore 30i comes fully optimized out of the box to be used with the most advanced AV protocols. Preconfigured Quality of Service (QoS), IGMP multicast, and PTPv2 settings will assure a responsive and extremely stable network environment for the most demanding time-critical audio protocols like Dante™, AES67, Q-SYS, and many more.

With up to 1000W of total PoE budget and PoE++ on every copper port, this GigaCore switch can drive any IP PTZ camera or loudspeaker on the market today.

GigaCore 30i is the ideal solution for AV networks in fixed installations, integration and touring for lighting, audio, and video.

10Gb Connectivity
10Gb connectivity allows full network convergence of lighting control, audio, intercom, and compressed video.

PoE++
PoE++ implementation on every copper port allows you to connect any PoE device available today. Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met. GigaCore 30i can directly drive any IP PTZ camera, network nodes or PoE powered loudspeaker on the market.

AV validated for real applications
GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AES67, ST-2110, IPMX, MA-Net, and many more.

We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence. The Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.

Robust yet silent design
A robust yet silent design allows you to use GigaCore in any AV environment.

Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.
This allows you to place the GigaCore in even the most quiet environments like theaters and studio’s

Araneo to manage and monitor the complete system
All GigaCore switches can be managed with a single network-wide tool: Araneo. Araneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore. Monitor your network with confidence and act before the show gets interrupted!

In the Offline mode, Araneo lets you plan in advance the complete network topology and all Gigacore settings. Reducing network commissioning time to a mere click of a button.

More +

Product Specs

Most suitable applications Fixed installations
RLinkX (Link redundancy) Yes
Groups (VLAN segmentation) Yes
MultiLinkX (Link aggregation) Yes
Profile manager Yes
Memory Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
MAC address table 16384 entries
Address learning / Aging Self learning, Auto aging
Switching throughput 168Gbps
Jumbo frames MTU up to 12000
IGMP support Yes (V1/V2/V3)
IGMP snooping Yes, enabled by default
Port sensing Auto negotiation
Auto crossover MDI / MDIX
Auto sensing Full or Half Duplex (Gigabit is Full Duplex)
Ethernet connectivity 24 x RJ45 connectors (1Gbps))
Fiber connectivity 6 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)
Ethernet port speed 1Gbps
Serial 1 x USB C
Power connectivity 1 x IEC (14C) inlet for each PSU
Power input 100-240VAC, 50-60Hz
Power consumption Maximum 40W non PoE version Maximum 500W/1000W with PoE
Fuse NA
Backup power input 100-240VAC, 50-60Hz (through second hot swappable PSU)
Backup PoE power input 100-240VAC, 50-60Hz (through second hot swappable PSU)
PoE PoE ++ Optional (up to 1000W)
Supported protocols Dante©
RAVENNA/AES67©
Ethersound©
Q-SYS/Q-LAN
REAC©
sACN
ArtNet
MANet2
HogNet
RTTrPL (BlackTraX)
IEEE 802.1p CoS (Class of Service)
DiffServ (DSCP)
PoE (802.3af) (optional)
PoE+ (optional)
IEEE 1588 PTP V2
Sound protocol compliance Yes (low jitter)
Ethernet compliance IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3bt PoE++ 90W, IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ad LACP, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011, IEEE 802.1 Q-2011, IEEE 802.1 AS-2011
Display and jog NA
Configuration Through the built-in web server, Network wide configuration through Araneo software
Status LEDs Global status LEDs: Device, power, PoE power, RLinkX and mode
Port status LEDs: PoE, MultiLinkX, RLinkX, groups, link/activity and port speed
Dark mode available
Colored RGB LEDs Yes
Mounting Rack
Enclosure Robust metal housing
Dimensions (W x D x H) 482 x 309 x 44 mm (19" x 12,2" x 1,73")
Weight 4,72 kg
Packaging 545 x 335 x 125 mm
Environment Operating temperature: 0 to +50 °C
Storage temperature: -10 to +70 °C
Humidity (non condensing): 5 to 95% RH
Noise level @1m TBD
Certificates/Approvals cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
Standards IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
