DALE SKU # MAAU-A40TW

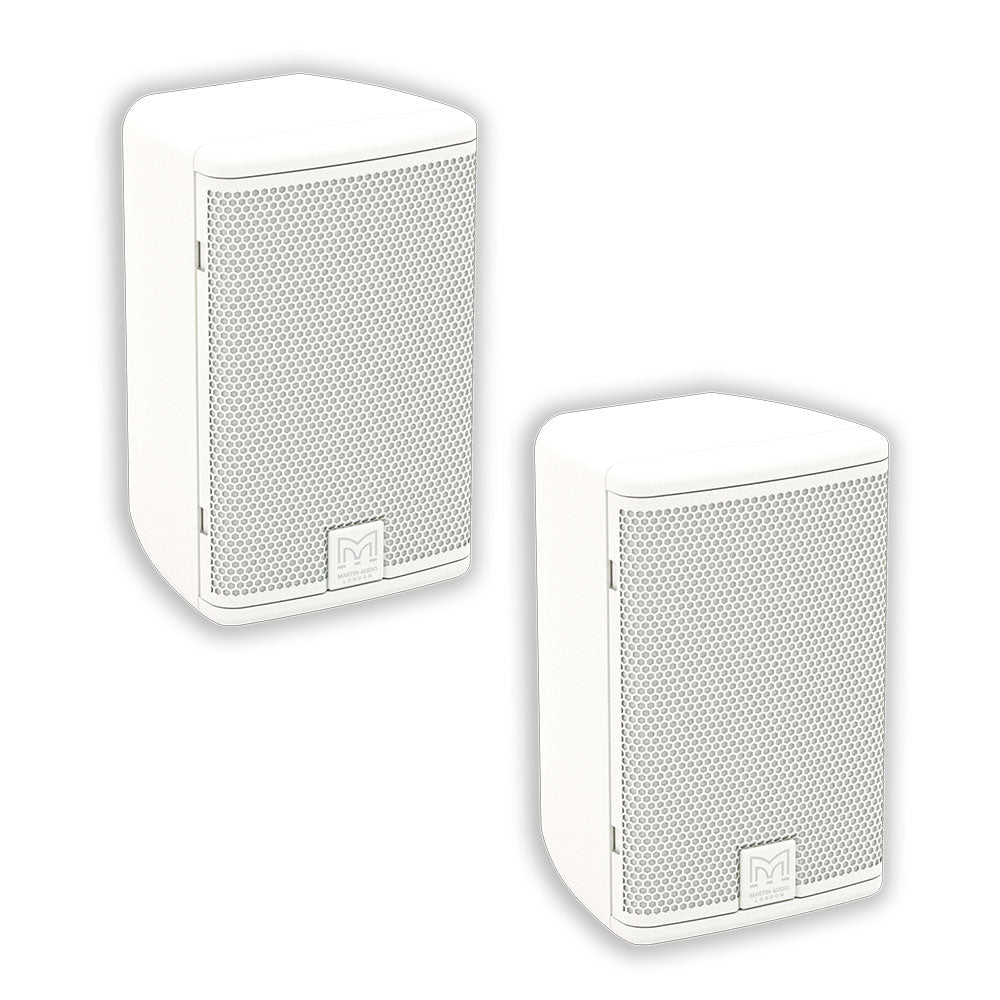

Martin Audio A40T - Ultra-Compact 2-Way Install Loudspeaker (White / Pair)

Contact us

  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The ADORN A40T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.

    Features:

    • Contemporary, unobtrusive design
    • High output capability
    • High fidelity sound
    • Low and high-frequency overload protection
    • 70V/100V line transformer
    • Vertical or horizontal orientation
    • Wide 110° x 80° coverage
    • Wall bracket included
    • 5-year warranty


    Potential Applications:

    • Retail outlets
    • Cafes, bars and restaurant chains
    • Hotels and convention centres
    • Educational facilities
    • Corporate offices


    The A40T is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX.

    Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz.

    The A40T incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch. The recommended amplifier is the VIA5002 in conjunction with a suitable line transformer. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.

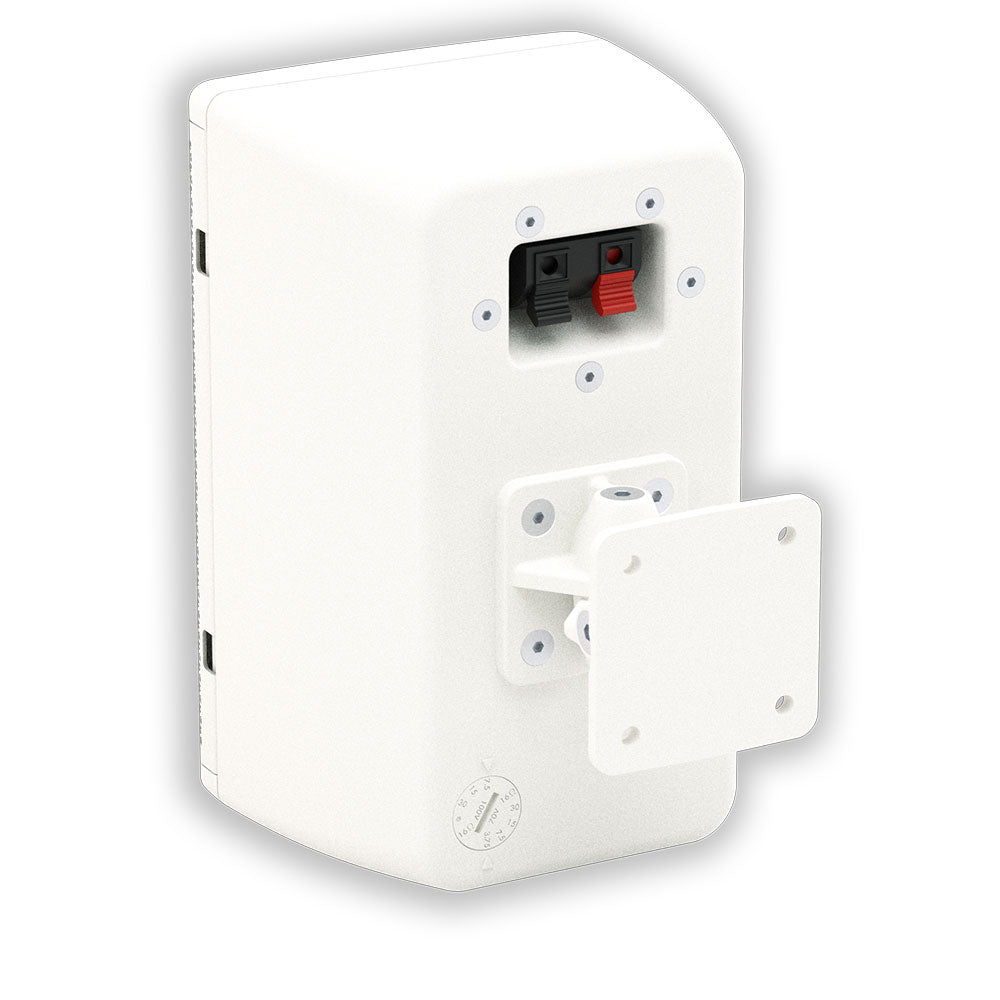

    Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied.

    The VIA5002 amplifier in combination with a Martin Audio DX0.5 controller will be perfect partners for small scale efficient installations, or with the DX4.0 controller for larger more complex installations, which could then also be managed by Martin Audio’s VU-NET control software platform.

    The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.

    TYPEUltra-Compact passive two-way system, front ported bass reflex
    FREQUENCY RESPONSE98Hz-17kHz ± 3dB
    -10dB @ 70Hz
    DRIVERS
    • LF: 4Ó /1Ó high-temp voice coil, coated paper cone, rubber surround ferrite motor, pressed steel chassis
    • HF: 0.75Ó silk dome, neodymium motor
    RATED POWER40W AES, 160W peak
    RECOMMENDED AMPLIFIERVIA5002 [In conjunction with suitable line transformer]
    SENSITIVITY87dB/1W/1m
    MAXIMUM SPL109dB peak
    NOMINAL IMPEDANCE16?
    DISPERSION (-6DB)110¡ H x 80¡ V
    CROSSOVER3.5kHz passive (LF and HF auto-resetting fuses)
    TRANSFORMER TAPS
    • 70V: 20w / 10w / 5w / 2.5w
    • 100V: 20w / 10w / 5w
    RECOMMENDED HIGH-PASS FILTER60Hz 24dB/oct
    ENCLOSUREABS, UL 94V-0 rated
    FINISHBlack or white
    GRILLEPerforated steel
    CONNECTORSPush terminals
    FITTINGSWall bracket included
    DIMENSIONS EXCL. BRACKET
    • (W) 124mm x (H) 200mm x (D) 114mm
    • (W) 4.9in x (H) 7.9in x (D) 4.5in
    WEIGHT2.13kg (4.7lbs)
    ACCESSORIES
    • Waterproof connector cover
    • Water resistant grille

    The ADORN A40T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.

    Features:

    • Contemporary, unobtrusive design
    • High output capability
    • High fidelity sound
    • Low and high-frequency overload protection
    • 70V/100V line transformer
    • Vertical or horizontal orientation
    • Wide 110° x 80° coverage
    • Wall bracket included
    • 5-year warranty


    Potential Applications:

    • Retail outlets
    • Cafes, bars and restaurant chains
    • Hotels and convention centres
    • Educational facilities
    • Corporate offices


    The A40T is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX.

    Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz.

    The A40T incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch. The recommended amplifier is the VIA5002 in conjunction with a suitable line transformer. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.

    Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied.

    The VIA5002 amplifier in combination with a Martin Audio DX0.5 controller will be perfect partners for small scale efficient installations, or with the DX4.0 controller for larger more complex installations, which could then also be managed by Martin Audio’s VU-NET control software platform.

    The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.

    TYPEUltra-Compact passive two-way system, front ported bass reflex
    FREQUENCY RESPONSE98Hz-17kHz ± 3dB
    -10dB @ 70Hz
    DRIVERS
    • LF: 4Ó /1Ó high-temp voice coil, coated paper cone, rubber surround ferrite motor, pressed steel chassis
    • HF: 0.75Ó silk dome, neodymium motor
    RATED POWER40W AES, 160W peak
    RECOMMENDED AMPLIFIERVIA5002 [In conjunction with suitable line transformer]
    SENSITIVITY87dB/1W/1m
    MAXIMUM SPL109dB peak
    NOMINAL IMPEDANCE16?
    DISPERSION (-6DB)110¡ H x 80¡ V
    CROSSOVER3.5kHz passive (LF and HF auto-resetting fuses)
    TRANSFORMER TAPS
    • 70V: 20w / 10w / 5w / 2.5w
    • 100V: 20w / 10w / 5w
    RECOMMENDED HIGH-PASS FILTER60Hz 24dB/oct
    ENCLOSUREABS, UL 94V-0 rated
    FINISHBlack or white
    GRILLEPerforated steel
    CONNECTORSPush terminals
    FITTINGSWall bracket included
    DIMENSIONS EXCL. BRACKET
    • (W) 124mm x (H) 200mm x (D) 114mm
    • (W) 4.9in x (H) 7.9in x (D) 4.5in
    WEIGHT2.13kg (4.7lbs)
    ACCESSORIES
    • Waterproof connector cover
    • Water resistant grille
