DALE SKU # MAAU-XP118

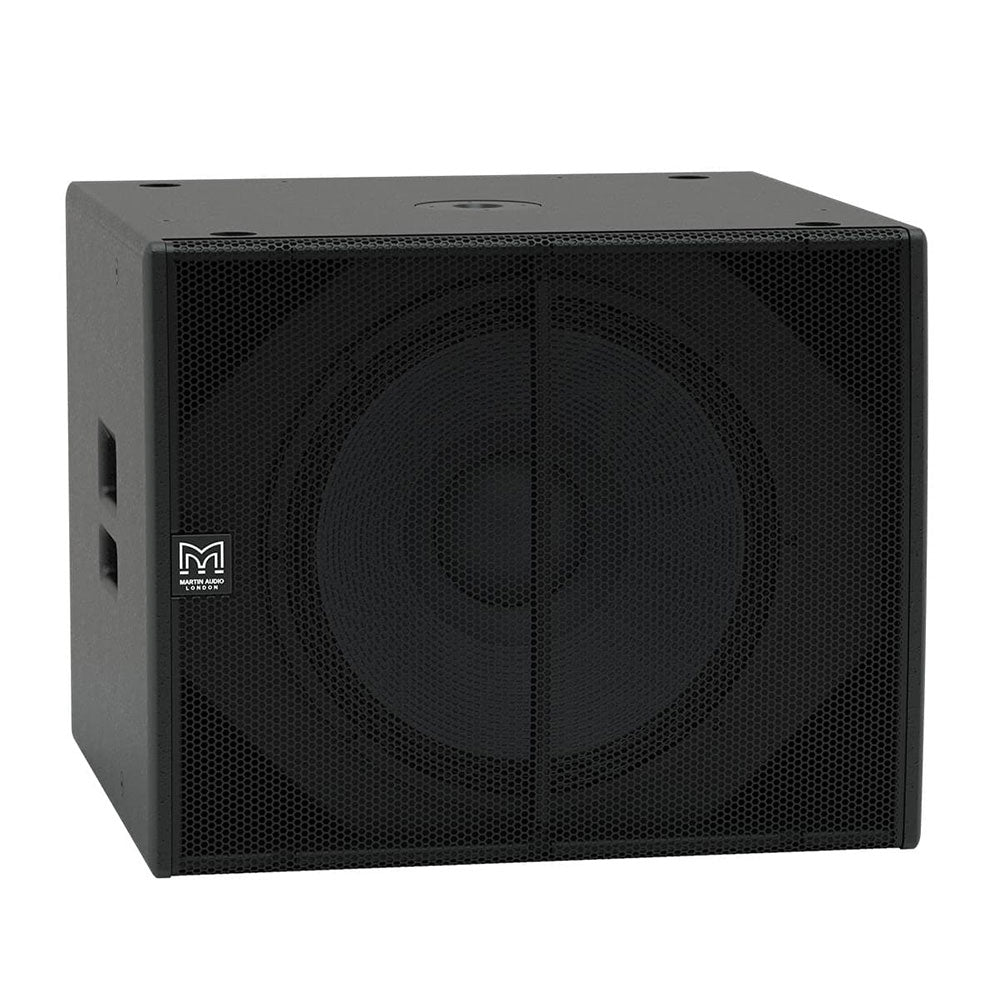

Martin Audio Blackline XP118 Powered 18-Inch Subwoofer

Sale price$1,480.00 Regular price$1,850.00
Save $370.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The XP118 is a compact, high performance subwoofer for indoor use with the XP12 and XP15 full-range loudspeakers. It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked in omni or cardioid mode, or flown via integral M10 insets.

    Features:

    • Compact, self-powered subwoofer
    • 1 x 18" (460mm) driver with 4" (100mm) voice coil
    • 2000W of Class D amplification
    • Global power supply with PFC (Power Factor Correction)
    • Onboard DSP with rotary control interface
    • Multi-function display for metering, control and function selection • Peak and RMS limiters
    • Bluetooth® control and streaming option
    • Durable plywood enclosure
    • Screw-free, perforated steel grille
    • Integral ergonomic handles
    • 35mm pole-mount socket

    Applications:

    • Portable Sound Reinforcement
    • Live Music Clubs
    • Nightclubs, Bars and Restaurants
    • Corporate AV
    • Hotels and Casinos
    • Mobile DJ
    • Weddings and Parties
    • HoW Installations
    • Rehearsal Studios

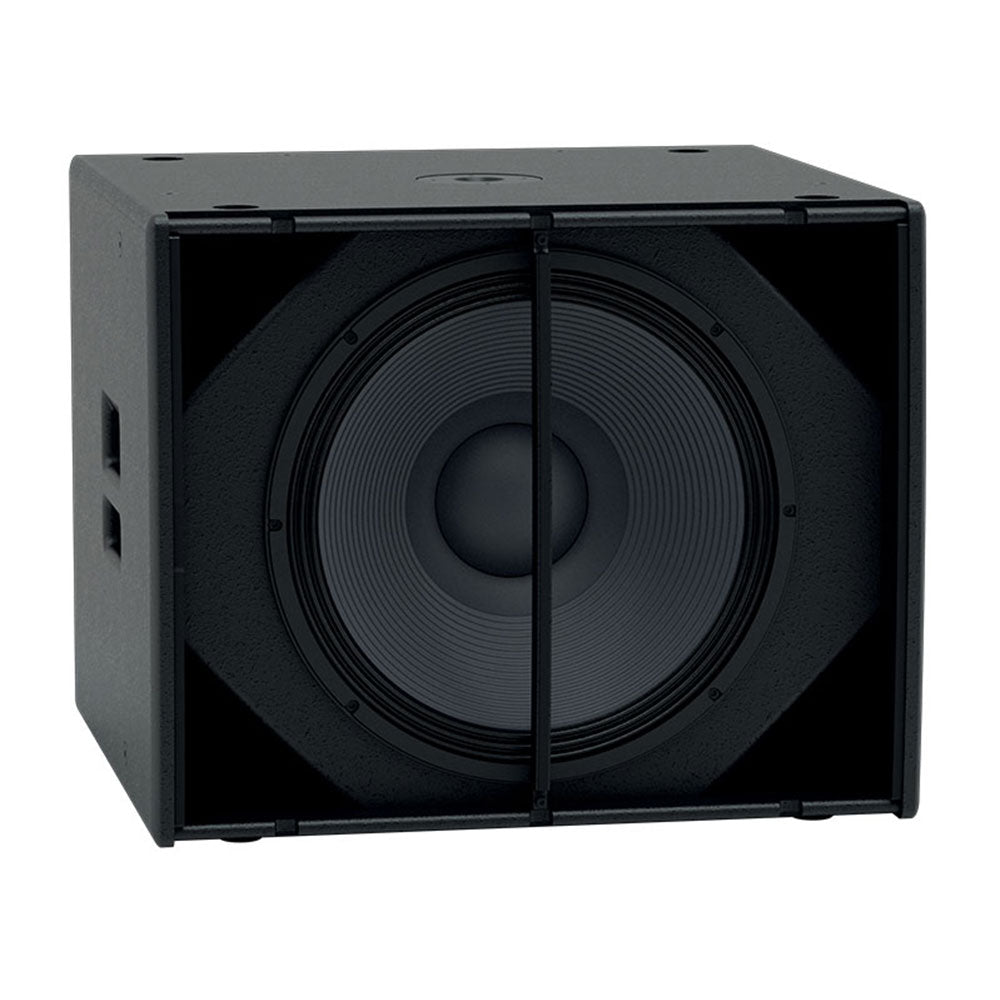

    Featuring a long-excursion 18" (460mm)/4" (100mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels.

    A convection-cooled Class D amplifier module delivers 2000W peak output to the driver for maximum low frequency extension and chest-thumping punch. Crossover, EQ, metering and

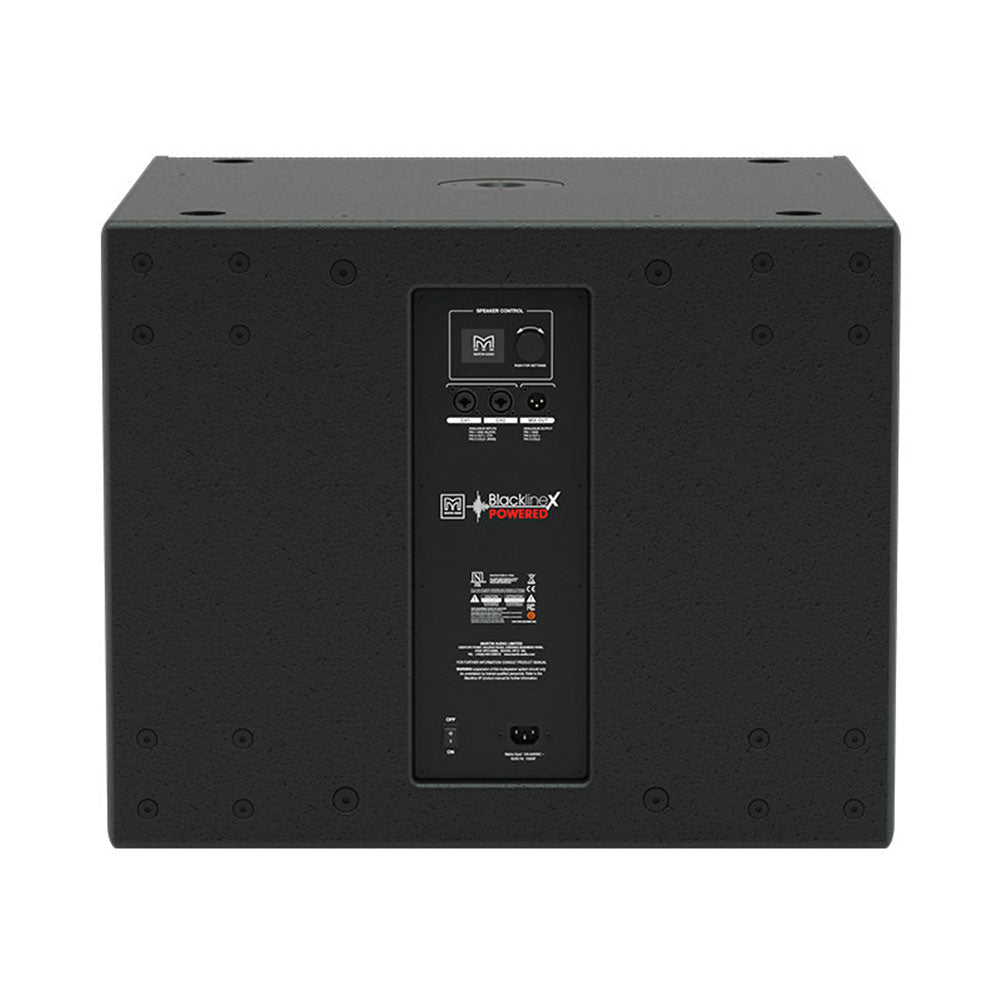

    control functions are provided by onboard DSP via a rotary encoder interface and multi-function colour screen on the rear panel.
    The XP118 enclosure is built for the road, constructed from durable plywood and finished in textured black paint. A perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount socket in the top surface and two ergonomic side handles.

    ACOUSTICS
    TYPE Compact, Self-powered Subwoofer
    FREQUENCY RESPONSE 42Hz Ð150Hz ±3dB
    -10dB @ 38Hz
    DRIVER 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
    MAXIMUM SPL 131dB continuous, 137dB peak (half space)
    DISPERSION (-6DB) Omnidirectional
    CROSSOVER 100Hz, active
    MODULE AUDIO IN/OUT
    INPUT CONNECTORS 2 x female XLR/ 1Ú4” jack combo
    MIC/LINE INPUT IMPEDANCE 8 k½ balanced
    1Ú4” JACK TS INPUT IMPEDANCE 1 M½ unbalanced
    MIX OUTPUT CONNECTOR 1 x male XLR
    MIX OUTPUT IMPEDANCE 600½ balanced
    INTERNAL PROCESSING
    INPUT CHANNEL EQ 3 band
    SPEAKER EQ 4 presets, including cardioid mode
    PROTECTION Peak and RMS limiting, amplifier thermal protection
    AMPLIFIER MODULE
    TYPE Class D, Bridged Tied
    PEAK OUTPUT POWER 2000W total
    AVERAGE EFFICIENCY 89%
    COOLING Convection
    MAXIMUM AMBIENT TEMPERATURE 35¡C (95¡F) for full output
    POWER SUPPLY
    TYPE Switch-mode, fixed frequency with PFC
    AC INPUT OPERATING RANGE 100 Ð 240V ~ AC, 50 - 60Hz
    POWER FACTOR > 0.98
    NOMINAL POWER CONSUMPTION 1000W Max
    MAINS CONNECTOR 3-pin IEC
    MECHANICAL
    ENCLOSURE Birch/poplar ply
    FINISH Black textured paint
    PROTECTIVE GRILLE Black perforated steel
    FITTINGS 16 x M10 inserts, pole-mount socket
    2 x bar handles, provision for castors
    DIMENSIONS (W) 662mm x (H) 536mm x (D) 640mm
    (W) 26.1in x (H) 21.1in x (D) 25.2in
    WEIGHT 44kg (97lbs)

    The XP118 is a compact, high performance subwoofer for indoor use with the XP12 and XP15 full-range loudspeakers. It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked in omni or cardioid mode, or flown via integral M10 insets.

    Features:

    • Compact, self-powered subwoofer
    • 1 x 18" (460mm) driver with 4" (100mm) voice coil
    • 2000W of Class D amplification
    • Global power supply with PFC (Power Factor Correction)
    • Onboard DSP with rotary control interface
    • Multi-function display for metering, control and function selection • Peak and RMS limiters
    • Bluetooth® control and streaming option
    • Durable plywood enclosure
    • Screw-free, perforated steel grille
    • Integral ergonomic handles
    • 35mm pole-mount socket

    Applications:

    • Portable Sound Reinforcement
    • Live Music Clubs
    • Nightclubs, Bars and Restaurants
    • Corporate AV
    • Hotels and Casinos
    • Mobile DJ
    • Weddings and Parties
    • HoW Installations
    • Rehearsal Studios


    Featuring a long-excursion 18" (460mm)/4" (100mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels.

    A convection-cooled Class D amplifier module delivers 2000W peak output to the driver for maximum low frequency extension and chest-thumping punch. Crossover, EQ, metering and

    control functions are provided by onboard DSP via a rotary encoder interface and multi-function colour screen on the rear panel.
    The XP118 enclosure is built for the road, constructed from durable plywood and finished in textured black paint. A perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount socket in the top surface and two ergonomic side handles.

    ACOUSTICS
    TYPE Compact, Self-powered Subwoofer
    FREQUENCY RESPONSE 42Hz Ð150Hz ±3dB
    -10dB @ 38Hz
    DRIVER 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
    MAXIMUM SPL 131dB continuous, 137dB peak (half space)
    DISPERSION (-6DB) Omnidirectional
    CROSSOVER 100Hz, active
    MODULE AUDIO IN/OUT
    INPUT CONNECTORS 2 x female XLR/ 1Ú4” jack combo
    MIC/LINE INPUT IMPEDANCE 8 k½ balanced
    1Ú4” JACK TS INPUT IMPEDANCE 1 M½ unbalanced
    MIX OUTPUT CONNECTOR 1 x male XLR
    MIX OUTPUT IMPEDANCE 600½ balanced
    INTERNAL PROCESSING
    INPUT CHANNEL EQ 3 band
    SPEAKER EQ 4 presets, including cardioid mode
    PROTECTION Peak and RMS limiting, amplifier thermal protection
    AMPLIFIER MODULE
    TYPE Class D, Bridged Tied
    PEAK OUTPUT POWER 2000W total
    AVERAGE EFFICIENCY 89%
    COOLING Convection
    MAXIMUM AMBIENT TEMPERATURE 35¡C (95¡F) for full output
    POWER SUPPLY
    TYPE Switch-mode, fixed frequency with PFC
    AC INPUT OPERATING RANGE 100 Ð 240V ~ AC, 50 - 60Hz
    POWER FACTOR > 0.98
    NOMINAL POWER CONSUMPTION 1000W Max
    MAINS CONNECTOR 3-pin IEC
    MECHANICAL
    ENCLOSURE Birch/poplar ply
    FINISH Black textured paint
    PROTECTIVE GRILLE Black perforated steel
    FITTINGS 16 x M10 inserts, pole-mount socket
    2 x bar handles, provision for castors
    DIMENSIONS (W) 662mm x (H) 536mm x (D) 640mm
    (W) 26.1in x (H) 21.1in x (D) 25.2in
    WEIGHT 44kg (97lbs)
