Martin Audio Blackline XP15 Powered 2-Way 15-Inch Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker.
Features:
- High output, self-powered, portable two-way system
- 1300W of Class D amplification
- Global power supply with PFC (Power Factor Correction)
- Onboard DSP with rotary control interface
- Multi-function display for metering, control and function selection, Three-channel mixer
- Three-band channel EQ, plus HPF (Ch1/2)
- Independent LF and HF peak and RMS limiters
- Three speaker mode and voicing presets
- Bluetooth® control and streaming option
- Durable plywood enclosure
- User-rotatable 80° x 50° HF horn
- Vertical and horizontal mounting options
- Symmetrical multi-angle enclosure for PA or stage monitor use
- Screw-free, cloth-backed steel grille
- Integral ergonomic handles
- Mounting options include pole-mount and flying inserts
Applications:
- Portable Sound Reinforcement
- Live Music Clubs
- Nightclubs, Bars and Restaurants
- Corporate AV
- Hotels and Casinos
- Mobile DJ
- Weddings and Parties
- HoW Installations
- Rehearsal Studios

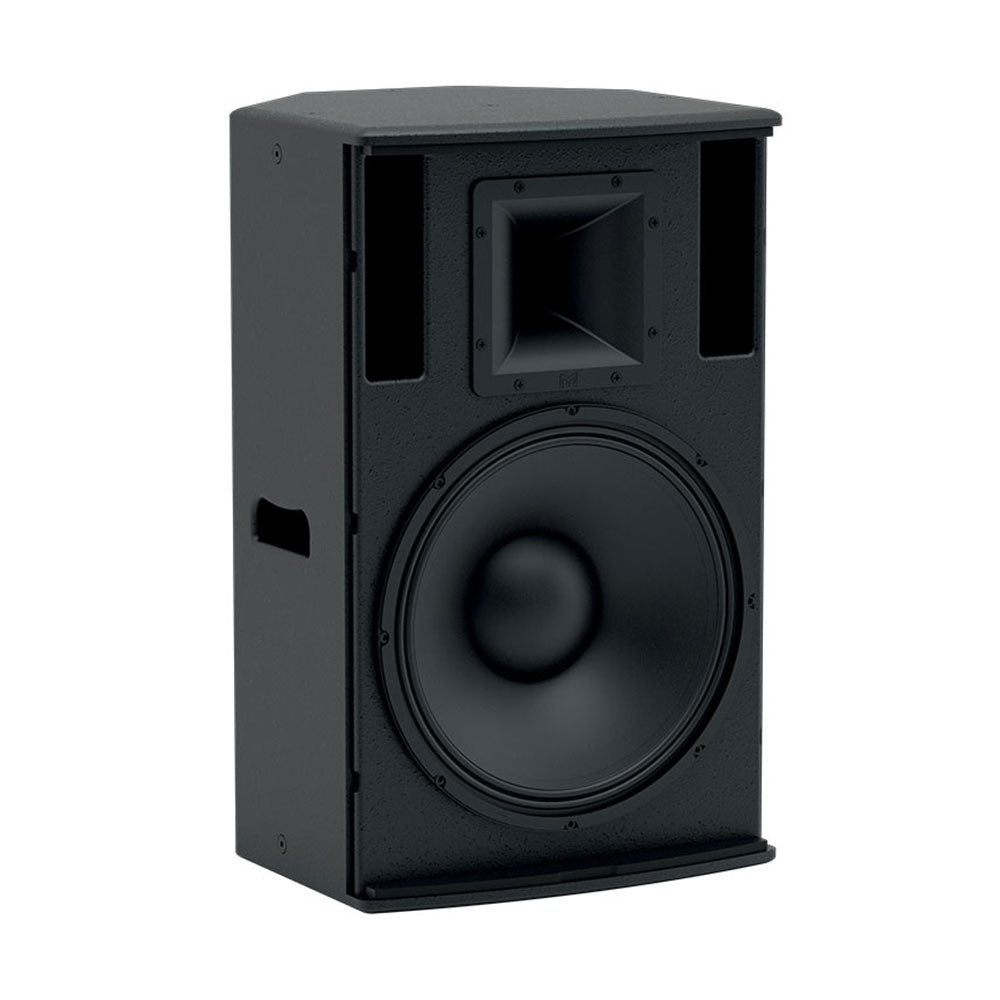

Featuring a 15" (380mm)/3" (75mm) voice coil LF drive unit, and a 1" (25mm) exit HF compression driver with a 1.75" (44mm) polyimide diaphragm. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.

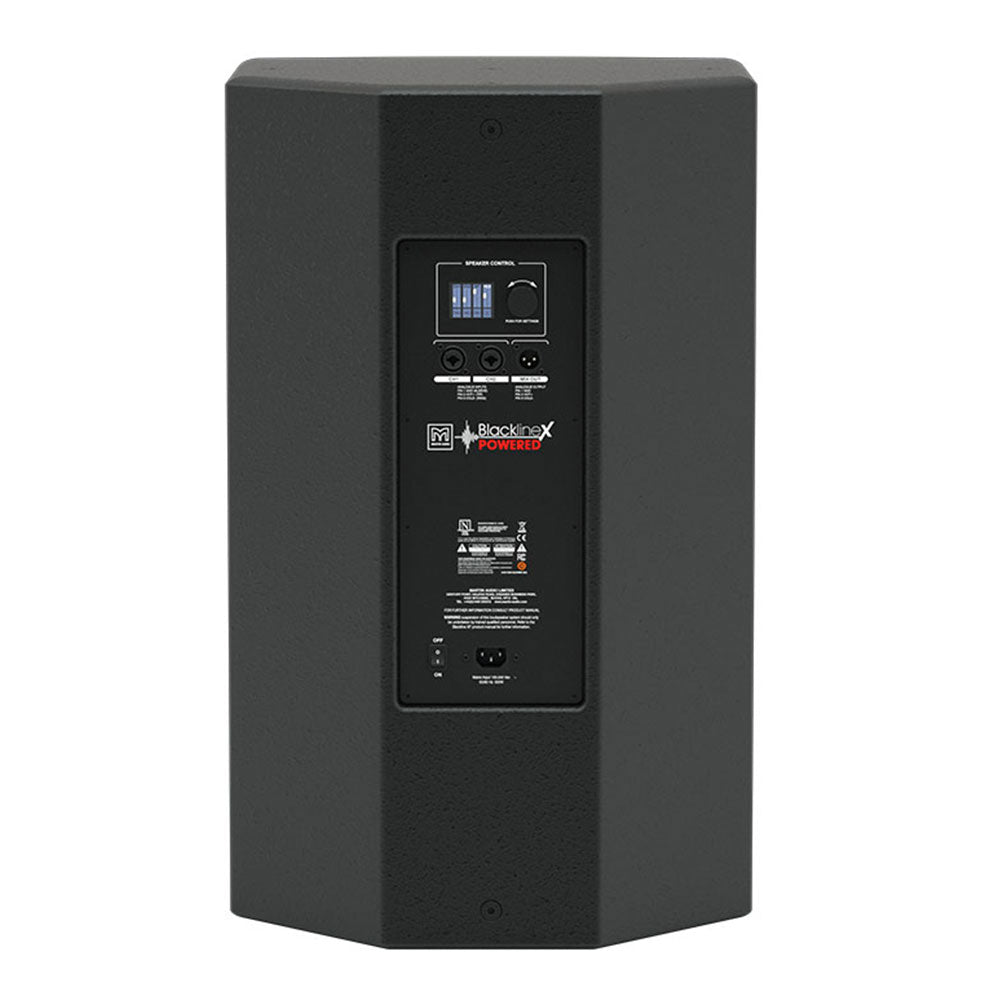

Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. Onboard DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use colour display on the rear panel. DSP features include crossover function, a three-channel mixer with three- band EQ on each input channel and a choice of three voicing presets and operating modes for flexible operation without external processing.

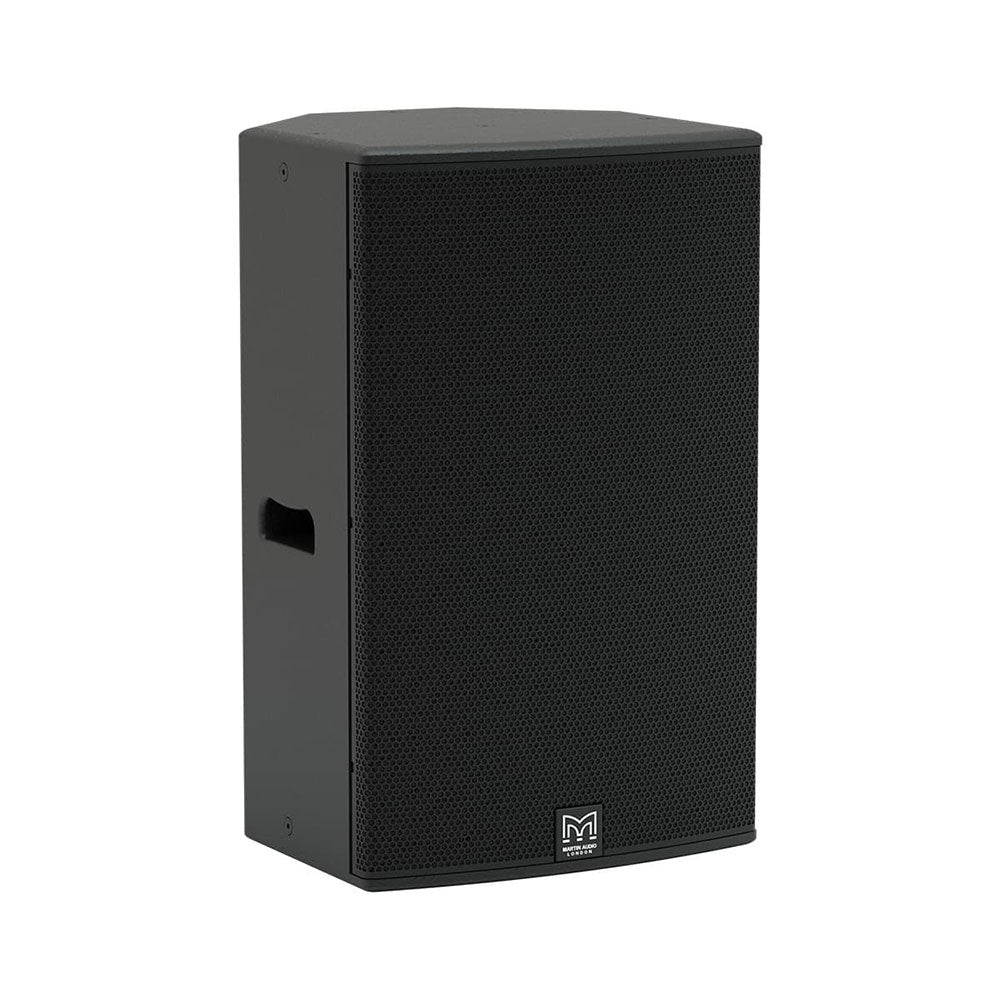

The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.
| ACOUSTICS | |
| TYPE | High output, self-powered two-way system |
| FREQUENCY RESPONSE | 55Hz Ð 20kHz ±3dB -10dB @ 45Hz |
| DRIVERS |
|
| MAXIMUM SPL | 125dB continuous / 131dB peak |
| DISPERSION | 80¡ H x 50¡ V (user-rotatable) |
| CROSSOVER | 2kHz active, 24dB/octave |
| MODULE AUDIO IN/OUT |
|
| INPUT CONNECTORS | 2 x female XLR/ 1Ú4” jack combo |
| MIC/LINE INPUT IMPEDANCE | 8 k½ balanced |
| 1Ú4” JACK TS INPUT IMPEDANCE | 1 M½ unbalanced |
| MIX OUTPUT CONNECTOR | 1 x male XLR |
| MIX OUTPUT IMPEDANCE | 600½ balanced |
| INTERNAL PROCESSING | |
| INPUT CHANNEL EQ | 3-band on each channel plus HPF (Ch1/2) |
| SPEAKER EQ | 3 speaker mode/voicing presets |
| PROTECTION | LF and HF Peak and RMS limiting, amplifier thermal protection |
| AMPLIFIER MODULE | |
| TYPE | 2 channel switch-mode, class D |
| PEAK OUTPUT POWER | 1300W total 1000W LF, 300W HF |
| AVERAGE EFFICIENCY | 89% |
| COOLING | External convection cooled |
| MAXIMUM AMBIENT TEMPERATURE | 35¡C (95¡F) for full output |
| POWER SUPPLY | |
| TYPE | Switch-mode, fixed frequency with PFC |
| AC INPUT OPERATING RANGE | 100-240V ~ AC, 50 - 60Hz |
| POWER FACTOR | > 0.98 |
| NOMINAL POWER CONSUMPTION | 550W Max |
| MAINS CONNECTOR | 3-pin IEC |
| MECHANICAL | |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| FITTINGS | 13 x M8 inserts, pole-mount socket, 2 x pocket handles |
| DIMENSIONS | (W) 427mm x (H) 690mm x (D) 407mm (W) 16.8in x (H) 27.2 x (D) 16.0in |
| WEIGHT | 26kg (57lbs) |
The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker.
Features:
- High output, self-powered, portable two-way system
- 1300W of Class D amplification
- Global power supply with PFC (Power Factor Correction)
- Onboard DSP with rotary control interface
- Multi-function display for metering, control and function selection, Three-channel mixer
- Three-band channel EQ, plus HPF (Ch1/2)
- Independent LF and HF peak and RMS limiters
- Three speaker mode and voicing presets
- Bluetooth® control and streaming option
- Durable plywood enclosure
- User-rotatable 80° x 50° HF horn
- Vertical and horizontal mounting options
- Symmetrical multi-angle enclosure for PA or stage monitor use
- Screw-free, cloth-backed steel grille
- Integral ergonomic handles
- Mounting options include pole-mount and flying inserts
Applications:
- Portable Sound Reinforcement
- Live Music Clubs
- Nightclubs, Bars and Restaurants
- Corporate AV
- Hotels and Casinos
- Mobile DJ
- Weddings and Parties
- HoW Installations
- Rehearsal Studios
Featuring a 15" (380mm)/3" (75mm) voice coil LF drive unit, and a 1" (25mm) exit HF compression driver with a 1.75" (44mm) polyimide diaphragm. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.
Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. Onboard DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use colour display on the rear panel. DSP features include crossover function, a three-channel mixer with three- band EQ on each input channel and a choice of three voicing presets and operating modes for flexible operation without external processing.
The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.
| ACOUSTICS | |
| TYPE | High output, self-powered two-way system |
| FREQUENCY RESPONSE | 55Hz Ð 20kHz ±3dB -10dB @ 45Hz |
| DRIVERS |
|
| MAXIMUM SPL | 125dB continuous / 131dB peak |
| DISPERSION | 80¡ H x 50¡ V (user-rotatable) |
| CROSSOVER | 2kHz active, 24dB/octave |
| MODULE AUDIO IN/OUT |
|
| INPUT CONNECTORS | 2 x female XLR/ 1Ú4” jack combo |
| MIC/LINE INPUT IMPEDANCE | 8 k½ balanced |
| 1Ú4” JACK TS INPUT IMPEDANCE | 1 M½ unbalanced |
| MIX OUTPUT CONNECTOR | 1 x male XLR |
| MIX OUTPUT IMPEDANCE | 600½ balanced |
| INTERNAL PROCESSING | |
| INPUT CHANNEL EQ | 3-band on each channel plus HPF (Ch1/2) |
| SPEAKER EQ | 3 speaker mode/voicing presets |
| PROTECTION | LF and HF Peak and RMS limiting, amplifier thermal protection |
| AMPLIFIER MODULE | |
| TYPE | 2 channel switch-mode, class D |
| PEAK OUTPUT POWER | 1300W total 1000W LF, 300W HF |
| AVERAGE EFFICIENCY | 89% |
| COOLING | External convection cooled |
| MAXIMUM AMBIENT TEMPERATURE | 35¡C (95¡F) for full output |
| POWER SUPPLY | |
| TYPE | Switch-mode, fixed frequency with PFC |
| AC INPUT OPERATING RANGE | 100-240V ~ AC, 50 - 60Hz |
| POWER FACTOR | > 0.98 |
| NOMINAL POWER CONSUMPTION | 550W Max |
| MAINS CONNECTOR | 3-pin IEC |
| MECHANICAL | |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| FITTINGS | 13 x M8 inserts, pole-mount socket, 2 x pocket handles |
| DIMENSIONS | (W) 427mm x (H) 690mm x (D) 407mm (W) 16.8in x (H) 27.2 x (D) 16.0in |
| WEIGHT | 26kg (57lbs) |
