Description
CDD Series loudspeaker standard colour options are black (RAL9005) and white (RAL9016), but you can order speakers in any custom color in RAL code.

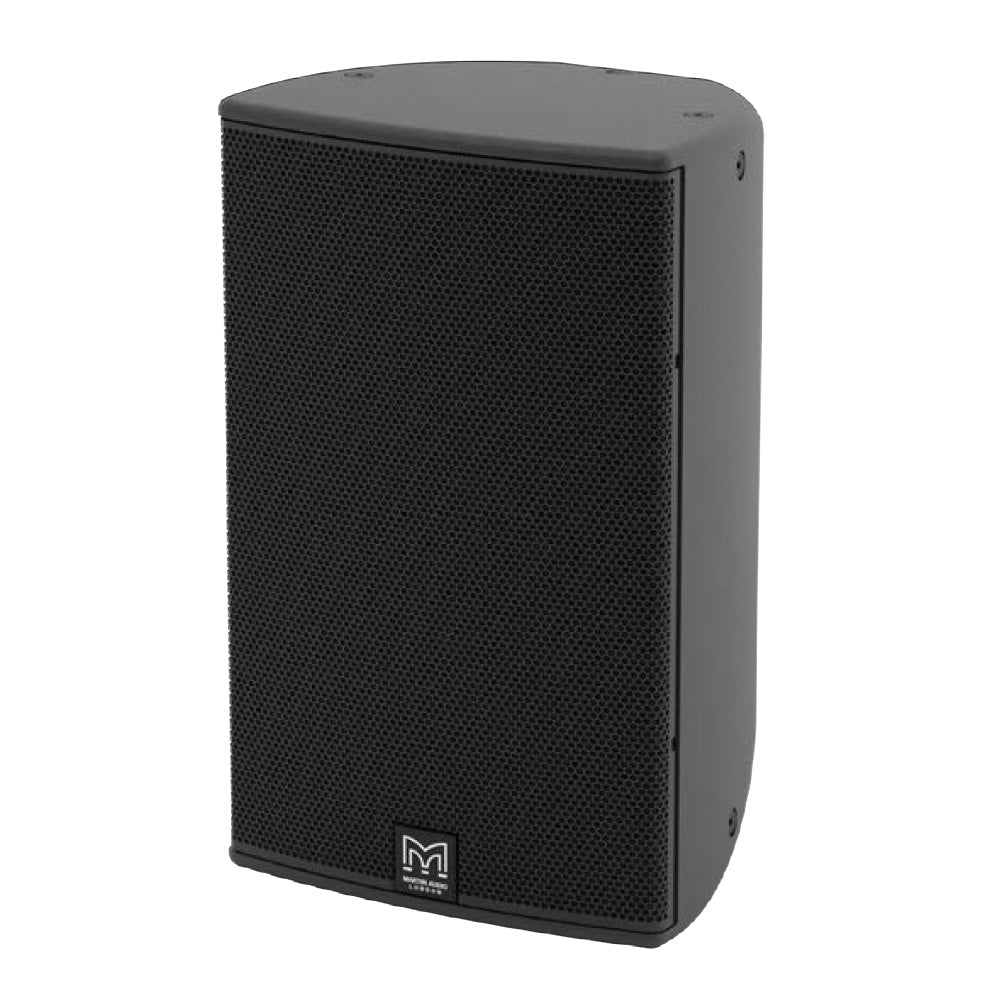

The CDD12 is a compact, passive two-way system designed for installations that require high output levels. Its high-specification 12" (300mm) LF /1" exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances.
Features:
- Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant birch plywood enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Integral inserts for eyebolt suspension
- Black or white standard colour options
Applications:
- Live Music Clubs and Bars
- Nightclubs
- Bars and Restaurants
- Museums and AV Spaces
- Convention Centres
- Hotels
- Retail Outlets
- Leisure Centres
- Houses of Worship
The Coaxial Differential Dispersion technology employed in the CDD12 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves 'point source' summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.
The LF driver has a 2.5" (65mm) voice coil and efficient motor with an aluminium demodulating ring to minimise distortion, while the HF driver utilises a 1.75" (44mm) polyimide diaphragm and features a low-compression phase-plug to reduce non-linearity.
The visually-distinctive birch plywood enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD12 allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD12 can be supplied in any RAL colour to order.
A full-range, passive two-way system, the CDD12 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
TYPE | Compact, high-output, Coaxial Differential Dispersion passive two-way system |
FREQUENCY RESPONSE | 62Hz-20kHz ± 3dB, -10dB @ 50Hz |
DRIVER | LF: 12" (300mm)/2.5" (63.5mm) voice coil, long excursion, shared ferrite motor with HF HF: 1" (25mm) exit/1.7" (44mm) voice coil, polyimide dome compression driver |
RATED POWER | 300W AES, 1200W peak |
SENSITIVITY | 97dB |
MAXIMUM SPL | 122dB continuous, 128dB peak |
NOMINAL IMPEDANCE | 8½ |
DISPERSION (-6DB) | 110û-60û horizontal, 60û vertical (user-rotatable) |
CROSSOVER | 1.9kHz passive |
ENCLOSURE | 38 litre, birch plywood |
FINISH | Black or white textured paint |
PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
CONNECTORS | Low profile 20A push-lock |
PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
FITTINGS | 6 x M8 inserts for wall bracket 10 x M8 fly points |
DIMENSIONS | (W) 360mm x (H) 560mm x (D) 350mm (W) 14.17ins x (H) 22.05ins x (D) 13.78ins |
WEIGHT | 19kg (41.89 lbs) |
CDD Series loudspeaker standard colour options are black (RAL9005) and white (RAL9016), but you can order speakers in any custom color in RAL code.
The CDD12 is a compact, passive two-way system designed for installations that require high output levels. Its high-specification 12" (300mm) LF /1" exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances.
Features:
- Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant birch plywood enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Integral inserts for eyebolt suspension
- Black or white standard colour options
Applications:
- Live Music Clubs and Bars
- Nightclubs
- Bars and Restaurants
- Museums and AV Spaces
- Convention Centres
- Hotels
- Retail Outlets
- Leisure Centres
- Houses of Worship
The Coaxial Differential Dispersion technology employed in the CDD12 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves 'point source' summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.
The LF driver has a 2.5" (65mm) voice coil and efficient motor with an aluminium demodulating ring to minimise distortion, while the HF driver utilises a 1.75" (44mm) polyimide diaphragm and features a low-compression phase-plug to reduce non-linearity.
The visually-distinctive birch plywood enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD12 allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD12 can be supplied in any RAL colour to order.
A full-range, passive two-way system, the CDD12 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
TYPE | Compact, high-output, Coaxial Differential Dispersion passive two-way system |
FREQUENCY RESPONSE | 62Hz-20kHz ± 3dB, -10dB @ 50Hz |
DRIVER | LF: 12" (300mm)/2.5" (63.5mm) voice coil, long excursion, shared ferrite motor with HF HF: 1" (25mm) exit/1.7" (44mm) voice coil, polyimide dome compression driver |
RATED POWER | 300W AES, 1200W peak |
SENSITIVITY | 97dB |
MAXIMUM SPL | 122dB continuous, 128dB peak |
NOMINAL IMPEDANCE | 8½ |
DISPERSION (-6DB) | 110û-60û horizontal, 60û vertical (user-rotatable) |
CROSSOVER | 1.9kHz passive |
ENCLOSURE | 38 litre, birch plywood |
FINISH | Black or white textured paint |
PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
CONNECTORS | Low profile 20A push-lock |
PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
FITTINGS | 6 x M8 inserts for wall bracket 10 x M8 fly points |
DIMENSIONS | (W) 360mm x (H) 560mm x (D) 350mm (W) 14.17ins x (H) 22.05ins x (D) 13.78ins |
WEIGHT | 19kg (41.89 lbs) |
