DALE SKU # MAAU-CDD12W

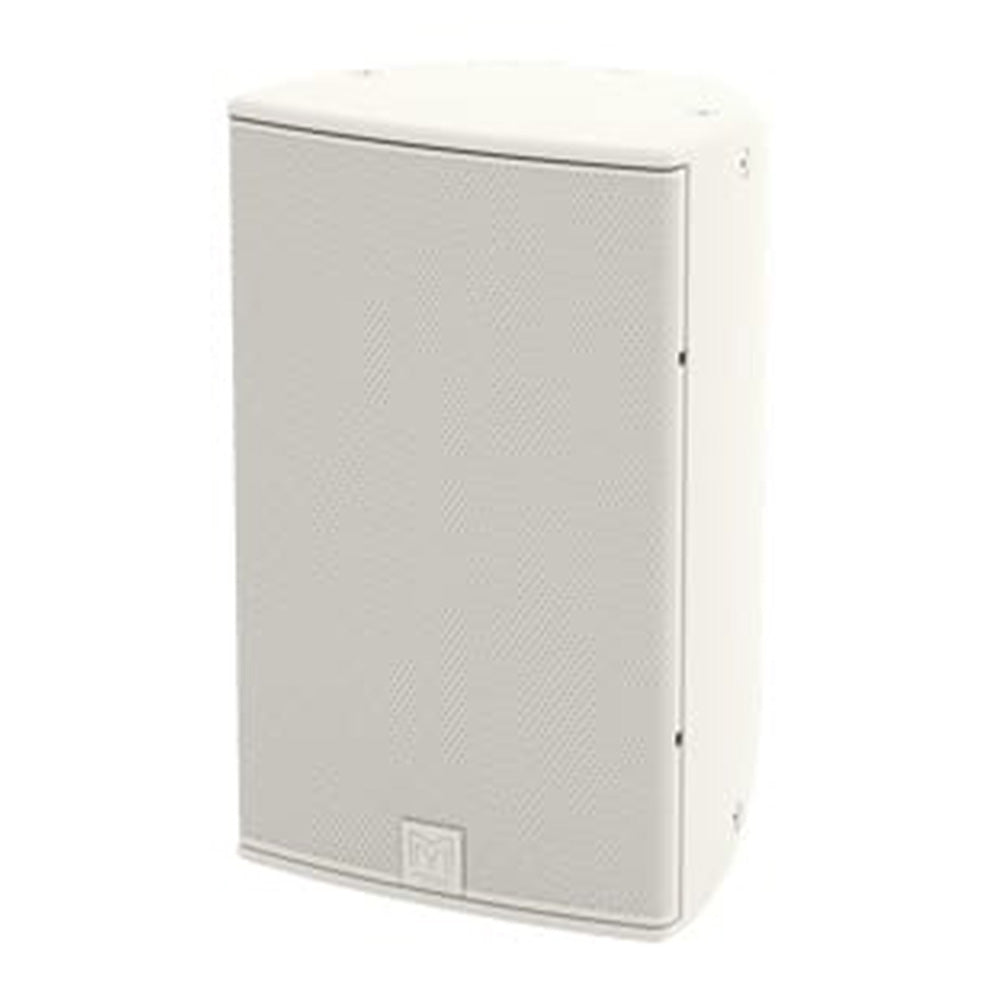

Martin Audio CDD12 - 12-Inch Two-Way Install Loudspeaker (White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The CDD12 is a compact, passive two-way system designed for installations that require high output levels. Its high-specification 12" (300mm) LF /1" exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances.

    Features:

    • Compact, CDD™ passive two-way system
    • Coaxial Differential Dispersion™ technology
    • Elegant birch plywood enclosure
    • User-rotatable coaxial drive unit
    • Vertical and horizontal mounting options
    • Screw-free perforated steel grille
    • 8Ω nominal impedance
    • Discreet mounting accessories
    • Integral inserts for eyebolt suspension
    • Black or white standard colour options

    Applications:

    • Live Music Clubs and Bars
    • Nightclubs
    • Bars and Restaurants
    • Museums and AV Spaces
    • Convention Centres
    • Hotels
    • Retail Outlets
    • Leisure Centres
    • Houses of Worship


    The Coaxial Differential Dispersion technology employed in the CDD12 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves 'point source' summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

    The LF driver has a 2.5" (65mm) voice coil and efficient motor with an aluminium demodulating ring to minimise distortion, while the HF driver utilises a 1.75" (44mm) polyimide diaphragm and features a low-compression phase-plug to reduce non-linearity.

    The visually-distinctive birch plywood enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD12 allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option.

    Finished in black (RAL9005) or white (RAL9016) as standard, the CDD12 can be supplied in any RAL colour to order.

    A full-range, passive two-way system, the CDD12 should be used with a compatible controller with appropriate limiter settings to provide system protection.

    When used with the DX4.0 controller or an iKON amplifier, there now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.

    TYPE Compact, high-output, Coaxial Differential Dispersion passive two-way system
    FREQUENCY RESPONSE 62Hz-20kHz ± 3dB, -10dB @ 50Hz
    DRIVER LF: 12" (300mm)/2.5" (63.5mm) voice coil, long excursion, shared ferrite motor with HF
    HF: 1" (25mm) exit/1.7" (44mm) voice coil, polyimide dome compression driver
    RATED POWER 300W AES, 1200W peak
    SENSITIVITY 97dB
    MAXIMUM SPL 122dB continuous, 128dB peak
    NOMINAL IMPEDANCE
    DISPERSION (-6DB) 110û-60û horizontal, 60û vertical (user-rotatable)
    CROSSOVER 1.9kHz passive
    ENCLOSURE 38 litre, birch plywood
    FINISH Black or white textured paint
    PROTECTIVE GRILLE Black or white perforated steel with scrim cloth backing
    CONNECTORS Low profile 20A push-lock
    PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link+
    FITTINGS 6 x M8 inserts for wall bracket
    10 x M8 fly points
    DIMENSIONS (W) 360mm x (H) 560mm x (D) 350mm
    (W) 14.17ins x (H) 22.05ins x (D) 13.78ins
    WEIGHT 19kg (41.89 lbs)

    The CDD12 is a compact, passive two-way system designed for installations that require high output levels. Its high-specification 12" (300mm) LF /1" exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances.

    Features:

    • Compact, CDD™ passive two-way system
    • Coaxial Differential Dispersion™ technology
    • Elegant birch plywood enclosure
    • User-rotatable coaxial drive unit
    • Vertical and horizontal mounting options
    • Screw-free perforated steel grille
    • 8Ω nominal impedance
    • Discreet mounting accessories
    • Integral inserts for eyebolt suspension
    • Black or white standard colour options

    Applications:

    • Live Music Clubs and Bars
    • Nightclubs
    • Bars and Restaurants
    • Museums and AV Spaces
    • Convention Centres
    • Hotels
    • Retail Outlets
    • Leisure Centres
    • Houses of Worship


    The Coaxial Differential Dispersion technology employed in the CDD12 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves 'point source' summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

    The LF driver has a 2.5" (65mm) voice coil and efficient motor with an aluminium demodulating ring to minimise distortion, while the HF driver utilises a 1.75" (44mm) polyimide diaphragm and features a low-compression phase-plug to reduce non-linearity.

    The visually-distinctive birch plywood enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD12 allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option.

    Finished in black (RAL9005) or white (RAL9016) as standard, the CDD12 can be supplied in any RAL colour to order.

    A full-range, passive two-way system, the CDD12 should be used with a compatible controller with appropriate limiter settings to provide system protection.

    When used with the DX4.0 controller or an iKON amplifier, there now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.

    TYPE Compact, high-output, Coaxial Differential Dispersion passive two-way system
    FREQUENCY RESPONSE 62Hz-20kHz ± 3dB, -10dB @ 50Hz
    DRIVER LF: 12" (300mm)/2.5" (63.5mm) voice coil, long excursion, shared ferrite motor with HF
    HF: 1" (25mm) exit/1.7" (44mm) voice coil, polyimide dome compression driver
    RATED POWER 300W AES, 1200W peak
    SENSITIVITY 97dB
    MAXIMUM SPL 122dB continuous, 128dB peak
    NOMINAL IMPEDANCE
    DISPERSION (-6DB) 110û-60û horizontal, 60û vertical (user-rotatable)
    CROSSOVER 1.9kHz passive
    ENCLOSURE 38 litre, birch plywood
    FINISH Black or white textured paint
    PROTECTIVE GRILLE Black or white perforated steel with scrim cloth backing
    CONNECTORS Low profile 20A push-lock
    PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link+
    FITTINGS 6 x M8 inserts for wall bracket
    10 x M8 fly points
    DIMENSIONS (W) 360mm x (H) 560mm x (D) 350mm
    (W) 14.17ins x (H) 22.05ins x (D) 13.78ins
    WEIGHT 19kg (41.89 lbs)
