DALE SKU # MAAU-CDD12WWR

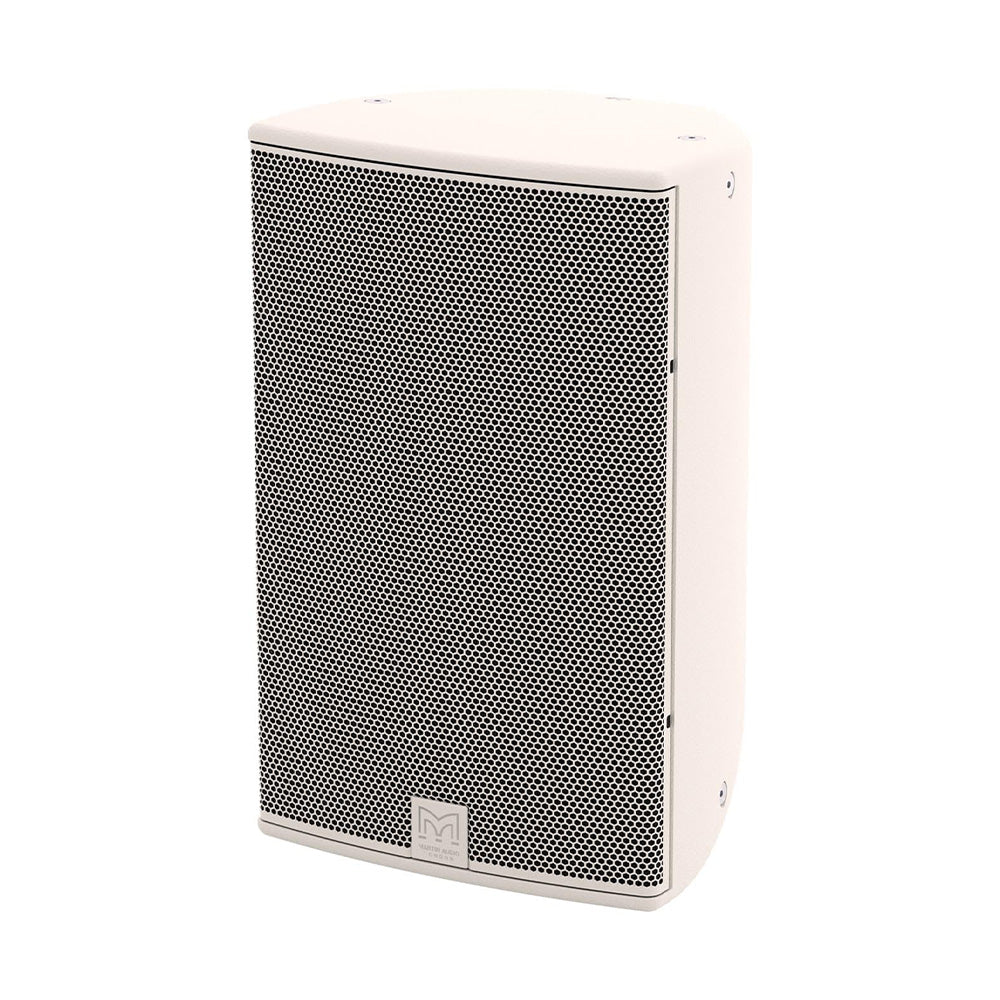

Martin Audio CDD12-WR - Weatherized 12-Inch Two-Way Install Loudspeaker (White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The CDD12-WR is a weatherised compact, passive two-way system designed for installations that require high output levels suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. Its high-specification 12" (300mm) LF /1" exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances. It features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.

    Features:

    • Compact, CDD™ passive two-way system
    • Coaxial Differential Dispersion™ technology
    • Elegant UPM Formi composite enclosure
    • Outdoor operation when sheltered from direct exposure to elements
    • Operating temperature -20°C to +70°C
    • Environmentally tested to meet IP54
    • User-rotatable coaxial drive unit
    • Vertical and horizontal mounting options
    • Screw-free water and particle resistant grille
    • 8Ω nominal impedance
    • Integral inserts for eyebolt suspension
    • Discreet weatherised mounting accessories
    • Black or white standard colour options

    Applications:

    • Outdoor Restaurants
    • Bars
    • Hotel Areas
    • Nearfield Systems in Outdoor Stadia
    • Transport Hubs
    • Concourses and Theme Parks


    The Coaxial Differential Dispersion technology employed in the CDD12-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves 'point source' summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

    The LF driver has a 2.5" (65mm) voice coil and efficient motor with an aluminium demodulating ring to minimise distortion, while the HF driver utilises a 1.75" (44mm) polyimide diaphragm and features a low-compression phase-plug to reduce non-linearity.

    The visually-distinctive birch plywood enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD12-WR allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option. A full suite of weatherised accessories are available and fixings on the loudspeaker are stainless steel.

    Finished in black (RAL9005) or white (RAL9016) as standard, with any RAL colour to order. A full-range, passive two-way system, the CDD12-WR should be used with a compatible controller with appropriate limiter settings to provide system protection.

    When used with the DX4.0 controller or an iKON amplifier, there now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.

    TYPE Compact, high-output, Coaxial Differential Dispersion passive two-way system
    FREQUENCY RESPONSE 62Hz-20kHz ± 3dB
    -10dB @ 50Hz
    DRIVER LF: 12" (300mm)/2.5" (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
    HF: 1" (25mm) exit/1.7" (44mm) voice coil, polyimide dome compression driver
    RATED POWER 300W AES, 1200W peak
    SENSITIVITY 97dB
    MAXIMUM SPL 122dB continuous, 128dB peak
    NOMINAL IMPEDANCE
    DISPERSION (-6DB) 110û-60û horizontal, 60û vertical (user-rotatable)
    CROSSOVER 1.9kHz passive
    ENCLOSURE 38 litre, composite material
    FINISH Black or white as standard
    PROTECTIVE GRILLE Zinc plated mild steel with powder coated finish and weatherised backing
    ENVIRONMENTAL Rated at IP54
    CONNECTORS Low profile 20A push-lock, weatherproof input panel cover with cable gland
    PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link+
    FITTINGS 6 x M8 inserts for wall bracket
    10 x M8 fly points
    DIMENSIONS (W) 360mm x (H) 571mm x (D) 350mm
    (W) 14.2ins x (H) 22.5ins x (D) 13.8ins
    WEIGHT 19.8kg (43.65lbs)
