DALE SKU # MAAU-FP4

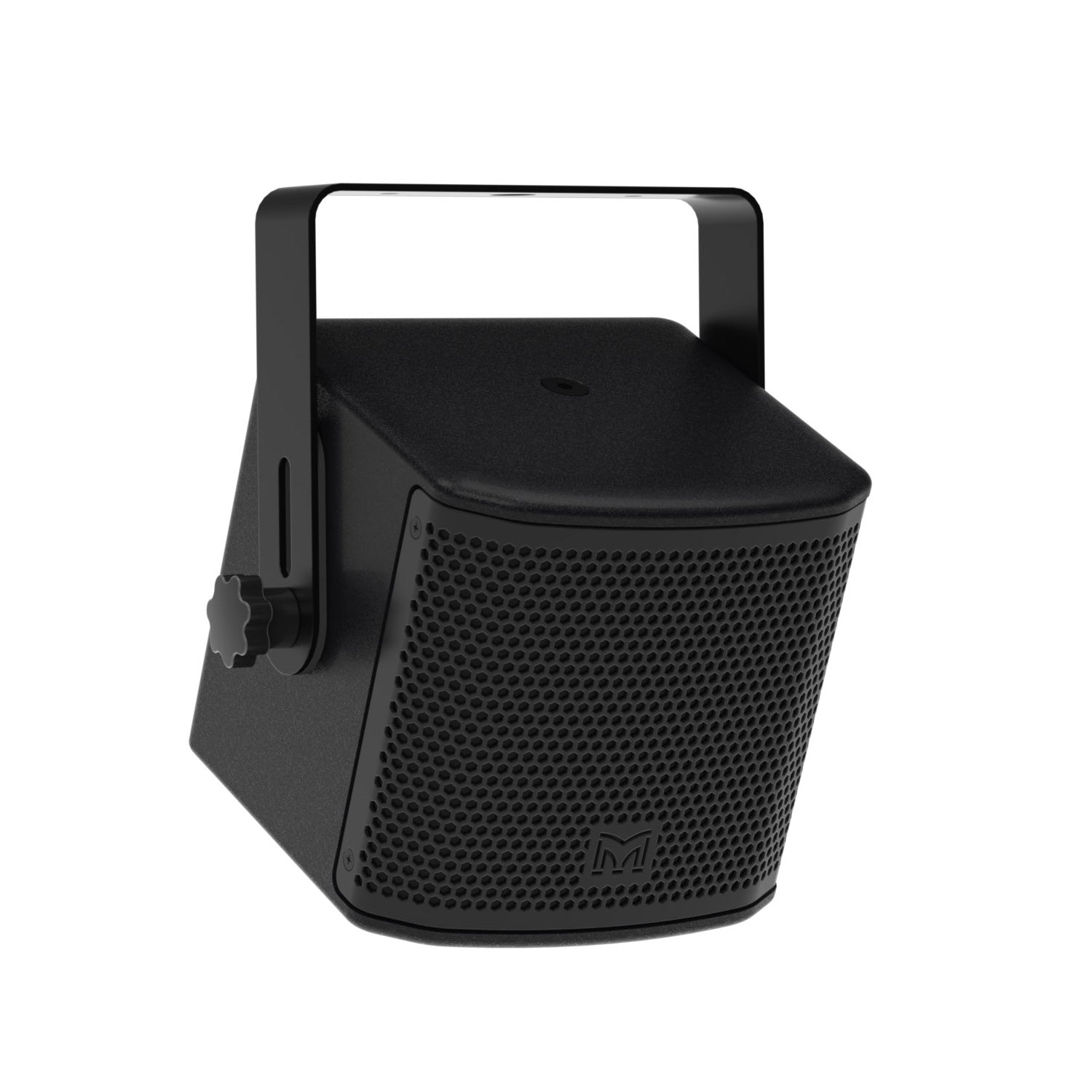

Martin Audio FlexPoint FP4 - Compact 2-Way Passive Loudspeaker

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The FP4 is a point-source loudspeaker designed for short-throw distributed systems which require premium sound quality from a miniature enclosure. It delivers exceptional output and performance for its size and is ideal for installations requiring spot and fill coverage where space is limited. With a wide and smooth frequency response, it reproduces both speech and music effortlessly.

    Features:

    • Miniature, passive two-way loudspeaker
    • High output capability relative to size
    • Coaxial Point Source configuration
    • Wide frequency response for quality speech and music reproduction
    • 4" (100mm)/1.25" (32mm) voice coil LF driver
    • 1" (25mm) polymer diaphragm/0.7" (18mm) exit HF driver
    • 110° conical dispersion
    • 3D prediction software [DISPLAY 3]
    • Powered by iKON or VIA amplifiers

    Suggested Applications:

    • Fill and spot coverage where space is limited
    • Theatres and churches requiring minimal visual intrusion
    • Distributed systems in bars and restaurants
    • Museum and gallery installations
    • Immersive sound spaces
    • Portable corporate AV events


    Its miniature size and flexible mounting options, including mic stand, make for discreet integration within any setting - from small stages, churches, museums and galleries to theatres, bars and restaurants. Being both portable and surprisingly powerful for its size, it can also be used for corporate AV events and as a fill loudspeaker within a larger sound system. When supplemented by a subwoofer, it is also an excellent choice for a premium background music system in a wide variety of venues.

    The FP4 is a two-way passive design featuring a 4" LF driver and a 0.7" exit HF driver with a 1" diameter high-temperature polymer dome. It has an impressive maximum SPL of 108dB peak, and its Coaxial Point Source configuration produces a well-defined, conical 110° dispersion pattern which is perfect for close proximity applications.

    Its durable birch plywood enclosure is finished in hardwearing textured paint and incorporates threaded inserts for U-bracket, wall bracket and mic stand mounting. A steel grille with a triple-layer polyester backing presents a discreet, professional appearance, while resisting dust and water ingress to IP54 environmental rating.

    FP4 can be powered by iKON amplifiers, or by VIA amplifiers when used with a DX4.0 controller, or alternatively a DX0.4 or DX0.6 controller. FP4 systems can be modelled in 3D using Display 3 design and prediction software.

    PRODUCT NAME FP4
    TYPE Coaxial passive 2-way
    CROSSOVER FREQUENCY 2.6kHz
    FREQUENCY RESPONSE - 4_Ê(5) 142Hz - 18kHz
    ± 3dB,Ê-10dB @103Hz with preset
    DRIVERS LF: 4", 1.25" Voice coil, Ferrite Motor HF: 0.7" exit, 1" Voice coil, Coaxial HT polymer dome compression driver
    SENSITIVITY (4V 1M FREE-FIELD) 84dB
    NOMINAL IMPEDANCE 16 Ohms
    RATED POWER 60W AES, 240W peak
    MAXIMUM SPL 102dB Cont, 108dB Peak (6dB)
    DISPERSION (-6DB) 110¡ conical
    CONNECTORS NL4MPXX speakons (pair), Pheonix terminal block 1725302
    PIN CONNECTIONS (INPUT) 1+ / 1-
    PIN CONNECTIONS (LINK) 1+/- and 2+/-
    FITTINGS 4 x M6 inserts, 1 x 3/8” (mic stand) fixing point
    DIMENSIONS (W) 130mm, (H) 130mm, (D) 126mm (W) 5.1ins, (H) 5.1ins, (D) 5.0ins
    WEIGHT 1.9kg (4.2lbs)
    VOLUME 0.8L
