Description
The FP6 is a premium, ultra-compact point-source loudspeaker designed for short-throw applications which require superb sonic performance and coverage consistency from an extremely small enclosure. With full-frequency response and exceptional output capabilities for its size, it is ideal for installation in small spaces and areas which require spot and fill coverage.
Features:
- Ultra-compact, passive two-way loudspeaker
- Versatile, multi-angle enclosure with flexible mounting options
- Coaxial Point Source configuration with user-rotatable drive unit
- 6" (150mm)/1.75" (44mm) voice coil, low distortion, neodymium LF driver
- 1.4" (36mm) polymer diaphragm/0.7" (18mm) exit HF driver
- 100° H x 80° V dispersion
- Quick-release steel grille
- 3D prediction software [DISPLAY 3]
- Powered by iKON or VIA amplifiers
Suggested Applications:
- Fill and spot coverage
- Under balcony fill
- Theatres and churches
- Distributed systems in bars and restaurants
- Museum and gallery installations
- Immersive sound spaces
- Portable corporate AV events
- Discreet stage monitor
Its multi-angle enclosure with flexible mounting options makes for discreet integration within architectural spaces - from churches, museums and galleries to theatres, bars and restaurants. When supplemented by a subwoofer, it is an excellent choice for premium, short-throw corporate AV events and music playback systems. Being both portable and surprisingly powerful for its size, it can also be used as a fill loudspeaker within a larger touring or installed sound system.
The FP6 is a two-way passive loudspeaker featuring a high-specification 6" LF driver and a 0.7" exit HF driver with a 1.4" diameter high-temperature polymer dome. It delivers an impressive maximum SPL of 119dB peak and has a well-defined dispersion pattern of 100° horizontal x 80° vertical, with horizontal constant directivity characteristics.
Its exemplary dispersion pattern is achieved by incorporating a dedicated waveguide within the magnet structure which merges into a specially shaped, asymmetric LF cone. With the waveguide and cone combining to form the HF horn, this innovative arrangement avoids a separate 'add-on' horn which would impede the wavefront from the cone and cause irregularities in the frequency response. It also improves on conventional through-the-pole coaxial designs, which can suffer from high frequency beaming.

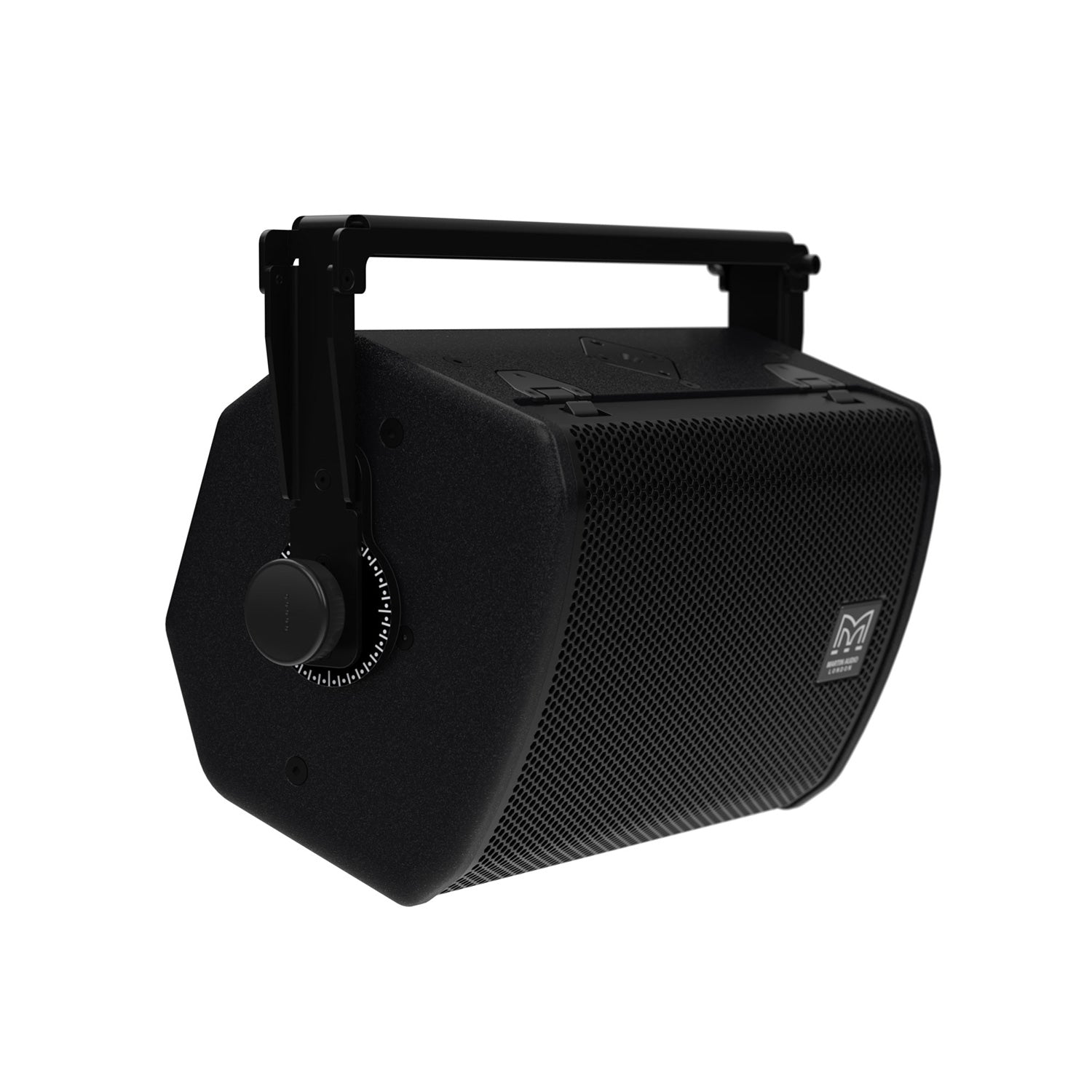

The FP6's durable birch plywood enclosure is finished in hardwearing textured paint and incorporates multiple threaded inserts that facilitate a wide range of mounting options and accessories - including yoke, wall bracket, truss and mic stand mounting. A steel grille with a triple-layer polyester backing presents a discreet professional appearance while resisting dust and water ingress to IP54 environmental rating.
The FP6 can be used in either portrait or landscape orientation, including use as a discreet stage monitor, by rotating the driver within the enclosure. To make this quick and easy, the grille is secured by proprietary quick-release latches, and the driver fixed to the baffle by means of captive thumbwheels. Loosening these by hand allows the driver to be quickly rotated through 90° and re-tightened.
FP6 can be powered by iKON amplifiers, or by VIA amplifiers when used with a DX4.0 controller, or alternatively a DX0.4 or DX0.6 controller. FP6 systems can be modelled in 3D using Display 3 design and prediction software.
PRODUCT NAME | FP6 |
TYPE | Coaxial passive 2-way |
CROSSOVER FREQUENCY | 2.3kHz |
FREQUENCY RESPONSE - 4_Ê(5) | 73Hz - 20kHzʱ 3dB,Ê-10dB @57Hz with preset |
DRIVERS | LF: 6", 1.75" Voice coil, Neodymium Motor with flux stabilising ringsHF: 0.7" exit, 1.4" Voice coil, Coaxial HT polymer dome compression driver |
SENSITIVITY (4V 1M FREE-FIELD) | 91dB |
NOMINAL IMPEDANCE | 16 Ohms |
RATED POWER | 150W AES, 600W peak |
MAXIMUM SPL | 113dB Cont, 119dB Peak (6dB) |
DISPERSION (-6DB) | 100¡ H, 80¡ V |
CONNECTORS | NLT4MPXX-BAG speakons (pair) |
PIN CONNECTIONS (INPUT) | 1+ / 1- |
PIN CONNECTIONS (LINK) | 1+/- and 2+/- |
FITTINGS | 4 x M10, 15 x M6 fixing points, 1 x 3/8” (mic stand) fixing point |
DIMENSIONS | (W) 321mm, (H) 220mm, (D) 197mm (W) 12.6ins, (H) 8.7ins, (D) 7.8ins |
WEIGHT | 5.5kg (12.1lbs) |
VOLUME | 7L |
The FP6 is a premium, ultra-compact point-source loudspeaker designed for short-throw applications which require superb sonic performance and coverage consistency from an extremely small enclosure. With full-frequency response and exceptional output capabilities for its size, it is ideal for installation in small spaces and areas which require spot and fill coverage.
Features:
- Ultra-compact, passive two-way loudspeaker
- Versatile, multi-angle enclosure with flexible mounting options
- Coaxial Point Source configuration with user-rotatable drive unit
- 6" (150mm)/1.75" (44mm) voice coil, low distortion, neodymium LF driver
- 1.4" (36mm) polymer diaphragm/0.7" (18mm) exit HF driver
- 100° H x 80° V dispersion
- Quick-release steel grille
- 3D prediction software [DISPLAY 3]
- Powered by iKON or VIA amplifiers
Suggested Applications:
- Fill and spot coverage
- Under balcony fill
- Theatres and churches
- Distributed systems in bars and restaurants
- Museum and gallery installations
- Immersive sound spaces
- Portable corporate AV events
- Discreet stage monitor
Its multi-angle enclosure with flexible mounting options makes for discreet integration within architectural spaces - from churches, museums and galleries to theatres, bars and restaurants. When supplemented by a subwoofer, it is an excellent choice for premium, short-throw corporate AV events and music playback systems. Being both portable and surprisingly powerful for its size, it can also be used as a fill loudspeaker within a larger touring or installed sound system.
The FP6 is a two-way passive loudspeaker featuring a high-specification 6" LF driver and a 0.7" exit HF driver with a 1.4" diameter high-temperature polymer dome. It delivers an impressive maximum SPL of 119dB peak and has a well-defined dispersion pattern of 100° horizontal x 80° vertical, with horizontal constant directivity characteristics.
Its exemplary dispersion pattern is achieved by incorporating a dedicated waveguide within the magnet structure which merges into a specially shaped, asymmetric LF cone. With the waveguide and cone combining to form the HF horn, this innovative arrangement avoids a separate 'add-on' horn which would impede the wavefront from the cone and cause irregularities in the frequency response. It also improves on conventional through-the-pole coaxial designs, which can suffer from high frequency beaming.
The FP6's durable birch plywood enclosure is finished in hardwearing textured paint and incorporates multiple threaded inserts that facilitate a wide range of mounting options and accessories - including yoke, wall bracket, truss and mic stand mounting. A steel grille with a triple-layer polyester backing presents a discreet professional appearance while resisting dust and water ingress to IP54 environmental rating.
The FP6 can be used in either portrait or landscape orientation, including use as a discreet stage monitor, by rotating the driver within the enclosure. To make this quick and easy, the grille is secured by proprietary quick-release latches, and the driver fixed to the baffle by means of captive thumbwheels. Loosening these by hand allows the driver to be quickly rotated through 90° and re-tightened.
FP6 can be powered by iKON amplifiers, or by VIA amplifiers when used with a DX4.0 controller, or alternatively a DX0.4 or DX0.6 controller. FP6 systems can be modelled in 3D using Display 3 design and prediction software.
PRODUCT NAME | FP6 |
TYPE | Coaxial passive 2-way |
CROSSOVER FREQUENCY | 2.3kHz |
FREQUENCY RESPONSE - 4_Ê(5) | 73Hz - 20kHzʱ 3dB,Ê-10dB @57Hz with preset |
DRIVERS | LF: 6", 1.75" Voice coil, Neodymium Motor with flux stabilising ringsHF: 0.7" exit, 1.4" Voice coil, Coaxial HT polymer dome compression driver |
SENSITIVITY (4V 1M FREE-FIELD) | 91dB |
NOMINAL IMPEDANCE | 16 Ohms |
RATED POWER | 150W AES, 600W peak |
MAXIMUM SPL | 113dB Cont, 119dB Peak (6dB) |
DISPERSION (-6DB) | 100¡ H, 80¡ V |
CONNECTORS | NLT4MPXX-BAG speakons (pair) |
PIN CONNECTIONS (INPUT) | 1+ / 1- |
PIN CONNECTIONS (LINK) | 1+/- and 2+/- |
FITTINGS | 4 x M10, 15 x M6 fixing points, 1 x 3/8” (mic stand) fixing point |
DIMENSIONS | (W) 321mm, (H) 220mm, (D) 197mm (W) 12.6ins, (H) 8.7ins, (D) 7.8ins |
WEIGHT | 5.5kg (12.1lbs) |
VOLUME | 7L |
