DALE SKU # MAAU-LE100

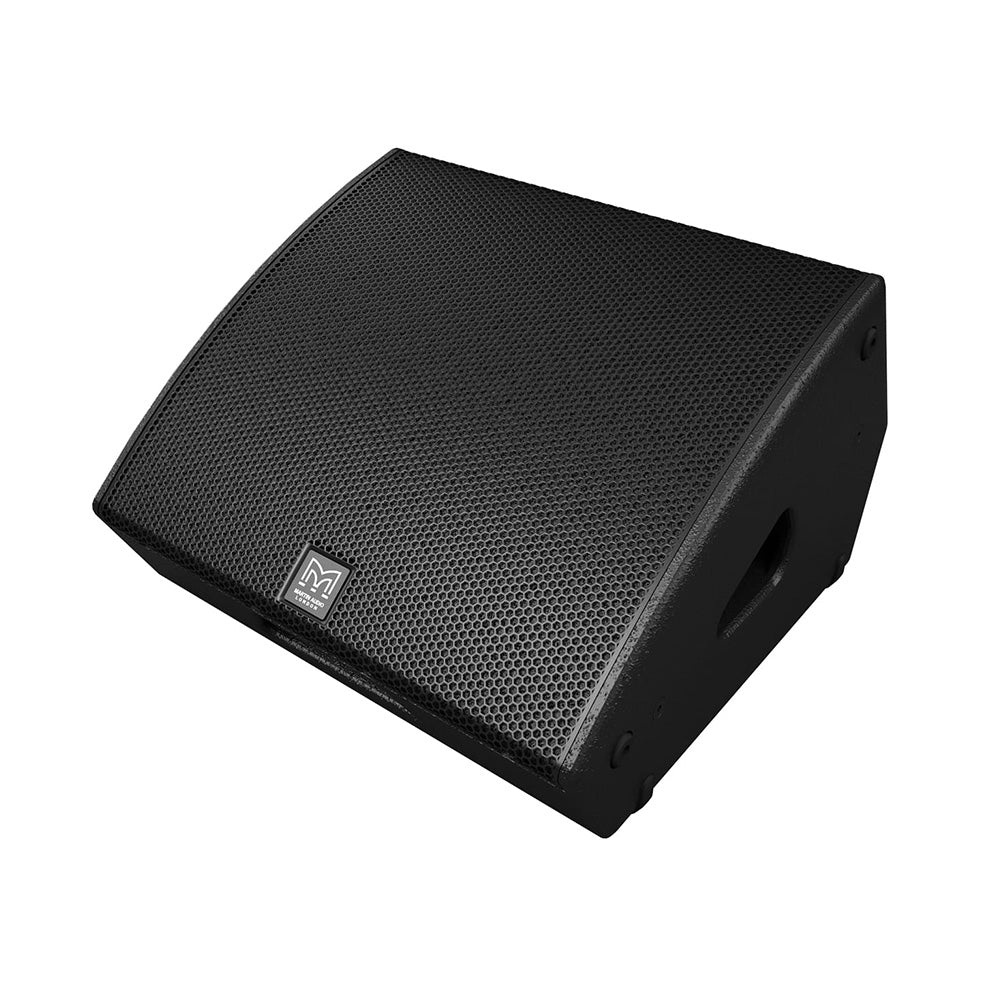

Martin Audio LE100 Two-Way Passive Stage Monitor

Contact us

  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The LE100 is an extremely compact, two-way passive monitor. It features a 12" (300mm) LF /1" (25mm) exit HF Coaxial Differential Dispersion driver to distribute sound evenly over the listening plane. The LF driver section has a 2.5" (65mm) voice coil and an efficient motor system with an aluminium demodulating ring to minimise distortion. The coaxial HF driver utilises a 1.75" (44mm) polyimide dome and features a low-compression phase-plug to reduce non-linearity associated with overly-high compression ratios.

    Features:

    • Compact, two-way stage monitor
    • Coaxial 'point-source' performance
    • Differential Dispersion™ technology for consistent coverage
    • Defined, near-rectangular coverage plane at head-height
    • Low-profile plywood enclosure
    • Integral pole-mount with removable bung
    • M8 rigging inserts
    • Multiple connectors for flexible deployment

    Applications:

    • Stage monitor
    • Pole-mounted fill/PA system

    The unique Coaxial Differential Dispersion technology employed in the LE100 produces a horizontal coverage pattern which varies from a wide 110° directly over the monitor, reducing to 60° further back. This tapering produces a near-rectangular coverage plane at head-height to maintain the sound level and balance independent of distance from the monitor.

    The LE100 enclosure is constructed from durable plywood and is finished with a durable black textured paint. Ergonomic pocket handles assist handling and a strong, perforated steel grille with an acoustically transparent cloth backing provides driver protection. Moulded feet prevent movement onstage and protect the base of the monitor from scratches.

    As well as use as a stage monitor, the LE100 offers a range of flexible deployment options. It can be inverted and used as a pole-mounted sidefill or sound reinforcement system without the need to rotate the drive unit, or combined with a Martin Audio subwoofer as a drumfill. A removable pole-mount bung maintains clean lines in stage monitor guise while a total of five NL4 connectors at the front, base and in each handle pocket satisfy a wide variety of user configurations.

    TYPE Two-way passive, Coaxial Differential Dispersion stage monitor
    FREQUENCY RESPONSE 78Hz-20kHz ± 3dB,
    -10dB @ 58Hz
    DRIVERS
    • LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
    • HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
    RATED POWER 300W AES, 1200W peak
    SENSITIVITY 97dB
    MAXIMUM SPL 129dB peak
    NOMINAL IMPEDANCE
    DISPERSION (-6DB) 110¡-60¡ horizontal, 60¡ vertical
    CROSSOVER 1.6kHz passive
    ENCLOSURE Birch/poplar ply
    FINISH Black textured paint
    PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
    BAFFLE ANGLE 27û
    CONNECTORS 5 x NL4 type
    PIN CONNECTIONS 1+/1-
    FITTINGS
    • 2 x pocket handles
    • Protective rubber feet on base and sides
    • 4 x M8 inserts
    • Pole-mount socket
    DIMENSIONS (W) 490mm x (H) 302mm x (D) 472mm
    (W) 19.3ins x (H) 11.9ins x (D) 18.6ins
    DIMENSIONS INCL FEET (W) 496mm x (H) 305mm x (D) 472mm
    (W) 19.5ins x (H) 12.0ins x (D) 18.6ins
    WEIGHT 18kg (39.7lbs)

    The LE100 is an extremely compact, two-way passive monitor. It features a 12" (300mm) LF /1" (25mm) exit HF Coaxial Differential Dispersion driver to distribute sound evenly over the listening plane. The LF driver section has a 2.5" (65mm) voice coil and an efficient motor system with an aluminium demodulating ring to minimise distortion. The coaxial HF driver utilises a 1.75" (44mm) polyimide dome and features a low-compression phase-plug to reduce non-linearity associated with overly-high compression ratios.

    Features:

    • Compact, two-way stage monitor
    • Coaxial 'point-source' performance
    • Differential Dispersion™ technology for consistent coverage
    • Defined, near-rectangular coverage plane at head-height
    • Low-profile plywood enclosure
    • Integral pole-mount with removable bung
    • M8 rigging inserts
    • Multiple connectors for flexible deployment

    Applications:

    • Stage monitor
    • Pole-mounted fill/PA system

    The unique Coaxial Differential Dispersion technology employed in the LE100 produces a horizontal coverage pattern which varies from a wide 110° directly over the monitor, reducing to 60° further back. This tapering produces a near-rectangular coverage plane at head-height to maintain the sound level and balance independent of distance from the monitor.

    The LE100 enclosure is constructed from durable plywood and is finished with a durable black textured paint. Ergonomic pocket handles assist handling and a strong, perforated steel grille with an acoustically transparent cloth backing provides driver protection. Moulded feet prevent movement onstage and protect the base of the monitor from scratches.

    As well as use as a stage monitor, the LE100 offers a range of flexible deployment options. It can be inverted and used as a pole-mounted sidefill or sound reinforcement system without the need to rotate the drive unit, or combined with a Martin Audio subwoofer as a drumfill. A removable pole-mount bung maintains clean lines in stage monitor guise while a total of five NL4 connectors at the front, base and in each handle pocket satisfy a wide variety of user configurations.

    TYPE Two-way passive, Coaxial Differential Dispersion stage monitor
    FREQUENCY RESPONSE 78Hz-20kHz ± 3dB,
    -10dB @ 58Hz
    DRIVERS
    • LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
    • HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
    RATED POWER 300W AES, 1200W peak
    SENSITIVITY 97dB
    MAXIMUM SPL 129dB peak
    NOMINAL IMPEDANCE
    DISPERSION (-6DB) 110¡-60¡ horizontal, 60¡ vertical
    CROSSOVER 1.6kHz passive
    ENCLOSURE Birch/poplar ply
    FINISH Black textured paint
    PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
    BAFFLE ANGLE 27û
    CONNECTORS 5 x NL4 type
    PIN CONNECTIONS 1+/1-
    FITTINGS
    • 2 x pocket handles
    • Protective rubber feet on base and sides
    • 4 x M8 inserts
    • Pole-mount socket
    DIMENSIONS (W) 490mm x (H) 302mm x (D) 472mm
    (W) 19.3ins x (H) 11.9ins x (D) 18.6ins
    DIMENSIONS INCL FEET (W) 496mm x (H) 305mm x (D) 472mm
    (W) 19.5ins x (H) 12.0ins x (D) 18.6ins
    WEIGHT 18kg (39.7lbs)
